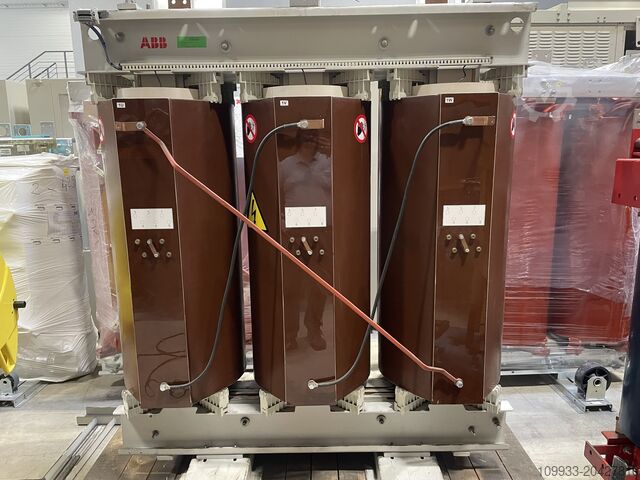

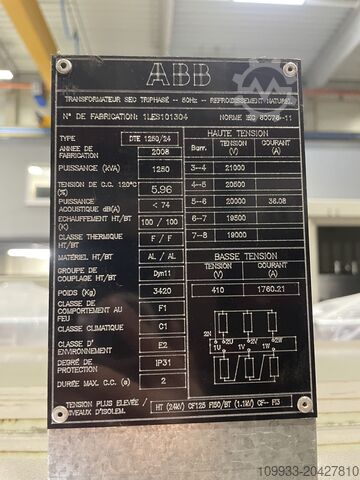

Condition: like new (used), Year of construction: 2008, dry - cast epoxy resin distribution 3 phase transformer manufactured by ABB Zaragoza, Spain, type DTE 1250/24, 50Hz, 1250kVA, 20000 ( ± 2 x 2.5 %) /410V; Dyn11, IP00, IEC losses, year of manufacture 2008, transformer has not been used - new, 2 pcs in stock. Rcsdpjxtqbcjfx Ac Hjh

Condition: used, 12.5 MVA oil transformer, 30 kV / 10.5 kV, Yd11, Trafo-Union, year of manufacture 1975, fully functional, with conservator tank, dimensions LxWxH 3400x2860x4860 mm Rcedpfxexr Aahs Ac Heh

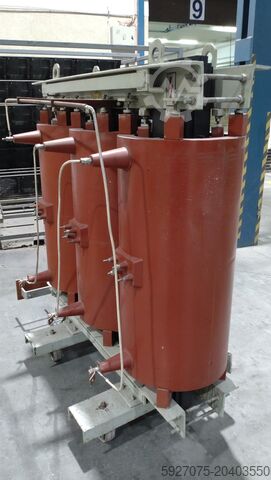

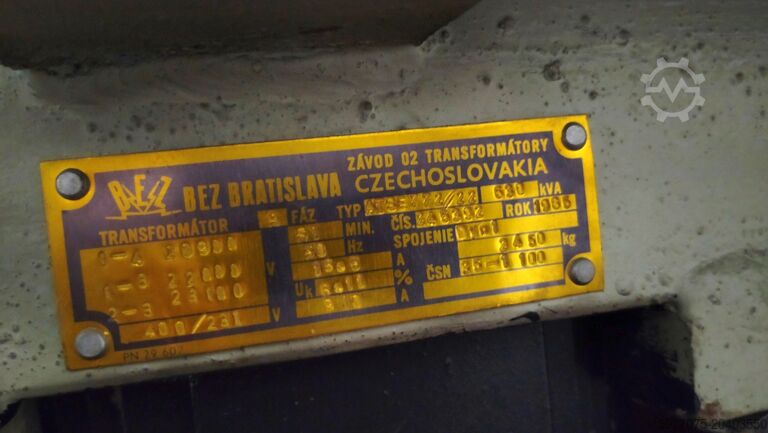

Condition: used, Year of construction: 1985, functionality: fully functional, input voltage: 22,000 V, nominal power (apparent): 630 kVA, secondary voltage: 400 V, empty load weight: 2,450 kg, Dry-type transformer 630 kVA with cast resin insulation. Functional, undamaged. Manufacturer: BEZ Bratislava, type: ATSE 772/22.1, 630 kVA, 22/0.42 kV, Dyn 1, uk = 6%. Rcedpfxjxrzm To Ac Heh

Condition: good (used), Year of construction: 2020, Transformer, transformer, converter, three-phase autotransformer, three-phase transformer, three-phase transformer, single-phase transformer, transformer, auto-transformer Rcjdpsxnxt Nsfx Ac Hjh -Manufacturer: Wuxi Madis, single-phase transformer type JBK3-1000VA -Power: 1000 VA -Technical data: see photo type plate -Dimensions: 150/150/H150 mm -Weight: 12.3 kg

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 2004103035, overall weight: 4,410 kg, input frequency: 50 Hz, nominal power (apparent): 2,000 kVA, 5 transformers of the same type and corresponding switchgear from Enercon E-66 wind turbines available. Rjdpjxnnrnofx Ac Hjch

Condition: good (used), Block DTT 10000 Transformer Manufacturer: Block Type: DTT 10000 10000 VA 50-60 Hz Switching Rating: Dyn 5 Code: 9129 IP: 23 Primary: 500 V 12 A Rsdpfx Acjxl Tbvs Hsch Secondary: 399/231 V 380/220 V 361/209 V 15.15 A HxWxD: 580 x 700 x 430 mm Weight: approx. 170 kg Find more items - new and used - in our shop! International shipping costs on request!

Condition: new, Year of construction: 2017, Dry epoxy cast traction rectifier transformer - manufacturer TESAR Italy, power 2800kVA 20(2x±2,5%)/2x0.586kV, Dd0yn11, IP00 (without protection), load level IV (IEC6016), 100%-2800kVA-continuous, 150%-4200kVA-2 hours, 300%-8400kVA-60s, standard losses according to IEC, Al-Al winding, electrostatic screen, dimensions 2.45x1.4x2.7m (lxwxh), weight 7500kg, never used, complete documentation and test report, 6 pcs in stock, year of manufacture 2017, suitable for battery storage systems BESS, can be installed outdoors in case of IP33 protection. Price negotiable Rcodpfx Acjxlybcs Heh

Condition: excellent (used), Year of construction: 2005, operating hours: 3,328 h, functionality: fully functional, total height: 1,900 mm, total width: 1,000 mm, total length: 1,000 mm, empty load weight: 900 kg, This machine has rather few operating hours. I can also sell Orma press with this machine. Rcodpfsxfqgiox Ac Heh

Condition: new, Year of construction: 2024, functionality: fully functional, machine/vehicle number: 2838 664, type of input current: AC, overall weight: 4,710 kg, input voltage: 16,800 V, input frequency: 50 Hz, total height: 1,820 mm, total width: 1,270 mm, total length: 1,920 mm, nominal power (apparent): 2,000 kVA, secondary voltage: 420 V, protection type (IP code): IP54, temperature: 40 °C, empty load weight: 4,710 kg, space requirement width: 1,270 mm, space requirement length: 1,920 mm, space requirement height: 1,820 mm, input current: 2,750 A, Equipment: type plate available, Three-phase oil transformer according to IEC 60076, hermetically sealed design suitable for ambient temperatures from -25°C to 40°C and maximum installation altitude of 1,000 m above sea level, for outdoor installation, with aluminium windings, routine test according to IEC60076, in accordance with Regulation (EU) No. 548/2014 of 21.05.14 Stage 2, valid from 01.07.2021. Rsdpfx Asxb A Hgsc Hoch

Condition: good (used), overall weight: 1,650 kg, Transformer / Trafo Brand: GONELLA Rodpsxbfy Asfx Ac Hjch 630 kVA 12 kV Net weight: 1650 kg Further data: see photos Loading and shipping possible!

Condition: good (used), Transformer, transformer, converter, three-phase autotransformer, three-phase transformer, three-phase transformer, single-phase transformer, transformer, auto-transformer Rjdpfx Acjw S Dm De Hjch -Manufacturer: OCE Montecchio, Auto-Transformer Type CEI 14-6 -Power: 400 VA -Technical data: see photo type plate -Dimensions: 120/110/H125 mm -Weight: 5.8 kg

Condition: used, Year of construction: 2014, functionality: unexamined, type of input current: three-phase, overall weight: 2,000 kg, input frequency: 50 Hz, nominal power (apparent): 1,250 kVA, For sale: three-phase oil transformer GBE TP3024 1250kVA Rcodpfx Asw Sryfoc Hjh

Condition: used, Year of construction: 1997, functionality: fully functional, 2500 kVA cast resin transformer, manufacturer Veneta, year of manufacture 1997, 20 kV ± 2.5% / 400 V, with rolling wheels, HV/LV connections on top, Dyn5, 6.4% uk. Redpfxsw I A Dtj Ac Hoch

Condition: excellent (used), input voltage: 400 V, nominal power (apparent): 300 kVA, secondary voltage: 200 V, 300 kVA three-phase transformer (3 x 400 V -> 3 x 200 V) for sale Rsdew Ev N Ejpfx Ac Hsch Manufacturer: Trafó-Print Kft. Type: BT23.300k Power: 300 kVA Primary: 3 x 400 V Secondary: 3 x 200 V

Condition: excellent (used), 40kVA 1-phase transformer for sale 1x400V -> 1x110V Manufacturer: Trafó-Print Kft. Type: TZ 40 000 Rcedpfx Acsw Ev Ihs Hjh Power: 40kVA Primary: 1x400V Secondary: 1x110V

Condition: new, Year of construction: 2024, functionality: fully functional, machine/vehicle number: SN: B397497, Equipment: type plate available, Three-phase oil hermetic transformer Type: 1000 kVA 20/0.4 kV Dy11 with significantly reduced losses according to Directive 2009/125/EC EU Regulation No. 548/2014 Rated power: 1000 kVA High voltage: 20 kV Low voltage: 400 V Tapping: +/- 2 x 2.5% Frequency: 50 Hz Vector group: Dy11 HV terminals: external cone according to DIN 47 636-2, 250 A LV terminals: according to DIN EN 50386 with connection flags Equipment: thermometer Rjdpfx Aowxm E Doc Hoch

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, nominal power (apparent): 92 kVA, secondary voltage: 500 V, We offer various types of HV transformers for sale. These are 5 units manufactured by VEB Transformatoren- und Röntgenwerk "Hermann Matern" with input voltage parameters of 500V and power of 62-90kVA. The output voltage is 55kV. Year of manufacture 1988 - unused as a spare part. Furthermore, there are 3 units manufactured by BAS Elektra Brno. Input voltage parameters are 500V, output voltage is 90kV. Power is 71kVA. Rjdpfowwtkqsx Ac Hjch Year of manufacture is 2021. New equipment, unused. Upon request, I will send all necessary information and prices. The equipment comes with a passport and photos of the production labels.

Condition: new, Year of construction: 2023, New, still originally packaged transformer with 3150 kVA from Siemens Energy. Rodpfxowu Ni Do Ac Hech

Condition: good (used), Transformer, transformer, converter, three-phase autotransformer, three-phase transformer, three-phase transformer, single-phase transformer, transformer -Manufacturer: Cloos, ST transformer 027.05.25.00 Rcodpfx Ajwt Rb Sec Hjh -Power: 218 VA -Technical data: see photo type plate -Dimensions: 120/85/H160 mm -Weight: 4.4 kg

Condition: good (used), Transformer, transformer, converter, three-phase autotransformer, three-phase transformer, three-phase transformer, single-phase transformer, transformer -Manufacturer: Elsund, Transformer Type BBXB -Power: 2.233 kVA -Technical data: see photo type plate -Dimensions: 210/210/H255 mm Rcedpfxswt Rano Ac Hsh Weight: 30 kg

Condition: used, capacity in kVA 53,5 kVA input voltage 480 V output voltage / V length 800 mm width 600 mm height 530 mm weight 260 kg Rsdpfx Aewth Ucec Hjch MITSUBISHI Dry type transformer 3PH 53.5 kVA TR-YU Condition: used functional

Condition: like new (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 30606, Transformer Rcodswqfqispfx Ac Hjh Details in the document appendix

Condition: used, Year of construction: 2012, functionality: fully functional, machine/vehicle number: 30801, overall weight: 1,850 kg, input frequency: 50 Hz, nominal power (apparent): 630 kVA, Equipment: type plate available, Transformer type: Cast resin transformer (dry-type transformer) Rcodpfx Acjwqfm Do Heh Manufacturer: TMC Transformers Distribution: Eltroin Schaltanlage GmbH

Condition: used, Year of construction: 2004, Cast epoxy resin - dry - 3 phase distribution transformer, manufacturer TESAR Italy, year of manufacture 2004, power 8000kVA, voltage ratio 20(2x±2.5%)/6,3kV, AN-AF (forced ventilation, permanent overload 30%), YNd11, uk=8%, IP00, standard losses, functional, complete documentation and rutine test report. Rcedpfowpb Eyjx Ac Hoh

Condition: used, Year of construction: 2004, Cast epoxy resin - dry - 3 phase distribution transformer, manufacturer TESAR Italy, year of manufacture 2004, power 2500kVA, voltage ratio 20(2x±2.5%)/0.4kV, AN-AF (forced ventilation, permanent overload 30%), Dyn11, uk=6%, IP00, standard losses, functional, complete documentation and rutine test report. Rcedowpb Etepfx Ac Hoh
