Axel Bauer

Condition: not inspected (used), Year of construction: 2011, Length 5000 mm Width 100 mm Height 2800 mm Year 2011 0 Range+Heine coating system for coating individual wooden window components and frames for sale on behalf of a client ----- Manufacturer’s technical description: Part dimensions: Length: 5,000 mm Height: 2,800 mm Width: max. 100 mm Coating system: Intended use of material from the relevant coating manufacturer with a low solvent content (VOC value), water-based and non-flammable. Capacity: min. 40 crossbars/shift, i.e. approx. 60 window units/shift (without forced drying) Process (1 cycle is run twice): - Flooding - Drying - Checking and applying joint sealant - Spraying - Drying ----- ----- Item 1 Conveyor technology 1 Power + Free circular conveyor Layout as per drawing 11-138-010a Essentially comprising: 3 drives with gear motors for the main chains with frequency-controlled speed (see layout). Various running rails, horizontal curves, chains Tensioning stations, pneumatically/electrically controlled stop stations 50 crossbeams, 5,000 mm long (max. weight 250 kg) Automatic tilting of the crossbeams in the drip-off area after the flooding system 1 conveyor system control (Siemens S7-300 PLC) Programmable buffer stocks Infinitely variable drives. 1 lifting/lowering station for loading and unloading workpieces (max. stroke 2,000 mm) Pgsdpfxjy Ty E Hj Amusn 1 set of steel structure for mounting the conveyor system ----- Item 2: Flood Coating System 1 flowcomat II-P 1 system for colourless primer Maximum workpiece width approx.: 180 mm Consisting of: 1 coating tunnel, 1 Flowcodrive swivel mechanism, 2 flood lances, each fitted with a maximum of 3 nozzles. 1 set of accessories for cleaning the system 1 stainless steel sieve fitted externally 1 paint supply 1 control unit ----- Item 3 Additions to the dip coating system 1 Drip channel and drip tray in the evaporation area behind the dip coating system After dip coating, the crossbars run into a drip buffer. The dripping coating material is returned to the dip coating system via the non-stick PP drip tray (and drip channel). Rinse water is collected in the flood coating system and pumped out. The use of PP for the areas in contact with the coating ensures easy cleaning of dried-on coatings. 1 Humidification system 1 Control unit for the humidification unit Complete with controller for the humidification volume 1 Hygrostat for measuring room humidity and activating the humidification nozzles 3 humidification nozzles for the drip buffer 1 coagulation system 1 R+H waco 200 coagulation system – 200 l collection tank ----- Item 4: Topcoat spray booths 2 paint booths for topcoating 2 extraction walls with sandwich panel cladding to suit the work area. Fan: 16,000 m³/h Filter area: - 3 sets of Ecola pre-separators - 1 set of Paintstop filters - 1 set of bag filters Recirculating air distribution ceiling in a tensioned frame design Volume 12,000 m³/h approx. 75% recirculation – 25% exhaust air operation (the exhaust air volume is extracted from the hall) installed on site-provided foundations in accordance with the layout 2 Prolac overspray recovery columns ----- ----- Item 5 Addition to the topcoat spray booths 3 humidification nozzles fo...

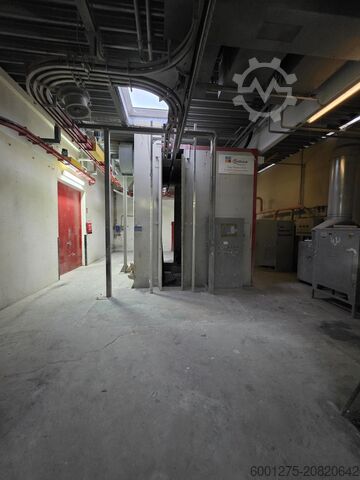

Condition: new, Finiture Paint Line for Windows and Doors ----- Short description: Pgedpfx Amey D A Hhouen Item 1: 1x Double-rail overhead conveyor Item 2: 1x Traverse rotation unit with one coupling Item 3: 1x "Superjet" flood coating system Item 4: 1x High-pressure humidifier Item 5: 1x Wastewater separation system Optional: Flood channel or dipping tank (5–6 basins) For detailed technical description and layout, please see the PDF attachment! ----- Price of the above-mentioned paint line on request! ----- (Technical specifications according to manufacturer – no guarantee!) All prices are net plus statutory VAT.
