Metallbau Poggel GmbH

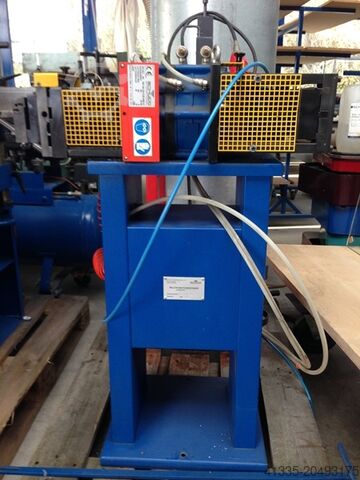

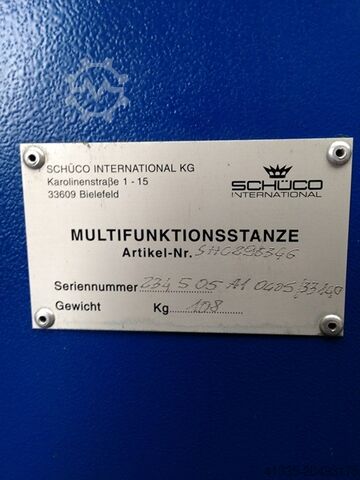

Condition: excellent (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 234505A1/0405/33140, Operating pressure 6-8 bar Weight 106 kg Dimensions 0.70 x 0.38 x 1.05 m Notes: Multi-function punch Air consumption 18 l per stroke, Pneumatic punching process triggered via foot switch Fodpfexvp N Dex Ac Hegi

Condition: good (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 6052, Designed for corner crimping of aluminum profiles ("corner crimping machine"). Maximum profile height: up to approx. 140 mm. Maximum pressing height: up to approx. 100 mm. Press force: 56 kN per head. V-block (anvil) height: up to approx. 80 mm. Supplied with 3 standard sets of crimping tools (3 mm, 5 mm, 7 mm). Foot pedal controlled as standard. Pneumatic pressing (pneumatic press operation via leverage) with a working pressure of 6–8 bar. Fgedpfx Aoxu U E Iec Hei

Condition: new, Year of construction: 2025, Corner Jointing Machine EV175 Fgedoxta Rmspfx Ac Hsi Stable and precise corner joints The EV175 combines cost-effectiveness with high corner stability. The ideal machine for all standard profiles and corner brackets.

Condition: used, Year of construction: 2017, Hydropneumatic operation Profile height: 160 mm below hold-down Max. punching height: 145 mm thanks to 2-way adjustable punch heads Fedpexta Rgofx Ac Hegi Abutment height: 120 mm Pressing force: 56 kN at 8 bar Weight: approx. 400 kg

Condition: good (used), Corner Crimping Press Elumatec, Type: EP 124 Fsdpoxpkf Tsfx Ac Hogi Serial No.: 1240024560 Pressing height: 140 mm Pressing force: 70 kN (7t) Drive: pneumatic With support arms and pressing knives With accessories, tools Electrical connection: 230 V 50/60 Hz Compressed air connection: 7 bar Air consumption: 35 l per working cycle Dimensions (L x W x H): 1100 x 950 x 1230 mm Weight: 545 kg (Changes and errors in the technical specifications as well as prior sale reserved)

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, overall weight: 360 kg, • Dimensions (W × H × D): 900 × 1,180 × 750 mm • Weight: approx. 360 kg • Drive type: hydropneumatic • Operating pressure: 8 bar • Air consumption: 40 l / stroke at 8 bar • Pressing force: 32 kN at 8 bar • Pneumatic connection: R ¼" • Press stroke: 17 mm • Return stroke: 140 mm • Maximum pressing height: 150 mm • Maximum profile height: 210 mm Fodpfx Aexl Hq Rjc Hjgi

Condition: good (used), Year of construction: 1990, machine/vehicle number: 2455, Offer 25293 Technical data: - Max. profile height up to 160 mm - Max. profile width 100 mm - Repetition stroke 100 mm - Punch stroke 20 mm - Punching force at 6 bar: 35 kN - Operating pressure: 6 – 8 bar - Air consumption per cycle approx. 30 l - Equipped with: - Foot switch - 2 vertical pneumatic hold-down devices - Adjustable punching heads - 2 swiveling support arms Fodjxdh Uzspfx Ac Hogi - Required space approx. W 980 x H 1400 x D 800 mm - Weight approx. 180 kg

Condition: used, Hydraulic operation via foot switch Profile height max. 120 mm Abutment stroke 100 mm Punching stroke 50 mm Press force 38 kN Fjdpfjw U Slgox Ac Hsgi Engine power: 3 kW Weight approx. 500 kg

Condition: used, Year of construction: 1999, output 3 kw In our opinion, the machine is in good used condition and can be inspected under power by appointment. Fgedpfxow S Nlxo Ac Hsi Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: used, Hydropneumatic operation Max. punching height: 90 mm Fjdpfx Acjw Inuds Hsgi Abutment stroke: 100 mm Punching stroke: 20 mm Pressing force: 30 kN Max. profile height: 100 mm Weight: approx. 280 kg

Condition: used, Year of construction: 2007, functionality: fully functional, machine/vehicle number: 622, overall weight: 250 kg, Corner Crimping Machine Fedpfxew Hucts Ac Hjgi

Condition: used, Year of construction: 1998, Profile height max. 140 mm Punching height max. 112 mm Punching stroke: 15 mm Fodpew Ddzmjfx Ac Hegi Pressing force 45 kN Weight approx. 500 kg

Condition: used, Year of construction: 1996, Hydropneumatic operation Max. punching height: 90 mm Abutment stroke: 100 mm Punching stroke: 20 mm Pressing force: 30 kN Max. profile height: 100 mm Weight: approx. 280 kg Fgsdpfxsv S D Iks Ac Hsi

Condition: used, Hydropneumatic operation Max. punching height: 90 mm Abutment stroke: 100 mm Punching stroke: 20 mm Pressing force: 30 kN Max. profile height: 100 mm Weight: approx. 280 kg Fgjdpfxou T E Sns Ac Hoi

Condition: used, Elumatec EP124 - windows production machinery IDC000106 - Compression height 1450 mm - Compression force 70 kN (7t) - Pneumatic drive - Power supply 230 V, - Compressed air supply 7 bar Fjdpfx Asu Smh Rsc Hogi - Air consumption per working cycle 35 l - Transportation dimensions: Length: 1100 mm, width 950 mm, height: 1230 mm, weight 534 kg.

Condition: used, Cable reel, cable unwinder, power cable reel, cable reel, workshop reel, cable drum, wall cable drum, workshop cable drum, wall reel -Manufacturer: Zeca, cable drum cable reel -Cable: 12-core, length: 50 m -Hole diameter: 180 x 10 mm Fedpfx Ast Uwx Dsc Hsgi -Dimensions: 715/480/H800mm -Weight: 73 kg

Condition: excellent (used), Carousel punch P160D Fsdpfxst S S Ego Ac Hsgi

Condition: excellent (used), Year of construction: 1999, Type: AKF 250L Fgsdstt Eb Sepfx Ac Hsi Motor: 400V 2,2kW Speed: 2800 rpm Cutter O: 250mm Cutter holder shaft O: 40mm Milling width: 300mm Milling depth: 85mm Profile height: 160mm Weight: approx. 150kg Dimensions W x H x D 950 x1450 x 930 mm

Condition: good (used), Year of construction: 1998, Punch, complete with base frame. Hydro-pneumatic drive. Operation via foot valve. Fgodpfx Acetiy R Uo Hei Punch force at 10 bar = 90 kN. Stroke length max. 40 mm. 25 double strokes / min. at full stroke. Installation height max. 250 mm. Projection 130 mm. Projection with turntable 90 mm. Working height 950 mm.

Condition: new, Year of construction: 2025, machine/vehicle number: SÇ 901 S Pnömatik Alüminyum Köşe Presi Makinası, - Conforms to CE standards - Corner press machine designed for 90 degree joining of aluminum profiles - 2 top presses and blade movement is pneumatic Fgedpfjrbiv Aex Ac Hei - There is a mm ruler system for the height and advancement of the blades. - Centering miter wedge is automatic - Drain button available for fine adjustment - Pneumatic presses use 2 pedals to squeeze the profile - Profile surfaces are polyamide sheet to prevent damage - Side support arms available

Condition: new, Year of construction: 2024, Pneumatic press for the production of aluminum, all kinds of grooving, punching, drilling by means of a height-adjustable piston and actuation by foot switch. Maximum force working weight 3000 kg at 8 atm. Pneumatic pressure 6-8 atm Useful light 260 mm Working stroke 0-35 mm Packing size 500 x 320 mm Log speed 23 mm / s Approximate air consumption per cycle 25 liters Table dimensions 530 x 340 mm Free height 260 mm Adjustable stroke from 0 to 35 mm Fgjdpfopa Nw Sjx Ac Hei OPTIONS : Rotary cabinet / base PACKAGING AND DIMENSIONS: 600 x 490 x 600 (86 kg) Standard packaging made of wooden cages Plantec Maschinen GmbH

Condition: excellent (used), Corner jointing machine Pressta Esiele PV10 shipping EU ~300euro Fedpfx Acel Skl Ij Hsgi

Condition: excellent (used), Corner jointing machine Pressta Esiele PV8 shipping EU ~300euro Fodpjl Skl Dofx Ac Hegi

Condition: excellent (used), Corner jointing machine Anton System EVM 250 Fgjdpfx Ajl Sklysc Hsi shipping EU ~300euro

Condition: excellent (used), Year of construction: 1996, Dimension WxHxD 900 x 1180 x 750 mm Fsdpelf Hd Sofx Ac Hegi Weight 235kg Working mode hydraulic - pneumatic Air pressure 6-8bar Air consumption 40l/stroke at 8bar Pressing force 28kN at 8bar Air connection R1/4" Punching stroke 18mm Abutment stroke 100mm Punching height max 120mm Section height max 150mm
