Condition: used, Year of construction: 2020, controller manufacturer: Heidenhain, controller model: TNC 640, _____ Description: Year of manuf. : 2020 Control : Heidenhain TNC 640 Speed : 18000 rpm Movement X/Y/Z : 500/550/550 mm Tool holder : HSK-A63 Spindle: Technology:Motorspindle Speed:18.000 rpm Power (max.):35 kW Torque (max.):136 Nm Taper:HSK-A63 NC-Swivelroundtable: Technology:Swivelroundtable with hydraulic clamping A-Axis:-115°/+30° C-Axis:360° Clampingsurface:ø500 x 430 mm Tableloading (max.):300 kg In general: Toolmagazine I:Chainmagazine, 55 stations Toolmagazine II:Standbymagazine, 180 stations Rapid travers in X/Y/Z:40 m/min Equipment/Accessory: Positionsensor:Direct Scales in all Axes Chipmanagement:Chip conveyor Coolingmanagement:Internal cooling unit with paperbeltfilter and High-pressure, 25 bar Workpiecemeasurement:Touchprobe, m&h 25.50 Toolmeasurement:Laser, BLUM LC 50 Automation:Robotcell, BMO Automation Platinum 50 Sideloader Oilmistseparation:Electrostatic extraction, LTA 500 Setup operations:Electronic handwheel Further Equipment:Spindlechiller, Rinsing pistol Gtodpsykdu Ejfx Afasu Further Accessory:4 pieces Pallets 395 x 395 mm with clamping devices

Condition: excellent (used), Year of construction: 2011, FOR SALE 5-AXIS Machining Centre Model: DMG SAUER ULTRASONIC 20 LINEAR Year: 2011 Configuration: Complete machine with robot To complete the technical file, could you please specify the following characteristics: - Table capacity / Axis travel (X × Y × Z): [e.g., 800 × 500 × 500 mm] - Payload / Max. table load: [e.g., 1,200 kg] - Accepted raw workpiece dimensions: [e.g., Ø 500 mm / 700 × 500 mm] - Spindle power / Torque: [e.g., 18 kW, 200 Nm] - Robot capacity (Payload / Reach): [e.g., 10 kg, reach 1,200 mm] - Ultrasonic machining capability: [Amplitude, frequency, compatible tools] SIEMENS CNC Gedpfoyi Tpijx Afaetu Awaiting your response, I remain at your disposal for any further information.

Condition: like new (used), Year of construction: 2010, operating hours: 32,498 h, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, nominal power (apparent): 35 kVA, controller manufacturer: Heidenhain iTNC 530, workpiece width (max.): 500 mm, workpiece diameter (max.): 630 mm, workpiece weight (max.): 200 kg, total height: 2,590 mm, total length: 4,780 mm, total width: 4,410 mm, overall weight: 5,900 kg, spindle speed (min.): 18,000 rpm, spindle motor power: 35,000 W, Year of construction: 2010 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 500 Y-axis travel mm: 450 Z-axis travel mm: 400 C-axis degrees: 360º (0,001) B-axis degrees: 0º/108º (0,001) Feed rates m/min: 80/50/50 Milling/turning table nc: Number of pallets: 1 Table dimensions mm: Ø500x380 Maximum workpiece size (D x H) mm: Ø630x500 Max. workpiece weight kg: 200 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 35/25 (40%ED/cont) Spindle torque Nm: 130/87 Cooling Cooling through the Spindle Center bar: 40 Tool system Tool holder: HSK-A63 Gtodpfxsyi Dnie Afaeu Tool magazine slots: 30 With free neighboring places mm: 130 With occupied neighboring places mm: 80 Max. Tool Length mm: 300 Chip-to-chip time s: 5 Equipment Chip conveyor Infrared probe blowing air through spindle center selectable via M-function Laser tool measurement for measuring tool length and diameter Programmable coolant nozzles Oil skimmer Ready for internal cooling (40/80 bar) RENISHAW Measuring probe Machine running times Under power: 54257 Spindle Working: 32498 Rated power kVA: 48 Basic machine dimensions / weight Length mm: 4780 Width mm: 4410 Height mm: 2590 Weight kg: 5900

Condition: like new (used), Year of construction: 2012, operating hours: 24,864 h, travel distance X-axis: 400 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 375 mm, controller manufacturer: Heidenhain iTNC 530, workpiece diameter (max.): 380 mm, workpiece weight (max.): 2,500 kg, total height: 2,480 mm, total length: 1,970 mm, total width: 2,730 mm, overall weight: 6,900 kg, spindle speed (min.): 18,000 rpm, spindle motor power: 35,000 W, Year of construction: 2012 Gsdpfx Asyi Am Dofaotu CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 400 Y-axis travel mm: 400 Z-axis travel mm: 375 C-axis degrees: 360º (0,001) B-axis degrees: -5 / +110º Distance spindle nose - table surface mm: 125-500 Feed rates m/min: 50 Rapid traverse m/min: 80 Milling/turning table nc: Number of pallets: 1 Table dimensions mm: 450x400 Maximum workpiece size (D x H) mm: Ø380 Max. workpiece weight kg: 2500 Table rotation speed rpm: 1200 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 35/25 (40%ED/cont) Spindle torque Nm: 130/87 Cooling Cooling through the Spindle Center bar: 40 Tool system Tool holder: HSK-A 63 Tool magazine slots: 30 Equipment Chip conveyor Infrared probe blowing air through spindle center selectable via M-function Oil skimmer Ready for internal cooling (40/80 bar) RENISHAW Measuring probe Machine running times Under power: 46650 Spindle Working: 24864 Rated power kVA: 46 Basic machine dimensions / weight Length mm: 1970 Width mm: 2730 Height mm: 2480 Weight kg: 6900

Condition: good (used), Year of construction: 2006, 2006 Deckel Maho DMU 125 FD duoBLOCK 6-Axis Universal Turn/Mill Machining Centre with Siemens Control 'T' Slotted Table Ø1,250 x 1,100mm (11 'T' Slots). Maximum Table Load 2,000kg. Axis Travel 'X'=1,250mm, 'Y'=1,000mm, 'Z'=1,000mm, 'A'= +180/-30°, 'B'=360°. Rapid Traverse 60m/min. Table Turning Speed Range 20-500rpm. Maximum Spindle Speed 10,000rpm (59kW Motor). 60 Position ATC. Spindle Taper HSK A100. S/No.1163 000011 3 (2006). The machine is available due to new capital investment and must be removed by 27 April 2026. Please note that the buyer will be responsible for providing suitable lifting and transport brackets for removal. Gedeyim H Ejpfx Afajtu With Dual Auger To Chip Conveyor, Spindle Inspection Probe Interface, Blum Laser Tool Setter, Paper Filtration Through Spindle Coolant System, Chiller Unit, Losma Darwin 3000 Mist Extractor Unit & Handwheel.

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 29175050074, travel distance X-axis: 450 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 460 mm, controller model: HEIDENHAIN ITNC 530, spindle speed (max.): 28,000 rpm, TECHNICAL DETAILS Number of axes: 5 Travel X-axis: 450 mm Travel Y-axis: 650 mm Travel Z-axis: 460 mm Swivel angle A-axis: -10 / +110 ° C-axis: 360 ° Table rotation speed max.: 110 rpm Number of tool stations: 120 Maximum tool diameter: 80 mm Maximum tool length: 250 mm Maximum tool weight: 6 kg Tool holder: HSK 63 Maximum spindle speed: 28,000 rpm Rapid traverse: 80 m/min MACHINE DETAILS Control system: HEIDENHAIN ITNC 530 Gjdpjyiactefx Afastu Connected load: 70 kVA Spindle power: 38 / 28 kW Connection: 50 Hz 3x 400 Volt Machine weight: 9,900 kg Dimensions & Weight Dimensions (L x W x H): 3,210 x 2,930 x 2,900 mm Machine weight: 9,900 kg EQUIPMENT 3D workpiece measuring device

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, DMU 35 M Machining Center Year of manufacture: 2001 Heidenhain control Fully functional X: 350 mm Y: 240 mm Z: 340 mm C: 360° manual B: +105° / -15° manual Without vise Gtodpfxoyh Ruqs Afaeu Loading possible Available promptly

Condition: used, Year of construction: 2001, Manufacturer: DECKEL MAHO (DMG) Model: DMU 70 VL Year of Manufacture: 2001 Control Unit: HEIDENHAIN TNC 430 Machine Type: 5-Axis Universal Machining Center Working Range / Travels: X-axis: 710 mm Y-axis: 520 mm Z-axis: 520 mm B-axis (Swivel range): -10° / +95° (NC-controlled) C-axis (Rotary table): 360° (NC-controlled) Work Table: Table Type: NC Swivel-Rotary Table Clamping Surface: Ø 700 x 500 mm Max. Table Load: 350 kg Milling Spindle: Max. Spindle Speed: 12,000 RPM (Motor Spindle) Drive Power (40% / 100% ED): 15 kW / 10 kW Tool Taper: SK 40 (DIN 69871) Tool Changer: Gjdpsyh Nm Sefx Afastu Magazine Positions: 30 slots Max. Tool Diameter: 80 mm / 160 mm (with empty adjacent pockets) Max. Tool Length: 315 mm Max. Tool Weight: 6 kg Feed Rates & Motion: Rapid Traverse (X/Y/Z): 30 m/min Max. Feed Rate: 20,000 mm/min Weight & Footprint: Machine Weight: approx. 5,500 kg Total Power Requirement: 40 kVA Space Requirements: approx. 4.0 m x 3.0 m x 2.8 m Equipment & Features: High-End Control: Heidenhain TNC 430 5-Axis Capability: Full NC swivel/rotary integration.

Condition: used, Year of construction: 1975, Deckel LKS coordinate grinding machine from workshop liquidation. Function not tested. Gedpfx Afeyhxcpoajtu

Condition: good (used), Year of construction: 2002, 4-axis machining centre DECKEL MAHO DMU 80 T, No. 1113000335 3, year of manufacture: 2002, machine hours: 74,780 (spindle: 41,245), travel distances XYZ = 880 x 630 x 630 mm, HEIDENHAIN control, chip conveyor, filtration system Gtedpfsyhqz Hsx Afaou

Condition: good (used), Year of construction: 1999, 5-axis machining center DECKEL MAHO DMU 125 P, no. 1098 000101 3, year of manufacture 1999, machine hours: 93,440 (spindle: 51,147), travels XYZ = 1,250 x 880 x 800 mm, HEIDENHAIN control, tool changer, chip conveyor Gjdpfx Asyhqzyjfastu

Condition: good (used), Year of construction: 2000, 5-axis machining centre DECKEL MAHO DMU 200 P, No. 1099 000054 3, year of manufacture 2000 (complete overhaul in 2024), machine hours: 22,852 (spindle: 77,915), travels XYZ = 1,800 x 2,000 x 1,100 mm, HEIDENHAIN control, tool changer, with filtration system. Gjdpfoyhqzmex Afastu

Condition: used, Year of construction: 2007, travel distance X-axis: 880 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, controller manufacturer: Heidenhain, controller model: iTNC 530, total height: 2,500 mm, total length: 4,500 mm, total width: 4,000 mm, table load: 800 kg, rotary table diameter: 700 mm, overall weight: 14,000 kg, spindle speed (max.): 18,000 rpm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, DMG / Deckel Maho 5-axis machining centre with Heidenhain iTNC 530 control. The machine features a 5-axis simultaneous machining concept with swivelling B-axis (+30° / −120°) as well as an integrated NC rotary table (C-axis, 360°) and is designed for complex and precise machining operations. Gtodoyhn A Uepfx Afaou Equipped with a main spindle with HSK-A63 tool interface and a 32-position tool magazine for flexible manufacturing applications. Suitable for tool and mould making, contract manufacturing, as well as general precision machining.

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 2010407, travel distance X-axis: 320 mm, travel distance Y-axis: 320 mm, travel distance Z-axis: 320 mm, controller model: HEIDENHAIN iTNC 530, spindle speed (max.): 40,000 rpm, TECHNICAL DETAILS Travel distance X-axis: 320 mm Travel distance Y-axis: 320 mm Travel distance Z-axis: 320 mm Number of axes (simultaneous): 5 Max. spindle speed: 40,000 rpm Max. workpiece length: 150 mm Max. workpiece width: 150 mm Gtsdpfxsyhnygj Afaou Max. workpiece height: 150 mm Max. workpiece weight on table: 20 kg A-axis: 360° B-axis swivel range: +/- 115° Number of tools in tool changer: 60 Tool holder: ISO V 30 Feed rate: 60,000 mm/min Rapid traverse: 60 m/min MACHINE DETAILS Control system: HEIDENHAIN iTNC 530 Connection: 50 Hz 3x 400 Volt Spindle motor: 11 kW Total power consumption: 35 kW Dimensions & Weight Dimensions (L x W x H): 2,700 x 2,400 x 2,900 mm Machine weight: approx. 6,000 kg EQUIPMENT Set of tool holders Coolant unit Chip conveyor Lighting Coolant/mist extraction Switch cabinet air conditioning Status indicator lamp

Condition: like new (used), Year of construction: 2023, functionality: fully functional, DMG CMX 50 Year of manufacture: 2023 Spindle hours: approx. 1,300 h Spindle: 15,000 rpm inlineMASTER Tool holder: SK40 Tool stations: 30 slots Control: Siemens 840D sl Gtjdpsyg Nqksfx Afaju X travel: 500 mm Y travel: 450 mm Z travel: 400 mm Weight: 4,700 kg

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: M281364F3ND, travel distance X-axis: 1,000 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 500 mm, controller model: Siemens 828D inkl. Shopmill, rotational speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel range X-axis: 1,000 mm Travel range Y-axis: 550 mm Travel range Z-axis: 500 mm Rapid traverse X/Y: 36 m/min Rapid traverse Z: 30 m/min Feed rate: 24,000 mm/min Spindle speed range: 12,000 rpm Number of tools in magazine: 24 pcs Godsygxkmepfx Afajtu Tool holder: BT 40 MACHINE DETAILS Control: Siemens 828D incl. Shopmill Machine weight: approx. 6.5 t EQUIPMENT Hinged belt chip conveyor Internal coolant supply up to 30 bar

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, overall weight: 10,000 kg, PREMIUM LISTING – DMG MORI DMU 60 eVo (2017) | 5-Axis | TNC 640 | 120 Tools | Automation-Ready | 40 bar Overview Offered for sale is a high-specification DMG MORI DMU 60 eVo 5-axis machining centre, Made in Germany, equipped with a robust configuration suitable for demanding production requirements. The machine is automation-ready, making it ideal for lights-out manufacturing and future integration of pallet or robotic systems. Key Highlights • Year: 2017 • Control: Heidenhain TNC 640 (ERGOline® Control, 19” screen) • 5-axis NC swivel rotary table (B-axis -5° to +110°, C-axis 360°) • 120-position tool magazine • High-speed spindle up to 18,000 rpm, SK40 BIG-PLUS • Automation-ready + extended M65 interface • DMG MORI geometric inspection protocol available Configuration & Options (as equipped) Control / Software / Operation • Heidenhain TNC 640, ERGOline® Control, 19” display • Operating mode 4 – process monitoring in production • Electronic handwheel 5-Axis Table / Measuring Gtedpfeygky Tsx Afaou • NC swivel rotary table 600 × 500 mm • B-axis -5° to +110°, C-axis 360° • Max load: 400 kg • Direct measuring systems (rotary axes) • Renishaw OMP60 optical infrared probe Spindle / Tooling / Magazine • Spindle interface: SK40 BIG-PLUS 18,000–20,000 rpm 35 kW (40% ED) / 25 kW (100% ED) • Tool magazine: 120 positions (chain magazine with double gripper) • Tool breakage detection TRS2 (contactless detection; suitable for small diameters) Coolant / Chip Management / Enclosure • Internal coolant supply (IKZ), 40 bar (paper band filter tank 600 L) • Chip conveyor • Extended chip flushing (additional flushing of work area) • Chip wash gun • Spindle centre air blast (selectable via M-function, conditioned air with low oil content) • Rotating safety window (rotating viewing pane) • Oil & emulsion mist separator (mechanical) • Automation Ready • Extended M65 interface Connectivity / Service • DMG MORI Messenger (installation kit for machine connection) • DMG MORI Netservice client (remote diagnostics support via external PC)

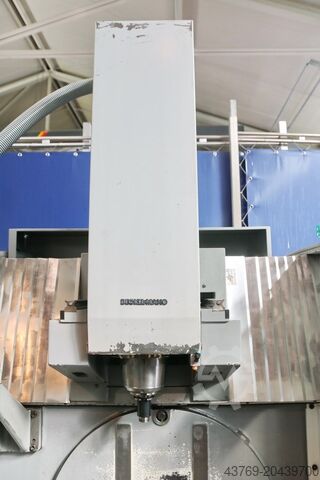

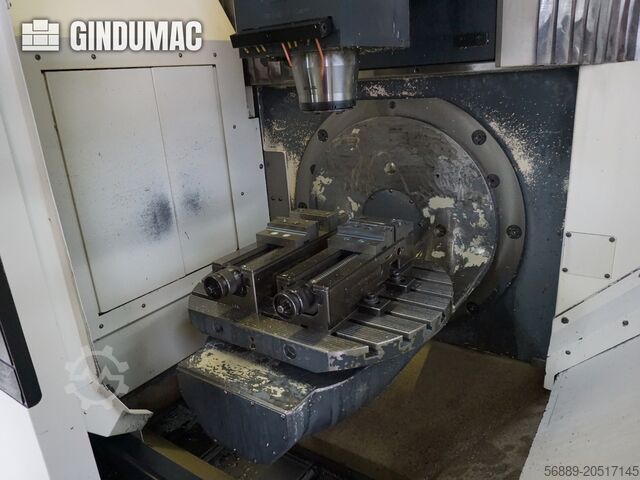

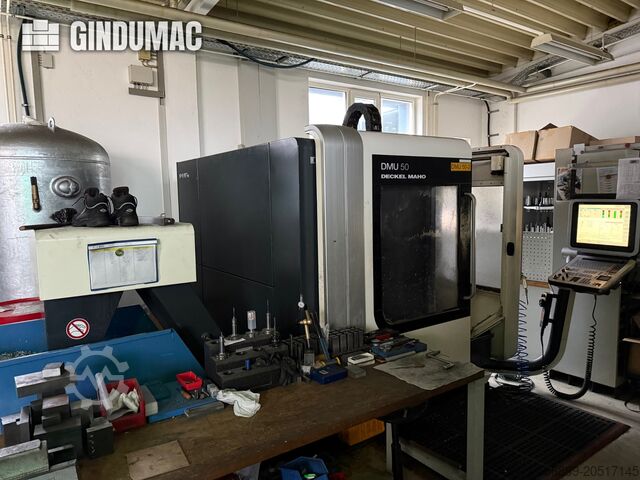

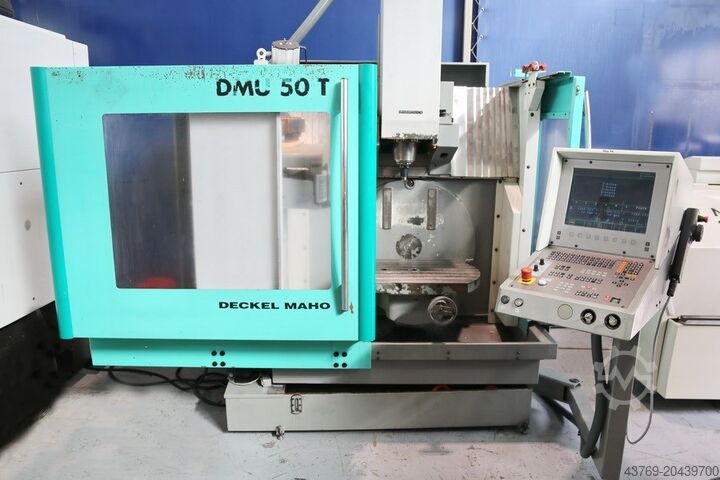

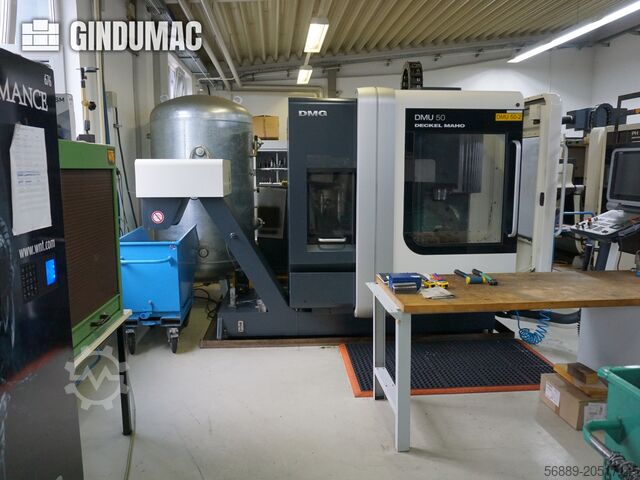

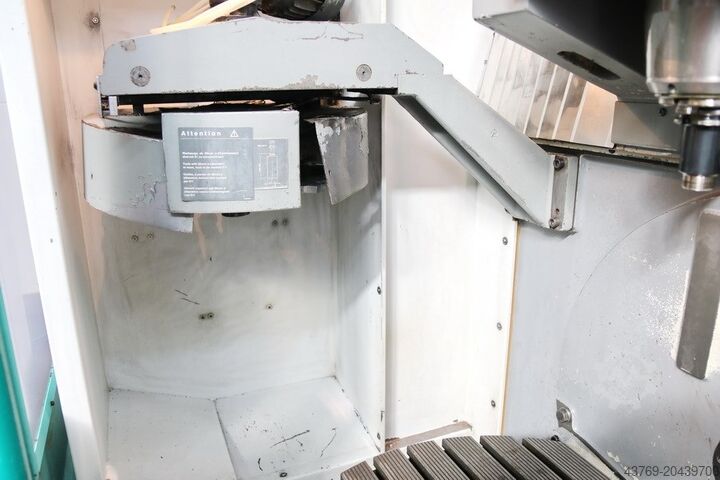

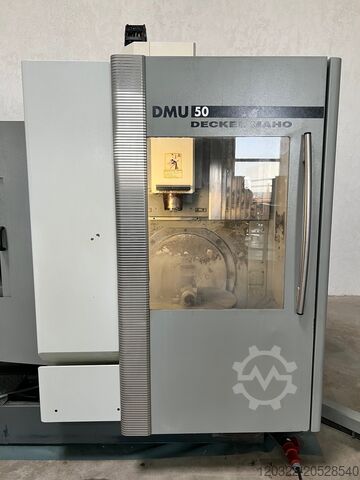

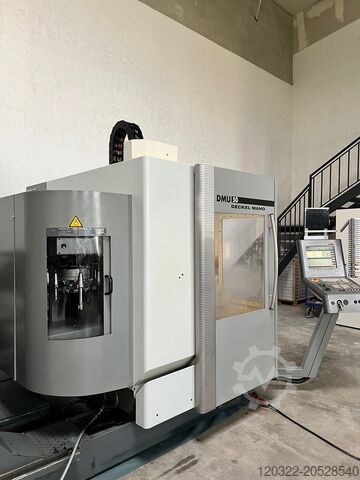

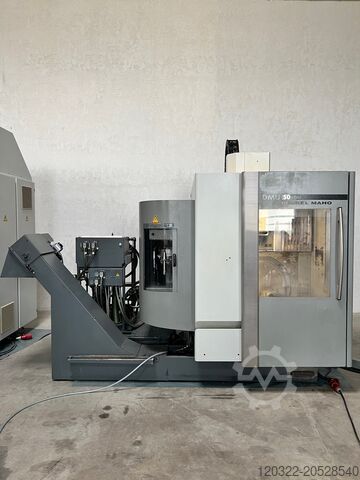

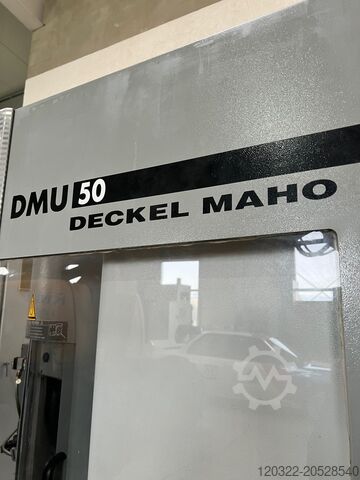

Condition: good (used), Year of construction: 2004, operating hours: 6,293 h, functionality: fully functional, For sale is a machining centre from the manufacturer Deckel Maho, model DMU 50. The machine is in good condition and can be inspected on site. Gedpfx Afjyghqvsaotu

Condition: excellent (used), Year of construction: 2021, operating hours: 7,237 h, functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 510 mm, torque: 64 Nm, controller manufacturer: Siemens, table load: 600 kg, rotational speed (max.): 10,000 rpm, overall weight: 5,600 kg, operating hours of spindle: 4,048 h, number of axes: 3, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The machine is in very good condition and has so far only been used for cutting M8 threads in aluminum. Therefore, the spindle load has also never been particularly high. Equipment: • Renishaw PP40 wireless workpiece probe • Tactile tool measurement system • Job Shop package for Siemens 828 D • Chip conveyor • Tool changer with 24 positions • Tool holder for SK 40 DIN69871 and pull stud DIN69872 Gtodsyftzqspfx Afaeu • Table surface 850x650mm • Drive power 100% duty cycle 9 kW • Drive power 40% duty cycle 13 kW • Torque 43 Nm • Maximum torque 64 Nm • Rapid traverse X / Y / Z 24/24/24 m/min • Coolant spray gun

Condition: good (used), Year of construction: 2001, Machine is in good condition. Gjdpfsyfhauox Afajtu

Condition: ready for operation (used), Year of construction: 2001, operating hours: 85,355 h, functionality: fully functional, machine/vehicle number: 71.405627, travel distance X-axis: 600 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, controller model: Heidenhain Millplus, table width: 630 mm, table length: 500 mm, TECHNICAL DETAILS Travel X-axis: 600 mm Travel Y-axis: 700 mm Travel Z-axis: 600 mm Number of pallets: 2 pcs Pallet clamping surface: 500 x 630 mm Max. load pallet changer (one-sided): 600 kg Max. load pallet changer (double-sided): 1,200 kg Max. table plate rotation: 13.6 rpm Feed rate: max. 15,000 mm/min Rapid traverse speed: max. 40 m/min Set-up operation: 2,000 mm/min Magazine positions: 60 slots Max. tool weight: 10 kg Max. tool diameter: 100 mm Max. tool length: 350 mm Measuring System Resolution: 0.001 mm Input increment: 0.001 mm Positioning tolerance: 0.010 mm Godpjyfhahjfx Afaotu MACHINE DETAILS Control: Heidenhain Millplus Dimensions & Weight Machine without tool magazine: 8,400 kg Weight of tool magazine (60 tool positions): 600 kg Floor dimensions: 4.50 m × 2.72 m × 2.63 m Electrical Data Rated power: 44 kVA Current consumption, maximum: 64 A Current draw: 80 A Supply voltage: 400 V Frequency: 50 Hz Control voltage: 24 V Operating Hours Power-on hours: 96,878 h Spindle hours: 85,355 h

Condition: good (used), Year of construction: 2001, operating hours: 9,000 h, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 800 mm, controller manufacturer: MillPlus, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The machine is in good condition! Gtjdoydpytjpfx Afaju

Condition: used, Year of construction: 2002, functionality: fully functional, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, For sale DECKEL MAHO DMU 100 T machining centre – 5 continuous axes: Description: CNC vertical machining centre with 5 simultaneous axes, designed for complex precision parts machining (mould making, aerospace, automotive, etc.). Technical specifications: - Model: Deckel Maho DMU 100 T - CNC control: Heidenhain iTNC 530 - Axes: X / Y / Z + B rotation + A rotation (simultaneous 5-axis machining) Axis travels: - X-axis: approx. 1050–1150 mm - Y-axis: approx. 710–750 mm - Z-axis: approx. 710 mm Spindle and tooling: - Spindle speed: Up to 18,000 rpm - Spindle power: approx. 28 kW - Tool mounting: SK 40 - Tool magazine: 32 positions Table and capacity: - Type: Integrated NC rotary table - Dimensions: approx. 800 x 800 mm - Max load: 500–800 kg Gtsdpfxjyc Tzls Afaou Dimensions and weight: - Machine weight: approx. 9,500–10,000 kg - Dimensions: approx. 3500 x 2500 x 3000 mm (L x W x H) I remain at your disposal for any further information.

Condition: used, Year of construction: 2012, travel distance X-axis: 600 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, Travel: X / Y / Z = 600 / 500 / 500 mm NC rotary table 600 x 500 mm B-axis swivel range -5° to +110° C-axis 360° Maximum loading weight: 400 kg, direct measuring systems including table cooling Dynamics package: linear drive on X / Y axes Rapid traverse X / Y / Z: 80 m/min Acceleration X / Y / Z: 10 m/s² Active cooler for main spindle, linear drive, and table Control: Siemens 840D SL Operate Spindle: 20 - 24,000 rpm HSK-A63 according to DIN 69893 • Tool magazine: chain magazine with 60 tool stations Gsdpfx Ajyc Tthjfaotu • Tool length measurement and breakage control: Blum Z-Nano • Scraper belt chip conveyor with cleaned slotted sieve, internal coolant supply (IKZ) paper filter 40 bar 231 l/min, 600 l tank including rotary viewing window, sealing air for linear systems, bed flushing • Blowing air through spindle center selectable via M function, maintained air with low oil content • Electronic handwheel • Spray gun for chip flushing • Extended chip flushing system • Laminated safety glass panels for working area door and side window • Operating mode 4 • High speed settings • Measuring probe: Blum HSK-A63 • Prepared for 3D QuickSet • Optionally oil mist extraction unit • New spindle at 25,800 spindle hours

Condition: used, Year of construction: 2008, x-travel 500 mm y-travel 450 mm z-travel 400 mm Godpoycxiuofx Afaetu Control Heidenhain iTNC530 total power requirement --- kW weight of the machine ca. ca. 5,0 t dimensions of the machine ca. 5,10 x 6,10 m
