Bottle hoists, electrical lifts

SWF

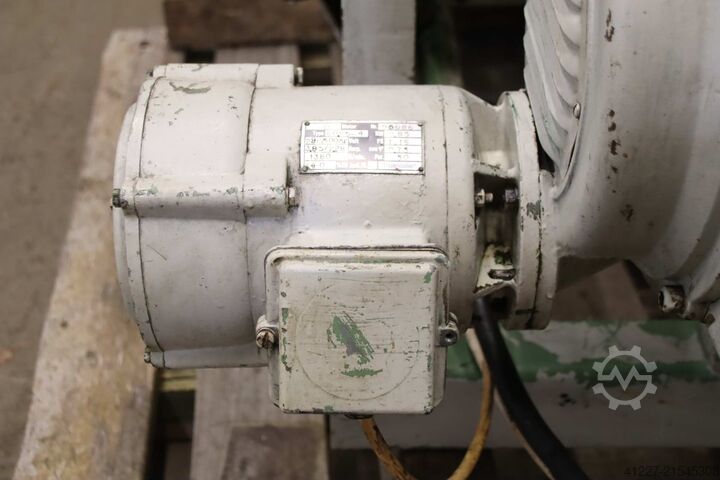

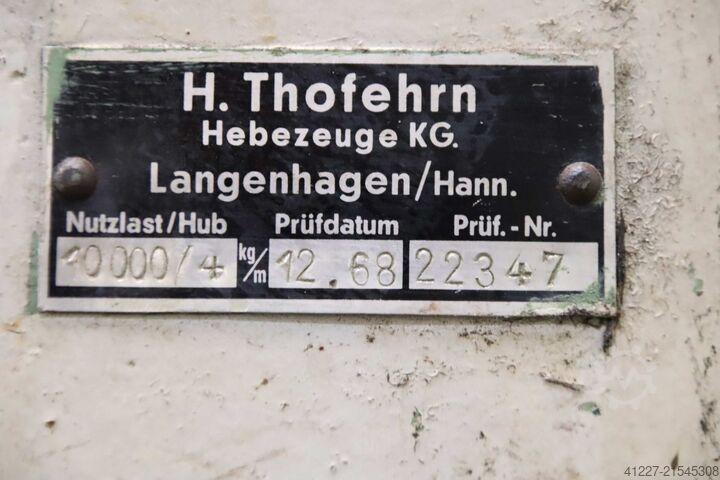

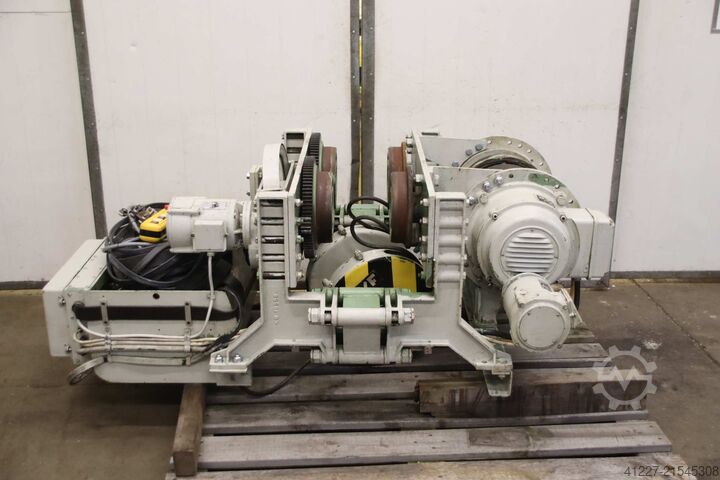

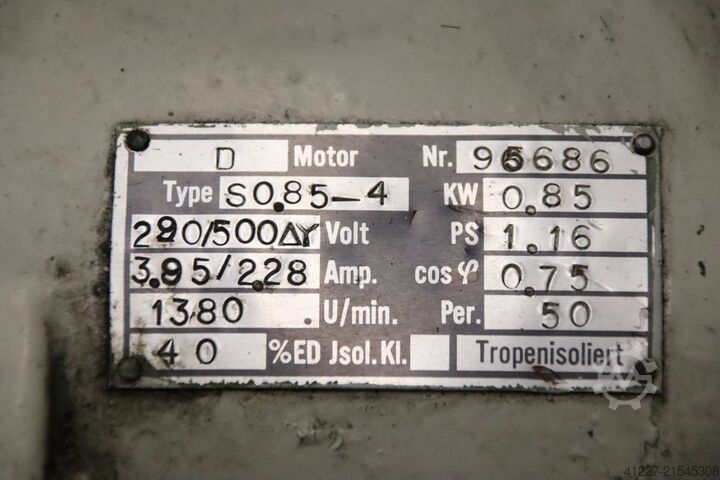

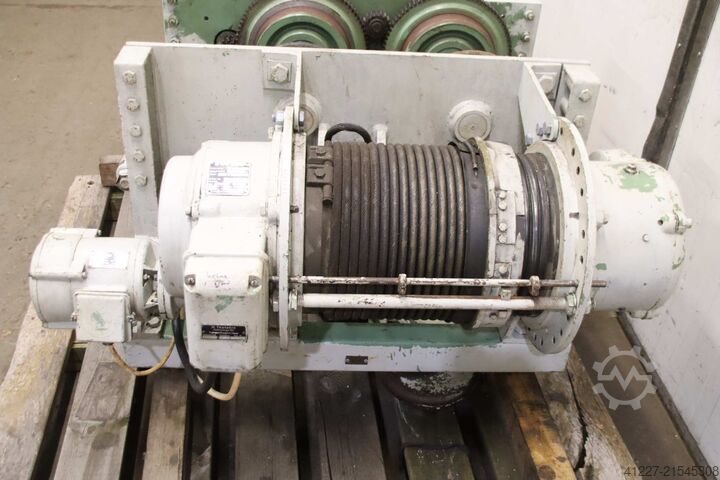

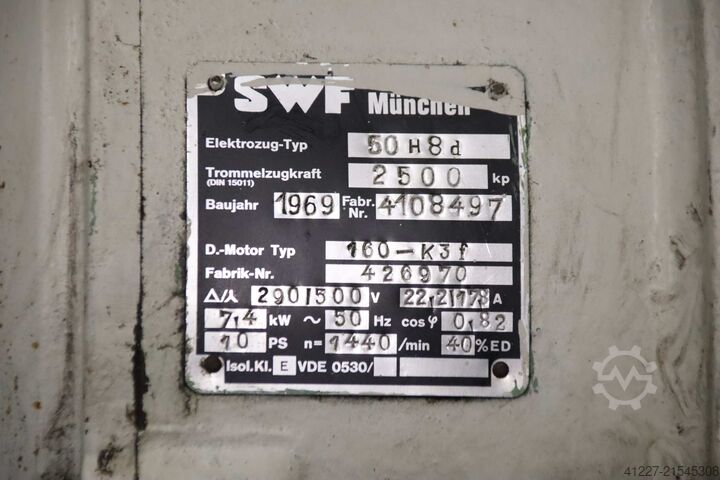

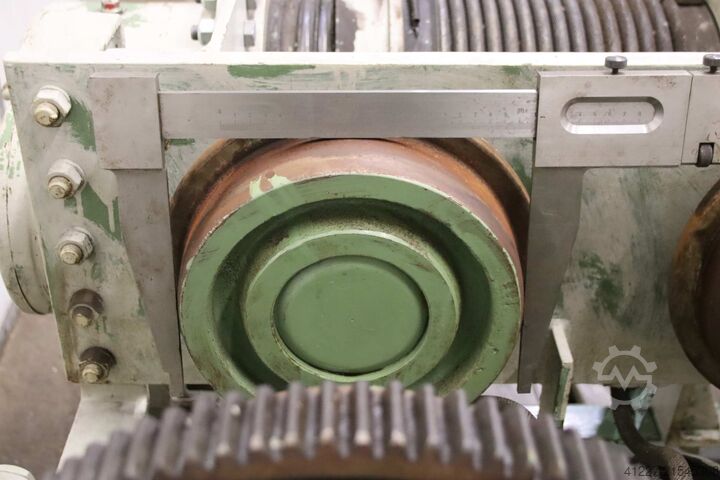

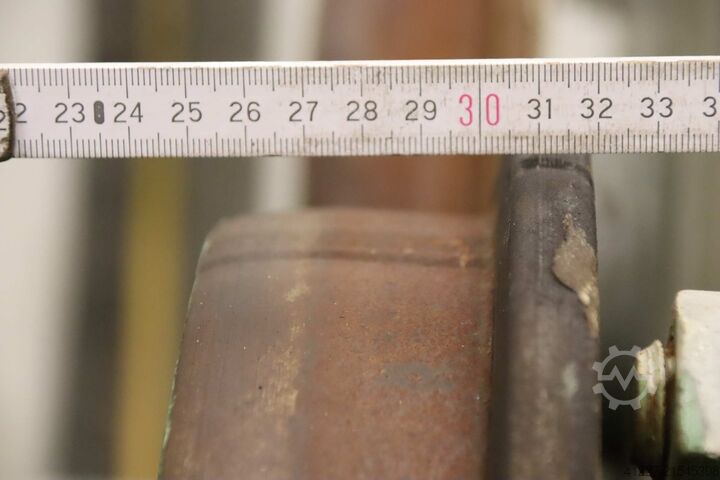

Condition: good (used), Year of construction: 1969, Overhead crane, crane, electric hoist, manual trolley, trolley, crane trolley, crane trolley, crane trolley, trolley, girder trolley, monorail trolley, hoist -Manufacturer: SWF, crane chassis with electric cable winch -Cable pull: Type 50H8d Isdpfx Absyvum Renetd -Load capacity: 10,000 kg -Main stroke: m/min -Drive system: S0.85-4 -Travel speed: m/min -Roller spacing: mm, dimensions see photos -Drum speed: m/min -Quantity: 1 crane trolley available -Price: per piece -Transport dimensions: 1250/1960/H820 mm -Weight: 1320 kg

Condition: excellent (used), Span actual approx. 25,0 m Jibs fixed leg useable (possible)/ total (possible) max. approx. 18,5 (21,5)/22,0 (25,0) m swing leg useable/total max.approx. 12,5/16,5 m Lifting height under Spreader actual/possible approx. 11,3/14,0 m Construction/reconstruction TAKRAF/TEICHMANN Year of reconstruction 2019 Iodpfx Abed N D U Donjtd

Condition: good (used), Column jib crane, overhead crane, workstation crane -Manufacturer: Steel, column jib crane, lifting capacity 2500 kg -Base plate: Ø 705 mm -Load capacity: 2500 kg -Chain hoist: SWF type CC 085.2P, year of manufacture 2013 -2x lifting speed: 4.0/0.7 m/min -Drive system: yes Itedeyttpqepfx Abnjd -Swivel drive: yes -Projection: 3040 mm (2000 kg at 4040 mm) -Total height: 4445 mm -Hook height: 3975 mm -Swivel range: 360° -Transport dimensions: 1200/4620/H1960 mm -Empty weight: 1320 kg

Condition: new, New Electric Belt Hoist SWF - PFAFF Silberblau Type ATHLO belt - BH203L3E Textile belt hoist, crane hoist with trolley Serial No.: 3540053G01007 Year of manufacture: 2003 (new - unused) Lifting capacity: 1,600 kg Hook path: 6 meters Main hoisting speed: 6.5 m/min Creeping hoist speed: 1.0 m/min Trolley travel speed: 10 / 2.5 m/min Distance from undercarriage wheel to load hook: approx. 450 mm Pendant control cable length: approx. 6 meters 3 load strands = 1,600 kg Main hoist motor power: 1.9 kW Creep hoist motor power: 0.3 kW Trolley motor power at 10 m/min: 0.25 kW Trolley motor power at 2.5 m/min: 0.06 kW Power connection: 400 Volt, 50 Hz - Emergency stop - Very quiet, low-maintenance, and safe operation - Trolley for I-beams, with 2 travel speeds - Suitable for I-beams with approx. 100 to 200 mm width - TELEMECANIQUE position limit switch type XCR Space required L x W x H: 1100 x 700 x 600 mm Weight: 140 kg As-new condition – unused from stock Ijdpfx Abjypw Hrjnjtd

Year of construction: 1987, condition: used, Gantry slewing single level-luffing jib crane constructed for 4-rope grab operation as well as hook operation Capacity grab operation approx. 8,0 to at an outreach of approx. 12,0 up to 25,0 m Capacity in hook operation max. approx. 12,5 t Lifting height above rails with jib approx. 25,0 m max. approx. 22,9 m Span original/actually approx. 6,0/5,2 m Make TAKRAF/TEICHMANN Year of construction/complete overhaul - modernisation 1987/2005 Total weight only approx. 90,0 t Crane equipped with under ridable full-portal, intermediate column to increase the boom pivot point, complete enhousing of the top crane, modernisation with completely new electrics (FU control), cabin, control chair, motor-cabledrum and new painting in 2005 Working speeds: Main hoisting gear actually/optimized approx. 52,0/65,0 m/min Retracting gear approx. 35,0 s Slewing gear approx. 1,2/2,4 rpm Crane travel gear max. approx. 50,0 m/min Iedpfx Abedlazgsnetd

Condition: ready for operation (used), empty load weight: 115,000 kg, lifting height: 18,000 mm, Portaalkraan met SWF-hijswerk 70 ton (hoofdhijswerk) en 5 ton (secundair hijswerk) Takeltype: SWF NF28A4XEP66DT1S Alle bewegingen frequentiegestuurd 30 meter hijskabel Wielhartafstand: 25 meter 4 aangedreven 8-wiel karren kraansnelheid: 6 m/min hefsnelheid: 6 m/min hefsnelheid: 6 m/min gebruik klasse: A hefklasse: A Totaalgewicht: 115 ton Kind of: portal crane Isdjxpkh Ujpfx Abnjtd Capacity: 70 + 5 ton Span: 25 meter Tackle speed: 6 m/min Rotationspeed: 6 m/min Displacementspeed: 6 m/min

Condition: good (used), Year of construction: 2008, Column jib crane, overhead crane, workstation crane -Manufacturer: KWG, Column jib crane type SSK-B 1.0-2.10, lifting capacity 1000 kg -Base plate: 800 x 800 mm -Load capacity: 1000 kg -Chain hoist: SWF type SKB 080.22-FND, year of manufacture 2008 -2x lifting speed: 4.0/1.0 m/min -Reach: 2100 mm -Total height: 2630 mm -Hook height: 1980 mm Itsdpfx Abjyn Ra Nenod -Swivel range: 270° -Transport dimensions: 800/2640/H1500 mm -Empty weight: 458 kg

Condition: good (used), Manufacturer: Takraf / Zemag Type: ZWB 630 x 800 Iedopxn D Depfx Abnetd Roll Dia.: 630mm Roll Width: 800mm (Smooth) Included frame and electrical motors.

Condition: excellent (used), functionality: fully functional, Year of construction: 2004, overall weight: 3,100 kg, total width: 10,600 mm, load capacity: 8,000 kg, working height: 9,000 mm, GZUT/SWF bridge crane 8t, 10.4m, emag: 9m in excellent condition for sale Manufacturer: GZTU Type: LNE Year of manufacture: 2004 Lifting capacity: 8t Span (cone crown distance): 10.4 m Total width: 10.6m Bridge running gear speed: 20 m/min Lifting speed: 5 / 0.83 m/min (two-stage) 400 V / 50 Hz Dead weight: 3.1t Noise level: Lm(A) ≤ 85 dB(A) With wireless remote control, documentation. Itjdpfx Absx Dk A Ijned Additional information, exact dimensions can be found in the pictures.

Condition: used, functionality: fully functional, machine/vehicle number: 001640U, For sale Used SWF single girder overhead crane approx. 14,000 mm x 5,000 kg. We can optionally deliver the cranes including: * Modification of span length * Installation and inspection * Power supply rails * Radio remote control Jan Reiling B.V. also supplies new custom-made cranes at very competitive prices: * Overhead travelling cranes * Suspension cranes * Jib cranes * KBK systems * Boat hoists All our new and used cranes delivered (within NL and BE) come with warranty! We also have an own stock of approximately 15,000 Demag spare parts. Itedpfoyglfwjx Abnsd For more information, please visit the Jan Reiling B.V. website. Keywords: Cranes, crane, overhead crane, gantry crane, workshop crane, warehouse crane, hoist, krane, hallenkrane, brückenkrane, bruckenkrane, werkstattkrane, lagerkrane, hebezeuge, cranes, universal crane, hoist, bovenloopkraan, laufkrane, overhead crane.

Year of construction: 1991, condition: refurbished (used), Track gauge currently approx. 42.5 m Outreache fixed support usable/total approx. 10.0/16.5 m Lifting height approx. 8.0 m Itedjmdrxaspfx Abnjd - Two Demag trolleys that can be moved separately and together monorail trolleys - Radio remote control and emergency control

Condition: used, machine/vehicle number: 001639U, For sale Used SWF single girder overhead crane, approx. 14,000 mm x 5,000 kg. We can supply the cranes including, if desired: * length modification * installation and inspection * conductor rails * radio remote control Jan Reiling B.V. also supplies brand new, custom-made cranes at very competitive prices. * overhead cranes * suspension cranes * jib cranes Itjdpfx Abjygld Tjnod * KBK systems * boat hoists All new and used cranes we supply (within NL and BE) are delivered with warranty! In addition, we have our own stock of approx. 15,000 Demag spare parts. For more information, please visit the website of Jan Reiling B.V. Keywords: Cranes, crane, roller crane, workshop crane, warehouse crane, hoist, krane, hallenkrane, brückenkrane, werkstattkrane, lagerkrane, hebezeuge, cranes, universal crane, hoist, overhead crane.

Condition: used, functionality: fully functional, machine/vehicle number: 001638U, For sale Used SWF single girder overhead crane, approx. 14,300 mm x 2,000 kg. We can optionally supply the cranes including: * Length modifications * Installation and inspection * Power supply rails * Radio remote control Jan Reiling B.V. also supplies new cranes fully customized at highly competitive prices. * overhead cranes * suspension cranes * slewing cranes * KBK installations Isdoygldtepfx Abnjtd * boat lifts All our new and used cranes supplied (within the Netherlands & Belgium) come with a warranty! We also have our own stock of approximately 15,000 Demag spare parts. For more information, please visit the website of Jan Reiling B.V. Keywords: Cranes, crane, girder crane, workshop crane, warehouse crane, hoist, crane, industrial crane, overhead crane, monorail bridge crane, slewing crane, KBK, lifting equipment, Demag, universal crane, overhead crane.

Condition: used, Mobile jib crane, gantry crane, portable crane AUSTEN Type HVR 05 Serial No. 1808137 Year of manufacture: 2019 Load capacity: 500 kg Jib outreach (distance from load hook to base): max. 650 mm Overall height: 3025 mm Height to underside of crane beam: 2945 mm Height to crane suspension eye: 2900 mm / 2850 mm Crane beam travel: 1250 mm Crane beam span: 1145 mm (center of wheel to center of wheel) Internal distance between supporting structure: 1080 mm Base plate with steel counterweight (blue lacquered): 1320 x 800 x 850 mm - Aluminum supporting structure, demountable - Crane beam manually rollable on crane runway rails - The crane frame is set up without anchoring to the floor, stands on its own due to its high deadweight - Steel base (blue lacquered) Width 1320 mm, Depth 800 mm, Height 850 mm - The base is fully constructed from steel and has a deadweight of 800 kg - Moveable with pallet truck Deadweight: 880 kg Very good condition Itedpfxji Aqgts Abnod Price without lifting equipment

Condition: new, new and unused, only storage marks Itjdpfxoyc Emyo Abnsd
