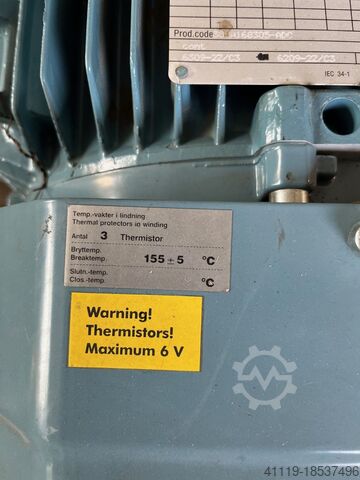

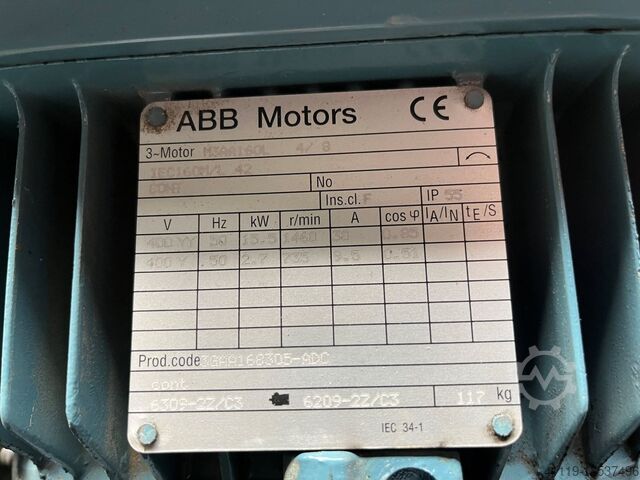

Electric motor ABB MZAA160L 15.5 kW

Condition: ready for operation (used), Year of construction: 2023, functionality: fully functional, turning length: 300 mm, turning diameter: 300 mm, spindle bore: 52 mm, spindle speed (max.): 4,500 rpm, controller model: FANUC CNC, The machine can be inspected with a lead time of three days. TECHNICAL DETAILS Turning diameter max.: approx. 300 mm Turning length max.: approx. 300 mm Spindle bore diameter: approx. 52 mm Main spindle speed max.: 4,500 rpm Tool turret: 12 stations Repeatability: 0.003 mm MACHINE DETAILS Control: FANUC CNC Machine weight: approx. 2,200 kg Operating hours: approx. 6,458 h Spindle hours: approx. 4,300 h Voltage: AC 380 V (with or without transformer) Rated power: 14.97 kVA Full load current: 22.74 A Interrupting capacity: 5 kA Short-circuit capacity: 10 kA Power of the electric motor according to the manufacturer: 7.5 kW EQUIPMENT Technical documentation Dwjdpfx Ajznb Ntjansa Powerful main spindle Robust machine construction for high dimensional accuracy Tool turret with rapid indexing Compact design with low space requirements User-friendly CNC control High reliability Low maintenance requirements Complete technical documentation

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: R17393-376-4-0, overall weight: 32 kg, load capacity: 8 kg, controller model: Yaskawa YRC1000, teach pendant manufacturer: Yaskawa, number of axes: 6, TECHNICAL DETAILS Robot axes: 6 Dsdpfxjzmwafe Aanewa Payload: 8 kg Self-weight of robot arm: 32 kg MACHINE DETAILS Controller: Yaskawa YRC1000 Teach pendant manufacturer: Yaskawa Power supply: 3-phase AC 380–440 V, 50/60 Hz Input current: 15 A Max. device overcurrent protection current: 15 A Short-circuit current: 2.5 kA Power supply type: ERAR-1000-06VX8-E10 EQUIPMENT Yaskawa Motoman GP8 robot arm Yaskawa YRC1000 robot controller

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: FN498167, Year of construction: 2015, operating hours: 15,254 h, lifting height: 4,700 mm, free lift: 1,490 mm, mast type: triplex, construction height: 2,132 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Free lift: 1,490 mm Lift height: 4,700 mm Overall height: 2,132 mm MACHINE DETAILS Djdszrlxgepfx Aanowa Mast type: Triplex Battery voltage: 48 V Battery capacity: 625 Ah Battery year of manufacture: 2015 Hydraulic valves: 3rd/4th valve on the fork carriage Operating hours: 15,254 h EQUIPMENT Triplex lift mast with free lift 3rd/4th hydraulic valve on the fork carriage Charger External reference: SL9789SP

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 90621285, Year of construction: 2021, operating hours: 560 h, lifting height: 2,800 mm, construction height: 1,950 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Lifting height: 2,800 mm Overall height: 1,950 mm MACHINE DETAILS Mast type: Standard mast Battery type: Lithium-ion battery Dedpjzrlw Aefx Aanowa Operating hours: 560 h EQUIPMENT Initial lift Charger External reference: SL1145SP

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: H2X386H10283, Year of construction: 2017, operating hours: 5,612 h, lifting height: 4,625 mm, free lift: 1,500 mm, construction height: 2,121 mm, Equipment: sideshift, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Lifting height: 4,625 mm Overall height: 2,121 mm Free lift: 1,500 mm MACHINE DETAILS Mast type: Triplex mast with free lift Djdpjzrlwijfx Aanowa Battery voltage: 48 V Battery capacity: 585 Ah Tires: new Operating hours: 5,612 h EQUIPMENT Cabin Battery Charger Side shifter External reference: SL11370SP

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: FN651047, Year of construction: 2021, operating hours: 17,268 h, lifting height: 4,700 mm, free lift: 1,535 mm, mast type: triplex, construction height: 2,125 mm, Equipment: sideshift, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Lifting height: 4,700 mm Overall height: 2,125 mm Free lift: 1,535 mm MACHINE DETAILS Mast type: Triplex mast with free lift Dodpfxozrlv Ej Aanewa Battery voltage: 48 V Battery capacity: 500 Ah Operating hours: 17,268 h EQUIPMENT Side shifter Battery Charger External reference: SL12191SP

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: FN552603, Year of construction: 2017, operating hours: 1,398 h, lifting height: 3,540 mm, mast type: duplex, construction height: 2,520 mm, Equipment: sideshift, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Lifting height: 3,540 mm Overall height: 2,520 mm MACHINE DETAILS Mast type: Duplex with free lift Battery voltage: 80 V Battery capacity: 930 Ah Battery year of manufacture: 2017 Hydraulic valves: 3rd/4th valve Dodpezrlvfsfx Aanjwa Operating hours: 1,398 h EQUIPMENT Side shifter Fork positioner Battery charger included External reference: SL13606SP

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 193.006, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 256 mm, wire diameter (max.): 0.33 mm, controller model: AGIEVISION / AGIE HSS-Steuerung, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel in X-axis: 350 mm Travel in Y-axis: 250 mm Travel in Z-axis: 256 mm Travel in U/V axes: ±70 mm Positioning resolution: 0.0001 mm Positioning accuracy: approx. ±3 µm Machining data Dwsdszpypzjpfx Aanea Max. taper: 30° at a workpiece height of 100 mm Surface finish: up to approx. Ra 0.2 µm with multiple finishing passes Workpiece data Workpiece size, maximum dimensions: 750 × 550 × 250 mm Workpiece weight, maximum: 450 kg Wire system Wire diameter: 0.10 – 0.33 mm Wire speed: up to approx. 3 m/min Wire tension: CNC-controlled MACHINE DETAILS Control system: AGIEVISION / AGIE HSS Generator: AGIE HSS Mains connection: 3 × 400 V, 50 Hz Connected power: approx. 10.5 kVA Dimensions & Weight Dimensions (L × W × H): approx. 2,215 × 2,215 × 2,220 mm Machine weight: approx. 3,600 kg EQUIPMENT Fully automatic wire threading

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 350 mm, workpiece weight (max.): 400 kg, controller model: AGIEMATIC T, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel in X-axis: 350 mm Travel in Y-axis: 250 mm Travel in Z-axis: 350 mm Rapid traverse: approx. 720 mm/min Axes: 4 (X, Y, Z, C) Working area Table size: 600 × 450 mm Workpiece dimensions max.: approx. 860 × 620 × 350 mm Workpiece weight max.: 400 kg Electrode weight max.: 100 kg Working tank (internal): approx. 830 × 590 × 350 mm Distance from table to quill: 170 – 520 mm MACHINE DETAILS Control system: AGIEMATIC T Generator: AGIEPULS 60 Power connection: 400 V / 50 Hz Dimensions & weight Dedpfx Aezpypnoanjwa Dimensions (L x W x H): approx. 3,000 × 1,700 × 2,580 mm Machine weight: approx. 2,550 kg

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 18199, travel distance X-axis: 550 mm, travel distance Y-axis: 410 mm, travel distance Z-axis: 450 mm, spindle speed (max.): 20,000 rpm, number of slots in tool magazine: 210, TECHNICAL DETAILS CNC control: FANUC 30iM for 5-axis machining Working area Travel in X-axis: 550 mm Travel in Y-axis: 410 mm Travel in Z-axis: 450 mm Swivel range of B-axis: +110 to −110° Rotational range of C-axis: 360° Feed rate Rapid traverse rate for X, Y and Z axes: 50,000 mm/min Rapid traverse rate for B-axis: 30 min⁻¹ Rapid traverse rate for C-axis: 50 min⁻¹ Tool magazine Number of tool positions (standard): 30 Extension of the tool magazine: 210 tool positions Preparation for expansion to 240 tool positions Pallet system Number of pallets: 10 Pallet size: Ø 130 mm Pallet interface: Capto C6 Workpiece size: max. Ø 250 × H 250 mm Workpiece weight: max. 40 kg Pallet clamping force: 22.5 kN Main spindle Spindle speed: 40 – 20,000 rpm Motor power: 7.5/11 kW Spindle torque: max. 70 Nm up to 1,500 rpm Spindle interface: HSK 63A Dwodpfxjzpyh Ro Aanea Special functions: High-speed start-up at machine start, Automatic warm-up cycle MACHINE DETAILS Machine weight: approx. 12,000 kg Coolant system Coolant pressure through the spindle: 70 bar Delivery rate of internal cooling: 24 l/min Pump capacity of internal cooling: 5.5 kW EQUIPMENT Direct linear scale from Heidenhain in the X, Y and Z axes Linear scale with pneumatic locking Direct linear scale via rotary encoder for the B and C axes CE marking KNOLL coolant system Drag chain chip conveyor Coolant filter CTS25-50T External cooling Coolant shower Compact filter KF200 Cooling water cooler VWK 90-D Coolant spray bars in the working area Two spiral chip conveyors Mechanical air filter TEBARON TEB/BV2 Single column with base plate for the air filter system Measuring probe Renishaw OMP 60 Software Easy Probe Pressure sensor for tool length measurement and tool breakage monitoring
