ILKWANG SANDWICH PANEL LINE

ILKWANG SANDWICH PANEL LINE

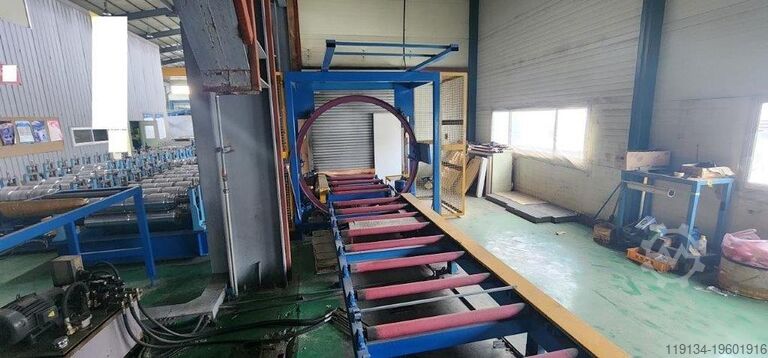

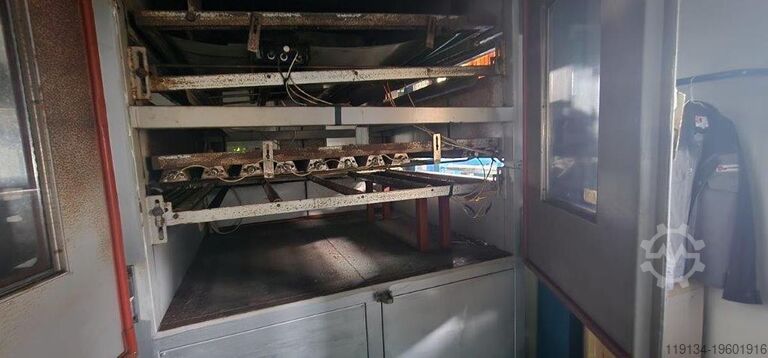

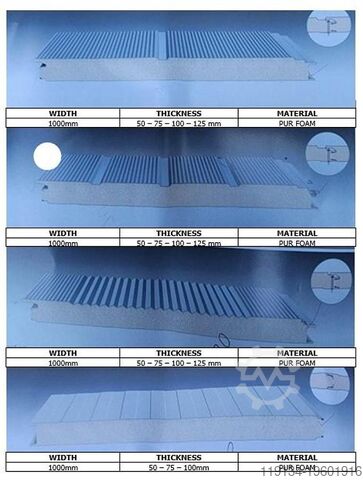

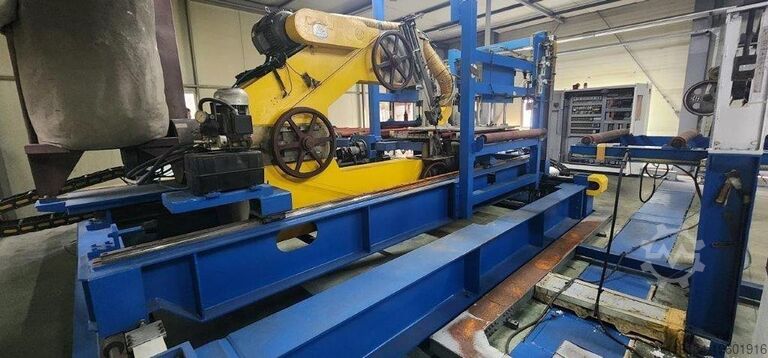

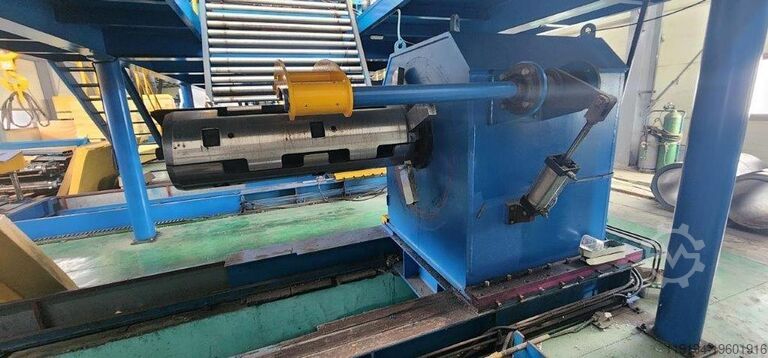

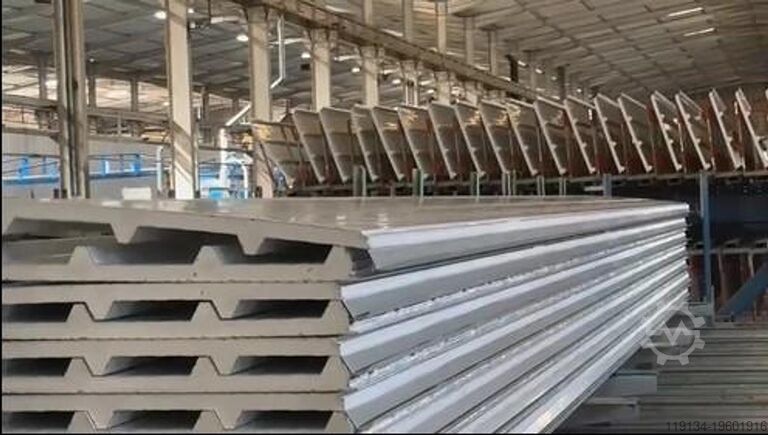

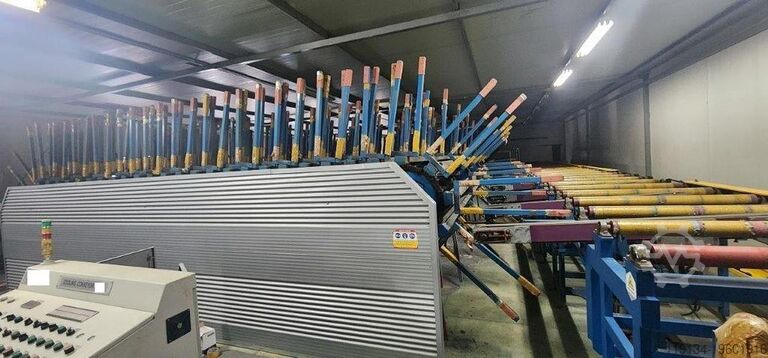

Year of construction: 2000, condition: ready for operation (used), This Manni Sandwich Panel Production Line was manufactured in 2000. It features a discontinuous line for sandwich panels with a polyurethane core, including profiling, injection, pressing, cutting, stacking, and packaging stations. Main components include a Manni PMC 291 T press, Cannon H100 RF2 polyurethane injection system, and various Tresam profiling lines. Consider the opportunity to buy this Manni Sandwich Panel Production Line. Contact us for further details regarding this machine. Cjdpfxjx E Ef Ne Apnjrc Application Types Other Sheet Metal Machinery

Condition: excellent (used), Year of construction: 1997, pressure 170 t chamfer lenght 4080 mm distance between columns 3680 mm column arm 410 mm dayligth 385 mm stroke 215 mm ajustment speed 200 mm/sec working feed 1-10 mm/sec return speed 135 mm/sec table width 200 mm table height 1050 mm Number of working hours 25.430 h oil volume 350 l Codpoxcp Rbsfx Apnjrc total power requirement 29 KVA weight of the machine ca. 16.450 kg. range L-W-H 4620 x 2210 x 2885 mm Machine in good condition Regularly serviced by the manufacturer CNC backgauge with 8 axes (!!) - in checked conditions - machinevideo - ?v=yEaRj0XJAC4 Equipment: - CNC electro-hydraulic press brake/die bending press - DELEM CNC control - swiveling front left * High-resolution graphic screen * Clear, concise menus in the operator's language * Large tool and product library * Graphic 2D programming * Automatic bend sequence calculation and collision detection * Emergency stop button at front - CNC axis adjustment: * Y1 - Y2 - X1 - X2 - R1 - R2 - Z1 - Z2 axis + CNC crowning - X axis - adjustment speed: 500 mm/sec. * Max. stop range: 860 mm - R axis - Adjustment speed: 300 mm/sec. * Max. travel: 250 mm - Z axis - Adjustment speed: 1000 mm/sec. * Max. travel: 3260 mm - CNC electric motor table crowning - CNC electro-pneumatic die shift (I axis) - WILA / TRUMPF upper tool clamping - hydraulic - WILA / TRUMPF lower tool clamping - hydraulic - 2x front, robust support arms - movable - 1x freely movable 2-hand/foot control - 1x freely movable foot switch - Side safety device (swivel doors) - Rear safety device (sliding doors) - Original operating instructions

Year of construction: 2001, condition: ready for operation (used), Max. pressing force: 1000kN, max. working length: 3100mm, throat depth: 250mm, connected load: 18kW, weight: 9.5t, operational hours counter: 76,566h, with accessories and documentation, was maintained regularly. Cjdpfxelzizms Apnerc

Condition: excellent (used), functionality: fully functional, Year of construction: 2022, Laser cutting 569 working hours Codpfxsmzbkre Apnorc Last technical revision: 10.02.2023 6000W fiber laser source with cooling module Max length: 3048mm Max width: 1524mm Z axis: 100mm Maximum sheet weight: 750kg Maximum cutting thickness Mild steel: 25mm Stainless steel: 20mm Aluminum: 20mm Copper 8mm Comes with software: PARTS.L - production management ADDIN.SOLIDWORKS - integration between Solidworks and streamlaser STREAMLASER - CAM and Nesting VALUES.L - production cost estimate Computer with Intel Xeon W-2123, Nvidia Quadro P2000, 16gb RAM The machine is like new, in working condition

Condition: excellent (used), functionality: fully functional, coil weight: 8 kg, sheet thickness (max.): 3 mm, sheet thickness steel (max.): 3 mm, total width: 1,250 mm, Slitting line for sale Csdpfxsv Twi Rs Apnsrc

Condition: good (used), Year of construction: 1989, machine/vehicle number: 51756, Offer 25200 Technical data: Csdpswvipgsfx Apnsrc - Press force: 200 t - Working width: 3100 mm - Distance between uprights: 2600 mm - Table width: 180 mm - Throat depth: 300 mm - Installation height: 450 mm - Approach speed: 80 mm/sec - Working speed: 9 mm/sec - Return speed: 60 mm/sec - Ram stroke: 120 mm - Adjustment range of fixed stops: 120 mm - Drive: 400 V / 18.7 kW - Space requirement approx.: W 3300 x H 2950 x D 1900 mm - Weight approx.: 10,500 kg - Equipped with: - Adjustment of press depth and pressing force - Motorized back gauge with handwheel for fine adjustment - 4-way universal die, pointed tool - Two-hand control panel, foot switch,

Condition: new, Year of construction: 2025, functionality: fully functional, coil outer diameter: 1,500 mm, coil inner diameter: 508 mm, product height (max.): 200 mm, feed length X-axis: 1,520 mm, feed length Y-axis: 3,020 mm, feed length Z-axis: 80 mm, warranty duration: 24 months, total height: 2,380 mm, total length: 8,900 mm, total width: 2,300 mm, load capacity: 1,300 kg, input frequency: 50 Hz, input voltage: 380 V, overall weight: 180 kg, repeat accuracy: 0.02 mm, workpiece weight (max.): 15,000 kg, Equipment: cooling unit, GS-J Series has various workbench sizes such as 3015, 4015, 4020, 6015 to meet different processing needs Suitable for batch processing of thin plates with high flatness requirements of 0.6-3.0mm Uncoiling machine parameters: Maximum weight of coil (kg): 15000 Coil width (mm): 200～1524 Coil outer diameter (mm): Φ800～Φ1500 Coil inner diameter (mm): Φ508mm~Φ610mm (cast iron pad) Coil thickness: (mm) 0.6-2.0mm (stainless steel) ≤1524mm 0.8-3.0mm (carbon steel) ≤1524mm Feeding length (mm): 0～ Maximum stroke of equipment Unwinding speed (m/min): 0～15 Moving speed (mm/s): 0-8 Lifting speed (mm/s): 3.0 Lifting stroke (mm) : 350 Leveling flatness (mm/㎡): ≤±3 Fixed feeding line height (mm) : 870 Sizing accuracy (mm/m) : Length direction ≤±0.2 Diagonal direction : ≤±0.8 Revolutionize Your Coil Processing with One Machine, Five Functions! Uncoiling, leveling, feeding, cutting, and blanking – all in one seamless automated system for maximum efficiency. Smart, Flexible & Versatile Credpfjv Awgujx Apnsc - Effortlessly cuts special-shaped workpieces, adapting to diverse production needs - Optional touchscreen control with top-tier international cutting systems - High-quality drag chain cables – durable, bend-resistant, and interference-free

Condition: excellent (used), Year of construction: 2014, operating hours: 7,998 h, machine/vehicle number: 43610191, sheet thickness aluminum (max.): 6 mm, We are offering an Amada EML 3610NT punch laser combination machine for sale. The offered machine is used and in a very good condition. Main features of the machine (overall): - Possibility of combining punching and laser burning - automatic pick-up of details (suction cups for 45kg, small amount of perforation recommended) and exchange of pallets during the operation of the machine - automatic sheet feeding maximum length 3050x1500 and collection of residues after cutting, possibility of sheet loading during machine operation - automatic bale delivery 1500x400mm (two conveyor belts for details) - turning station with 41 fixed and 4 rotating stations - 3 manually adjustable paws Cedpfx Apeum R T Sjnorc - cutting elements on length 3020x1500 - Laser cutting length 2000x1500 - max. sheet thickness 6mm (due to brush table) - thread function - pneumatic hold-down device Accessories for the machine: - Light barrier - Thread cutting set - Sensor for bale chute - System for chip extraction - Separate lubrication of punching and threading tools - Bending sensors for sheet metal - A conveyor belt that pulls out the punching waste Machine data as of 17.09.2024 - Time of the running machine: 7998 hours - Operating time: 2972 hours - Cutting time: 1196 hours - Working time of the resonator: 6154 hours AMADA EML3610NT - Max. Cutting force: 300 kN - Power (laser efficiency): 4kW (CO2) - Type: EML-NT - No. 43610191 - Model:EML3610NT - Year of manufacture: 2014 November - Total value of the connection to the network: 400V/68.3 kVA - Connected load: 85 kVA - Compressed air connection: 8 bar; 48 m3/h - Width of the guarded area: 30m (max) - Minimum safety distance: 1.36 m - Response time of the machine + total response time of the firewall: 320ms - Stop time: 300 ms - Machine braking distance: 180mm - Weight of the punching/laser machine: 24,000 kg PRIII (reception of finished parts) - Model: PR III 300 L 2P - No.: 2424 - Year of construction: 2013 - Connection to the network: 400/50V/Hz - Max. Power supply: 8.5 kW - Compressed air connection: 6 bar 1000 l/min. - Dimensions and weight of the elements to be collected: Workpiece thickness from 0.5 to 3mm Min.150x150mm max. 2500x1000mm with a weight of no more than 45kg - Machine weight (PRIII): 4600 kg ASIII MP (sheet feeder) - Model: ASIII MP 300 - No.: 2994 - Year of construction: 2015 - Connection to the network: 400/50V/Hz - Max. Power supply: 12kW - Compressed air connection: 6 bar 1000 l/min. - Size of sheets that can be stored: Max. 3000x1500mm Minimum steel thickness 1000x300mm from 0.5 to 8mm Weight of a single sheet no more than 300kg - Machine weight (PRIII): 12 000 kg The price is for the entire machine only. The price does not include Tools, dismantling, transportation and commissioning If you have any further questions, please do not hesitate to contact us. The machine is offered in different sources. If you are interested, please confirm availability.

Condition: used, pressure 150 t chamfer lenght 4300 mm distance between columns 3700 mm ram stroke speed 100 mm/sec working feed 8 mm/sec return speed 80 mm/sec stroke 175 mm table height 920 mm Control DELEM DA 52 total power requirement 11 kW weight of the machine ca. 15000 kg dimensions of the machine ca. 4800 x 1700 x 2850 mm Equipment: - Controlled axes Y1 - Y2 - X, as well as CNC crowning - DELEM DA52 CNC control - Electric backgauge (X-axis) Credpfov S Irysx Apnoc - 4x manually adjustable stop fingers - 2x front support arms - AMADA UKB system upper tool holder - Side guard - Foot switch

Year of construction: 1967, condition: good (used), strip width: 300 - 1.250 mm strip thickness: 0,5 - 3 mm coil weight: 6 t mandrel Ø: 508/610 mm Csdpfod Ha E Ijx Apnerc
