Condition: used, Year of construction: 2002, thickness: 0,6 mm
width: 1200 mm
Length: 100 mm
work speed: 1,5 - 3 m/min
motor power: 45 kw
compressed air: 7 bar
Total weight, approx.: 4500 kg
dimension machine xH: gesamt: 20 m / 2,6 m / 3 m m

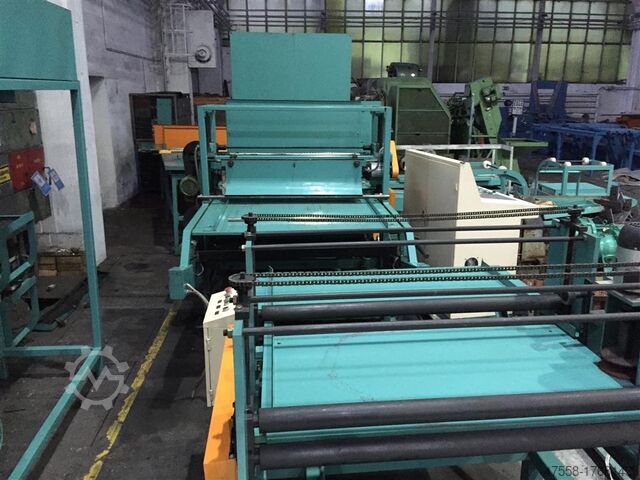

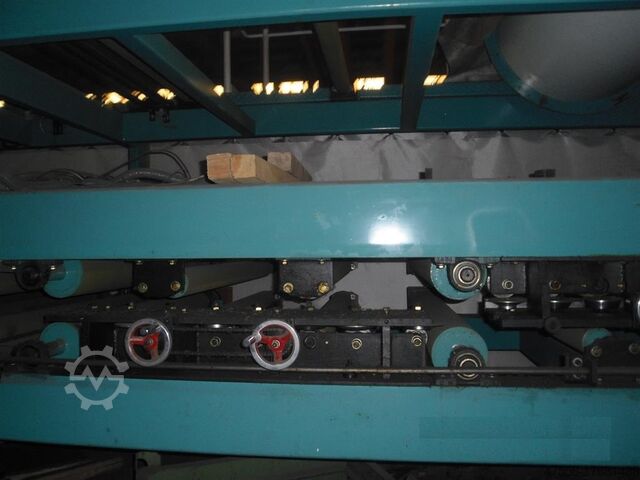

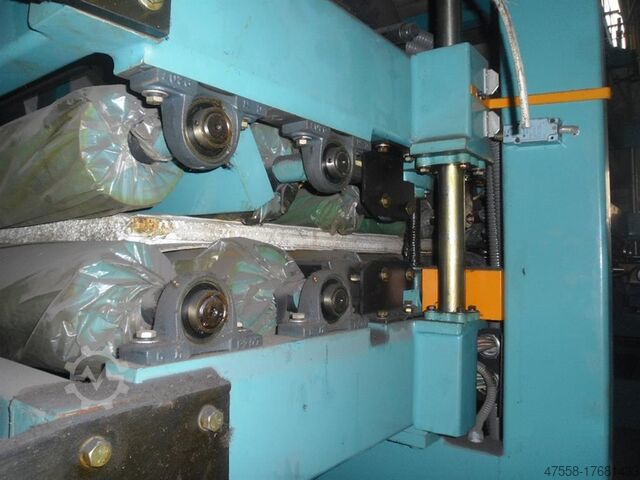

2 pcs Sandwich Panel Production Plant
The plant is especially suitable for producing light laminated panels. The plant consists of a feeding system (conveyor belt) for the material, cutting system, profile system and an electronically control system. The plant has a length of 20m, width of 2,6m, height of 3m. The total weight of the plant is approximately 4,5 tons. The power consumption including the thermal output is 36 KW.
The recommended material of the internal layers are flame retardant Polystyrol or other light heat insulation materials. The sheet will be stable connected under pressure and heat with the Polystyrol through double sided application from portions of glue on the Polystyrol.
The panels have good physical characteristics such as thermal insulation, sound insulation, wet consistency, bending strength, compressive strength and mechanical attributes. Any length of the laminated panels is possible and adjustable on customer demand. The color of the panel is variable and is depending from the color of the used sheets.
Snanx
Data Sheet
Power Consumption of the plant (with heating system): 36KW
Measurements:
- Length = 20m
- Width = 2,6m
- Height = 3 m
- Operating Temperatures: The optimal temperature for producing the panels is approximately 25 °C.
- Material: galvanized metal sheet on rolls, sheet thickness 0,3 ? 0,6mm and a width of 1200mm
- Power Supply: 380 V 50Hz
- Maximum engine power: 45 KW
- Compressed Air: 7 bar
Measurements of the laminated panels:
Model 1
- Width 800 ? 1200 mm
- Thickness 20 - 30mm
Model 2
- Width 1150 mm
- Thickness 50 ? 150mm( adjustable)
production plant consists of:
- unwinding device
- feed system
- lamination
- cutting device
- glueing
- fume extractor device
- stacking device
- electronic control system (Mitsubishi)

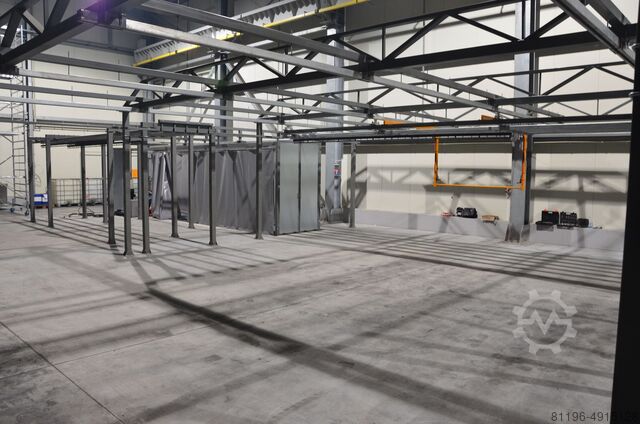

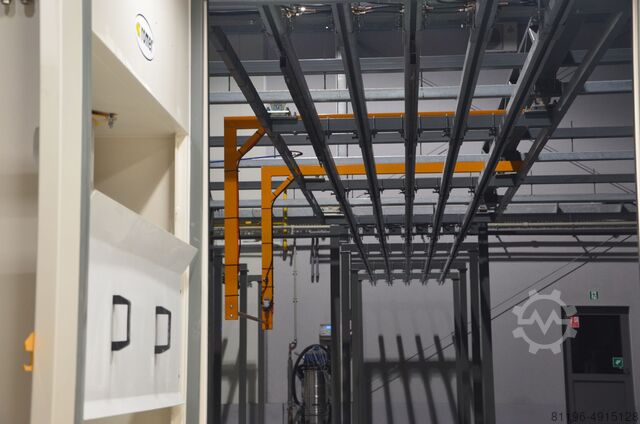

Condition: new, Year of construction: 2020, Transport systems
Bmwpwobk7y
Depending on the customer's requirements, transport systems can move on the floor or be suspended on poles.
- For comfortable solutions for manual installations, we recommend suspended cross traverses (cross transport).
- For automated systems, chain conveyors are most often used that do not stop and are a great solution for companies that focus on quality and repeatability of the process.
- For companies that make different items at once and have e.g. several cabins with different colors, flexible solutions with the use of the power-and-free conveyor are used. This is the most expensive solution.
All installations are made to measure, depending on the customer's requirements. Continuous suspended chain transport systems are designed and manufactured to individual customer orders.
In this system, it is also possible to make bottom conveyor systems on which details are placed, e.g. flower pots, rims (photo). ROMER also manufactures suspended transport systems.
Crossbeams (cross transports) are designed and made for the needs of specific installations
The use of one photocell
The use of one photocell in the space of the detail allows you to measure its length and, consequently, gives the option of switching on the guns when the detail appears in their range, and switching off the guns immediately after painting the detail. The photocell is standard equipment. Identification of details by means of special markers.
Above the sling there are plates with identification holes.
Based on them, the PLC controller in conjunction with the photocell recognizes the painted detail, turns the guns on and off in good time - thus saving energy and powder paint. Vertical shape detection.
The use of light gates with horizontal detectors allows the PLC controller to analyze the shape of a detail vertically.
The PLC controller counts the time in which the detail should appear in the gun space - thanks to this it is possible to selectively turn the guns on or off. Using light gates with multiple sensors horizontally and vertically.
This solution allows precise measurement of workpiece dimensions, thanks to which it is also possible to control manipulators.
Condition: excellent (used), Year of construction: 1986, Manufacturer: made in EU
Model: Hot Rolling Mill
Year: 1986.
Main Technical Details:
130mm income billet size
Billet length 6-15m
H8xfnww
10t o 40 mm bar and sections rolled product
Finishing rolling speed for 10mm bar13,5 m/sec
Cooling bed length 105mm
Electricity consumption : 900-1500 MVA according to production
450.000 ton/year capacity
Components:
reheating furnace
8 horizontal roughing stands ; continuous
7 horizontal plus one vertical stands intermediate train
2 horizontal and 2 vertical stands finishing train
Cut to lengths shear
cooling bed
rolls shop
