Used Davi Mca for sale (2)

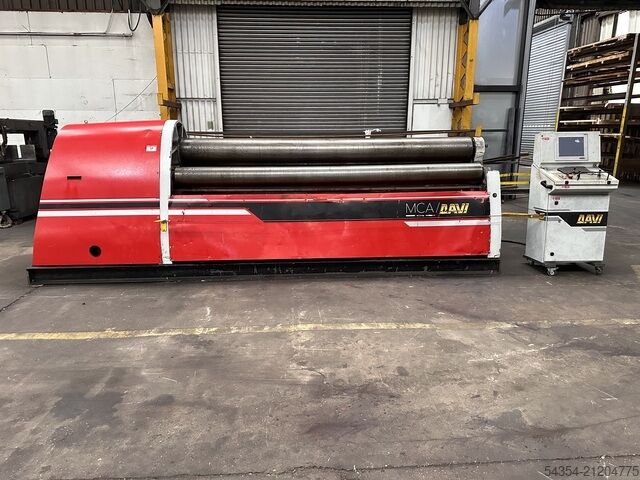

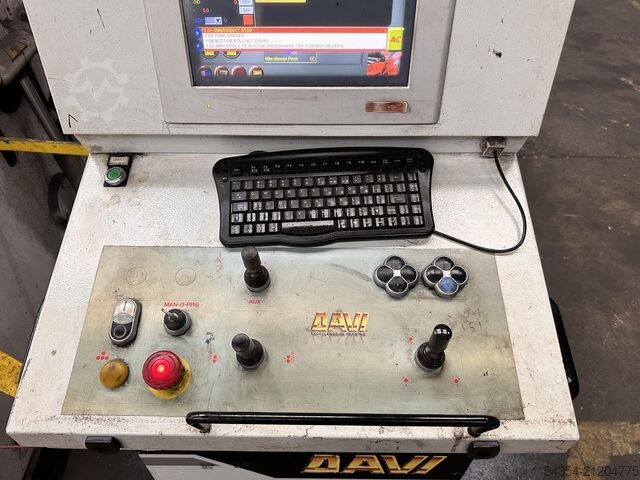

Condition: used, Year of construction: 2004, total length: 4,400 mm, total width: 1,300 mm, total height: 1,200 mm, Colour: Grey Empty weight: 2.500 kg - Year: 2004 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 20440160 - Drive system: Conventional - Drive: Hydraulic - Number of rolls [pcs.]: 4 - Number of driven rolls [pcs]: 4 - Power [kW]: 5.5 - Max. sheet thickness [mm]: 4 - Max. prebending thickness [mm]: 3.5 - Max. working width [mm]: 3100 - Top roll diameter [mm]: 170 - Bottom roll diameter [mm]: 160 - Options: Digital readout, Cone rolling - Transport dimensions: 4400mm x 1300mm x 1200mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Nwodpfsyym Tdsx Aphel Lukas van Rossum

Condition: new, Year of construction: 2026, sheet width 3100 mm plate thickness 9 mm pre-bending 6 mm diameter of upper rolls 220 mm diameter of lower rolls 200 mm side roll diameter 170 mm min. dia. 250 mm roll speed 6 m/min total power requirement 10,3 kW weight of the machine ca. 4651 kg dimensions of the machine ca. 4915 x 1120 x 1235 mm Features - Machines include the following DAVI standard specification: The components of the machine structure (machine stand, frame and swivel bearings, etc.) have been calculated and designed to withstand the loads required for the applications and performance levels. The robust and heavy-duty machine construction absorbs the loads generated during the bending process without transferring them to the foundation. - High-quality surface finish: For forming delicate surfaces and/or soft materials without leaving marks Hydraulic-mechanical parallelism system, supported by electronics for fine-tuning. There are two INDEPENDENT & SYMMETRICAL hydraulic circuits for the left and right cylinders of each roller. The oil flow is regulated by two DOUBLE PUMPS, which are mounted on the same motor shaft and are fully synchronised. The two symmetrical hydraulic circuits move the cylinders and supply the rollers with the SAME amount of oil in a fully synchronised manner. Electronic control is activated only for extremely precise fine-tuning. - Smooth transmission of the drive Both the hydraulic motors and the gearboxes (top and bottom) can follow the deflection of the roll without load when bending narrow sheets. This ensures perfectly symmetrical deflection of the rolls under load. This system also allows the rollers to deflect freely, without the risk of breakage under excessive load. - ‘Roll-by-Wire’© digital technology Since 2004, DAVI has revolutionised the way sheet metal rollers are wired (similar to ‘fly-by-wire’ technology in the aerospace, FMS and automotive industries) and introduced ‘Roll-by-Wire’ technology. This allows the entire control system of the roller to be controlled via digital signals rather than, as was previously the case, via numerous relays and contacts. Digital technology is much faster and more reliable. Action Benefit Reduction in the number -> Reduction in potential of components component failures Very compact design -> Improved accessibility for maintenance work Improved accessibility for -> Damaged parts can be identified maintenance work more easily More reliable -> Greater accuracy thanks to the use of ‘digital signals’ Permanent lubrication technology The lever-arm feed system eliminates all linear friction during the movement Nsdpsz Dxpmsfx Aphswl of the side rollers, as the roller support arms, which house the bushings, rotate simply and smoothly around two large, strong pivot points made of alloy steel, ensuring precise and friction-free rotation. This guarantees reduced wear and safety during unlimited use. Further advantages of the lubrication-free lever-arm feed mechanism are: •NO daily maintenance required (lower operating costs). •More production time available. •The bearings are sealed to protect against scale, dust and rust - Hardened rollers •Excellent heat tre...
