Used Bacci Fc8 for sale (3)

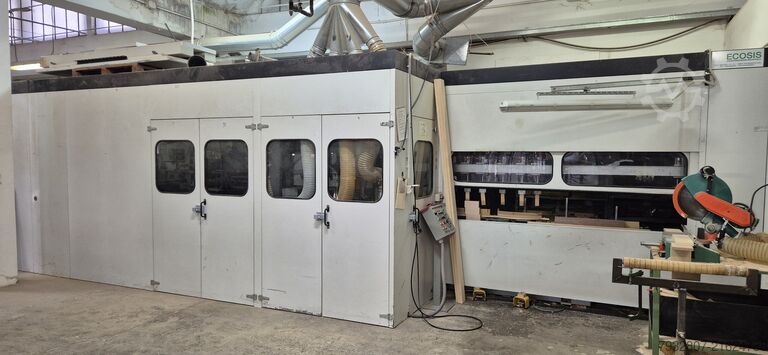

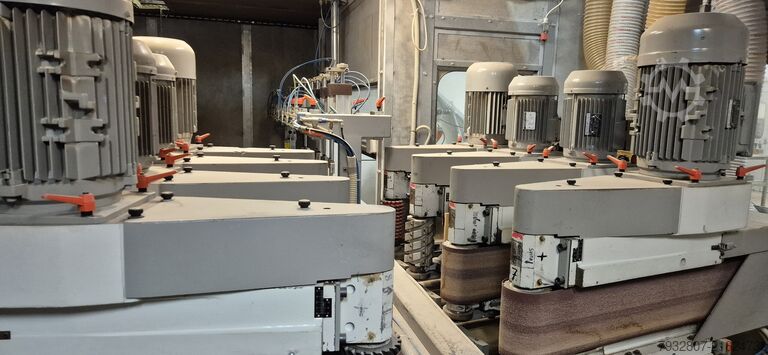

Condition: used, Year of construction: 2004, machine/vehicle number: 1609, The BACCI FC 8CN machine is an advanced device for copying, milling and grinding wooden elements, This model is equipped with 8 working heads, which allows for simultaneous performance of many machining operations. Numerical control (CNC) allows for precise machine setting and ease of programming. Thanks to this, operators can quickly adapt the machine to various tasks, which increases productivity. - Maximum machining length (X axis): 2500 mm Crjdpfewptnyjx Aqteh - Unit strokes: A, B, C, D, U, V, W axis Z: 370 mm - Work table tilt angles: -10°, 0°, 10° - Maximum vertical spindle stroke: 20 mm - Spindle diameter: 40 mm Maximum tool size: - Diameter x Height: 160 x 180 mm - Sandpaper dimensions (L x W): 2360–2400 x 180 mm Spindle speeds: - Spindles 1-A and 2-B: 8500 rpm - Spindles 3-C, 4-D, 5-U, 6-V, 7-W, 8-Z: 500–8500 rpm Aggregates: - Milling units (1-8): with 15 HP motors Power and air requirements: - Total installed power: 120 kW - Air pressure: 6 bar Machining capabilities: - Maximum machining length (with standard roundings): 250 mm - Maximum machining width (with roundings): 500 mm - Maximum machining height: 180 mm Speeds and acceleration: - Maximum table feed speed: 30 m/min - Maximum table return speed: 100 m/min - Maximum unit acceleration: 5 m/sec Additional functions: - Control system: OSAI - Machine weight: approx. 8500 kg - Windows 2000 Professional - machine cabinet (housing) Dismantling on the Buyer's side The price given is a net price

Condition: good (used), Production line consisting of: - BACCI FC 8 - BACCI DOUBLE JET - KUKA robots BACCI FC 8 The automatic copying-shaping-sanding machine executes milling and sanding operations on components of chairs, tables, armchairs, sofas, beds, furniture, frames, with the best finish and highest output. Max working length: 2700mm Csdpjt Tw S Ujfx Aqterh Max working height: 180mm Max working width: 500mm Max working width with round end: 350mm Max speed working table: 15m/min Max table return speed: 50-100m/min BACCI DOUBLE JET DOUBLE-JET is double machining centre with 6+6 interpolated CN axis, equiped with hopperfeeder system for automatic loading/unloading of the pieces.

Condition: good (used), Production line consisting of: - BACCI FC 8 - BACCI DOUBLE JET - KUKA robots BACCI FC 8 The automatic copying-shaping-sanding machine executes milling and sanding operations on components of chairs, tables, armchairs, sofas, beds, furniture, frames, with the best finish and highest output. Max working length: 4000mm Max working height: 180mm Max working width: 500mm Max working width with round end: 350mm Max speed working table: 15m/min Max table return speed: 50-100m/min BACCI DOUBLE JET DOUBLE-JET is double machining centre with 6+6 interpolated CN axis, equiped with hopperfeeder system for automatic loading/unloading of the pieces. Crodpfxet Txfpo Aqteh
