Metalwell Uk Limited

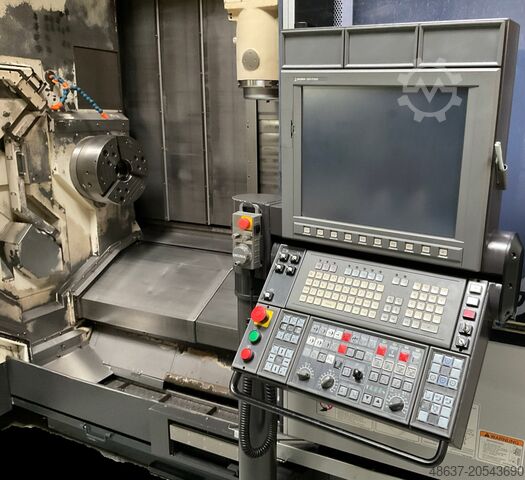

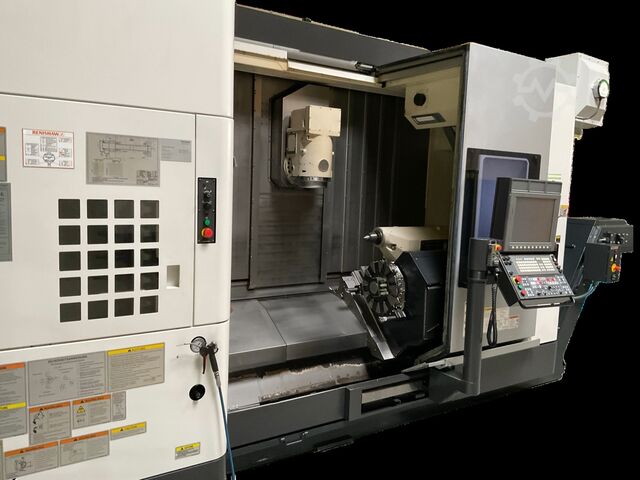

Condition: excellent (used), functionality: fully functional, Machine type: CNC Turning-Milling Center Manufacturer: Okuma Model: Multus U4000 2SC 1500 Year of Commissioning: 2017 (as ex-stock machine) Control: OSP P300S Spindle Hours: approx. 3,000 Included: Various tools and chuck jaws Condition: Very good Delivery: Short lead time – as agreed Equipment and technical details: ▪ Enlarged main spindle KK size 11 Front bearing Ø 160 mm Speed range: 3,000 rpm Bore diameter: Ø 112 mm Motor power: 32 kW Torque: 955 Nm ▪ Hollow power chuck cylinder Ø 127mm, SMW VNK 320-127 with Ø 127 mm bore ▪ Pressure reducing valve, adjustable range 8-70 bar ▪ Tailstock ▪ Turning length approx. 1,500 mm ▪ H1 turret (1 station) ▪ Y-axis ▪ B-axis 0.001° ▪ 40-station tool magazine ▪ Additional lower turret with 12 stations ▪ Tool spindle 12,000 rpm ▪ Hinge belt chip conveyor: Heavy-duty chip conveyor with low-maintenance self-cleaning function ▪ Drum sump filter TMF300 with clean fluid tank 980 L ▪ Supply pump TC160/740, 8 bar ▪ Supply pump RSP 20/32-070-1-1-0, 70 bar ▪ Self-centering steady rest on the lower turret (not possible in combination with driven tools for lower turret) ▪ Door automation ▪ Robot interface Type E for connecting additional loading/unloading systems to single-spindle machines ▪ 3D machine model for simulation in CAM system Main drive (Okuma motor spindle): 22kW / 700 Nm / 50–4,200 rpm Spindle nose KK size 8 Front spindle bearing Ø 140 mm Spindle bore Ø 91 mm Speed range: 2 steps Range switching at full speed ▪ Lower turret: 12 stations ZB-axis with cylindrical roller guide XB-axis with slideways ▪ Real-time Collision Avoidance System (CAS) ▪ 19" color LCD TFT (1280x1024) with 3D color graphics as touch screen/panel with vertical display and adjustable tilt keyboard ▪ Second operating system Windows 7 for operation and data communication, open and freely usable for Windows 7 compatible applications ▪ Programmable tailstock on W-axis with hydraulic quill ▪ Tool magazine 40 stations ▪ C-axis 360°, 0.001° positioning ▪ Y-axis travel +150 mm / -150 mm = 300 mm ▪ B-axis 240°, 0.001° positioning ▪ Tool spindle (Okuma motor spindle): 22 kW / 120 Nm / 12,000 rpm ▪ Internal coolant supply for rotating tools, pump with max. 20 bar pressure Including bag filter, external cooling of tool spindle, pump with max. 3 bar pressure ▪ Tool system: HSK-A63 ▪ Tool monitoring system for tool life and breakage ▪ Tool measurement device (using standard chuck) for safe setup ▪ Machine management MacMan with integrated BDE (operating data acquisition) ▪ Part program memory 2 GB ▪ Max. length of individual part program: 2 MB ▪ 2 USB 2.0 ports Hnsdpfx Ajxw Thmjh Ujw ▪ Ethernet interface with browser and DNC-T1 for program transmission ▪ Harmonic speed oscillation via periodic speed change ▪ Tool height correction on Y-axis for turning tools ▪ Circular thread milling X/Z/Y/B (helical interpolation) Including eccentric milling X/Y/C ▪ Hi-Cut Pro high speed control for rotary tools ▪ 10 workpiece zero points (coordinate system selection) ▪ Coordinate conversion (shift, rotate) ▪ Electronic spindle orientation +/- 0.1° Optional: ▪ Transport organization and implementation ▪ Machine installation and setup ▪ Commissioning of the machine

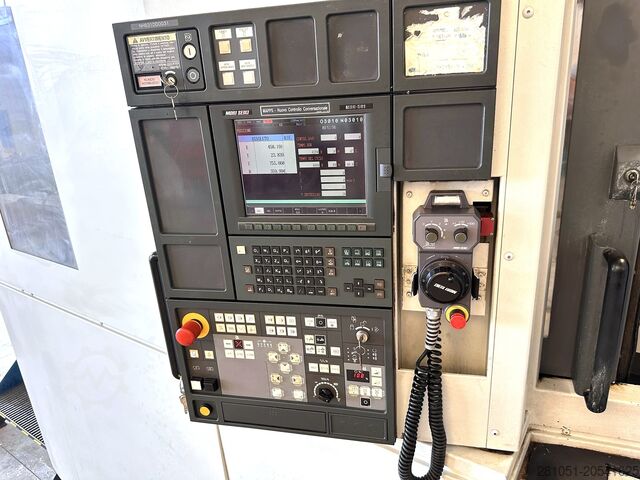

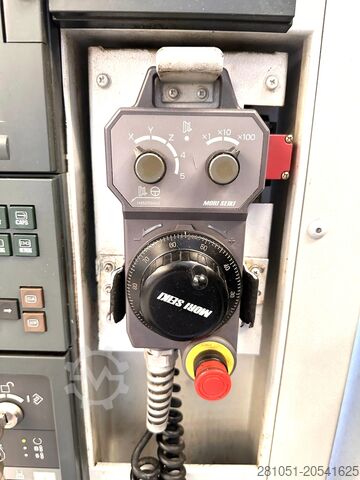

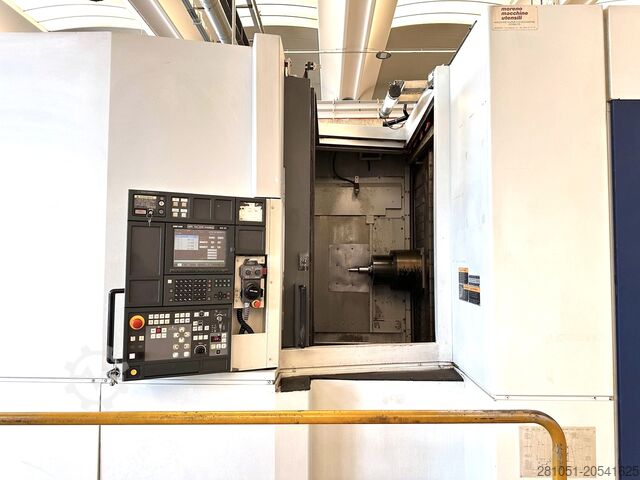

Condition: excellent (used), Year of construction: 2004, CNC Control: MSG-501 X axis mm: 900 Y axis mm: 800 Z axis mm: 980 B axis mm: 0.001 Pallet size mm: 630 x 630 Number of pallets: 2 Table load capacity kg: 1,200 Cutting feed mm/min X,Y,Z: 50,000 Max. rapid traverse m/min X, Y, Z: 50, 50, 50 Spindle speed rpm: 10,000 Spindle power kW: 30/25 Taper type: BT-50 Torque Nm: - Tool changer type: Chain Tool changer positions: 60 Max. tool diameter mm: 110 Max. tool diameter with adjacent positions empty: 320 Max. tool length mm: 600 Max. tool weight kg: 30 Coolant tank capacity l: 930 Through spindle cooling bar: Yes EQUIPMENT Chip conveyor Internal cooling Rigid tapping Manuals, electrical diagram, etc. MACHINE DIMENSIONS Length mm: 3,670 Width mm: 5,300 Height mm: 3,270 Weight kg: 19,000 Hnsdpfxjxw Rg He Ah Uew

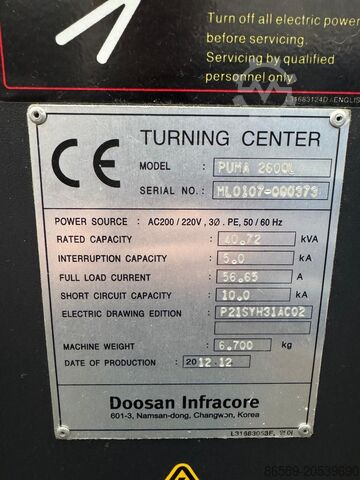

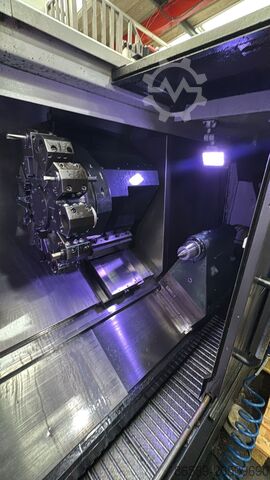

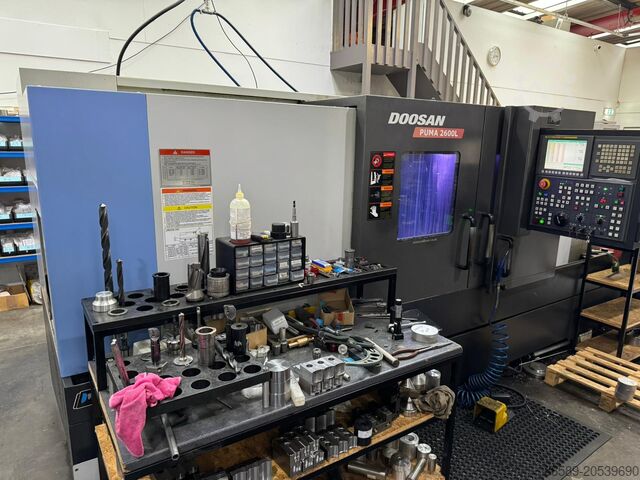

Condition: used, Year of construction: 2012, functionality: fully functional, machine/vehicle number: ML0107-000373, Doosan PUMA 2600 L Swing 780mm X-Axis 260 mm Z-Axis 1350 mm Hodpfxexw Ilmj Ah Uenw FANUC i Series Swarf conveyour Renishaw Toolsetter

Condition: good (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 1,300 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 1,000 mm, controller model: Mazatrol 640M, table width: 800 mm, rotational speed (max.): 7,000 rpm, spindle speed (max.): 7,000 rpm, coolant supply: 50 bar, number of slots in tool magazine: 40, tool length: 500 mm, tool diameter: 200 mm, tool weight: 35,000 g, The machine is available immediately. Hsdpfx Ahsxw Ht Ne Uenw

Condition: used, Year of construction: 2015, turning diameter 410 mm turning length 800 mm control Sinumerik 840D sl Siemens greates pass round over bed 700 mm centre distance 975 mm travel -x axis 300 mm Hjdexwzadopfx Ah Usnw travel -z axis 850 mm turning speed range - spindle 25 - 5.000 U/min chuck 260-81 mm bar material dia. 65 mm spindle bearing diameter 130 mm power capacity 40% ED = 34 kW power capacity 100 % ED = 25 kW max. Torque 380 / 280 Nm C-Axis 0,01 ° turret (x-stations) 16 tool taper VDI 30 DIN 69880-30 driven statition 16 pos Spindle speed driven tools ~ 4.000 min -1 power capacity - driven tools 40% ED = 11,3 kW power capacity - driven tools 100 % ED = 5,6 kW rapid traverse X-axis 30 m/min rapid traverse Z-axis 30 m/min tailstock adjustment 800 mm morse taper MK 5 total power requirement 65 kVA weight of the machine ca. 6,2 t dimensions of the machine ca. 5,5 x 3,0 x 2,5 m CNC Turning- and Milling Center GILDEMEISTER - CTX beta 800 - only 14.061 Spindle hours - WITHOUT tools - WITHOUT dust extraction - Good condition

Condition: used, Year of construction: 2008, functionality: fully functional, Turning / milling center with counter spindle with 10 CNC axes (X1, X2, Z1, Z2, Y1, Y2, B1, B2, C1, C2) Control: FANUC 31:iA Main Spindle Power: 15/11 kW bar material dia.: 51 mm spindle revolution: 5.000 min-1 Hedjxwxzxopfx Ah Ujnw Counter Spindle Power: 11/7,5 kW bar material dia.: 51 mm spindle revolution: 5.000 min-1 Turning and milling spindle Power: 7,5/3,7 kW Turning and milling spindle speed: 12.000 min-1 max. rotation length turret bottom: 1.005 mm Slide cross X1 / X2 / Z1 / Z2 / B2: 455 / 222,5 /1.090 / 1.005 / 1.008 mm Slide cross Y1 / Y2: +/- 70 / +20, -50 mm Swivel range B1 axis: +/- 95 ° Linear rack magazine incl. support robot CNC support steady rest Coolant cyclone filter system incl. 2 pcs. coolant pumping spindle oil cooler

Condition: used, TURNING CENTER "MORI SEIKI" MOD. ZL 200SMC CNC MSC-501 Turning length: 452 mm Maximum turning diameter: 388 mm Maximum diameter over bed: 510 mm Center distance: 751 mm Spindle mount: A2-6 Spindle speed: 4,000 rpm Hedsxwxwtspfx Ah Ujnw Spindle motor power: 11 kW Number of tools: 12

Condition: excellent (used), Gildemeister NEF 520 Year of manufacture: 2001 Control system: Hsdpfxoxwvpgj Ah Uonw - Heidenhain Manualplus 4110 Working area: - Swing diameter over bed: 500 mm - Swing diameter over cross slide: 290 mm - Distance between centers: 1350 mm Main spindle: - Spindle bore: 70 mm - Speed range: 10 to 3000 rpm - 2 gearbox stages Tool holder: - Multifix size C Tailstock: - Quill diameter: 80 mm - Quill stroke: 180 mm - Quill taper: MK 5 Accessories: - Steady rest - Various Multifix tool holders - Various jaws - Various carbide indexable inserts Availability: - Immediately

Condition: good (used), Year of construction: 2008, functionality: fully functional, Technical details turning diameter 800 mm turning length 1500 mm control Siemens 840 D swing over bed 1000 mm swing diameter over slide rest 800 mm max. workpiece weight between centres 2000 kg main spindle speeds: 2000 U/min main drive 62 kW transmission ratio 4 milling spindle drive 37 kW milling spindle turning speed range: 25 - 10000 U/min Hjdpfjxwu Unsx Ah Uenw total power requirement 82 kVA weight of the machine ca. 28 t dimensions of the machine ca. 8,2 x 5,3 x 3,6 m Additional information UniCen Series – for large complex components With the Monforts machine tools from the UniCen Series 1000 you can work with large, complex components up to 1500 mm diameter and 1000 mm swing diameter entirely, process capably and cost effectively in one set-up. Great flexibility results from the five interpolating axis. The B axis swivelling drill-mill head with a swivel range of 190º di rects the tools to the workpiece in almost every position and every angle. Additionally, the tool head can be loaded fully automatically by up to 90 tools from a separate chain magazine. Thus, even complex freeform surfaces with high sur face finish quality are possible. Advantages > Wear free Monforts Hydrostatic > Optimal vibration damping > Long-term accuracy > Long life and highest machining performance > Complex five axis machining via the B axis swivelling drill-mill head > Turning, drilling, milling and thread-cutting on one machine > Precision ball-screw with preloaded double nut UniCen options > Tailstock or sub-spindle > Steady rest > Lower Slide Extensive partial overhaul since November 2023: - All ball screws including bearings overhauled: X1/X2/Y1/Z1/Z2 - All cylinders overhauled - All Siemens motors overhauled: main spindle, tailstock, magazine, tool 1+2, X/Z/Y/B/C/U/W - Siemens control panel replaced, control module and LT module repaired - Clamping elements/ATC renewed: Ortlieb collet, clamping package incl. pull rod - Tailstock quill renewed - All wipers replaced and covers reworked - Drive belts and safety windows renewed - Various cables renewed * CNC Control SIEMENS 840 D * Swivelling milling head at the top (B axis), interpolating, HSK-A 63 * Y axis * C axis * 8-station turret at the bottom, for driven tools * 60-station tool changer * NC-controlled tailstock, quill diameter 150 mm, max. quill stroke 180 mm * Hydrostatic longitudinal guide in the Z-axis * Coolant system with paper belt filter * Chip conveyor * Oil-cooler, make SCHIMPKE * Extraction system * Power chuck, make FORKARDT, diameter 500 mm

Condition: good (used), Mazak 4th axis Table 500 mm C axis In good condition. Hjdpfx Aexwt Tvjh Uonw

Condition: used, Year of construction: 2000, travel distance Z-axis: 1,250 mm, controller manufacturer: SIEMENS, controller model: 840 C, number of spindles: 2, CONTROLS .. CNC controls SIEMENS 840 C BASIC FUNCTIONS .. number of spindles: 2 .. number of turrets: 2 .. live positions: yes .. number of c-axes: 2 X/Z SLIDE .. Z-axis travel: 1250 mm .. X-axis travel: 180 mm .. Y-axis travel: 215 mm .. number of tool positions (total): 12 X/Z SLIDE .. Z-axis travel: 1250 mm .. X-axis travel: 140 mm ELECTRICAL SPECIFICATIONS .. mains voltage: 400 V .. mains frequency: 50 Hz Hnjdpfx Ajxwtzyoh Uew DIMENSIONS / WEIGHTS .. total weight approx.: 6600 kg

Condition: used, Year of construction: 2007, controller manufacturer: SIEMENS, controller model: SINUMERIK, number of spindles: 2, CONTROLS .. CNC controls SIEMENS SINUMERIK BASIC FUNCTIONS .. design principle: inclined bed .. number of spindles: 2 .. - counter spindle: yes Hodpfxsxwty Ne Ah Ujnw .. live positions: yes .. number of c-axes: 2 .. number of y-axes: 1 WORKING RANGE TURNING .. swing diameter (max): 420 mm .. turning diameter (max): 200 mm .. bar diameter (max): 60 mm .. worpiece length max.: 400 mm MAIN SPINDLE .. spindle revolutions (max): 5000 /min .. spindle bore diameter: 60 mm .. c-axis: yes COUNTER SPINDLE .. spindle revolutions (max): 5000 /min .. c-axis: yes X/Z SLIDE .. number of tool positions (total): 14 .. - rotation speeds (max): 6000 /min .. - drive power: 5.5 kW TOOL MAGAZINE .. number of positions: 14 ELECTRICAL SPECIFICATIONS .. total power consumption: 44 kW .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 2450 mm .. space requirements -front/back-: 1400 mm .. total height: 1850 mm .. total weight approx.: 5500 kg ATTACHMENTS (TURNING) .. chip conveyor: yes Accessories - Chip conveyor - Iemca Master 880MP bar feeder

Condition: ready for operation (used), Year of construction: 2002, Control Unit Brand MAZATROL Model PC-FUSION-CNC 640MT Main Drive Number of axis 5 Tools Number of index 40 Hedpsxwqwrjfx Ah Usnw Type of tool holder Capto C6 This 5-axis MAZAK Integrex 300-II Y was manufactured in 2002. If you are looking to get high-quality turning capabilities, consider the MAZAK Integrex 300-II Y machine we have for sale. Contact us for further details regarding this machine. Application Types Turning

Condition: ready for operation (used), Year of construction: 2003, Control Unit Interface HSK 63 Brand OKUMA Model OSP-100L Main Drive Number of axis 5 Tools Hnsdpfx Ahoxwqwlo Ujw Number of index 40 Max tool length 1500 mm Additional Equipment Autodoor This 5-axis Okuma MacTurn 350 was manufactured in 2003. It features an HSK 63 tooling system and can accommodate up to 40 tools. The machine includes an autodoor and supports a turning length of 1500 mm. Consider the opportunity to buy this Okuma MacTurn 350 Turn-mill centre machine. Contact us for more information. Application Types Turning

Condition: used, Year of construction: 2005, turning diameter: 660 mm, controller manufacturer: MAZATROL, controller model: 640 MT PRO, number of spindles: 2, CONTROLS .. CNC controls MAZATROL 640 MT PRO BASIC FUNCTIONS .. number of spindles: 2 .. live positions: yes WORKING RANGE TURNING .. turning diameter (max): 660 mm .. worpiece length max.: 1045 mm MAIN SPINDLE .. spindle revolutions (max): 4600 /min Hnedexwkx Aspfx Ah Usw .. drive power: 22 kW .. c-axis: yes COUNTER SPINDLE .. spindle revolutions (max): 5000 /min .. drive power: 18.5 kW .. c-axis: yes X/Z SLIDE .. rapid traverse Z: 50000 mm/min .. rapid traverse X: 50000 mm/min .. rapid traverse Y: 40000 mm/min .. - rotation speeds (max): 12000 /min .. - drive power: 18.5 kW TOOL MAGAZINE .. number of positions: 40 .. tool diameter max.: 90 mm .. - with free neighbour positions: 125 mm .. tool length max.: 300 mm .. tool weight max.: 10 kg X1 axis: 580 mm X2 axis: 150 mm Y axis: 160 mm Z1 axis: 1,045 mm Z2 axis: 1,010 mm W axis: 1,050 mm B axis: -30 to 210° Special equipment • Chip conveyor • Tooleye • 15 bar high-pressure pump • Milling spindle synchronised thread cutting • 5-axis simultaneous machining • Preparation for multiple and flash tool holders • Interface for bar loader • Conveyor belt for finished parts • Preparation for Renishaw system • 3-jaw chuck for main and counter spindle

Condition: ready for operation (used), Year of construction: 2017, Control Unit Brand MAZATROL Movement X-Axis Movement 615 mm Y-Axis Movement 260 mm Z-Axis Movement 1585 mm W-Axis Movement 1574 Additional Equipment Overload detection system / M-coolant (equipped) prep M-thru 7MPa / Mazak Monitoring System B (RMP600) / Mazacheck / C-axis through milling head during rotation / M-code to be switched coolant/air thru / Ethernet operation function / B) Cylindrical & Polar Coordinate (EIA) / 5-Axis Machining Package for SmoothX / Signal Tower (3 colors lights, square) / 2nd Spdl C-Ax. Sync (fact. install only) / Raw/tube connection parts til 1 & 2nd spindle / Mayfran, Consep2000 side / Mayfran, Variflow HP Pack #1 (7 variable flow/pressure stages), 7.5 K/ Mayfran, HP Twin in-line cartridge filter upgrade / Mayfran, coolant gun This 5-axis Mazak Integrex i-400S was manufactured in 2017, featuring a 1500 mm bed, 72 Capto-tool magazine, and a Mazak Monitoring System B. It includes a 5-axis machining package for SmoothX and Ethernet operation functionality. If you are looking to get high-quality turn-mill capabilities, consider the Mazak Integrex i-400S machine we have for sale. Contact us for more information. Application Types Hnodpfx Ahjxwflko Uew Turning

Condition: good (used), Year of construction: 2013, Turning diameter 376mm, turning length 760mm, bar capacity 76mm, Y axis -/+ 52.5mm, Hsdpoxv Svmefx Ah Uonw C axis 0.001 degrees on both spindles, 12 station turret, 22KW Motor, Main spindle 4000rpm, sub-spindle 4500rpm, 3 jaw chucks, swarf conveyor, tool setter, magazine barfeed unit.

Condition: excellent (used), Year of construction: 2023, S3Y310 BAND FILTER SYSTEM INCLUDING CHIP CONVEYOR BMF-BÜRENER - Coolant tank: 600 litres - Dimensions (LxWxH): 1100x1100x800 mm - Filtration capacity: 150 l/min with emulsion - Average outlet fineness: approx. 60-40 µm - 2x screw spindle pumps MTS20-40 Delivery pressure: 25 bar Flow rate: approx. 24 l/min Power: 3 kW Hodpfx Ahsxv Dbhe Usnw - 2x submersible pumps SPK2-23/15 (rinsing) Delivery pressure: 4.3 bar Flow rate: approx. 35 l/min Power: 0.75 kW - 1 roll of filter paper - 1 unit hinged belt chip conveyor with pre-filtration, lifting tank and lifting pump (Flow rate approx. 170 l/min) - Coating: Graphite grey RAL7024 Year of manufacture: 2023

Condition: good (used), Year of construction: 2007, Mori Seiki NL2000SY/500 CNC Twin Spindle Multitasking Lathe With DMG MSX-850III Control & LNS Quick Load Barfeeder Maximum Swing Over Bed Ø923.8mm. Maximum Swing Over Cross Slide Ø755mm Maximum Turning Ø356mm. Maximum Turning Length 510mm. Maximum Bar Capacity Ø65mm. Axis Travel 'X'=260mm, 'Z'=590mm, 'Y'=±50mm, 'C'=0.001°(Minimum Increment), 'B'=624mm. Main Spindle With Hainbuch Collet Chuck (Main Spindle), Maximum Spindle Speed 5,000rpm (15kW Motor), Spindle Nose A2-6. Sub Spindle With ATS Workholding Collet Chuck, Maximum Spindle Speed 6,000rpm (11kW Motor), Spindle Nose A2-5. 12 Position Turret (12 Positions Driven). Maximum Driven Tool Speed 6,000rpm (5.5kW Motor). LNS Quick Load Servo 80 Barfeeder Length 2,000mm. S/No. NL201GH2033 (2007). With 10bar Coolant System, Chip Conveyor, Workpiece Unloader, Workpiece Conveyor, 2 Renishaw RP3 Tool Setting Arms, Foot Switches, Daikin Inverter Oil Chiller, Filtermist FX4002 Mist Extraction Unit, Signal Tower, Bar Feeder Liners & Manuals. Overall Dimensions L2,6955 x W2,000 x H2,120mm. Weight 5,800kg. Hnjdpfxsxvz T Ue Ah Ujw

Condition: used, Year of construction: 2013, Doosan Puma 700L CNC Heavy Duty Lathe. Serial No. ML0158-001180 (11.2013) with Fanuc Series 32i-Model A Control, Max Swing 1030mm, Max Turning Diameter 900mm, Distance Between Centres 3200mm, 12 Station Turret, Kitagawa B24 24" 3-Jaw Chuck, 1400 rpm, Toolsetter, Tailstock, Manual Steady, Swarf Conveyor, Filtermist Hsdpsxvz Swsfx Ah Uenw Location: These lots are located in Middlesborough, UK. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Condition: excellent (used), Year of construction: 2018, Doosan PUMA VTR 1620M CNC Vertical Turning Centre With Doosan FANUC i-Series Control Maximum Swing Ø2,100mm. Maximum Turning Ø2,000mm. Recommended Turning Ø1,600mm. Maximum Turning Length 1,800mm. Maximum Table Load 10,000kg. Axis Travel 'X'=-800 To 1,000mm, 'Z'=1,200mm, 'W'=840mm (3 x 240mm Steps), 'C'=0.001° (Minimum Indexing Angle). Rapid Traverse 'X'=12m/min, 'Z'=10m/min. Ram Dimension 260 × 260mm. Spindle Speed 300 rpm. Spindle Motor Power 45/37kW. Spindle Torque 20,557Nm. Maximum Milling Tool Speed 3,000rpm. Ram Milling Tool Power 15kW (20 hp). Tool Turret Capacity 15 Tools. Maximum Turning Tool Length 500mm, Maximum Milling Tool Length 350mm, Turning Tool Shank 32 x 32mm, Boring Bar Sleeve Ø100mm. S/No. MT0055-000025 (2018/10) Hsdjxvzzlepfx Ah Uenw With Dual Chip Conveyors, Profluid High Pressure 0-70bar Coolant Filtration System, Losma Icarus Mist Extraction Unit, Kwangrim Oil Cooler, Hand Wheel, Signal Tower, Maintenance Access Ladder With Platform, Staging & Manuals. Machine Dimensions L6,500 × W4,240 × H6,303mm. Machine Weight 40,000kg. Note: No Tooling Included. Please note: Machine must be removed by Jan 2026.

Condition: ready for operation (used), Year of construction: 2002, operating hours: 20,204 h, functionality: fully functional, turning length: 1,025 mm, turning diameter: 530 mm, travel distance X-axis: 475 mm, travel distance Z-axis: 1,170 mm, quill stroke: 150 mm, controller model: Okuma OSP-E100L, TECHNICAL DETAILS Distance between centers: 1,000 mm Swing over bed: 550 mm Maximum machining diameter: 530 mm Maximum workpiece length: 1,025 mm Travels X-axis: 475 mm Y-axis: ±80 mm Z-axis: 1,170 mm C-axis: 360° (continuous) B-axis indexing angle: 1° Main spindle Spindle speed: 5,000 rpm Spindle nose: JIS A2-6 Taper bore diameter: 62 mm Bearing diameter: 100 mm Sub spindle Spindle speed: 6,000 rpm Spindle nose diameter: 140 mm Taper bore diameter: 43 mm Bearing diameter: 80 mm Milling spindle Speed range: 6,000 rpm Feed rates Rapid traverse X-axis: 30 m/min Rapid traverse Y-axis: 26 m/min Rapid traverse Z-axis: 40 m/min Automatic Tool Changer (ATC) Number of tools: 84 Maximum tool length: 250 mm Maximum tool diameter: Ø120 mm (with adjacent stations empty) Maximum tool weight: 5 kg MACHINE DETAILS Control: Okuma OSP-U100L Dimensions (L x W x H): 3,820 × 2,645 × 2,900 mm Weight (without tool magazine): 12,500 kg Main switch-on hours: 20,204 h EQUIPMENT Automatic tool change system Hedexvzp Aspfx Ah Uenw High-speed M-spindle with coolant supply 360° C-axis for continuous machining Robust B-axis with 1° indexing Precision sub spindle for second machining side Stable turret with ATC system

Condition: good (used), Year of construction: 2004, turning length: 2,000 mm, Model: E-650H Hnedpfx Ajxvyq Eoh Ujw Control: Mazatrol 640M Pro Year: 2004 Distance Between Centres: 2000mm Swing Over Bed: 905mm Machine With: C Axis Y Axis Live Tooling/Milling B Axis 800mm Power Chuck Manual Steady 375mm Open Steady 600mm Air Filer Mist

Condition: used, Year of construction: 2007, operating hours: 21,000 h, functionality: fully functional, spindle speed (min.): 60 rpm, spindle speed (max.): 6,000 rpm, position of the milling head: Horizontal, feed length X-axis: 2,000 mm, feed length Y-axis: 1,500 mm, feed length Z-axis: 1,250 mm, workpiece weight (max.): 2,000 kg, total height: 1,250 mm, Table size 1000x1000 mm 1 Degree pisition Max. 2000 kg loading Fanuc 18iMB ATC 90 pieces Hodpexvtxcjfx Ah Ujnw Iso 50 CTS 20 bar

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 500522, spindle speed (max.): 3,500 rpm, overall weight: 6,500 kg, spindle diameter: 140 mm, counter spindle speed (max.): 3,500 rpm, TECHNICAL DETAILS Main Spindle Bar capacity (collet): 90 mm Front bearing spindle diameter: 140 mm Spindle nose ISO 702/1 (size): 8 Chuck diameter: 250/315 mm Max. turning diameter over slides: 270 mm Max. swing diameter: 590 mm Speed: max. 3,500 rpm Sub-Spindle Bar capacity (collet): 90 mm Front bearing spindle diameter: 140 mm Spindle nose ISO 702/1 (size): 8 Chuck diameter: 250/315 mm Hnodpfexvq Rpjx Ah Uew Speed: max. 3,500 rpm Min. collet spacing: 20 mm Rapid traverse: 22.5 m/min Tool Turret Number of tools: 12 MACHINE DETAILS Dimensions & Weight Floor area: approx. 8/10.5 m² Height: 2,150 mm Machine weight approx.: 6.5 t EQUIPMENT Tailstock Automatic loading and unloading system
