Condition: used, Year of construction: 2002, Lot consists of: (1) Vertical Turning Machine Technical Details: Equipped with: - CNC control Siemens 840 D - Tool turret with 12 stations VDI 40 - Driven tool positions at stations 1/4/7/10 - Workpiece conveyor belt - Chip conveyor - No coolant pump (central system) - Turning diameter: 200 mm - Swing diameter: 250 mm - Turning height: 350 mm - Control: Siemens Sinumerik 840 D - Spindle front bearing diameter: 100 mm - Feed range: 0.1 - 20,000 mm/min - Rapid traverse: 20 m/min - Stroke of vertical slide: 300 mm - Spindle nose according to DIN 55026 – size A6 Nodpfx Ahoym Rmmewjcn - Main spindle speed: 50 - 6,500 rpm - Tool drive speed range: 0 - 3,000 rpm - Total connected load: 40 kW - Machine weight approx. 8 t - Floor space required approx. 4.5 x 4.0 x 3.5 m The machine is currently in storage. Images shown do not necessarily reflect its current condition while in storage.

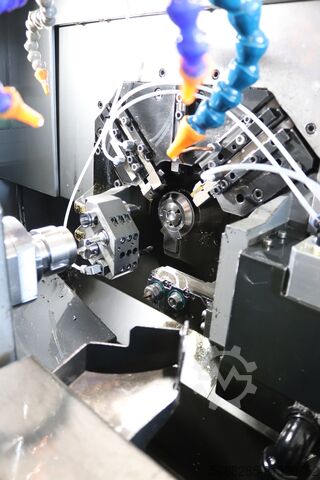

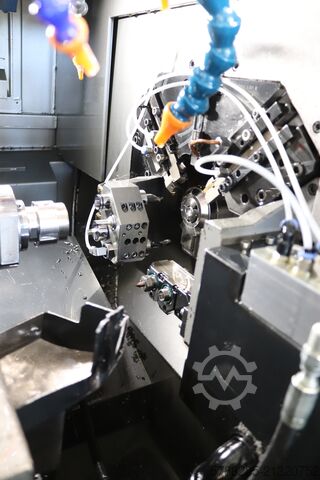

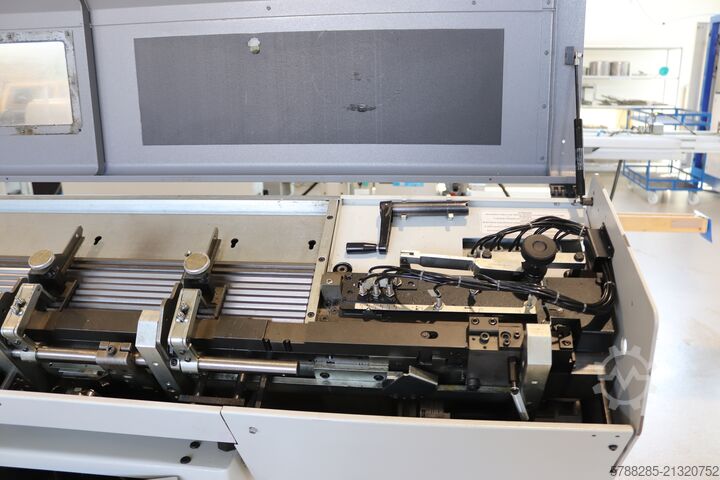

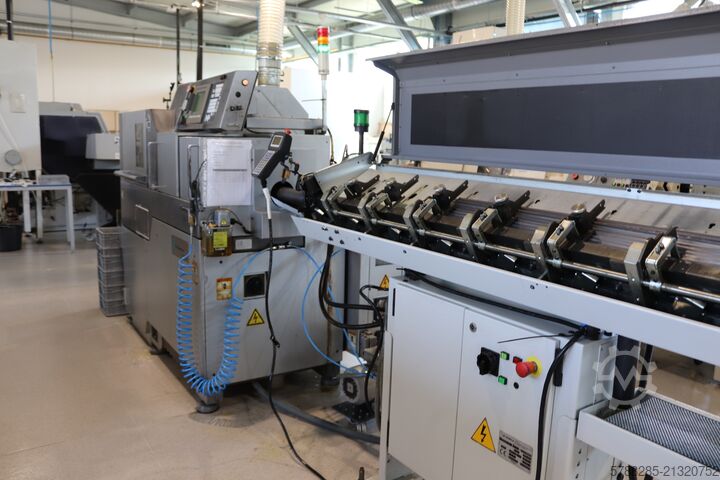

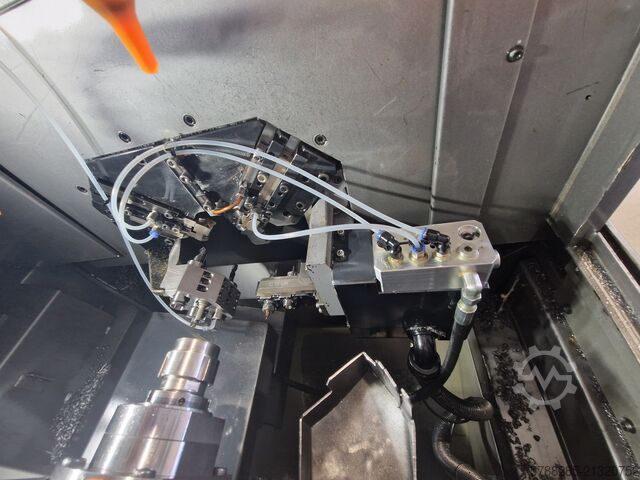

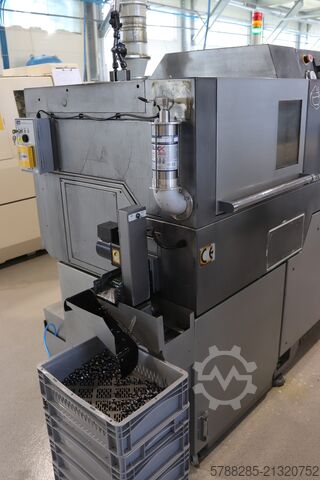

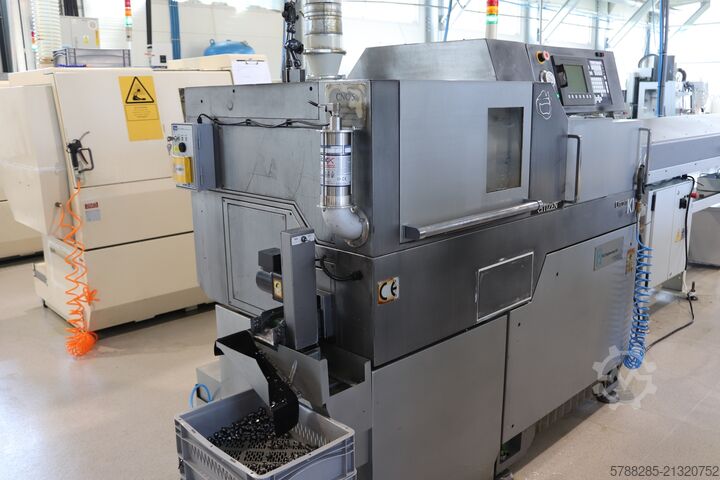

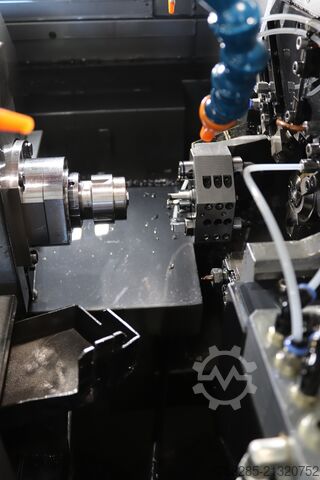

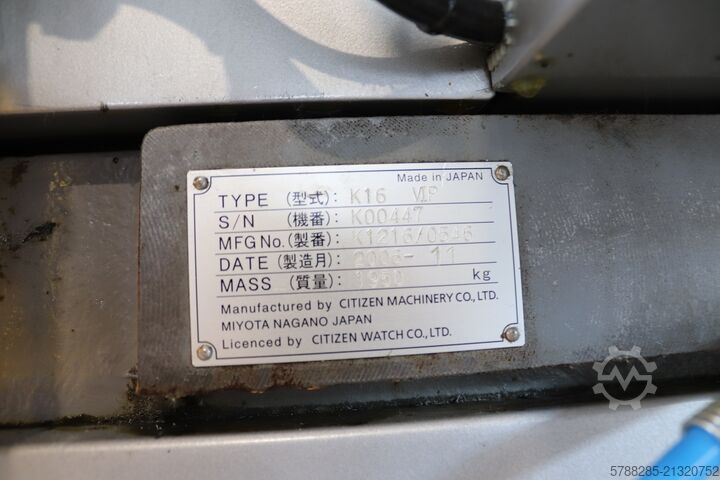

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: K00447, General Information: • Machine year of manufacture: 11/2006 • Serial number: K00447 • Manufacturer: Citizen Machinery Co., Ltd. (Miyota Nagano, Japan) • Machine weight: 1,950 kg Ncsdpfx Ahoymzbuswon Overall dimensions: • Width: 1,610 mm • Depth: 1,850 mm • Height: 1,050 mm Technical specifications: • Max. bar diameter: 16 mm • Max. turning length: 200 mm • Main spindle speed: 15,000 rpm (2.2 / 3.7 kW) • Sub-spindle speed: 10,000 rpm (0.55 / 1.1 kW) • Control: Fanuc Series 31i • Number of axes: X1, Y1, Z1, Z2, C1, C2 • Full C-axis on both spindles • 20 bar high-pressure pump, 2 channels Tooling configuration: Front tool post: • T1–T5 – fixed tools • T11–T14 – driven tools (radial or axial) Tool holder: • T21–T24 – fixed tools for main spindle operations • T31–T34 – fixed tools for sub-spindle operations Equipment: • IEMCA Genius 118 Type 37 LL bar feeder (year 2007, serial no. 020704BA04) • Guide bushings (complete set) • Fixed and driven tooling • 20 bar high-pressure pump / 2 channels Technical condition: The machine is in very good technical condition, fully operational, and ready for work. Regularly serviced and used for precision production. Additional information: • Nameplate: type K16 VIP, serial no. K00446, production date 11/2006, weight 1,950 kg. • The machine can be demonstrated under power.

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: K00446, General data: • Year of manufacture: 11/2006 • Serial number: K00446 • Manufacturer: Citizen Machinery Co., Ltd. (Miyota Nagano, Japan) • Machine weight: 1,950 kg Overall dimensions: • Width: 1,610 mm • Depth: 1,850 mm • Height: 1,050 mm Technical specifications: • Max. bar diameter: 16 mm • Max. turning length: 200 mm • Main spindle speed: 15,000 rpm (2.2 / 3.7 kW) • Sub-spindle speed: 10,000 rpm (0.55 / 1.1 kW) • Control: Fanuc Series 31i • Number of axes: X1, Y1, Z1, Z2, C1, C2 • Full C axis on both spindles • High-pressure pump 20 bar, 2-channel Tool configuration: Front tool post: • T1–T5 – fixed tools • T11–T14 – driven tools (radial or axial) Tool holder: • T21–T24 – fixed tools for main spindle • T31–T34 – fixed tools for sub-spindle Equipment: • IEMCA Genius 118 Type 37 LL bar feeder (year of manufacture 2007, serial no. 020704BA04) • Guide bushings (complete set) • Fixed and driven tooling • High-pressure pump 20 bar / 2 channels Ncodpsymy Erjfx Ahwon Technical condition: The machine is in very good technical condition, fully functional and ready for operation. Regularly serviced and used in precision production. Additional information: • Nameplate: type K16 VIP, serial no. K00446, production date 11/2006, weight 1,950 kg. • Possibility of machine demonstration under power.

Condition: used, Year of construction: 2019, machine/vehicle number: IntNr231494, FANUC, high-performance computer series 31i-B5, Well maintained, approx. 9,000 operating hours Technical Main Data Working Range Max. bar diameter: 38 mm Max. machining length (with guide bushing): approx. 320 mm Machining without guide bushing possible (for shorter workpieces) Max. collet diameter at sub spindle: 38 mm Main Spindle Spindle power: approx. 11–15 kW Max. speed: approx. 7,000 rpm Integrated C-axis (0.001° resolution) High-precision spindle bearings for heavy-duty machining Sub Spindle Power: approx. 5.5–7.5 kW Max. speed: approx. 7,000 rpm Full-function C-axis Part transfer and rear machining in one setup Axis Configuration X1 / Z1 (main system) X2 / Z2 (sub spindle system) Y-axis for off-center milling operations Nsdoymmkbspfx Ahwocn C-axis on main and sub spindle Optional B-axis type swivel functions (depending on equipment) Multi-channel control enables simultaneous machining on main and sub spindle for significantly reduced cycle times. Tooling Tool holder set (non-driven) Guide bushing unit (pull system, JBS) Oil cooler unit High-pressure conveyor (with integrated high-pressure unit), type Müller combistream CS 3 Coolant: oil Weight: 6.25 t Dimensions (LxWxH): 3477x1860x1865 mm The machine can be inspected under power by appointment. Subject to changes and errors in technical data and specifications as well as prior sale!

Condition: used, Year of construction: 2000, operating hours: 43,000 h, machine/vehicle number: IntNr231493, STAR SA 16-12 CNC sliding headstock lathe, year of manufacture 2000 CNC control: FANUC 18i-T Operating hours: 43,000 Technical specifications: - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Maximum bar diameter: 12 mm - Z-axis travel: 140 mm - Spindle speed: 8,000 rpm - Spindle drive power: 2.2 kW - Number of tool stations: 13 SUB SPINDLE - Maximum bar diameter: 10 mm - Spindle speed: 8,000 rpm - Number of tool stations: 4 FMB Minimag bar feeder Ncjdeymmbajpfx Ahwjn The machine can be inspected under power by appointment. Subject to prior sale. Technical data and specifications subject to change and correction.

Condition: good (used), Year of construction: 2003, functionality: fully functional, Technical details working diameter max. 32 mm spindle passage 36 mm turning length 320 mm Control MITSUBISHI MELDAS 635LC travel max. (X1) 108 mm travel max. (Y1) 275 mm travel max. (Z1) 325 mm travel max. (X3) 238 mm travel max. (Z3) 410 mm main spindle speeds: 200 - 8000 U/min c-axis 0,001° deg. Subspindle spindle speeds 200 - 7000 U/min c-axis 0,001° deg. rapid traverse 20 m/min Nodpfxsymli Ae Ahwecn main drive 3,7 / 5,5 kW Subspindle motor 1,5 / 2,2 kW dimensions of machine 2,77 x 1,24 x 1,79 m weight of the machine ca. 2850 kg Additional information CNC Swiss-Type Lathe First put into operation December 2005 The machine was used for a single shift and is in good condition with no maintenance backlog. Equipment: FMB Turbo 5-42/3200C bar loader, built 2004 High-pressure pump Many collet chucks for main spindle Various collets Drive unit for synchronously driven guide bush Synchronously driven guide bush Drive unit for transversely driven spindle on linear support Pick-up spindle Collet chuck for pick-up spindle Blow-out device for pick-up spindle Five fixed tool holders on the rear Workpiece removal device Coolant tank Central lubrication system Door lock Ejection device for workpieces with through holes Machine documentation The machine will be sold without tools and extraction system.

Condition: good (used), Year of construction: 2014, functionality: fully functional, The machine is in good technical condition, with testing possible by prior arrangement. Three machines are available: year 2014/5, 2014/8, and 2015/6. The offered price is for 1 unit. Operating hours: 31,316. Accessories: - MBC (BROXTEC) chip conveyor with link chain - workpiece conveyor belt - FMB Minimag 3200 bar feeder (⌀ 8). Description: The machine was used for series production of small parts with extreme precision from standard, relatively soft material. The machine was not subject to dynamic loads. Production was carried out using oil. Regular maintenance, almost continuous bearing replacement, etc., all in perfect condition. The listed price is for 1 machine. Ncsdpsymg H Aofx Ahwjn

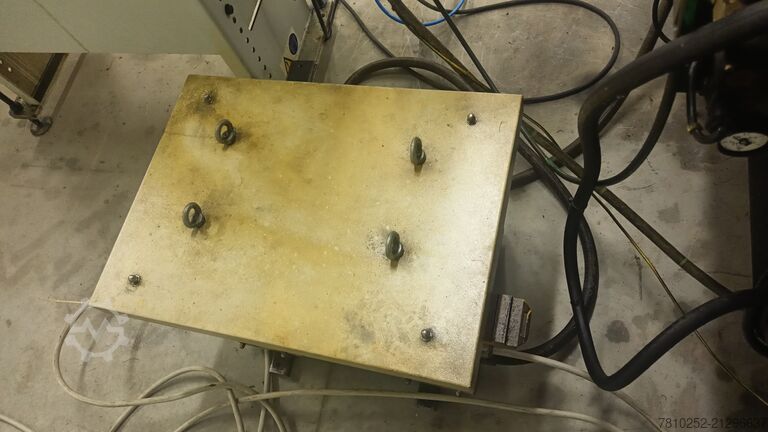

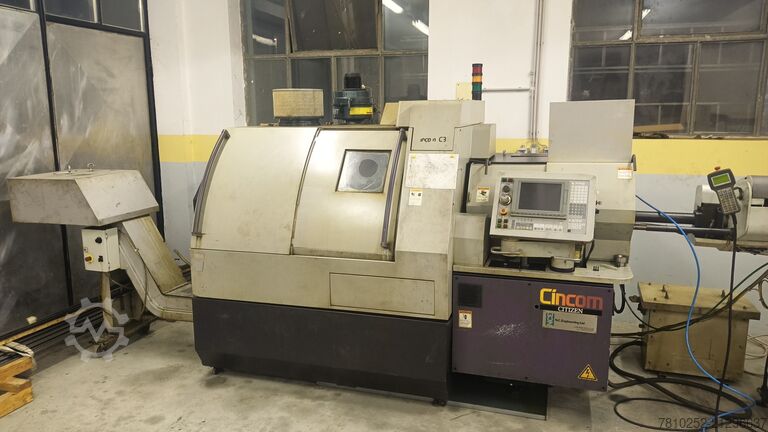

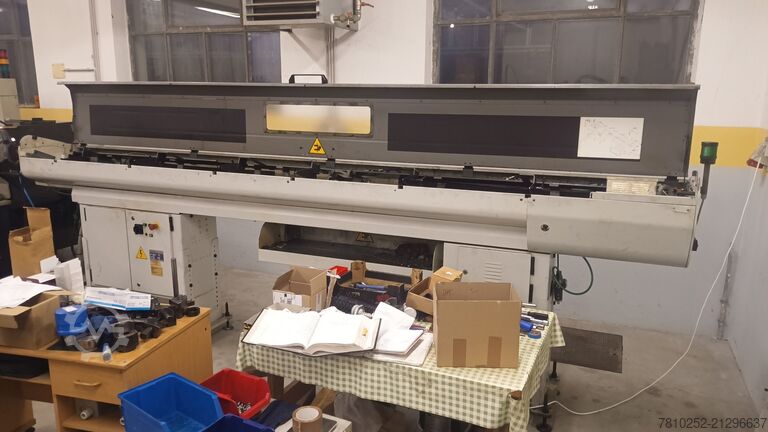

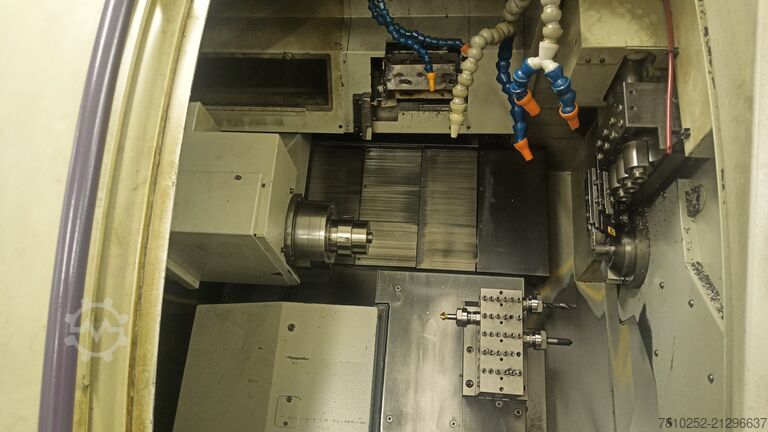

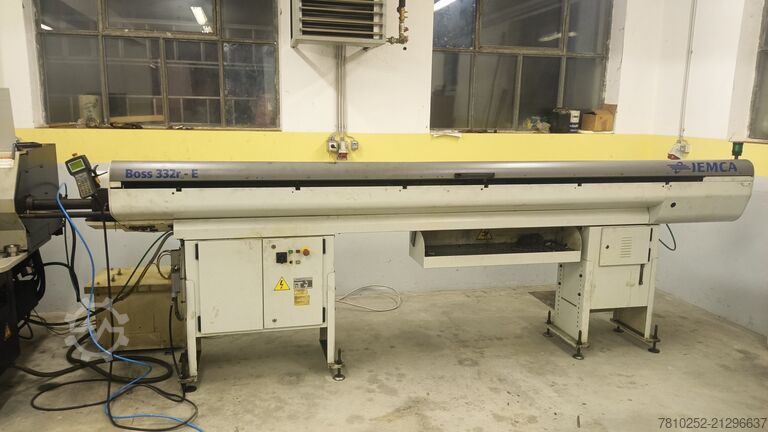

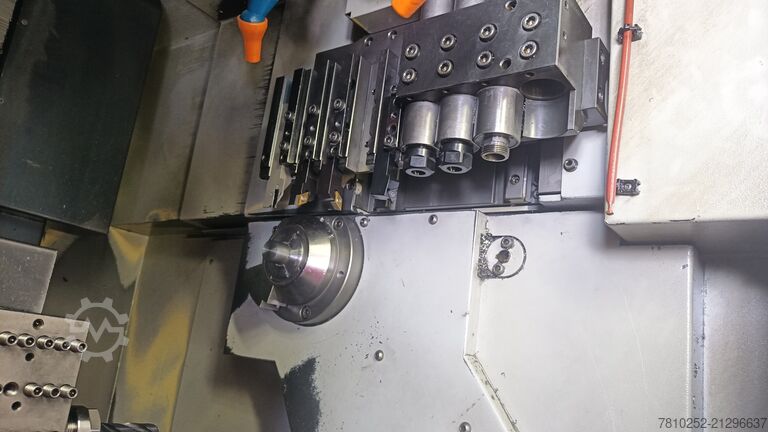

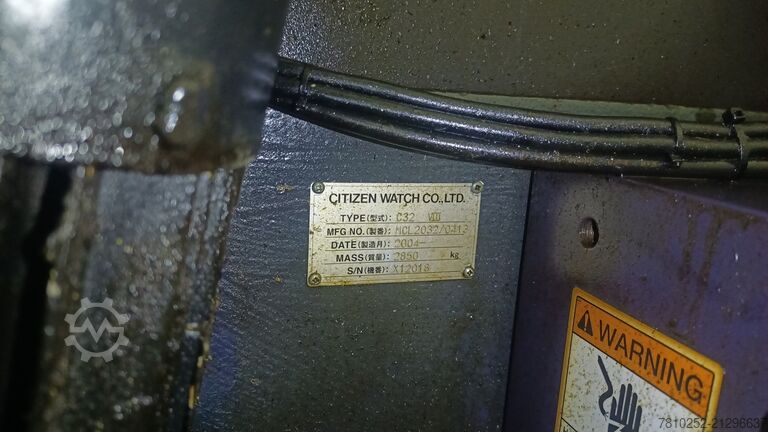

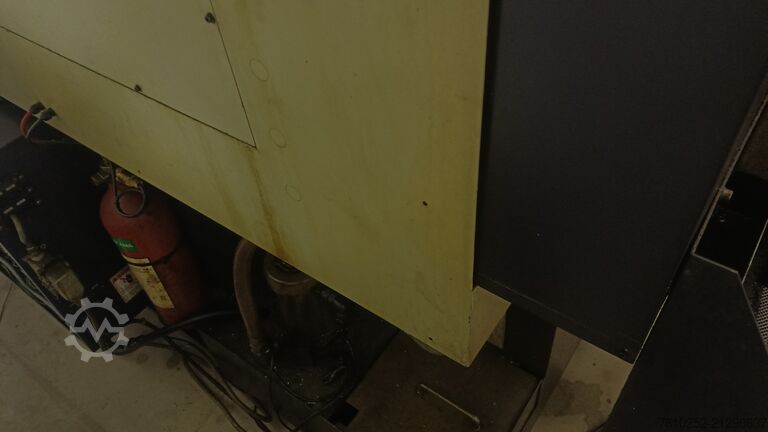

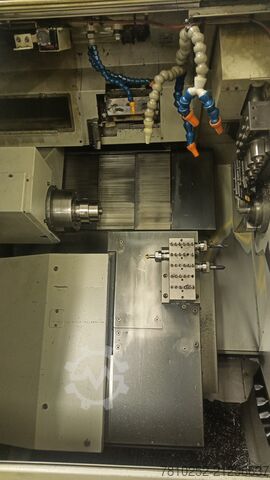

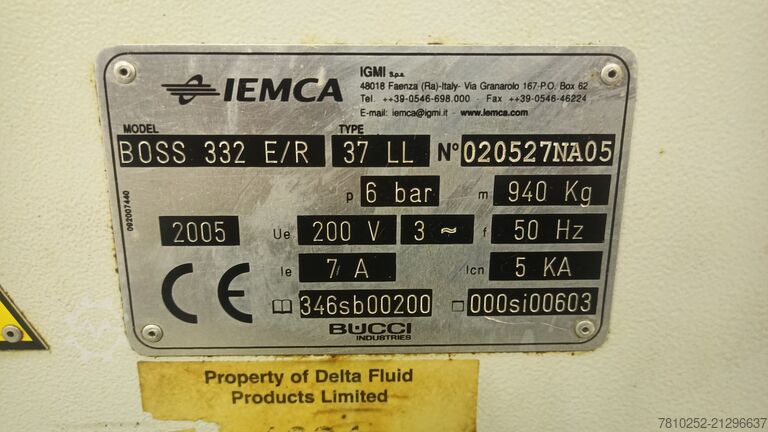

Condition: good (used), Year of construction: 2004, functionality: fully functional, overall weight: 2,850 kg, Equipment: documentation/manual, Due to the end of production, we are selling a well-maintained Citizen C32 VIII automatic lathe, year 2004. Equipment: - 2x spindles - Driven tools - 6 programmable axes - 2x C axes - Chip conveyor - Iemca bar feeder (Boss 332 E/R, year 2005) - Parts conveyor - Signal lamp - Fire extinguisher Type: C32 VIII Machine number: MCL2032/0413 Year of manufacture: 2004 Weight: 2850 kg Serial number: X12018 Ncedpeyl St Sefx Ahwsn It is also possible to agree on the purchase of additional equipment (oil mist extractor, parts centrifuge, compressor, etc.). If you have any further questions or need more information, please send us a message or call us.

Condition: reconditioned (used), Year of construction: 2016, CNC Sliding Headstock Automatic Lathe TRAUB TNL 32 9P With TX 8 i - p control Year of manufacture: 2016 Spindle bore: 32 mm MAIN SPINDLE Speed range: max. 6400 rpm C axis SUB SPINDLE Speed range: max. 6000 rpm C axis UPPER TOOL TURRET: Speed range: max. 12000 rpm 10-position turret (all driven) UPPER TOOL TURRET: Speed range: max. 12000 rpm Nodpfx Ajylnxqohwocn 9-position turret (all driven) BACK WORKING UNIT Number of stations: 8 Powered stations: 3 (T12, T13, and T14) Speed T12 + T14 (12000 rpm) Speed T13 (4000 rpm) Including the following accessories: Full enclosure with interior lighting Various driven tools Various tool holders IEMCA Boss 338-HD bar loader Coolant pump 20 bar Chip conveyor Operating manuals

Condition: good (used), Year of construction: 2015, functionality: fully functional, turning diameter: 32 mm, Main and sub spindle C-axis on main and sub spindle Ncodpfxsylkwio Ahwsn Backside machining Parts conveyor belt Bar feeder FMB Turbo 3-36

Condition: used, Year of construction: 2011, turning diameter over bed 20 mm spindle passage 22 mm turning length 170 mm turning speeds 10.000 U/min positive location each C-Achse 0,001° Grad gripping station 20 positive location each 1° Grad turning speeds 10.000 U/min number of tools 7+4+8 Ncedpjylcm Nefx Ahwsn number of milling stations 3 control Fanuc Oi-TD turning length 170 mm Number of axles 5 St. spindle hours 16.000 h Number of working hours 35.000 h total power requirement 11 kW weight of the machine ca. 1900 kg dimensions of the machine ca. 1,64 x 1,2 x 1,73 + SBF m swiss type machine Tornos Delta 20/5, built 2011, with barloader Robobar SBF 20e Excellent conditions,from precision engineering

Condition: excellent (used), Year of construction: 2013, operating hours: 31,008 h, functionality: fully functional, machine/vehicle number: 6050351, TRAUB TNL 18 – CNC Swiss-/Short-Turn Lathe Machine type: TNL 18, model TNL18-9 Application: Suitable for Swiss and short-turn machining Manufacturer: TRAUB Drehmaschinen GmbH & Co. KG Control / CNC Control system: TX8i-s with 64-bit RISC CNC/PLC processor USB interface PC connection via fiber optic cable, including TFT flat panel display (color) and electronic handwheel Nsdpjylan Dsfx Ahwocn Software package: Helical, Polyform Thread cutting without compensating chuck Parting tool break monitoring Axis shut-off (GSP to block position) Spindles / Axes / Clamping Technology Main spindle with belt drive Incl. hollow clamping cylinder C-axis Change parts for collet chuck F25 (145E) TNL 18 interface for driven guide bush, adjustable, type T223 Change parts for short-turn operation Sub spindle with belt drive Incl. hollow clamping cylinder X-Z-C-axis Part flushing unit for flushing workpieces from the sub spindle Change parts for collet chuck F25 Tool System Lower tool turret: X-Y-Z-H-axis, integrated drive, 8 tool stations, 5 closure plugs Upper tool turret: X-Y-Z-H-axis, integrated drive, 8 tool stations Measuring Systems / Additional Axes Glass scale X-axis (upper/lower turret) Glass scale X4-axis (sub spindle) Actuation for driven and programmable guide bush (positioning/options package for guide bush) Workpiece Discharge / Peripheral Equipment Workpiece removal unit through the sub spindle (RSP) Front workpiece removal unit to parts conveyor Chip conveyor: hinge belt, discharge height 910 mm Hand flushing unit for the working area Central extraction connection: D 150 mm Coolant / Filtration / High Pressure Note from documentation: Machine to be operated exclusively with cutting oil (fire protection system recommended if there is fire/explosion risk) Coolant supply: 3/8 bar, 500 l tank Compact band filter on 500-l coolant tank Flow rate: approx. 100 l/min with emulsion, approx. 70 l/min with cutting oil Filtration fineness: approx. 30–40 micron VB-T internal coolant supply up to 30 bar (upper/lower tool turret) VBT 80–120 bar (valve/station details per list) High-pressure coolant pump 120 bar incl. 25 µm micro filter Immersion cooler for coolant cooling Coolant pump 20 bar Coolant: cutting oil (position in list) Safety / Fire Protection Automatic CO₂ extinguishing system (VBT) For customer-supplied operating materials/oils/coolants: Safety Data Sheets & technical data sheets required before delivery (see documentation note) Electrics / Standards / Documentation Electrical equipment: 400 V / 50 Hz, Europe (VDE/EN 60204) EC Declaration of Conformity & CE marking Color scheme: RAL7037 (machine/chassis), RAL7035 (covers) User documentation: on CD/paper, plus 2 German user manuals Interfaces / Monitoring TRAUB tool monitoring for TX8i-s VB-T network connection for TX8i-s control VB-T hydraulic oil supply WT lower, station 1 (for hydraulic gripper W7040021) Bar Feeder / Magazine Accessories Magazine adapter parts for use without reduction sleeves for: LNS, FMB Maschinenbaugesellschaft mbH, IEMCA Magazine must be equipped with shuttle unit for changeover operation Additions as per list: Add reduction sleeves MSP/RSP FMB-MINIMAG 20 with RSP shuttle unit The equipment is being sold at the Tuttlingen plant, furthermore for sale: MAZAK Quick Turn 200 MSY, year 2019 (installed 07/2020)

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, Equipment: rotational speed infinitely variable, Citizen R07-VI CNC Swiss-type lathe Year of construction 2015, in very good condition, annual maintenance has been carried out every year since new 2 identical machines are available, both ready for immediate delivery Ncedpfx Aoyk Iv Tohwsn Control: Fanuc Max. machining diameter: 7mm Number of servo axes: 6 Z1/X1/Y1/X2/Y2/Z2 Number of C-axes: 2 main and sub-spindle Number of tool positions: 5x turning tool holders / 2x driven tool positions / 3x drilling stations front and rear Including accessories: Iemca Elite 112 EVO bar feeder Büchele SFB-100 high-pressure unit Kraft und Bauer fire extinguishing system

Condition: excellent (used), Year of construction: 2007, operating hours: 25,181 h, functionality: fully functional, EQUIPMENT: Synchronous spindle Njdpfsyk A Ukjx Ahwjcn Driven tools C-axis Rear-side machining Parts conveyor belt FMB Turbo bar feeder magazine Chip conveyor

Condition: ready for operation (used), Year of construction: 2015, spindle motor power: 7,500 W, spindle speed (max.): 7,000 rpm, overall weight: 2,200 kg, total height: 1,700 mm, workpiece diameter (max.): 32 mm, number of axes: 7, This 7-axis Star SR-20J type C Swiss Type Turning was manufactured in 2015. It features a maximum machining diameter of 32mm, headstock stroke of 310mm, and spindle speeds up to 7,000rpm. Equipped with a Hydrajet BF20-2000 high-pressure coolant system and an Absolent A.Mist 10S mist extraction unit, the Star SR-20J type C represents a robust addition to any machining setup. Contact us for further details regarding this Swiss Type Turning. Additional equipment • High Pressure Coolant System: Hydrajet BF20-2000 • Mist Extraction Unit: Absolent A.Mist 10S • Fire Suppressor: Stat X • Signal Production Tower: Werna Machine Benefits Qualitative Machine Benefits • Includes comprehensive safety and environmental management systems (fire suppressor, mist extraction) Technical Machine Benefits • Rapid feed rate 24m/min, maximum spindle speed 7000 rpm, maximum driven tool speed 6000 rpm Extra Information Nsdpoyi Emtefx Ahwscn Manuals included Machine still under power Dimensions Machine Depth 2250 mm

Condition: ready for operation (used), Year of construction: 2004, spindle motor power: 3,700 W, spindle speed (max.): 10,000 rpm, controller manufacturer: FANUC, controller model: Series 18i-TB, number of axes: 7, This STAR SR-20 R II Lathe was manufactured in the year 2004. It is equipped with a Fanuc Series 18i-TB control unit and has 7 axis. The machine has a spindle speed of 500-10000 rpm. Machine Benefits Technical Machine Benefits Ncedpsyi Emmofx Ahwjn • Turning length: 205 mm • Max. Bar diameter: Ø 20 mm • Max. Turning diameter from bar: Ø 20 mm • Counter-spindle rotation speed: 8000 rpm, engine power: 2. 2 kw • Fmb bar loader mod. Turbo 3-26/3200/a

Condition: ready for operation (used), Year of construction: 2007, spindle motor power: 5,500 W, spindle speed (max.): 8,000 rpm, overall weight: 3,200 kg, This CITIZEN M32V Swiss Type Turning was manufactured in the year 2007 in Japan. The machine has a spindle speed of 8000 rpm. Official brochure attached for more details. Machine Benefits Nodpfxjyi Eino Ahwscn Technical Machine Benefits • Max chucking barstock: Ø 32 mm • Max machining lenght: 320 mm • Max drilling diameter main spindle: Ø 12 mm • Max back-spindle drilling: Ø 10 mm • Max. Back-spindle rotating speed: 7000 rpm • Max. Back-spindle power: 2 kw • Gang rotary tool: 5 fixed tools • Turret tools: 10 positions • Bar feeder: iemca boss 332 e/r type 37ll • Equipment: chip conveyor

Condition: ready for operation (used), Year of construction: 2005, spindle motor power: 7,500 W, spindle speed (max.): 8,000 rpm, This CITIZEN M32 III Swiss Type Turning was manufactured in the year 2005. It is equipped with a Cincom control unit. The machine has a spindle speed of 8000 rpm. See official brochure attached for more details. Machine Benefits Technical Machine Benefits • Max chucking barstock: Ø 32 mm • Max machining lenght: 320 mm • Max drilling diameter main spindle: Ø 12 mm • Max back-spindle drilling: Ø 10 mm • Max. Back-spindle rotating speed: 7. 000 rpm, max. Back-spindle power: 3,5 kw • Gang rotary tool: 5 fixed tools + 4 driven tools Ncedpfeyi Eihox Ahwen • Turret tools: 10 positions • Bar feeder: iemca boss 332 e/r type 37ll - year 2008 • Equipment: chip conveyor

Condition: ready for operation (used), Year of construction: 2004, spindle motor power: 7,500 W, spindle speed (max.): 8,000 rpm, controller manufacturer: CINCOM, This CITIZEN M32 III Swiss Type Turning was manufactured in the year 2004. It is equipped with a Cincom control unit. The machine has a spindle speed of 8000 rpm. See official brochure attached for more details. Machine Benefits Technical Machine Benefits • Max chucking barstock: Ø 32 mm • Max machining lenght: 320 mm • Max drilling diameter main spindle: Ø 12 mm • Max back-spindle drilling: Ø 10 mm • Max. Back-spindle rotating speed: 7. 000 rpm, max. Back-spindle power: 3,5 kw • Gang rotary tool: 5 fixed tools - 4 driven tools • Turret tools: 10 positions • Bar feeder: lemca boss 332 e/r type 37ll - year 2005 Nodpfeyi Eh Rjx Ahwecn • Equipment: chip conveyor

Condition: used, Year of construction: 2010, max. bar material dia. 20 mm Ncodpfx Ahjyiu Tcswjn max. working lenght 210 mm max. drilling capacity diameter 10 mm control Hanwha Fanuc i Series turning speeds 8.000 U/min Turning Automatic Lathe - swiss lathe | HANWHA - XD 20 equipped with an LNS Express 332 (Bj. 2006) bar feeder. The machine has 26’457h processing time hours. The machine videos from the production plant will be shared on request. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: XD-20 | XD20

Condition: used, Year of construction: 2010, max. bar material dia. 20 mm max. working lenght 210 mm max. drilling capacity diameter 10 mm control Hanwha Fanuc i Series turning speeds 8.000 U/min Turning Automatic Lathe - swiss lathe | HANWHA - XD 20 equipped with an LNS Express 220 (2007) bar feeder. The machine has 26.457h processing time hours. Ncsdpfx Ajyiu S Sshwjn A machine video from the production plant will be shared on request. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: XD-20 | XD20

Condition: excellent (used), Year of construction: 2019, operating hours: 4,471 h, functionality: fully functional, spindle speed (max.): 12,000 rpm, spindle speed (min.): 200 rpm, overall weight: 1,150 kg, total width: 1,622 mm, total length: 837 mm, total height: 1,597 mm, bar diameter (max.): 3,200 mm, travel distance X-axis: 108 mm, travel distance Y-axis: 104 mm, travel distance Z-axis: 140 mm, Equipment: documentation/manual, rotational speed infinitely variable, Citizen Cincom B12E-VI EC Machine type: CNC Swiss-type automatic lathe Controller: Fanuc 0i-TD Axes: 4 Year of manufacture: 2019 Nsdpfx Ajyin R Ujhwecn Condition: Very good Operating hours: 4,471 h Functionality: Fully functional Capacities Maximum bar capacity: Ø 12 mm Maximum machining length: 140 mm Machining length with guide bushing: approx. 62 mm Maximum main spindle speed: 12,000 rpm Spindle speed with guide bushing: approx. 8,000 rpm Main spindle motor power: 3.7 kW Tooling Turning tools: 5 × 10 mm Drilling tools: 4 front + 4 rear Driven tools: 3 Speed of driven tools: 6,000 rpm Driven tool power: 1.0 kW Sub-spindle Clamping diameter: Ø 12 mm Speed: up to 6,000 rpm Power: 1.0 kW Tools, rear: 4 (fixed or driven) Travel X-axis: 108 mm Y-axis: 104 mm Z-axis: 140 mm Dimensions & Weight L × W × H: 1,622 × 837 × 1,597 mm Weight: approx. 1,150 kg Bar feeder FMB Minimag 3200 C Manufacturer: FMB Maschinenbau Model: Minimag 3200 C Year of manufacture: 2001 Bar length: 3,200 mm Bar diameter: 3–20 mm (ideal for Ø 12 mm machines) Magazine type: tube magazine Drive: servo controlled Range of application: Swiss-type automatic lathes up to Ø 20 mm

Condition: ready for operation (used), Year of construction: 2000, spindle motor power: 3,700 W, spindle speed (max.): 8,000 rpm, overall weight: 2,200 kg, total height: 1,700 mm, number of axes: 2, Swiss type turning machine manufactured in 2000. This Star SR 20 R was designed for precision turning with a maximum turning diameter of 20 mm and a spindle speed of 8,000 rpm. It features 6 fixed turning tool stations and 4 radial motorized tool stations, providing versatility for various applications. Consider the opportunity to buy this Star SR 20 R swiss type turning machine. Contact us for further details. • Capacities • Maximum turning diameter: 20 mm • Maximum mobile tailstock travel (single clamping): 205 mm Nsdpfsyibndjx Ahwocn • Maximum workpiece diameter / through bore: 20 mm • Maximum workpiece length (front ejection): 80 mm • Spindle • Spindle bore diameter: 20 mm • Feeds • Rapid feed (linear axes): 20 m/min • Rapid feed (C-axis): 90,000°/min • Maximum cutting feed (linear axes): 10 m/min • Maximum cutting feed (C-axis): 10,000°/min • Tooling • Fixed turning tool: M8 × 1.25 • Rotary tool on comb slide: M6 × 1 • End mill on comb slide: Ø 10 mm • Fixed turning tool stations (std/opt): 6 • Tool shank diameter (std/opt): 12 mm • Radial motorized tool stations: 4 • Max speed of motorized units: 8,000 rpm • Max power of motorized units: 1.2 kW • Fixed drilling/tapping tool stations: 4 • Max collet diameter (ER collet): 10 mm • Max drilling capacity (C45 steel): 8 mm • Max tapping capacity (C45 steel): M8 × 1.25 / M6 × 1 • Power and utilities • Available power: 2.2 kW • Total installed power: 7 kVA • Tank capacity: 155 L • Machine dimensions & weight • Maximum footprint: 2.21 × 1.08 m • Axes • Number of axes: 2 (X and C)

Condition: good (used), Year of construction: 2003, operating hours: 18,538 h, functionality: fully functional, machine/vehicle number: 431, overall weight: 7,000 kg, total width: 2,000 mm, total length: 11,000 mm, total height: 1,900 mm, controller manufacturer: TRAUB, controller model: SYSTEM TX 8i, TRAUB TNK 36 CNC Automatic Lathe - Operating voltage: 460 V - Frequency: 50 Hz - Connection power: 33 kW - Rated current: 56 A Main spindle: - Bar capacity: 36 mm - Max. speed: 6,300 rpm - Drive power at 100/40% duty cycle: 6.7/10.7 kW - Torque at 100/40% duty cycle: 21/32 Nm Upper tool turret: - Number of tooling stations: 12 - X-axis travel: 50 mm - Y-axis travel (option): ±20 mm - Z-axis travel: 100 mm - Rapid traverse X/Y/Z: 15/15/15 m/min - Position feedback resolution X/Y/Z: 0.0005/0.001/0.001 mm - Thrust force X/Y/Z: 4,240/4,240/4,240 N Front unit: - Number of tooling stations: 5 - Diameter: 40 mm - Spacing: 54 mm - X-axis travel: 370 mm - Z-axis travel: 250 mm - Rapid traverse X/Y: 30/30 m/min - Thrust force X/Z: 2,800/2,120 N - Position feedback resolution X/Z: 0.0005/0.001 mm Ncedpfx Ahjyh Ivlowjn Rear unit: - Number of tooling stations: 5 - Diameter: 40 mm - Spacing: 54 mm - X-axis travel: 73 mm - Y-axis travel: ±50 mm - Rapid traverse X/Y: 15/15 m/min - Thrust force X/Z: 4,240/4,240 N - Position feedback resolution X/Z: 0.0005/0.001 mm - Including all tool holders shown in the photos, as well as a chip conveyor and coolant system by Resy, and a bar loader by FNB, model: TURBO 5-42. Attention: The item must be collected bindingly on a to-be-agreed appointment between 01 and 02 April 2026. FCA D-79115 Freiburg – loaded onto truck

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, The machine can be inspected at our warehouse until March 3rd after it is commissioned at the factory. Ncjdpjyh Itwefx Ahwon
