Year of construction: 2022, condition: ready for operation (used), number of axes: 2, Cylindrical grinding machine manufactured in 2022. This ELMAG CG 800 features a maximum grinding diameter of 200 mm and a grinding length of 800 mm. It is equipped with a robust headstock spindle and transverse feed guide, ensuring precision in grinding operations. If you are looking to get high-quality grinding capabilities, consider the ELMAG CG 800 machine we have for sale. Contact us for further details. • Max. Grinding diameter: 200mm • Max. Grinding length: 800m • Total equipment capacity: 7 kVA • Voltage: 400 V • Phase: 3 PH • Frequency: 50 Hz • Protection class: IP54 • Total current: 25 A Nkedpjym Ar Uefx Af Ueu • Bed guide • Headstock spindle • Internal grinding tool • Transverse and longitudinal screw bearings • Tailstock sleeve • Transverse feed guide • Grinding wheel spindle (dynamic and static pressure) • Grinding wheel spindle (tiles)

Year of construction: 1970, condition: ready for operation (used), A total of three cylindrical grinding machines and one internal cylindrical grinding machine are available. 1/2) Two identical cylindrical grinding machines SMW AGL 125/5PC, year of manufacture: approx. 1970, center height: 160mm, max. workpiece width: 63mm, max. workpiece diameter: 180mm, speed: 1000rpm, machine dimensions X/Y/Z: approx. 2800mm/2800mm/2400mm, weight: approx. 5500kg. 3) Cylindrical grinding machine Fortuna RSE300/II, max. grinding wheel diameter: 300mm, grinding length: 600mm, machine dimensions X/Y/Z: approx. 1600mm/1400mm/1550mm, weight: approx. 2000kg. 4) Internal cylindrical grinding machine Jung D14 MP7z, grindable bore: 8mm-10mm, max. grinding depth: 150mm, swing diameter: 450mm, workpiece spindle bore: 35mm, max. swiveling range: 30°, machine dimensions X/Y/Z: approx. 2700mm/1300mm/1700mm, weight: approx. 2500kg. An on-site inspection is possible. Individual sale possible. Njdpfxsympcyj Af Ueku

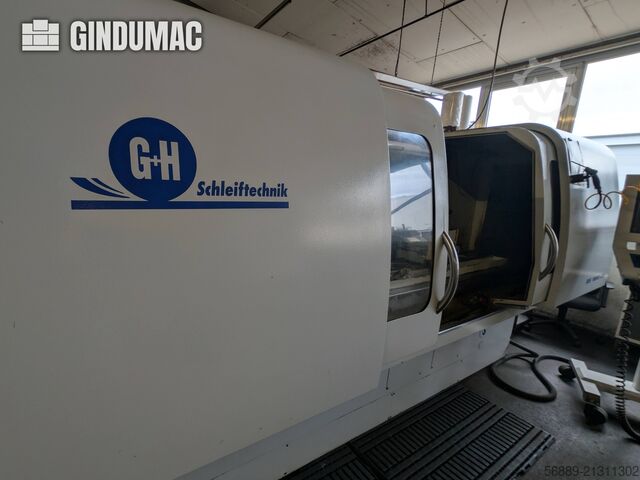

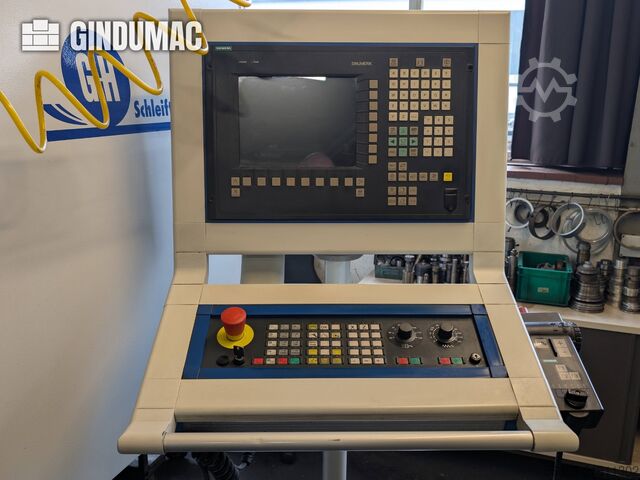

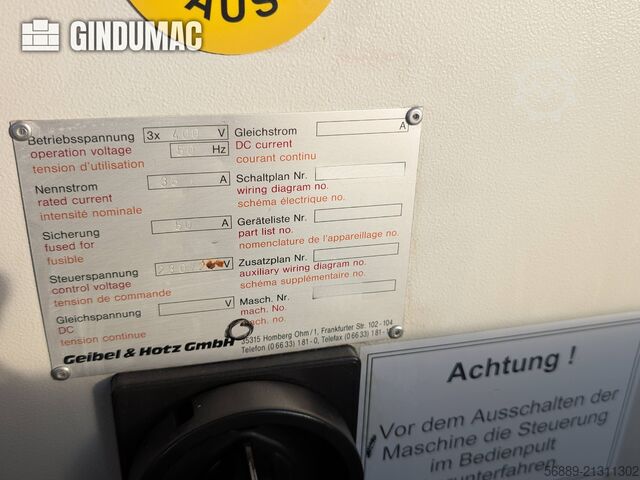

Year of construction: 2006, condition: ready for operation (used), controller manufacturer: SIEMENS, controller model: SINUMERIK 840D with SIMODRIVE 611D, overall weight: 6,200 kg, number of axes: 2, Cylindrical grinding machine manufactured in 2006. This GEIBEL & HOTZ RS 1000 CU features a center distance of 1000 mm and a maximum swing diameter of 355 mm. It is equipped with an electromechanical X-axis and Z-axis, offering feed rates of up to 12,000 mm/min. If you are looking to get high-quality grinding capabilities, consider the GEIBEL & HOTZ RS 1000 CU machine we have for sale. Contact us for further details. • Current defects: • Measuring probe is defective • Switch in the coolant reservoir for controlling the pump is defective • Axis configuration: 2-axis (X, Z) • Center distance: 1000 mm • Center height: 180 mm • Max. swing diameter: 355 mm • Max. workpiece weight: 150 kg between centers; 60 kg in chuck (including clamping device) • X-axis: Nsdpeymn Ihsfx Af Usku • Drive: electromechanical with ball screw • Feed rate: 0.01–8,000 mm/min • Measuring system: glass scale, 0.0005 mm resolution • Z-axis: • Drive: electromechanical with ball screw • Feed rate: 0.01–12,000 mm/min • Measuring system: rotary encoder, 0.001 mm resolution • Workpiece spindle: • Motor power: 2.0 kW • Speed: 0–1000 rpm • Taper: MK5 and KK5 (DIN 55026) • Grinding spindle: • Motor power: 9 kW • Speed: 1400 rpm • Grinding wheel size (standard): 500 × 80 × 203.2 mm • Bearings: precision rolling bearings • Lubrication: lifetime lubrication • Required space: approx. 3900 × 2450 × 1800 mm • Power supply: 400 V, 50 Hz, 3-phase • Control voltage: 230/24 V • Installed power: approx. 23 kW

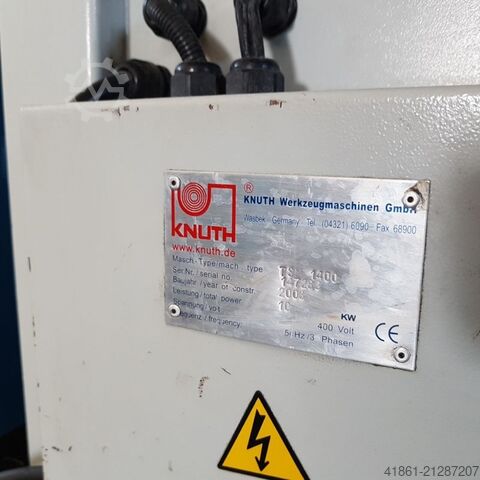

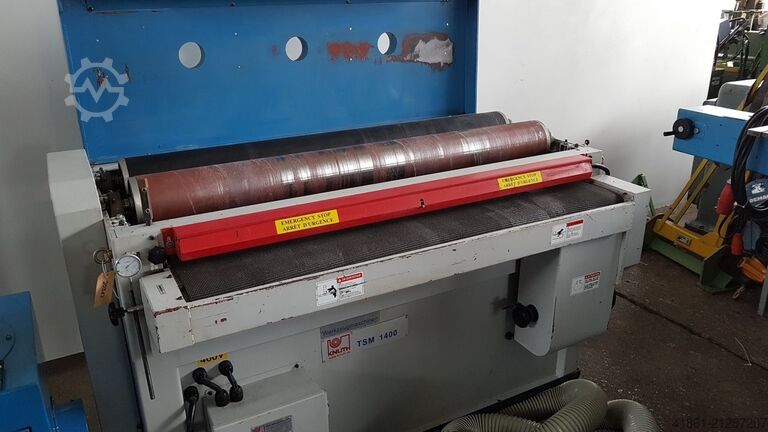

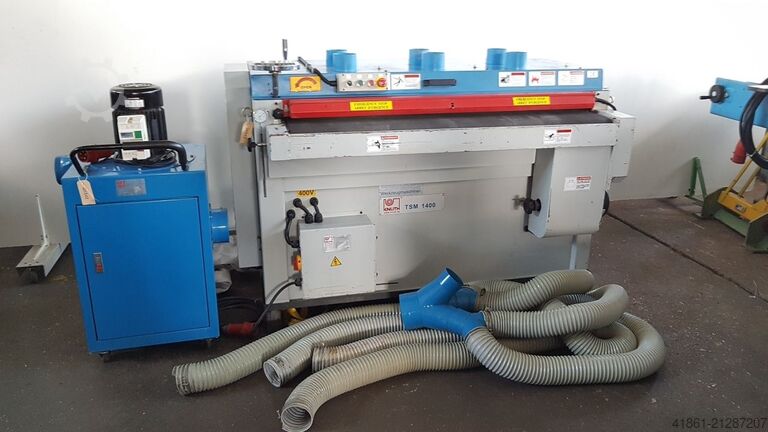

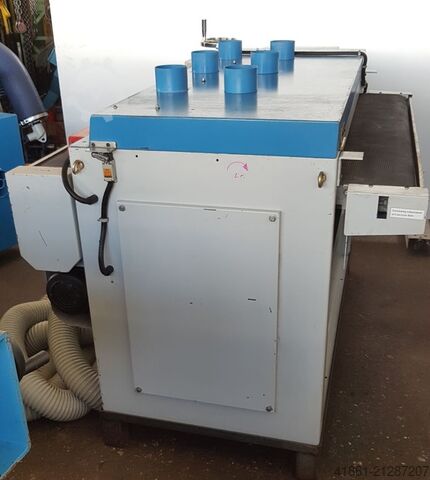

Condition: used, Year of construction: 2008, machine/vehicle number: 147233, Ref. no. 20312 Technical Data: - Workpiece thickness: 0.8 to 51 mm - Max. working width: 1370 mm - Max. grinding height: 100 mm - Grinding diameter: 150 mm - Grinding speed: 1720 rpm Nedpfxsylylie Af Ujku - Feed rate: 3.7 m/min - Drive: 400 V / 9.7 kW - Working height: 1100 mm - Space requirement approx.: W 1700 x H 1200 x D 1200 mm - Weight approx.: 800 kg - Separate mobile motorised grinding dust extraction unit

Year of construction: 2007, condition: ready for operation (used), A surface grinding machine is offered. Condition: as new - never used, Design: micro granite, STC control system, Grinding area X/Y/Z: 600mm/400mm/475mm, Table load: max. 400kg, Table speed: approx. 2-30m/min (infinitely variable), Grinding wheel dimensions X/Y/Z: 300mm/50mm/76.2mm, Installation dimensions X/Y/Z: approx. 2800mm/2200mm/2500mm, Machine weight: approx. 3900kg. Viewing possible by appointment. Nedpfx Aeylnzxsf Usku

Year of construction: 1979, condition: ready for operation (used), Components: headstock, main spindle, faceplate flange, taper, table, guideway, longitudinal guide, cross guide, tailstock, workpiece holder, tailstock taper, workpiece spindle. With documentation and records. An on-site inspection is possible. Nedoyln Dtjpfx Af Ueku

Year of construction: 2016, condition: ready for operation (used), Offered is a high-precision worm and thread grinding machine MIKROMAT 20G, used as a test and trial machine, nearly all available options included, technically flawless condition. Capabilities: external thread grinding, internal thread grinding, whirling Whirling, grinding length max. 2000mm, workpiece diameter max. 320mm, distance between centers: 2250mm NC tailstock option: 2050mm, workpiece weight max. 200kg 350kg NC tailstock, pitch range: 0-400mm, 7-axis system, feed speed: up to 15000mm/min, setting angle: +/-40°, positioning accuracy: uncertainty 0.0024mm P, upgrade to 23.5kW continuous power/45kW maximum power, grinding wheel speed: up to 50m/s, special equipment internal grinding: internal thread diameter up to 100mm, length up to 50mm, coolant system: KNOLL compact unit vacuum rotary filter, 2500l tank volume and oil cooling, installation dimensions X/Y/Z: approx. 6500mm/4000mm/3000mm, total weight: approx. 13000kg, inspection possible by arrangement. Nsdpfxsylbr Dj Af Usku

Year of construction: 1997, condition: ready for operation (used), Color: RAL 7035 light grey, RAL 7012 basalt grey, RAL 5012 blue grey, the machine’s inverter is defective. Accessories: electromagnetic clamping plate 400x250mm, with pole pitch 5mm and holding force control, automatic vertical infeed with infeed program and digital display for vertical and cross movement, automatic central lubrication system, wet grinding unit with paper belt filter system for filter paper 460x200mm with filter fineness 0.016–0.025mm, electric wheel dresser with dimensional compensation and operating manual. An on-site inspection is possible. Nkodpfxsylbrwe Af Uou

Condition: ready for operation (used), A used manual tool grinding machine from Saacke is offered. Table size X/Y approx.: 850mm/145mm, travels X/Y/Z approx.: 450mm/250mm/250mm, center height approx.: 125mm, max. grinding length approx.: 500mm, machine dimensions X/Y/Z approx.: 1500mm/1100mm/1500mm, weight approx.: 850kg. Inspection by appointment possible. Nkodpfx Afoyk Hb Is Uou

Condition: ready for operation (used), Offered is a used high-precision Studer S35 CNC cylindrical grinding machine. Center distance: 1000mm, center height: 175mm, swing diameter max. approx. 350mm, workpiece weight: approx. 80kg, resolution: measuring systems glass scales range 0.0001mm 0.1µm. Inspection by appointment possible. Nedpfxjykuuce Af Uoku

Year of construction: 2004, condition: ready for operation (used), travel distance X-axis: 320 mm, travel distance Z-axis: 1,150 mm, controller manufacturer: HEIDENHAIN, overall weight: 6,000 kg, This KELLENBERGER KEL VARIA RS 175/1000 Grinding machine was manufactured in the year 2004 in Switzerland. It is equipped with a HEIDENHAIN control unit. Machine Benefits Qualitative Machine Benefits • Good condition Technical Machine Benefits • Distance between centres: 1000 mm • Centre height: 175 mm Nedpfxeyi Elio Af Ujku • Grinding wheel dimensions right Ø 400 x 50 mm • Grinding wheel head movements -210°/+30° • Rotational speed 8-800 rpm • Spindle type cm5

Year of construction: 2008, condition: ready for operation (used), overall weight: 3,800 kg, spindle speed (max.): 600 rpm, number of axes: 5, This 5s SAACKE UWIF cylindrical grinding machine was manufactured in 2008. It features a maximum spindle speed of 600 rpm and a powerful grinding spindle peak power of 16 kW. The machine supports a variety of workpiece sizes, with a maximum diameter of Ø 20 mm and a weight capacity of 1 kg. If you are looking to get high-quality grinding capabilities, consider the SAACKE UWIF cylindrical grinding machine we have for sale. Contact us for further details. • Workpiece carrier A-axis: Direct drive/hollow shaft motor; indexing accuracy ±15"; indexing possibilities 1–999; cumulative pitch error at 100 mm: 8 µm; speed max. 600 rpm • Tool holder: ISO 50 • Spindle clearance holding sleeve: max. 28 mm (with automatic clamping: Ø20 mm) • Nominal drive power: • Grinding spindle S1-100%: 7.5 kW; peak: 16 kW • X-axis longitudinal travel: 2 kW • A-axis workpiece carrier: 2 kW • Z-axis cross slide: 2 kW • Y-axis grinding head slide height: 2 kW • B-axis grinding head rotation (rotary table): 2 kW • Position measuring systems: • A-axis: Direct measuring system • B-, X-, Y-, Z-axis: Indirect measuring system • Resolution X/Y/Z: 0.0001 mm (0.1 µm) • Resolution A/B: 0.0001° • Electrical connection: 20 kW / 50 A; operating voltage 400 V, 50 Hz; control voltage 24 V; lighting voltage 230 V; backup fuse: separate supply from mains • Compressed air: 15–17 Nm³/h; pressure min/max 6/8 bar (600/800 kPa); quality ≥ Class 4 (ISO 8573-1) • Control & software: CNC NUM Axium Power 1050 with PC, program memory 512 k; NUMROTOplus software (dongle/hardlock required); zero points calibrated using enclosed measuring instructions (no marked reference points) Additional equipment • Workpiece changer options (automation): • Option 1: Pick-up design • Max. workpiece: Ø20 mm × 120 mm; 1 kg • Capacity per pallet: • Ø3.0–5.0 mm shank: 40 pcs • Ø5.1–8.0 mm: 32 pcs • Ø8.1–11.0 mm: 28 pcs • Ø11.1–14.0 mm: 24 pcs • Ø14.1–20.0 mm: 20 pcs • Option 2: Chain loader magazine (with gripper unit) • Capacity: 64 workpieces • Max. workpiece: Ø32 mm × 200 mm; 2.5 kg • Features: Chaotic loading of different workpieces; automatic changing of collets possible • Holding sleeves: Ø6, 8, 10, 12, 14, 16, 20 • External chain loader option: increases machine weight to approx. 3,800 kg and space to 3,000 mm × 1,875 mm Nedpeyiz R Uofx Af Uoku • Coolant filter system (TRANSOR): To be provided by customer; air for backwashing approx. 700 Nl/min for 5 min every 6–9 hours

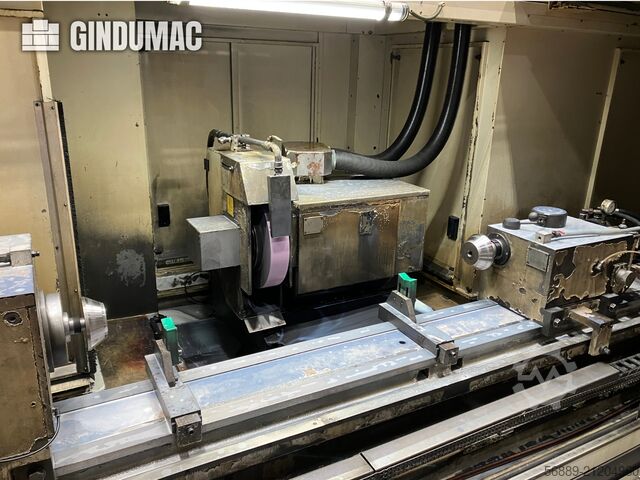

Year of construction: 2012, condition: ready for operation (used), Cylindrical grinding machine manufactured in 2012. This GEIBEL & HOTZ RS 2000 CM-DS features a center distance of 2000 mm and a maximum swing diameter of 455 mm, accommodating workpieces up to 800 kg. With an electromechanical drive and a cross speed of 0.01 - 8,000 mm/min, it offers precision and efficiency. Consider the opportunity to buy this GEIBEL & HOTZ RS 2000 CM-DS cylindrical grinding machine. Contact us for further details. Nkjdpoyid Uajfx Af Ueu • Center distance: 2000 mm • Center height: 230 mm • Swing diameter max.: 455 mm • Workpiece weight max.: 800 kg between centers; max. 200 Nm flying (including clamping device) • X-axis feed movement: electromechanical drive with ball screw • Cross speed: 0.01–8,000 mm/min • Setup: electric handwheel or directional pushbutton • Measuring system: glass scale, internal resolution 0.0005 mm • Workpiece spindle motor: 3.0 kW at 0–300 min⁻1 • Mounting: MK5 and KK5 • Tailstock: foot switch with quill stroke 40 mm and MK5 • Commissioned: end of 2012 • Maintenance: recurring maintenance measures according to manufacturer specifications

Year of construction: 1958, condition: ready for operation (used), Grinding length: 1500mm, center height: 175mm, max. workpiece diameter: 350mm, max. workpiece weight: 300kg, grinding wheel diameter: 450mm, grinding wheel width: 80mm, bore: 203mm. Machine dimensions X/Y/Z: approx. 3600mm/1900mm/1900mm, weight: approx. 4000kg. Documentation available. An on-site inspection is possible. Nodpfoyg Nvmex Af Usku

Year of construction: 1955, condition: ready for operation (used), A conventional internal cylindrical grinding machine Fortuna is available. Center distance: 1500mm, center height: 225mm, max. workpiece diameter: 450mm, max. workpiece weight: 300kg, grinding wheel diameter: 450mm, grinding wheel width: 80mm, bore: 203mm, speed: 265rpm, machine dimensions X/Y/Z: approx. 3450mm/1450mm/1550mm, weight: approx. 4000kg. Documentation available. On-site inspection is possible. Njdpfx Aoyg Nvtef Usku

Year of construction: 2000, condition: ready for operation (used), number of axes: 2, This Parpas RUAP 700 was manufactured in 2000. A used cylindrical grinding machine, fully reconditioned and in excellent condition. Features include Siemens Sinumerik 840C control, 700 mm distance between centers, and a maximum workpiece diameter of Ø 360 mm. If you are looking to get high-quality grinding capabilities, consider the Parpas RUAP 700 machine we have for sale. Contact us for more information. • Status: Excellent • Control: Siemens Sinumerik 840C • Distance between centers: 700 mm • Center height: 185 mm • Maximum workpiece diameter: 360 mm Nksdpfjygmg Nox Af Uju • Maximum table travel (Z-axis): 820 mm • Table feed speed (Z-axis): 0–10 m/min • Maximum wheelhead travel (X-axis): 500 mm • Wheelhead feed speed (X-axis): 0–10 m/min • Max wheel size (left): 508 x 203 x 76 mm • Max facing wheel size (right): 450 x 127 x 50 mm • Wheel motor power: 10 hp • Workpiece spindle speed: 0–600 rpm • Wheel spindle speed: 0–2,880 rpm • Workpiece spindle taper: ISO 50 • Tailstock internal taper: Morse 4

Year of construction: 1994, condition: ready for operation (used), Grinding length: 650mm, center height: 125mm, grinding wheel dimensions X/Y/Z: 406mm/60mm/127mm, peripheral speed: 45m/s, spindle power: 4kW, travel X/Z: 210mm/810mm, feed rate: 8m/min, table swivel: 8°, speed: 5000rpm, tool spindle head swivel: -30°/90°. Machine dimensions X/Y/Z: approx. 3600mm/2850mm/2200mm, weight: approx. 4000kg, control: Siemens Sinumerik. The X-axis spindle and the scale were renewed. Including Movomatic measuring system and accessories. Documentation available. On-site inspection is possible. Nksdpsyf I Hbsfx Af Uou

Condition: ready for operation (used), Year of construction: 1977, functionality: fully functional, grinding length: 700 mm, grinding width: 550 mm, travel distance X-axis: 500 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 475 mm, TECHNICAL DETAILS Nedpsyf Ahmjfx Af Ujku X-axis travel: 500 mm Y-axis travel: 300 mm Z-axis travel: 475 mm Manual grinding area Length: 700 mm Width: 550 mm Height: 400 mm Automatic grinding area Length: 700 mm Width: 470 mm Height: 400 mm Table size: 1,100 x 500 mm Maximum workpiece height: 400 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 3,000 x 1,960 x 2,550 mm Machine weight: 3,300 kg EQUIPMENT Operating manual

Year of construction: 1979, condition: good (used), Flat grinding machine make Brand Type: Compact 600/800 Njdpfxeydltps Af Uoku with Heidenhain control We do not have any further technical data.

Condition: good (used), Year of construction: 1993, with oil filtration system Unfortunately, no further technical data is available. Nkodpeydldhsfx Af Usu

Year of construction: 2007, condition: ready for operation (used), travel distance X-axis: 650 mm, controller manufacturer: SIEMENS, controller model: 840D, overall weight: 29,000 kg, number of axes: 4, This 4-axis DANOBAT HG 91-3000-B8 was manufactured in 2007. It features a CNC control system by SIEMENS 840 D, a maximum grinding length of 3,000 mm, and can handle workpieces up to 5,000 kg. The machine offers a swivel angle from -30º to +180º and a cutting speed of 45 m/s. Consider the opportunity to buy this DANOBAT HG 91-3000-B8 cylindrical grinding machine. Contact us for more information about this machine. • Center height over floor: 1,604 mm • Center height: 525 mm • Max grinding length: 3,000 mm • Max grinding diameter: 850 mm • Max workpiece weight (between centers): 5,000 kg • Total machine weight: 29,000 kgX-axis (transversal carriage) • Effective travel: 650 mm • Max programmable speed: 6,000 mm/min • Min programmable speed: 0.01 mm/min • Min programmable increment (in diameter): 0.001 mm • Motor torque: 22 N·mZ-axis (longitudinal carriage) • Max programmable speed: 6,000 mm/min • Min programmable speed: 0.01 mm/min • Min programmable increment: 0.001 mm • Motor torque: 42 N·mB8 wheelhead • Swivel angle: -30° to +180° • Wheel dimensions: Ø760 x 80(100) x Ø304.8 mm • Cutting speed: 45 m/s • Power: 22 kWWorkhead • Spindle speed range: 10–120 rpm • Center cone: Morse 6 • Motor torque: 42 N·mHydraulic tailstock Nkedpfx Ajycuiwjf Usu • Max taper correction: ±0.20 mm • Max center travel: 100 mm • Center cone: ASA 4Dresser • Location: Positioned on workhead and tailstock

Year of construction: 1995, condition: ready for operation (used), overall weight: 6,000 kg, product length (max.): 3,600 mm, This KELLENBERGER Kel-Varia cylindrical grinding machine was manufactured in 1995. It features a Kellenberger Kelco 90 control system and a robust internal grinding device with a B-axis for a tiltable grinding head. The machine supports a tip height of 175 mm and a tip width of 1,000 mm, equipped with a belt filter system. Ideal for precision grinding tasks. Contact us for more information about this machine. • Capacity: Center height 175 mm; between centers 1000 mm • Configuration: Internal grinding device; B-axis tiltable grinding headGrinding head and B-axis • Grinding heads available: R, RS, UR • R head pivot: +30° • RS/UR heads, rotating part indexing: • Manual indexing: 180° to -190°, 2.5° steps • Automatic indexing: 180° to -90° (or -30°), 2.5° steps • B-axis (RS/UR heads): pivot +180° to -190° (some variants limited to about +30°); resolution 0.1"Workhead • Standard workhead (C-axis): pivot -30° to +120° • Spindle speed: up to 600 rpm (stepless) • Mounting taper: MK5; reduction sleeve MK5/MK4 • Adapter flange: MK5 / DIN 55027 size 5 • Torque capacity: 160 Nm • Max workpiece between centers: 150 kg • Workhead with rotating spindle: • C-axis pivot: -30° to +120° • Spindle speed: 5–500 rpm (stepless) • Mounting taper: MK5 • Torque capacity: 320 Nm (incl. clamping device) • Max workpiece between centers: 220 kgTailstock • Taper: MK4 • Quill stroke: 50 mm • Micro-adjust (option): ±150 µm (±0.006 in)Grinding wheels and internal grinding • UR head: • Left wheel max: 400 × 63 mm • Right wheel max (option): 400 × 50 mm • Max peripheral speed: 32 m/s • R head: • Wheel max: 500 × 100 mm • Max peripheral speed: 32 m/s with 7.5 kW motor; 45 m/s with 9.2 kW motor • RS head: • Wheel max: 500 × 80 mm • Max peripheral speed: 32 m/s with 7.5 kW motor; 45 m/s with 9.2 kW motor • Internal grinding (option/device on this machine): • Mounting bore for high-performance spindles (HJN): 80 mm • Mounting bore for high-frequency spindles (MFV): 120 mmAxes and tables • Z-axis (lower table): • Max speed: 15 m/min • Resolution: 0.1 µm • Travel (1000 mm between centers version): 1150 mm • Upper table swivel range (1000 mm between centers): 0 to +9° • X-axis (grinding slide): • Max travel: 320 mm • Max speed: 7.5 m/min • Resolution: 0.1 µmDrive motors • X-axis slide: 0.94 kW (2000 min⁻¹) • Z-axis table: 0.94 kW (2000 min⁻¹) • Indexing / B-axis: 0.63 kW (3000 min⁻¹) • Grinding spindle UR: 4.4 kW @ 50 Hz (3000 min⁻¹) / 5.2 kW @ 60 Hz (3600 min⁻¹) • Grinding spindle R/RS (7.5 kW version): 7.5 kW @ 50 Hz (1500 min⁻¹) / 9 kW @ 60 Hz (1800 min⁻¹) • Grinding spindle R/RS (9.2 kW version): 9.2 kW @ 50 Hz (1500 min⁻¹) / 11 kW @ 60 Hz (1800 min⁻¹) • Workhead (standard & rotating): 3.1 kW (3000 min⁻¹) • Hydraulic pump: 0.37/0.44 kW (1500/1800 min⁻¹) • Hydrostatic pump: 0.37/0.44 kW (1500/1800 min⁻¹)Dimensions, weight, utilities (1000 mm between centers version) • Floor space (L × W): 3600 × 2000 mm • Weight: net 5000 kg; gross 6000 kg • Minimum air pressure: 4 bar • Noise emission: 70 dB(A) Additional equipment Nodpfxoybb T To Af Ujku • Belt filter coolant system

Condition: ready for operation (used), A surface grinding machine ELB-Schliff with position display is available. Magnetic chuck dimensions X/Y: 900mm/450mm, grinding length: 900mm, grinding width: 450mm. Documentation available. An on-site inspection is possible. Nkodpfx Asya Hw Isf Uju

Condition: ready for operation (used), Workpiece diameter with/without steady rest: 400mm/250mm, max. workpiece length: 750mm, spindle head load: 400kg, max. internal grinding diameter: 350mm, max. grinding depth: 500mm, travel X/Z: 300mm/1000mm, max. traverse speed: 15m/min, control system: Siemens Sinumerik. Documentation available. On-site inspection is possible. Nksdpfx Afjx Uq T Do Ueu

Year of construction: 1997, condition: ready for operation (used), number of axes: 4, This 4-axis KELLENBERGER Kel-Varia UR 175/1000 was manufactured in 1997. It features an internal grinding device with a tiltable B-axis and a C-axis for out-of-round grinding, complemented by a belt filter system. Consider the opportunity to buy this KELLENBERGER Kel-Varia UR 175/1000 cylindrical grinding machine. Contact us for more information. Additional equipment • Belt filter system Machine Benefits Technical Machine Benefits • Internal grinding device with b-axis for tiltable grinding head and c-axis for out-of-round grinding Extra Information Nodpfxjx T Dg Io Af Uoku Center height x center distance: 175 x 1,000 mm Complete with standard accessories, electrical equipment For three-phase current 3 x 400 volts, 50 Hz. Machine color: DARK GRAY NCS 7502B combined with BLUE NCS KEL-ASSIST 90 PLUS software package Internal grinding attachment with 80 mm diameter chuck Right-hand grinding wheel attachment, 400 x 50 mm diameter Oil mist lubrication device for HJN spindles Micro-adjustment on the tailstock Face-spiral three-jaw chuck, 160 mm diameter Dressing device on the upper table Pivoting diamond holder 9.5 mm MOVOMATIC lead-in sensor Set of vibration-damping pads Set of lubricant for initial filling CNC-controlled C-axis
