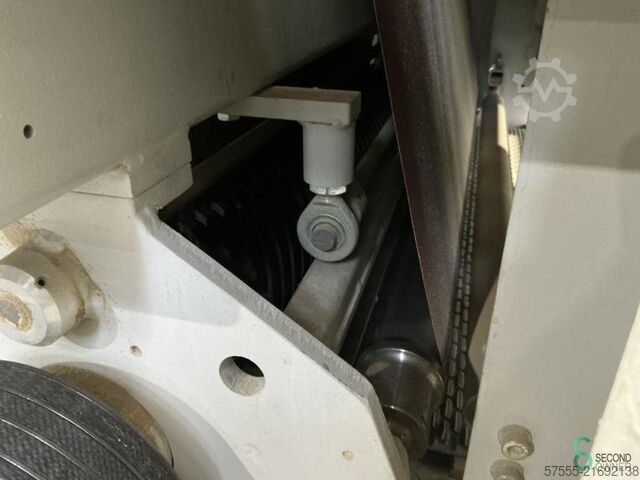

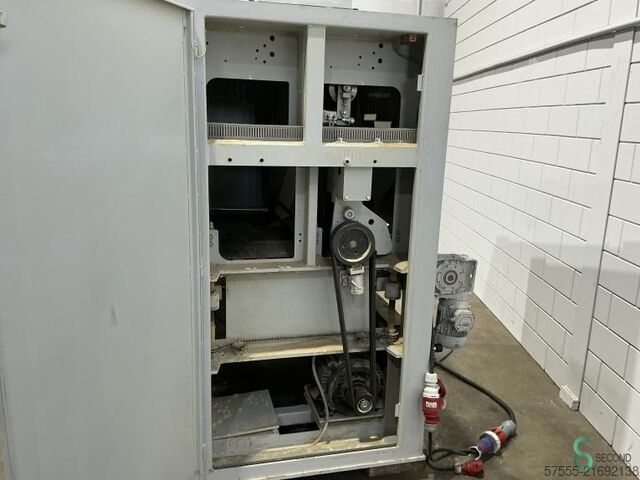

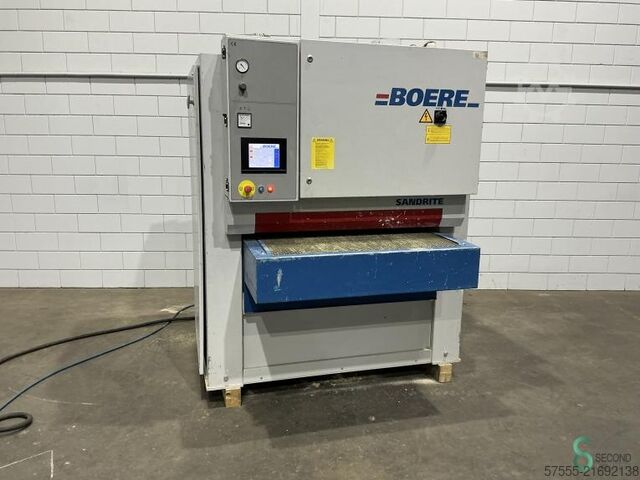

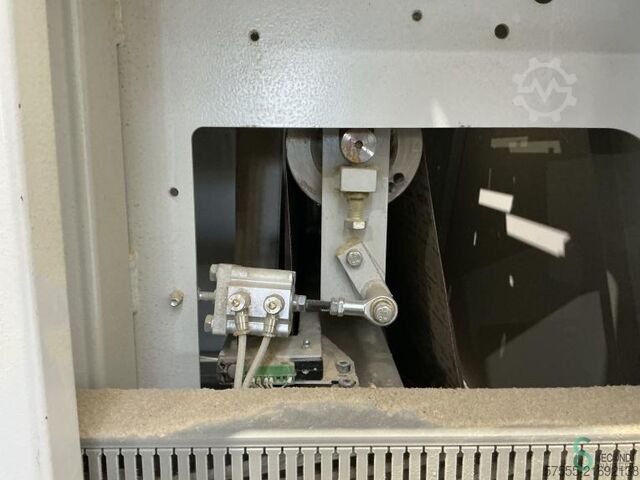

Condition: used, Year of construction: 2018, total width: 1,800 mm, total height: 2,200 mm, total length: 1,900 mm, Empty weight: 1.500 kg Wide belt sander Boere Sandrite 1100C 380V Maximum sanding width 1100mm Maximum sanding height 150mm Sanding unit COMBI Engine 11kW (15HP) Transport dimensions:1800x1300x2100mm (LxWxH), Weight 1850kg - Year: 2018 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 18.03.7507 Gsdpfeyz U Dmsx Afzeir - Number of units [pcs]: 1 - └ Unit 1: - - Position: Top - - Type of unit: Sanding pad - - Sanding belt length [mm]: 1900 - - Sanding belt width [mm]: 1100 - - Roller diameter [mm]: 150 - - Roller material: Rubber - - Motor power [kW]: 15 - Max. working width [mm]: 1100 - Min. working height [mm]: 3 - Max. working height [mm]: 152 - Feed motor [kW]: 0.55 - Feed speed: Manual - Min. feed speed [m/min]: 2.5 - Max. feed speed [m/min]: 8 - Feed speed control: Continuously adjustable - Voltage [V]: 400 - Current consumption [A]: 28 - Fuse [A]: 32 - Power [kW]: 15.6 - Transport dimensions: 1900mm x 1800mm x 2200mm (l x w x h) - Transport weight [kg]: 1500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: excellent (used), CATALOG NUMBER: 6145 Giodpfx Asyz Rtqefzjr TECHNICAL DATA - Maximum workpiece width: 1100 mm - Maximum workpiece height: 140 mm 3 units: 1) Calibrating grooved rubber roller – 15 kW 2) Calibrating grooved rubber roller – 11 kW 3) Calibrating grooved rubber roller – 11 kW From above: - Sliding metal roller - Sliding rubber roller - Unit - 2 sliding rubber rollers - Unit - 2 sliding rubber rollers - Unit - Sliding rubber roller From below: - Infeed table: 3600 x 1000 mm - Feed speed regulated via inverter 0.25 kW - Traction belt - 3 ejection sliding rubber rollers - Pneumatic belt oscillation with photocell control - Belt blowing - Electric table elevation adjustment – lifting motor 0.75 kW - Smooth feed speed control – feed motor 2.2 kW - With vacuum pump – pump motor 4 kW - Extraction port diameter: 110 mm, 80 mm - Operating pressure: 6-8 bar - Extraction connector diameters: 3×150 mm, 3×200 mm - Overall machine dimensions (LxWxH): 3400 x 2300 x 2800 mm - Feeder dimensions (LxWxH): 3000 x 1300 x 900 mm - Pump dimensions (LxWxH): 600 x 950 x 940 mm - Weight: approx. 5000 kg Net price: 39,900 PLN Net price: 9,500 EUR (depending on exchange rate of 4.2 EUR) (Prices may vary with greater fluctuations)

Condition: excellent (used), CATALOG NUMBER 7857 Technical data: - Maximum workpiece width: 1100 mm - Maximum workpiece height: 160 mm 2 sanding units: – From above: - Rubber pressure roller, smooth 1) Calibrating grooved rubber roller - Rubber pressure roller 2) Grooved rubber roller + pad + metal roller - Rubber pressure roller - Total unit power: 15 kW – From below: - 3 driven rubber feed rollers - Feed belt - 3 driven rubber feed rollers - Sanding thickness potentiometer - Pneumatic belt oscillation - Table elevation: electric + manual (for precise adjustment) - 2 feed speeds - With pneumatic brake - Working pressure: 6-8 bar - Extraction port diameter: 2 x 140 mm - Overall dimensions (L/W/H): 1650 x 1960 x 2100 mm - Weight: 1250 kg ADVANTAGES – Not repainted – Czech production – 2 sanding units – Original operator’s manual (DTR) – Used sander, in very good condition Gsdpoyz Rf Hjfx Afzjir Net price: 36,900 PLN Net price: 8,790 EUR Net price calculated at exchange rate: 4.2 PLN/EUR (Price may change if the exchange rate fluctuates significantly)

Condition: used, Kündig Brilliant-2 1100 REd-Lack Giedpfx Afeyzxpgszjr Quality product from Switzerland Constant table sander / automatic head adjustment Wide-belt calibration and fine sanding machine 1st sanding unit with rubber contact roller of proven hardness 2nd sanding unit DIAGONAL with segmented sanding pad, 22 mm 2 belt drive motors: 15 kW and 11 kW, with soft start Working width: 1100 mm Lacquer sanding package Contact roller height infinitely adjustable according to abrasive grit scale Pneumatic raising/lowering of the contact roller depending on unit selection Entire sanding pad unit tiltable by 10° Vacuum system for the entire worktable with additional perforation for smaller workpieces Thickness setting automation across the full working width Infinitely variable stock removal adjustment Electronic feed regulation via control panel, continuously adjustable from 3 to 15 m/min PLC control/programming with color touch screen and TEACH-IN memory function Workpiece support table with support rollers at infeed and outfeed ENORMATIC: fully automated fast adjustment with feed engagement Eco* energy-saving mode Error diagnostics Pass-through height: 200 mm Infinitely variable sanding belt speed on the 2nd unit with PLC memory function Blow-off nozzles for sanding belt cleaning on the 2nd unit, operated as needed Electronic sanding pad, segment width 22 mm (pivoting special design) First delivered in 2018, from lease repossession Machine is WORKSHOP TESTED in TOP CONDITION / LIKE NEW Available from stock in Lieboch

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, total width: 1,545 mm, total height: 1,905 mm, total length: 1,705 mm, working width: 1,100 mm, working height: 900 mm, table height: 900 mm, power: 27 kW (36.71 HP), conveyor belt speed: 13 mm/s, workpiece height (max.): 160 mm, grinding belt width: 1,120 mm, table length: 1,100 mm, power of feed motor: 1,000 W, pressure: 8 bar, conveyor belt length: 1,900 mm, transport length: 1,600 mm, transport height: 1,950 mm, transport width: 1,750 mm, Working width 1100 mm, 2 belts, 1st roller: steel Ø 160 mm, 2nd roller: combination roller (rubber) + shoe. Power 1st belt: 15 kW, power 2nd belt: 11 kW. Feed motor: 1.1 kW. Feed speed: 2.5 – 13 m/min. Workpiece thickness min.–max. (mm): 3–160 mm. Automatic workpiece thickness adjustment. Continuous feed speed via frequency inverter. Automatic workpiece thickness detection. Year: 2008. Godpfx Afoyy Nr Njzoir

Condition: good (used), WIDE BELT SANDER SCM Sandya 10 Sanding width 1100 mm First unit with hard rubber calibrating roller Second combination unit with soft rubber roller and pad Single motor for both units - 18.5 kW Pneumatic oscillation Adjustable feed speed Gsdoyy Nnkspfx Afzjir Electric table adjustment Table position display Thickness gauge Good condition, tested and ready for demonstration

Condition: excellent (used), CATALOG NUMBER 7818 Technical data: - Max. working width: 1100mm - Max. working height: 180mm 2 units: 1) Grooved rubber roller for calibration 2) Grooved rubber roller for calibration – Top side: - Metal pressure roller Gedoyyygdepfx Afzeir - Unit - Metal pressure roller - Unit - Metal pressure roller – Bottom side: - 2 rubber sliding rollers - Feed belt - 2 rubber sliding rollers - Pneumatic belt oscillation - Electric table lifting - Sanding thickness potentiometer - 2 feed speeds - Feed motor: 0.80 kW - Main motor: 10kW - Operating pressure: 6–8 bar - Extraction port diameter: 2x155mm - Overall dimensions (LxWxH): 1670x1740x2040mm - Weight: 1200kg ADVANTAGES – Made in Italy – Sanding thickness potentiometer – 2 sanding units – Used sander, very good condition Net price: 25,900 PLN Net price: 6,160 EUR based on an exchange rate of 4.2 PLN/EUR (Prices may change with significant fluctuations)

Condition: excellent (used), Catalogue number: 7549 TECHNICAL DATA Max width of workpiece: 1100mm Max height of workpiece: 170mm 2 units: 1) Grooved rubber roller for calibration 2) Rubber roller + pad + metal roller – from above: Metal roller, sliding Working unit Metal roller, sliding Unit with pad Output metal roller, sliding – from below: Feed belt Pneumatic belt oscillation Electric table lifting 2 feed speeds Motor: 11kW Giodpjyyyftjfx Afzor With pneumatic brake Working pressure: 6-8 bar Extractor outlet diameter: 2x150mm Overall dimensions (L/W/H): 1960x1700x2000mm Weight approx.: 2000kg – German manufacture – 2 units – not repainted – Used sander, very good condition Net price: 34,900 PLN Net price: 8,300 EUR at 4.2 EUR rate (Prices may change with significant fluctuations)

Condition: used, functionality: fully functional, working width: 1,100 mm, grinding width: 1,100 mm, grinding height: 150 mm, type of input current: three-phase, – Made in Germany – Shoes with pneumatic jump (pressure shoe) TECHNICAL PARAMETERS: – Sanding width: 1100 mm – Max. sanding height: 150 mm Gijdpfoyyv Auox Afzjr – Min. workpiece length: 600 mm – Motor power: 2 x 15 kW – Both units with pressure shoes – Pneumatic pressure shoes – Adjustable shoe pressure – Rubber rollers: 70 Shore – Pneumatic oscillation – Cleaning brush – Feed tables with support rollers – Continuously adjustable feed speed – Feed speed range: 4–13 m/min – Extraction port diameter: 3 x 200 mm – Machine dimensions (L/W/H): 250 x 200 x 210 cm – Weight: ~2500 kg

Condition: excellent (used), WIDE BELT SANDER Butfering 110cm Model – super 111L Sanding width: 1,100 mm 1 combination unit with steel roller The pad has quick raise/lower capability 11kW motor, star/delta starter Two feed speeds Gedpfjyymlyex Afzjir Electric table adjustment Electronic table position display Oscillation with photocells Sander in very good condition, ready for operation Machine dimensions: width 180cm, length 185cm, height 200cm Weight approx. 1,500kg

Condition: used, Kündig ENORM PRIMO – TOP CONSTANT TABLE MACHINE / automatic head positioning Wide-belt calibrating and fine sanding machine Combination unit: contact roller and pneumatic sanding pad unit Gisdeyyltcjpfx Afzor Enormatic Digital thickness display for workpiece height Belt drive motor power approx. 9 kW Contact roller level continuously adjustable via grit scale Infeed and outfeed table with roller support Working width 1100 mm Feed speed 2.5 - 15 m/min Machine will be PROFESSIONALLY REFURBISHED Available from stock Lieboch

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Equipped with 2 large-width upper sanding belts, with a calibration roller and sanding rollers, for sanding wooden panels and veneered surfaces. Maximum working width: 1350 mm Giodeyyb Najpfx Afzsr Maximum sanding height: 160 mm Machine weight: 2800 kg

Condition: used, Year of construction: 2004, functionality: limited functionality, power: 55 kW (74.78 HP), type of input current: three-phase, Model description on the information plate: KACCT 1150. Stored in dry conditions. Godpfsyyannex Afzsir

Condition: excellent (used), Wide Belt Sander SCM sandya 7 Sanding width: 1100 mm 1st unit with metal calibration roller, 15 kW 2nd combination unit with rubber roller and pad, 15 kW Minimum electrical protection: 32A Pad with quick lift and drop function Pneumatic oscillation Variable feed speed Gijdpfeyx Dvysx Afzor Electric table height adjustment Table position display Pneumatic feed belt centering Robust sander, excellent sanding quality

Condition: used, Year of construction: 2012, functionality: fully functional, working width: 1,100 mm, overall weight: 1,500 kg, power: 11 kW (14.96 HP), grinding belt speed: 18,500 mm/s, type of input current: three-phase, grinding belt length: 2,620 mm, workpiece height (max.): 160 mm, compressed air connection: 5.5 bar, grinding belt width: 1,100 mm, extraction nozzle diameter: 150 mm, input voltage: 400 V, operating pressure: 5 bar, pressure: 5.5 bar, workpiece width (max.): 1,100 mm, pass-through height: 160 mm, We are offering this used BULDOG 7 wide belt sander, year of manufacture 2012. Giodpfx Afjyxqdkszer Manufacturer: BULDOG Model: 7 Year: 2012 Condition: used Category ID: 1408 Type ID: 436 Machine type: Wide Belt Sander CE Safety Standard Wide belt sander/milling machine with a working width of 1100 mm The machine is in perfect working condition. The machine has a constant working height, making it ideal for integration into a production line with roller conveyors before and after the machine. Additional features: - Frequency inverter for the feed belt - Automatic feed belt tracking - Pneumatic interval air blasting system with oscillating nozzles for belt cleaning - Guide rails on both sides - Roller conveyors at the infeed and outfeed - Stroke of the shaft: 220 mm, adjustable from 80 mm up to 300 mm - Fixed machine table - Height adjustment via the sanding units - Up to 3 sanding units possible Working area: - Working width: 1,100 mm - Max. workpiece height: 160 mm - Min. workpiece height: 3 mm - Sanding belt length: 2,620 mm - Sanding belt speed: approx. 18.5 m/s - Feed speed: 3-15 m/min (stepless) - Motor power: approx. 11 kW - Power supply: 400 V - Operating pressure: approx. 5.5 bar - Air consumption: 50-300 l/min - Extraction speed: approx. 20 m/s - Extraction connection: 150 mm diameter - Weight: approx. 1,500 kg Applications: - Solid wood - Veneer - MDF/engineered wood panels - Lacquered and filled surfaces Disassembly and collection at buyer's own expense Pick-up location: A-8265 Kroisbach an der Feistritz If you have any questions or require further information, please feel free to send us a message or call us.

Condition: excellent (used), Year of construction: 2013, operating hours: 1,395 h, Calibration and fine sanding machine, Kundig Brilliant wide belt sander with electronic segmented pad, tiltable sanding unit, and lacquer sanding function. A video of the machine in operation can be sent upon request. Ideal sanding machine for interior fit-out companies, also suitable for intermediate lacquer sanding. Single belt machine with combination unit and electronic segmented pressure beam. Edge segments can be switched on and off. Segment width of the pressure beam: 22 mm (ideal for intermediate lacquer sanding). Pneumatically adjustable calibration roller—grooved, rubber-coated roller with grit compensation. Drive motor: 11 kW. Infinitely variable cutting speed: 3 - 15 m/s via frequency inverter. Feed belt speed continuously adjustable from approx. 3 to 15 m/min. Workpiece-controlled belt cleaning air blast unit. Constant table height of approx. 950 mm due to movable machine top—enabling integration into sanding lines. Feed belt still offers excellent traction and is in very good condition. Vacuum conveyor with adjustable vacuum blower for secure holding of even small parts. Maximum sanding width: approx. 1100 mm. Workpiece height: approx. 3.5 to 200 mm. Abrasive belt dimensions: 1120 x 2000 mm. Infeed and outfeed roller tables. Hood interlock. Extraction connection: 1 x 180 mm, 1 x 125 mm. Terminal control with 45 programmable sanding programs for automatic machine operation. Parameters: belt speed, feed speed, workpiece height, belt cleaning nozzle, vacuum blower, calibration roller adjustment, and segmented pad parameters. Thickness measuring system with adjustable chip removal and Enormatic with automatic thickness setting via feed activation—eliminating the need for constant caliper measurements. Programs for various sanding tasks can be stored and selected via smartselect. CE mark Operating manual Two sanding cassettes included The four bellows have been renewed Without the illustrated connection cable Original paintwork, only minor touch-ups Very good condition, from a small company Machine has approx. 1,395 operating hours, about 2 hours per week Gijdpfxjyxg N Ne Afzjr Dimensions: approx. 1900 x 1650 x 2150 mm (LxWxH) Weight: approx. 2,300 kg Includes large mobile storage table at belt conveyor height for sanding belt storage Table size: approx. 1520 x 1360 x 950 mm Includes various sanding belts from K80 to K400 The machine can be demonstrated by appointment at our premises. We only offer machines ready for demonstration in our warehouse—see "other offers from this supplier".

Condition: used, OTT MEGAtronic 111 Wide-belt calibration and fine sanding machine 1st sanding unit: calibration roller unit 2nd sanding unit: electronically controlled segmented pad unit Gedjyw Rknopfx Afzoir Working width: 1100 mm Feed speed: 5 + 10 m/min Sanding unit motor power: approx. 11 kW Machine is WORKSHOP TESTED Available ex stock Lieboch

Condition: excellent (used), working width 1100 mm calibrating unit with metal roller calibrating unit with rubber roller combination unit with rubber roller and pad activation of machine functions from the control panel pneumatic oscillation pneumatic belt tensioning motor power: 9KW and 9KW, total power 18.5 KW two feed speeds for the conveyor Gedpfxjyw N R Te Afzoir material thickness gauge two feed speeds for sanding belts emergency stop switch

Condition: excellent (used), Year of construction: 1996, I sell the widebelt sanding machine OTT MEGA TR11, year 1996. Giedpfx Afjywrzbezer Configuration: Hard rubber calibrationcylinder Combi unit rubber cylinder + pneumatic jumping pad with segment control. Working width 1100mm Elektronic working height adjustment with digital readout 3-160mm 1 Motor 11kW 2 Feeding speeds. Sensitive adjustment of pad position. Pneumatic adjustment of pad and cylinders pressure position. Condition LIKE NEW ! The machine was working only a few. Available immediately.

Condition: excellent (used), Year of construction: 1992, Wide belt sander Manufacturer: Bütfering Model: AWS 1100 Year of manufacture: 1992 Sanding width: 1,100 mm Max. workpiece thickness: 150 mm Gijdpfsywi Rmox Afzor Abrasive belt dimensions: 1,900 x 1,100 mm Power: 15 kW Feed speed: 2.5–12.5 m/min, variable

Condition: used, OTT Comet-2 1100 Wide belt sander Sanding width 1100 mm Machine is untested Service is recommended No warranty / No guarantee Ex stock Lieboch NET price € 1,900.00 Gijdpfxjywiyzs Afzsr

Condition: used, Year of construction: 1997, Used machine Year of manufacture: 1997 1 Belt sanding machine with combination unit with electronic segmented pressure beam for sanding soft and hard veneers Calibrating and fine sanding of solid wood Calibrating workpiece carrier boards Sanding defective veneers and lacquers Intermediate sanding of PU, hydro, UV, nitro, and polyester coatings Sanding barrier films with graphical control terminal NC-controlled thickness adjustment from 3 to 150 mm Calibrating roller can be activated via terminal with patented CSD segmented pressure beam for compensation of workpiece tolerances up to 2 mm Sanding width: 1100 mm Abrasive belt length: 2150 mm Abrasive belt speed, frequency-controlled: approx. 2–18 m/sec Sanding unit drive: 15 kW Feed speed: 5/10 m/min Compressed air: 6 bar Compressed air requirement: 15 NL/min Belt blasting: 490 l/min Extraction connection: 180 mm Air requirement for sanding unit: 1800 m³/h Required air velocity: 20 m/sec Total power connection: approx. 17 kW Weight: approx. 2000 kg Dimensions (W x D x H): 1840 x 1670 x 2200 mm Gjdpfx Aeyulfmefzoir Availability: short-term Location: Röllbach

Condition: excellent (used), functionality: fully functional, Wide belt sander SCM Sandya 10 Working width: 1100 mm Working height: 3–160 mm Number of sanding units: 2 Godpfjyuclwex Afzjir 1. Calibrating roller 2. Combi unit with pad CE certificate Main motor power: 11 kW

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, machine/vehicle number: 0-001-747-312, Wide Belt Sander BÜTFERING, AWS-3E-1100, # 0-001-747-312, Year 1991 TECHNICAL DATA Maximum working width: 1,100 mm Maximum working height: 150 mm Abrasive belt width: 1,110 mm Abrasive belt length: 1,900 mm 1st Sanding Unit Profiled steel contact roller, D=200 mm Motor power: 15 kW 2nd Sanding Unit Giodpfx Afeyt Nvyjzor Combined contact roller and pad unit Profiled rubber-coated contact roller, D=150 mm Air-cushioned sanding pad Motor power: 11 kW 3rd Sanding Unit Pad sanding unit with electronically controlled segmented pressure beam Element width: 30 mm Co-running / counter-running Infinitely variable sanding belt speed (frequency inverter) Digital sanding belt speed display Motor power: 11 kW - Conveyor belt with continuously variable feed, 3 - 15 m/min - Vacuum table / vacuum clamping device, 11 kW - Rotating cleaning brush: 0.75 kW - Digital display of sanding height - Infeed roller table MACHINE DIMENSIONS Total length: 3,200 mm Total width: 1,850 mm Total height: 1,900 + 175 mm (extraction nozzle) Total weight: 4,100 kg

Condition: used, Year of construction: 2005, Number of belts: 2-belt Max. pass-through height: 150 mm Max. working width: 1350 mm 1st unit: combined sanding unit Design of 1st unit: steel contact roller Sanding pad 1st unit: electronic segmented shoe, 35 mm Abrasive belt length 1st unit: 1900 mm Abrasive belt width 1st unit: 1370 mm Abrasive belt speed 1st unit: 18 m/sec 2nd unit: combined sanding unit Design of 2nd unit: rubberized contact roller, 65° Shore Sanding pad 2nd unit: electronic segmented shoe, 35 mm Abrasive belt length 2nd unit: 1900 mm Abrasive belt width 2nd unit: 1370 mm Abrasive belt speed 2nd unit: variable 2 - 18 m/sec Belt cleaning unit: for 2nd unit Cleaning brushes: Yes Suitable for lacquer sanding: Yes Vacuum conveyor: Yes Feed speed: infinitely variable from 2.5 to 13 m/min Control: touch-screen Elect./pneumatic belt oscillation: yes Infeed height: fixed (top section moves) Table display: digital Gedpfx Afeytrf Rjzeir Working height / feed table height: 900 mm Motor power: 36 kW Location: Supplier
