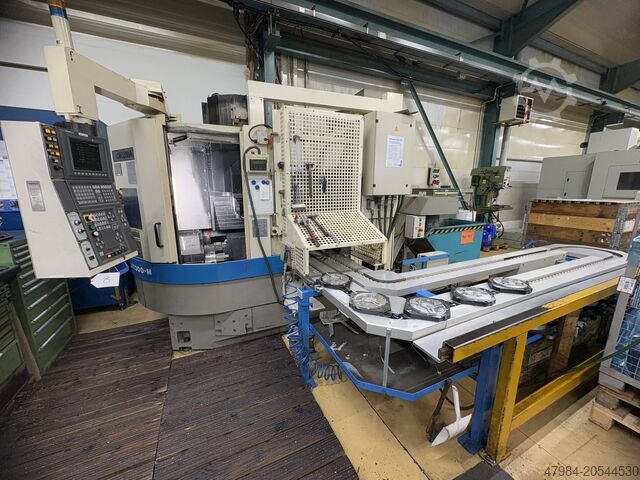

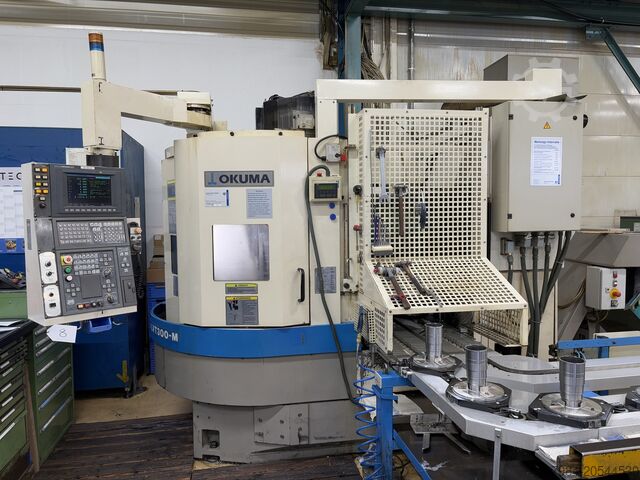

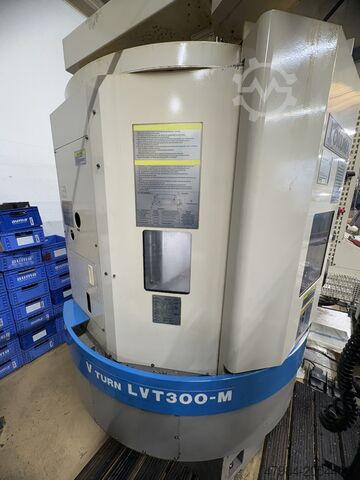

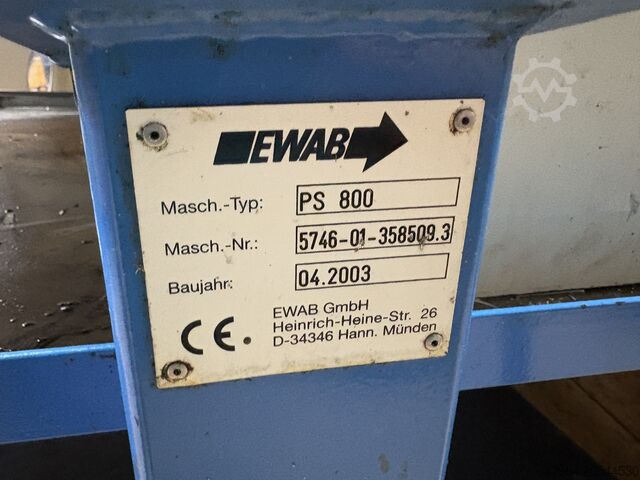

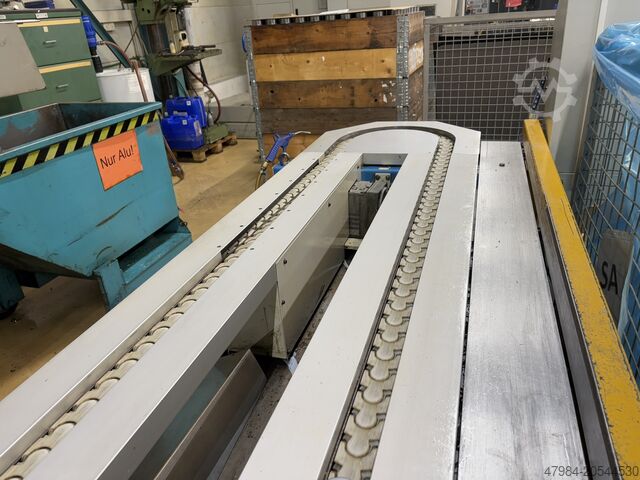

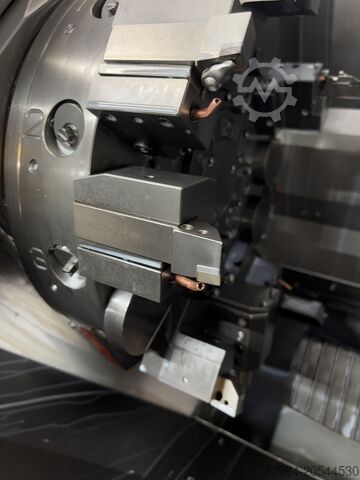

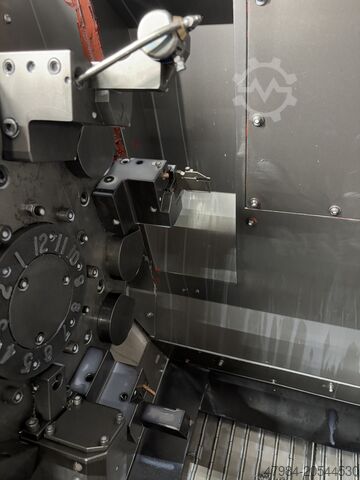

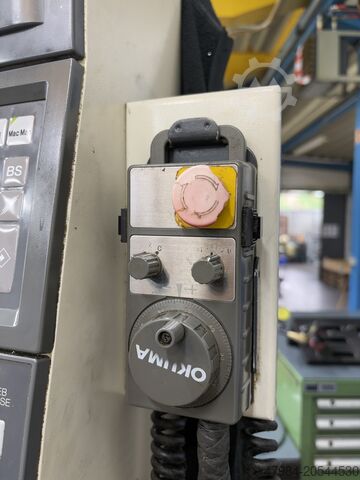

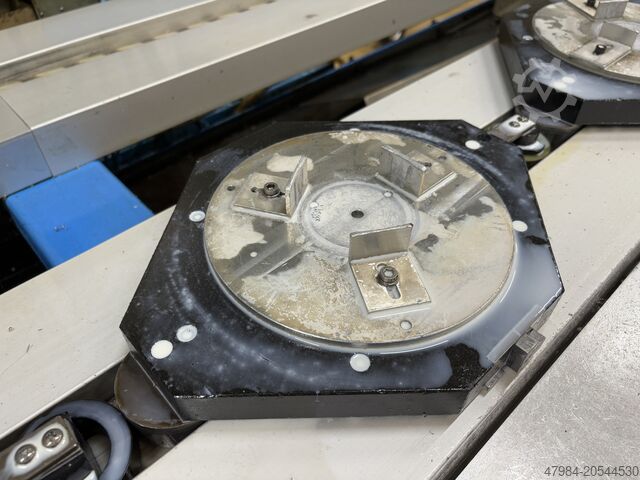

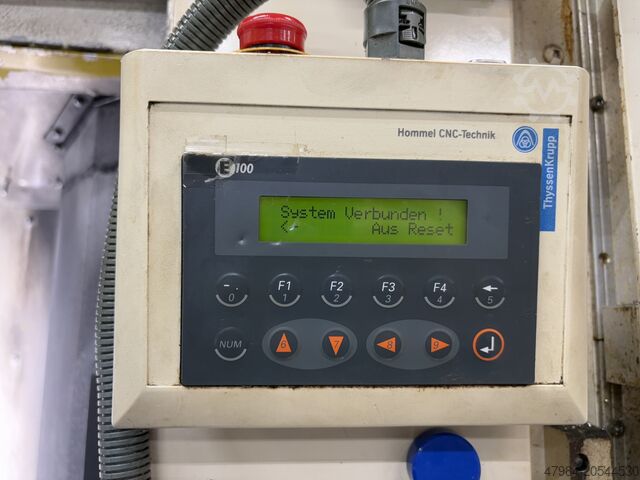

Condition: good (used), Year of construction: 2003, machine/vehicle number: 103848, travel distance X-axis: 210 mm, travel distance Y-axis: 330 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 40 rpm, turning diameter: 330 mm, total length: 5,000 mm, total height: 2,400 mm, total width: 1,600 mm, overall weight: 6,500 kg, OKUMA LVT300-M Vertical CNC Lathe Serial Number: 103848 Swing diameter over bed: 320 mm Max. turning diameter: 280 mm Max. workpiece length: 200 mm Travel distances: X-axis: 210 mm Y-axis: 330 mm C-axis (indexing): 360° Spindle speed: 40–4000 rpm Spindle bore: 62 mm Number of tool positions in turret: 12 Iedpfexw Uawex Ah Usbd Turret can accommodate driven tools Important note: The tool holders (including tools) and the chuck visible inside the machining area are not included in the sale or delivery. The chip conveyor is included in the sale and delivery, but not the pallets located on the conveyor. The three pallets shown at the end of the photos are included in the sale and delivery. Any oil mist extraction system visible in the photos is not included in the sale and delivery. Control: OKUMA OSP-U100L Length of chip conveyor: approx. 3500 mm Manufacturer: EWA-B Type: PS800 Year of manufacture: 2003 Machine number: 5746-01-358509.3 The technical documentation was not photographed but will be supplied with the machine. DIMENSIONS & WEIGHT: Dimensions (L x W x H): 5000 x 1500 x 2400 mm Weight: approx. 6500 kg

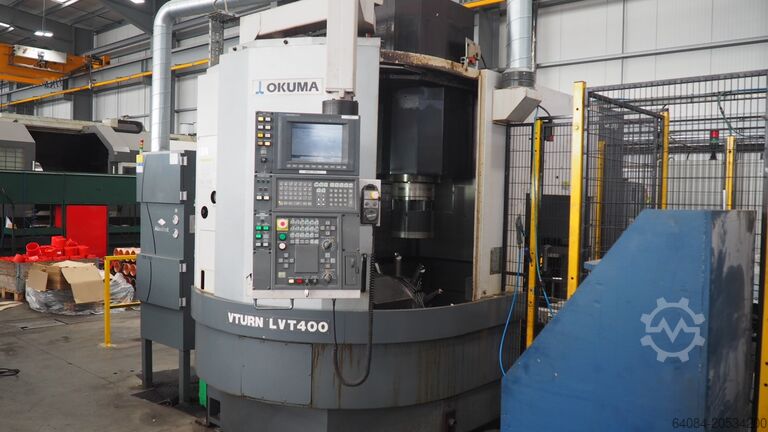

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, OKUMA V-Turn LVT 400 CNC Vertical Turning Lathe (2 machine cell) Model: LVT 400 Control: OKUMA OSP 1000L Year: 2006 12 – tool turrets Hi – Power 60 Bar High Pressure coolant Swarf Conveyor Ijdpfx Ahexwy S Es Usbd Work Measurement Carousel System linking with both machines with turnover station

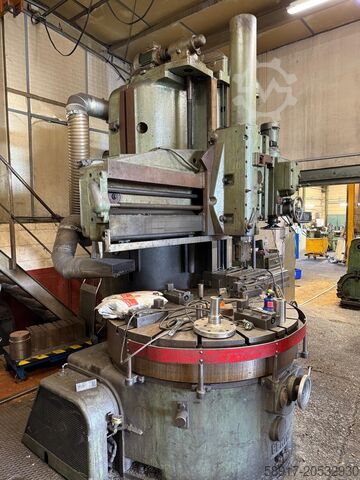

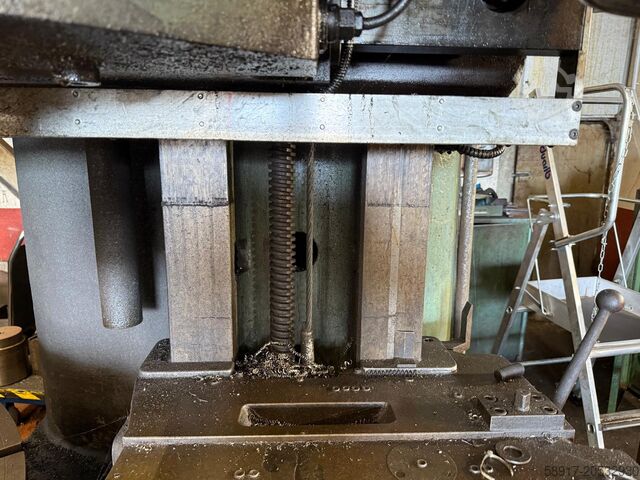

Condition: used, Year of construction: 1982, BERTHIEZ 9330 vertical lathe with 2-axis digital readout. Table diameter 1400mm, swing 1700mm, under crossrail 1170mm. Equipped with lateral carriage. Speeds: 160rpm / 37kW. Weight: 15t. Ijdoxwx Acjpfx Ah Uobd

Condition: ready for operation (used), Year of construction: 2004, operating hours: 20,581 h, General Data Machine weight 8000 kg Main Drive Number of axis 3 Spindle Speed 5000 RPM Spindle motor power 20 kW Tool taper VDI 40 Control Unit Brand SIEMENS Model 840D Power Line Movement X-Axis Movement 650 mm Z-Axis Movement 300 mm Y-Axis Movement 50 mm Technical Specification Driven Tools yes This 4-axis Gildemeister CTV 250 vertical turning machine was manufactured in 2004. It features a Siemens 840D Power Line control, a spindle speed up to 5,000 rpm, and a spindle motor power of 20 kW. The machine includes a turret with 12 tool positions, driven tools, a C-axis, and a high-pressure pump. Consider the opportunity to buy this Gildemeister CTV 250 vertical turning machine. Contact us for more information about this machine. Isdpoxwqu Dsfx Ah Uobd Application Types Turning

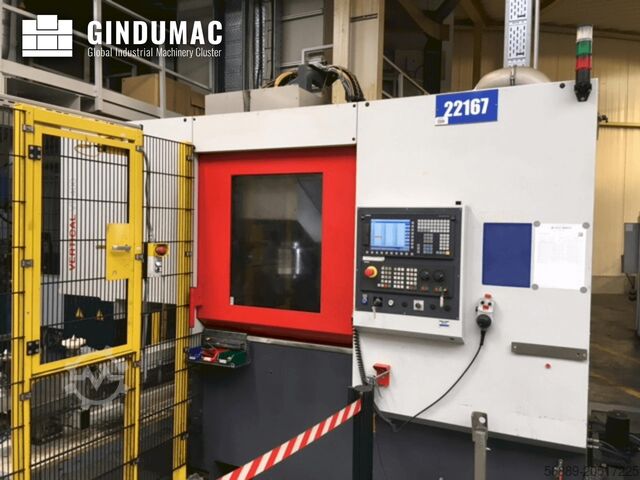

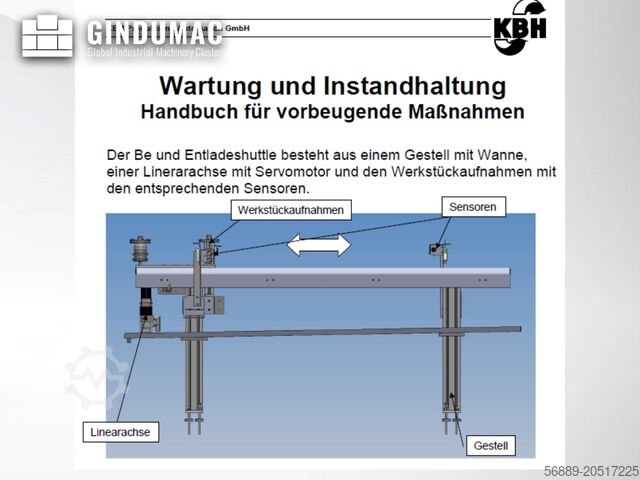

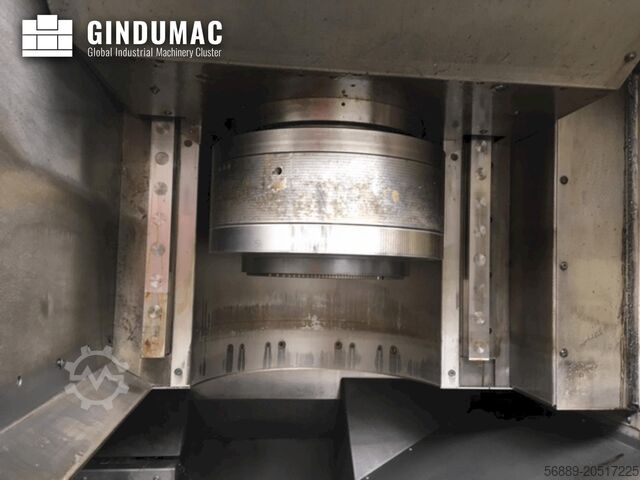

Condition: ready for operation (used), Year of construction: 2014, Control Unit Brand SIEMENS Additional Equipment Number of tool holders: 12 Tool holders according to DIN69880 VDI 40 Number of driven stations: 12 Ibodoxwfnlepfx Ah Ujd This 3-axis EMCO VT 400 vertical turning machine was manufactured in 2014. It offers robust construction and precision turning capabilities, ideal for various industrial applications. Consider the opportunity to buy this EMCO VT 400 vertical turning machine. Contact us for more information. Application Types Turning

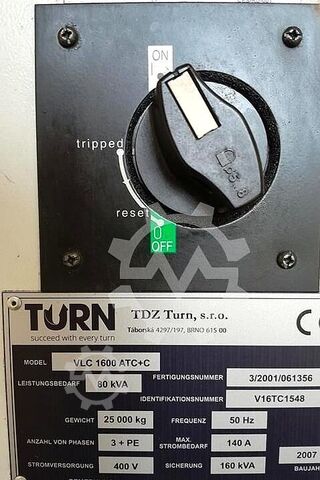

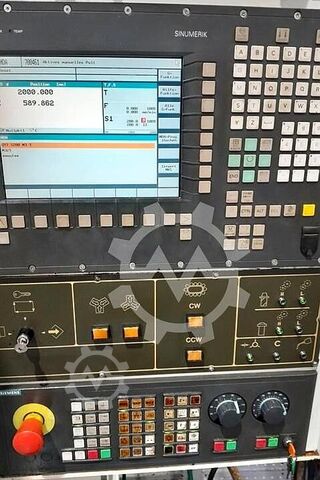

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: V16TC1548, workpiece weight (max.): 8,000 kg, workpiece diameter (max.): 2,000 mm, faceplate diameter: 1,600 mm, workpiece height (max.): 1,350 mm, faceplate torque: 18,000 Nm, TECHNICAL DETAILS Faceplate diameter: 1,600 mm Maximum faceplate torque: 18,000 Nm Maximum thread milling diameter: 1,800 mm Isdoxvxrbspfx Ah Uobd Maximum facing diameter: 1,800 mm Maximum distance between the faceplate and the clamping surface of the inserted tool slide: 1,550 mm Slide dimensions: 220 × 220 mm Maximum workpiece diameter: 2,000 mm Maximum slide stroke: 900 mm Maximum workpiece height when using the 200 mm tool holder: 1,350 mm Maximum workpiece weight, depending on faceplate rotation: 8,000 kg Maximum tool shank diameter: 40 mm Maximum crossrail travel: 800 mm Crossrail feed rate: 170 mm/min Working feed rate: 1–2,000 mm/min Rapid traverse: 10,000 mm/min Feed per revolution: 0.001–50 mm/rev Rotating tool spindle speed, programmable in two ranges 1st range: 1–1,200 rpm 2nd range: 1,200–2,400 rpm Tool holder: ISO50 MACHINE DETAILS Total power requirement: 80 kW Dimensions & Weight Footprint approx.: 4.4 x 4.62 m Machine weight approx.: 25 t EQUIPMENT C-axis

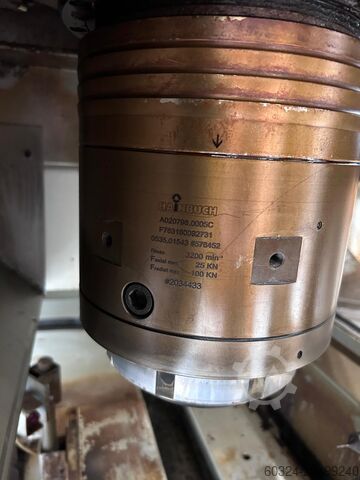

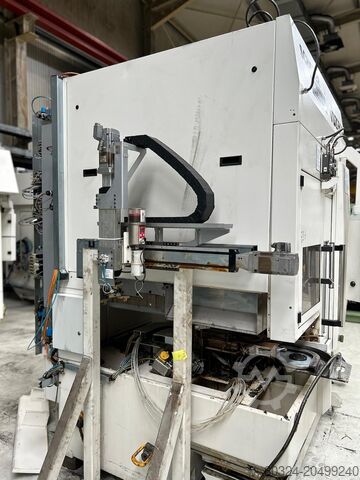

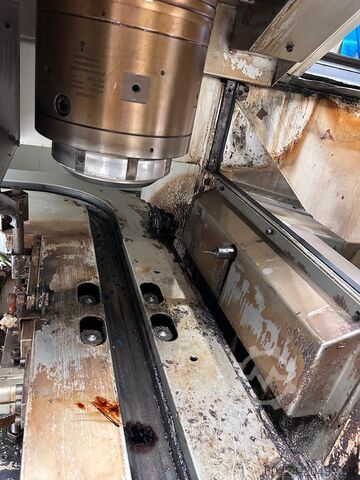

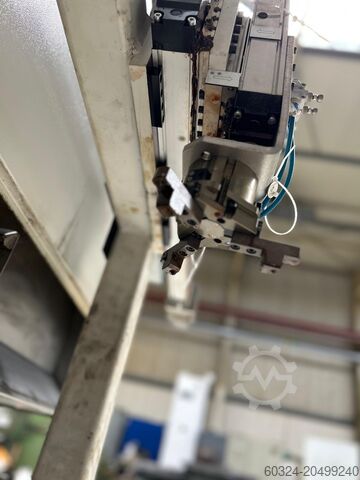

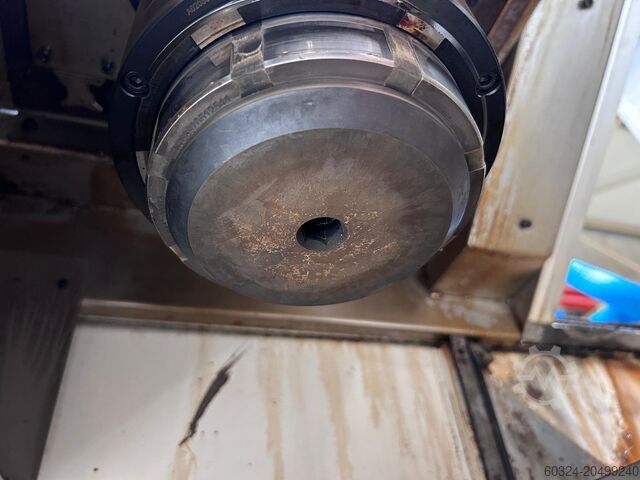

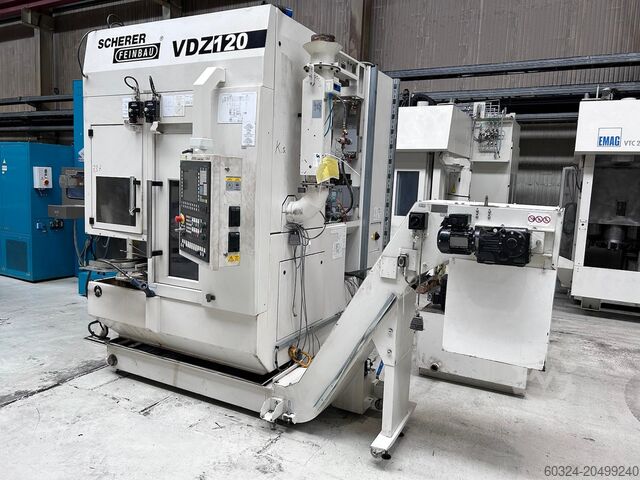

Condition: good (used), Year of construction: 2010, Ref. -No.: 10436 Manufacturer: SCHERER FEINBAU Type: VDZ 120 rechts Year of construction: 2010 Ibjdpfxoxvw Hkj Ah Ued Type of control: CNC Control: SIEMENS SINUMERIK 840 Storage location: Halberstadt Country of origin: Germany Machine-No.: 660XX Turning Speeds: 5500 RPM Swing Diameter: 260 mm Rapid Travel Speed X-Axis: 60 m / min Rapid Travel Speed Z-Axis: 30 m / min Travel -X Axis: 626 mm Travel -Z Axis: 250 mm Spindle bearing diameter: 32 mm Rated speed: 1200 1 / min Turret places: 12 Pcs Machine length: 1685 mm Machine width: 2400 mm Machine Height: 2850 mm Weight Of The Machine Ca.: 8 t Further information: Spindle head with short taper DIN 55026: A6 Pallet conveyor WPS KNOLL system (2010) SAUTER turret (12 places) Documentation available Tools in the pictures are sold with the machine. Machine can be inspected and demonstrated under power.

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: S.1003825.001, faceplate diameter: 800 mm, workpiece length (max.): 800 mm, workpiece width (max.): 720 mm, TECHNICAL DETAILS Faceplate diameter: 800 mm Clamping diameter: 800 mm Max. workpiece dimensions: 800 x 720 mm Tool interface: Capto C6 Tool magazine positions: 2 x 80 MACHINE DETAILS Iodpfexvrhvsx Ah Usbd Total power requirement: 110 kW Dimensions & Weight Approximate machine weight: 37,000 kg / total 52,000 kg Transport dimensions (machine): 5.07 x 2.98 x 3.90 m EQUIPMENT C-axis

Condition: ready for operation (used), Year of construction: 2010, operating hours: 49,479 h, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Z-axis: 200 mm, spindle speed (max.): 7,500 rpm, turning diameter: 210 mm, turning length: 100 mm, TECHNICAL DETAILS Max. turning diameter: 210 mm Max. turning length: 100 mm Max. swing diameter over bed cover: 210 mm Travel X-axis: 400 mm Travel Z-axis: 200 mm Max. workpiece length: 100 mm Max. workpiece diameter: 27 workpieces with 30–85 mm or 18 workpieces with 30–130 mm Max. main spindle speed: 7,500 rpm Main spindle power at duty cycle 10–40/100% max.: 25/16 kW Main spindle torque at duty cycle 10–40/100% max.: 200 Nm Main spindle front bearing diameter: 80 mm Main spindle flange size: Size 5 (DIN 55026) Axes at main spindle unit: X/Z Turret: bottom Number of stations/driven stations: 12/12 Tool mounting in turret: VDI 40 Rapid traverse speed X-axis: 60 m/min Rapid traverse speed Y-axis: 30 m/min Feed force in X/Z main spindle unit: 5,000 N Direct linear measuring system main spindle unit: X/Z MACHINE DETAILS Control: Fanuc 18i TB Electrical Data Operating voltage: 400/50 V/Hz Main fuse: 80 A Total connected load: 36 kVA Dimensions & Weight Machine dimensions (LxWxH): approx. 2,500 x 1,900 x 2,300 mm Overall system footprint (LxWxH): approx. 3,600 x 1,900 x 2,300 mm Machine weight: approx. 6,000 kg Operating hours: approx. 49,479 h EQUIPMENT Full-stroke cylinder on main spindle Splash guard enclosure with fully encapsulated working area Work area lighting Oil/emulsion mist extraction system Hinged belt chip conveyor (discharge height: 1250 mm) Coolant system Circulating parts storage conveyor Ibsdpfx Aexu Ekbeh Ued Automatic central lubrication

Condition: ready for operation (used), Year of construction: 2021, Control Unit Brand SIEMENS Model SINUMERIK 840 D sl Additional Equipment Measuring System: Linear in both axes This 5-axis Pittler PV2500 was manufactured in 2021, featuring a CNC vertical lathe with a maximum swing diameter of 3,000 mm and a turning diameter of 2,800 mm. It includes a double tool holder with Capto C8 interface, high-pressure coolant capabilities, and a robust spindle supporting up to 25,000 kg load. Ideal for complex, large-scale machining tasks. If you are looking to get high-quality turning capabilities consider the Pittler PV2500 machine we have for sale. Contact us for more information. Ibsdpfoxuw Aiox Ah Ujd Application Types Turning

Condition: ready for operation (used), Year of construction: 2018, Control Unit Brand SIEMENS Model SINUMERIK 840 D sl This 4-axis Pittler PV4000 was manufactured in 2018. A robust vertical turning machine, it features a max swing diameter of 3,800 mm and a spindle load capacity of 35,000 kg. It includes a Siemens SINUMERIK 840 D sl control system, rapid traverse speeds up to 32 m/min, and a tool magazine with 25 positions. Consider the opportunity to buy this Pittler PV4000 vertical turning machine. Contact us for more information about this machine. Application Types Isdpexuw Apefx Ah Ujbd Turning

Condition: ready for operation (used), total height: 3,600 mm, empty load weight: 22,000 kg, Schiess Ø 2070 x H 1330 mm Chuck dia.: Ø 1700 mm Max turningdia -- passage: Ø 2070 mm - H 1330 mm Iodpjxuwyhjfx Ah Uobd Power on the spindle: 30 kW Max hight of workpiece Z-axis: 1330 mm (Z: 1000mm) Number of speeds: 1.7 -> 53 rpm

Condition: used, Year of construction: 2014, Control Siemens 840DSL max. swing diameter 420 mm max. turning height 300 mm max. turning speeds 3400 min/-1 drive capacity - main spindle 45 / 35 kW max. torque 775 / 600 Nm chucking diameter 315 / 400 mm number of tool places 12 Pos. Shank diameter 40 mm x-axis 850 mm z-axis 315 mm rapid traverse (x/z) 45 / 30 m/min weight of the machine ca. 10,0 t dimensions of the machine ca. 4,2 x 1,5 x 3,5 m In our opinion, the machine is in very good used condition and can be inspected under power by appointment. Technical features: - driven tools - c-axis - Capacity for pieces diameter 30 to 160 mm : 32 [pos] - Capacity for pieces diameter 120 to 220 mm : 24 [pos] Ibodpfx Asxuv T Tsh Usd - Capacity for pieces diameter 120 to 340 mm : 16 [pos] The scope of delivery of the machine does not include a clamping device. Accessories, tools and clamping devices shown are only part of the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as Subject to prior sale!

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, spindle speed (max.): 128 rpm, spindle speed (min.): 2 rpm, turning diameter: 2,000 mm, turning height: 750 mm, VERTICAL LATHE PENSOTTI Mod. BK 20 CNC Control ECS 1802 Table diameter: 2,000 mm Vertical travel of turret slide (vertical carriage): 750 mm Vertical travel of octagonal bar slide: 1,200 mm Table rotation speed: 2.5 – 128 min-1 Tool changer: 8 positions Weight: 30,000 kg Iedpfxjxuq Hbj Ah Uobd USED MACHINE REFURBISHED IN 2015

Condition: excellent (used), functionality: fully functional, workpiece weight (max.): 125,000 kg, chuck outer diameter: 6,300 mm, turning diameter: 6,300 mm, total length: 14,200 mm, total height: 8,315 mm, turning height: 4,000 mm, overall weight: 223,000 kg, power: 161 kW (218.90 HP), Equipment: rotational speed infinitely variable, ECS Numerical Control Table diameter: 6,300 mm Maximum workpiece diameter: 6,300 mm Maximum workpiece height: 4,000 mm Distance from table to lower edge of crossrail: 3,690 – 690 mm Maximum permissible weight: 125,000 kg Maximum vertical travel of crossrail: 3,000 mm Maximum horizontal travel of tool holder head: 3,575 mm Maximum vertical travel of tool holder head: 2,000 mm Tool holder head inclination angles: –15° / +30° Iodpfx Ahjxuqyus Usbd Horizontal travel of tool holder head from table center: 3,425 mm Horizontal travel of tool holder head beyond table center: 150 mm Rapid traverse speed (horizontal and vertical): 2,400 mm/min Crossrail traverse speed: 300 mm/min Table speed: continuously variable Installed power: 220 HP (161 kW) Machine weight: 223,000 kg Floor dimensions: 8,213 x 14,200 mm Height from floor: 8,315 mm Total height: 9,765 mm Complete with: - Copying device - Taper turning attachment - Set of gears for taper turning - Set of gears for threading USED MACHINE

Condition: used, WEBSTER & BENNETT EH 72” ELEVATING RAIL VERTICAL BORER MAKE WEBSTER & BENNETT MODEL EH 72” TABLE DIA 1850 mm SWING 2150 mm HEIGHT UNDER RAIL 1200 mm SPEED UP TO 83 rpm FEED RATE 0.004-0.875 inch/min PLUS UPGRADED WITH BALL SCREWS 2 AXIS DIGITAL READ OUT MIMIK COPYING ATTACHMENT ELEVATING RAIL SET OF JAWS SET OF TOOL HOLDERS Isdpfxjxt Hybj Ah Uebd COLUMN MOUNTED MOTOR

Condition: used, Year of construction: 2011, turning diameter: 530 mm, controller manufacturer: SIEMENS, controller model: 840 D, number of spindles: 1, CONTROLS .. CNC controls SIEMENS 840 D BASIC FUNCTIONS .. design principle: vertical spindle .. number of spindles: 1 .. number of x/z slides: 1 Ibodpfjxt Dkwsx Ah Ujd .. number of turrets: 1 .. live positions: yes .. number of c-axes: 1 WORKING RANGE TURNING .. turning diameter (max): 530 mm .. worpiece length max.: 200 mm MAIN SPINDLE .. spindle revolutions (max): 4000 /min .. c-axis: yes X/Z SLIDE .. tool fixture: Turret .. number of tool positions (total): 12 .. - rotation speeds (max): 8000 /min ELECTRICAL SPECIFICATIONS .. total power consumption: 71 kW .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 9500 mm .. space requirements -front/back-: 5000 mm .. total height: 4200 mm .. total weight approx.: 13500 kg - Axes: X / Z / C spindle / A turret / including life tool - The machine features a VDI 50 turret with 12 positions. - Feed roller conveyor with pickup station - 20 bar internal cooling

Condition: good (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 101458, Machine Data Sheet General Information Manufacturer: EMAG Machine Type: CNC Vertical Lathe Model: VL5 S Serial No.: 101458 Year of Manufacture: 2008 Ibodjxtpi Sopfx Ah Uod Technical Data Max. Chuck Diameter: 260 mm Max. Swing Diameter: 260 mm X-Axis Travel: 570 mm X-Axis Working Stroke: 250 mm Z-Axis Travel: 200 mm Conveyor Maximum Permissible Total Weight: 120 kg Conveyor Maximum Diameter: 220 mm Front Spindle Bearing Diameter: 110 mm Main Drive AC Asynchronous Motor Max. Speed: 4,500 (5,000) rpm Drive Power at 100/40% Duty Cycle: 18/27 kW Torque at 100/40% Duty Cycle: 202/303 Nm Number of Tools: 12 pcs. Tool Holder DIN: 69880, Diameter 40 mm, Max. Tool Length 190 mm Chip Conveyor (Hinged Belt Conveyor): Discharge Height 1,250 mm Coolant Tank: 315 liters, 8 bar Control: Siemens 840 D Connected Load: 42 kW Voltage: 400V 50Hz Weight: approx. 6,500 kg Required Floor Space: 10 m²

Condition: ready for operation (used), Year of construction: 2005, Main Drive Number of spindles 1 Spindle speed range 4000 Spindle motor power 22/15 kW Tool taper VDI 40 Number of axis 2 Movement X-Axis Rapid Traverse 60 m/min Z-Axis Rapid Traverse 30 m/min Workpiece Workpiece drm 280 mm Isdjxtgnfopfx Ah Uobd Workpiece X 320 mm Tools Number of index 12 This Okuma LVT 300 was manufactured in 2005. A robust vertical turning machine featuring a max. turning diameter of 280 mm and a swing diameter of 320 mm. It offers a rapid traverse rate of 60 m/min on the X-axis and 30 m/min on the Z-axis, with a turning speed range up to 4000 U/min. Ideal for efficient, precise operations, the machine includes 12 tool positions. A great opportunity to buy this Okuma LVT 300 vertical turning machine. Contact us for more information. Application Types Turning

Condition: ready for operation (used), chuck outer diameter: 700 mm, total height: 3,415 mm, controller model: Siemens 840D Solution Line, empty load weight: 17,000 kg, Type: Ultrix 800 RT The Ultrix 800 RT is a Iedpoxtgkasfx Ah Uobd multifunction machining center with 5 interpolated axes and a moving gantry for high-speed milling, turning, grinding, drilling, tapping, finishing, deburring, and roughing of complex parts. When used for turning vertical lathe: - swivel range: 1100 mm - maximum weight of the workpiece: 700 kg - 40/30 kW on the table - max. torque on the table: 1500 Nm - maximum speed of the table: 1000 rpm !! - hydraulic clamping on table - tool taper for turning: KM63 - 150-position tool changer with 24 tool positions for turning When used for milling, grinding, drilling, ... machining center: - X-axis: 800 mm - Y-axis: 900 mm - Z-axis: 600 mm - A-axis: -30° / 110° - C-axis: continuous - maximum weight of the workpiece: 700 kg - 55/40 kW on spindle - max. torque on the spindle: 22 Nm - max 40,000 rpm - tool taper for milling: HSK-E40 - 150-position tool changer with 126 tool positions for milling, grinding, drilling List of options mounted on the machine: 1 - 40,000 rpm high-speed spindle 2 - table dia 700 mm with hydraulic clamping 3-150-position tool changer 4 - chip conveyor belt 5 - cooling system with recovery 6 - coolant temperature control 7 - high pressure cooling (40 to 70 bar) by spindle 8 - smoke extraction system 9 - chip collection box 10 - Presetting system and tool integrity: laser and mechanical probe for measuring tools 11 - Renishaw probe Max turningdia -- passage: 1100 mm Power on the spindle: 40/30 kW Long: 4655 mm Wide: 5890 mm Turret: yes Qty Tools: 150 positions Coolant pump: yes

Condition: good (used), Year of construction: 2008, For sale is 1 Scherer VDZ 80 DS with the following technical data: Rotation diameter: 120 mm z-axis (vertical): 265 mm Ibedpfx Asxr A Dteh Ued x-axis (horizontal): 280 mm Diameter in the front bearing: 85 mm Diameter in rear bearing: 75 mm 2 x A4 spindle Spindle unit drive Rated power: 16.8 kW Nominal torque: 100 Nm Speed: 1000 - 7000 rpm Traversing speed z-axis: max. 30 m/min Traversing speed x-axis: max. 30 m/min Dimensions: 2.44 x 2.3 x 1.42 m (L x H x W) Weight: 9000 kg Complete documentation available. Attention! The system will probably have to be reprogrammed somewhat, as it was part of a complete line. However, a single program is available.

Condition: good (used), Year of construction: 2004, For sale are 2 pieces of shearer VDZ 80 DS with the following technical data: Rotation diameter: 120 mm z-axis (vertical): 265 mm x-axis (horizontal): 280 mm Diameter in front bearing: 85 mm Diameter in rear bearing: 75 mm 2 x A4 spindle Spindle unit drive Rated power: 16.8 kW Nominal torque: 100 Nm Speed: 1000 - 7000 rpm Traversing speed z-axis: max. 30 m/min Traversing speed x-axis: max. 30 m/min Dimensions: 2.44 x 2.3 x 1.42 m (L x H x W) Weight: 9000 kg Complete documentation available. Ibsdpsxr A Dgjfx Ah Ujd Attention! The system will probably have to be reprogrammed somewhat, as it was part of a complete line. However, a single program is available.

Condition: good (used), Year of construction: 2004, functionality: fully functional, Max. Turning Diam 250 mmm. Max. part height 200 mm. Swing diam 320 mm. Max. chuck diam 250 mm. Strokes X 340 mm, Z 350 mm. 7000 RPM 18/24 kW Turret tool positions 12, VDI 40. Fanuc 21i TB Ibsdpfxjxrzy Hs Ah Usd

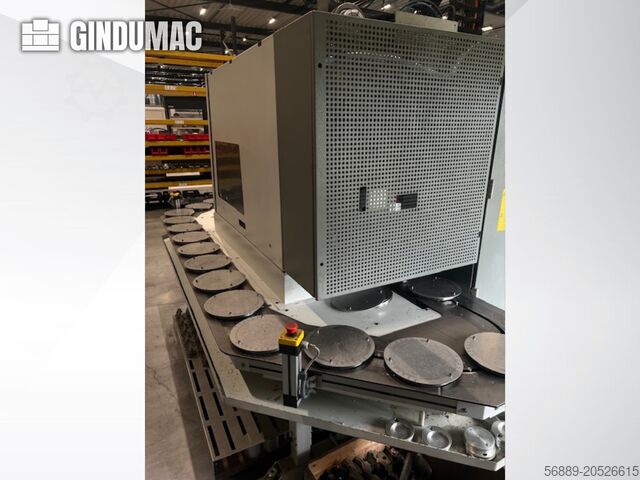

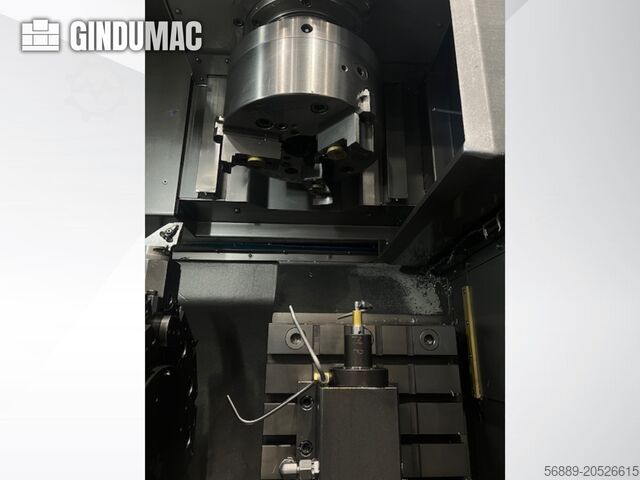

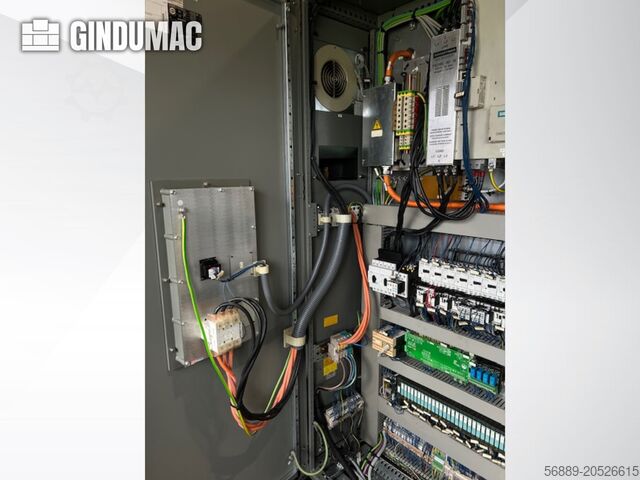

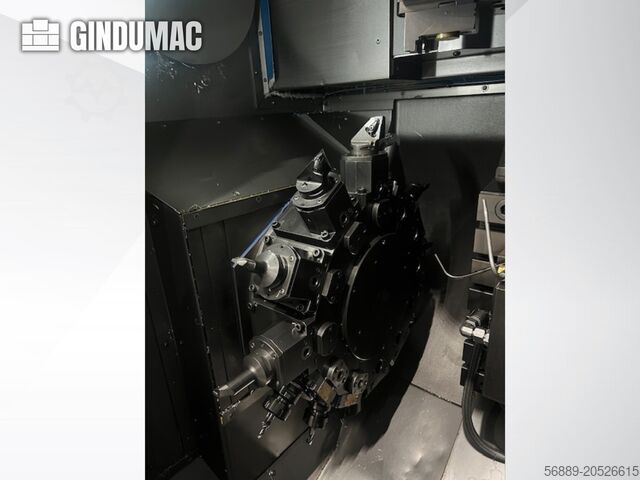

Condition: ready for operation (used), Year of construction: 2016, operating hours: 18,071 h, General Data Machine weight 6000 kg Main Drive Number of axis 3 Media Main electronic connection 40 kVA Additional Equipment shopturn option Ibodpfxjxrwhys Ah Usd This 3-axis DMG MORI Gildemeister CTV 250 2nd was manufactured in 2016. Ideal for precision vertical turning, this machine maintains robust construction and reliability. If you are looking to get high-quality turning capabilities, consider the DMG MORI Gildemeister CTV 250 2nd machine we have for sale. Contact us for more information. Application Types Turning

Condition: used, Year of construction: 2012, turning diameter 320 mm turning height 750 mm Control Siemens max. turning speeds 4500 min/-1 drive capacity - main spindle 26,8 / 20,9 kW max. torque 256 / 200 Nm spindle bore 52 mm spindle head KK A6 (DIN 55026) chucking diameter max. 315 mm number of tool places 8 Pos. tool taper Capto C5 max. workpiece diameter 50 mm max. workpiece weight 0,5 kg x-axis 450 mm z-axis 300 mm rapid traverse x 45 / z 40 m/min total power requirement 68,3 kW Ibsdpjxq Hkzsfx Ah Usd weight of the machine ca. 11,0 t dimensions of the machine ca. L 3,7/4,2 x B 1,6 x H 3,0 m In our opinion, the machine is in very good condition condition and can be inspected under power by appointment. Accessories, tools and clamping devices shown are only part of the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as Subject to prior sale!
