CBV Christoph Binder Verpackungsmaschinen

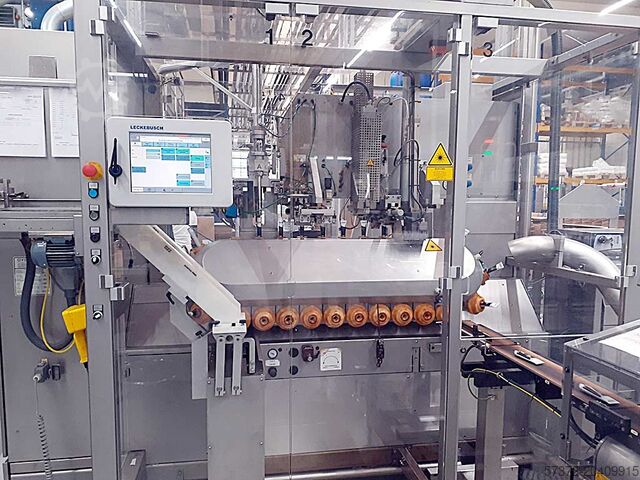

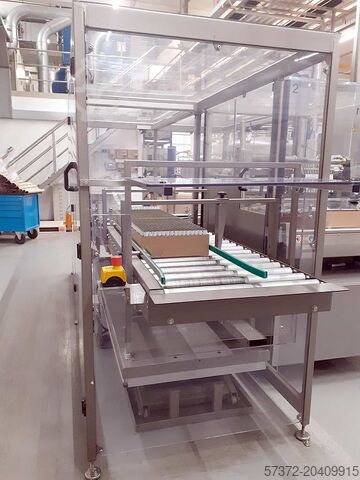

Condition: ready for operation (used), Year of construction: 2010, A complete IWK tube filling line is available. 1) Tube filling machine IWK TFS 80-1, year of manufacture: 2010, packaging material: aluminum/PE/PP/PVC/PE laminate/aluminum laminate, tube shape: round/conical, max. plastic tube diameter: 60mm, max. aluminum tube diameter: 50mm, tube length min./max.: 50mm/250mm, max. filling volume: 400ml, max. filling temperature: 65°C, max. product viscosity: 20000mPa/s, max. product density: 1.6g/cm³, max. filling capacity: 100tubes/min, weight: approx. 2400kg, operating hours: 30145h. 2) Tube feeding unit IWK TZ 204, max. tube diameter: 60mm, max. total tube length: 235mm, max. carton dimensions X/Y/Z: 600mm/650mm/265mm, max. output capacity: 22tube rows/min, weight: approx. 850kg. 3) Checkweigher Mettler Toledo XE2, year of manufacture: 2024, weighing range: 7g-100g, throughput: 100pieces/min. Documentation available. On-site inspection possible. Bodpfxsxr Nv Ne Abcodi

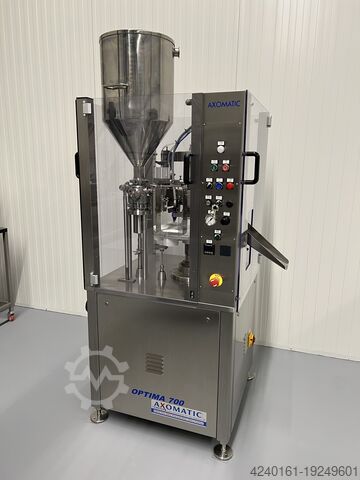

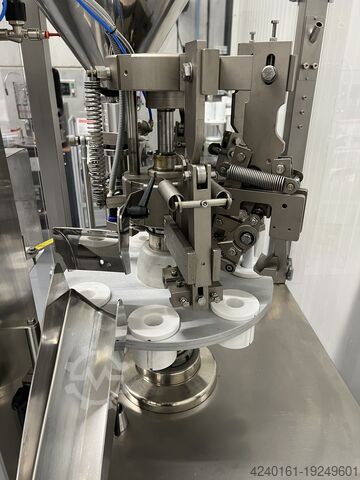

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 20037E2006, total width: 700 mm, total length: 700 mm, total height: 1,540 mm, type of input current: three-phase, filling weight (max.): 250 g, filling weight (min.): 5 g, compressed air connection: 6 bar, overall weight: 500 kg, year of last overhaul: 2025, Used Axomatic AXO 700 tube closing machine suitable for filling and closing aluminium tubes. Method: This machine automatically fills the tubes, closes the aluminium tubes through 4 folding stations, puts a code in the seal and automatically ejects the tubes. The tubes are fed and oriented manually. Bjdpfownrrbox Abcjdi This machine is set up in our showroom where we are happy to demonstrate the machine. Contact us for an appointment. Technical details: - Min/Max diameter aluminium tubes: 13 – 42 mm. - Tube length from 60 to 250 mm. - The tube holder with tube is lifted 55 mm over the filling pipe during filling. - Min/Max dosage: 5 – 250 ml. - The dosage quantity can be set outside the machine and can be read on a counter. - Capacity: max. 1,200 tubes/hour (mechanical speed). The actual achievable capacity is partly dependent on the operator, the tube quality and the viscosity of the product to be filled. - Electric drive by means of an electric motor of 0.37 kW, 380 Volt, 50 Hertz. - All product contact parts are made of stainless steel 316, suitable for pharmaceutical and cosmetic products. - Rotating table, adjustable in height, with readout of the set heights. - No tube/no filling device. - Coding unit for the tubes - Automatic ejection device for the tubes. - 7-station table. - Standard hopper with lid 55 liter capacity. - Machine frame and plating are made of stainless steel and is equipped with an anti-drip lock on the base, so that no product can enter the drive section. - Stepless speed control from the dashboard. - Security doors and casing made of stainless steel frame with plexiglass and door security. - Direct machine drive without chain. - Electric control box housed in the frame of the machine.

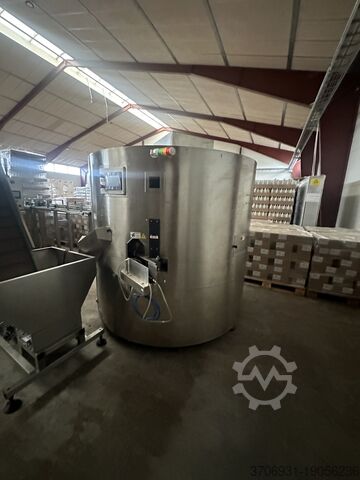

Condition: used, Year of construction: 2018, Unscrambler from 2018, 8-10,000 bottles per hour, fully functional, for round bottles in PET or HDPE Bdodjwgvxpopfx Abcsi

Condition: new, Year of construction: 2025, High-speed tube filler for pastes and liquids. Typically for cosmetics such as make-up, creams, general care products such as shower gel, hair shampoo, hair gel, toothpaste, sun blocker etc. Suitable for pre-made tubes (with closed cap) made of plastic, aluminum or laminated composite material. Fully automatic feeding, alignment of the tubes (rotation in the mould) based on print markings as well as filling and sealing of the tubes. Before filling, the tube is air-flushed to prevent contamination. No-tube-no-filling is also a standard function. External tube feed lift, water chiller, batch/date printer and dosing unit, consisting of pneumatic piston pump and storage hopper with level sensor, are included. PLC controlled, operation via touchscreen. Optional at surcharge: heated stirrer for storage hopper, additional format sets (moulds) for different tube diameters, external tube feed lift. - Specifications: max. speed of the machine in neutral: 160 cycles/minute; filling range: 1-300ml; accuracy: ?±0.5%; tube diameter: 10-50 mm (one mould is required for each tube diameter); tube length: 50-240 mm; number of filling heads: 2; storage hopper capacity: 70L; parts in contact with the product are 316L stainless steel; power supply: 220/380V, power consumption: 6kW; compressed air: 0.6MPa; machine dimensions: L2870xW1770xH2340 mm. Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty. Bdjdev Nld Iopfx Abcji

Condition: new, Year of construction: 2025, Fully automatic tube filler for pastes and liquids. Typically for cosmetics such as make-up, creams, general care products such as shower gel, hair shampoo, hair gel, toothpaste, sun blocker etc. Suitable for pre-made tubes (with closed cap) made of plastic, aluminum or laminated composite material. Fully automatic feeding, alignment of the tubes (rotation in the mould) based on print markings as well as filling and sealing of the tubes. Before filling, the tube is air-flushed to prevent contamination. No-tube-no-filling is also a standard function. Water chiller, batch/date printer and dosing unit, consisting of pneumatic piston pump and storage hopper with level sensor, are included. PLC controlled, operation via touchscreen. Optional at surcharge: heated stirrer for storage hopper, additional format sets (moulds) for different tube diameters, external tube feed lift. - Specifications: max. speed of the machine in neutral: 80 cycles/minute; filling range: 1-400ml; accuracy: ±0.5%; tube diameter: 10-60 mm (one mould is required for each tube diameter); tube length: 50-240 mm; number of filling heads: 1; storage hopper capacity: 40L; parts in contact with the product are 316L stainless steel; power supply: 220/380V, power consumption: 9kW; compressed air: 0.4-0.6MPa. Bdsdpfx Abev Nldzscei Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.

Condition: new, Year of construction: 2025, Fully automatic tube filler for pastes and liquids. Typically for cosmetics such as make-up, creams, general care products such as shower gel, hair shampoo, hair gel, toothpaste, sun blocker etc. Suitable for premade aluminum tubes with closed cap. Fully automatic feeding, alignment of the tubes (rotation in the mould) based on print markings as well as filling and sealing of the tubes. Before filling, the tube is air-flushed to prevent contamination. No-tube-no-filling is also a standard function. Water chiller, batch/date printer and dosing unit, consisting of pneumatic piston pump and storage hopper with level sensor, are included. PLC controlled, operation via touchscreen. Optional at surcharge: heated stirrer for storage hopper, additional format sets (moulds) for different tube diameters, external tube feed lift. - Specifications: max. speed of the machine in neutral: 65 cycles/minute; filling range: 1-400ml; accuracy: ±0.5%; tube diameter: 10-50 mm (one mould is required for each tube diameter); tube length: 80-230 mm; number of filling heads: 1; storage hopper capacity: 45L; parts in contact with the product are 316L stainless steel; power supply: 220/380V, power consumption: 9kW; compressed air: 0.4-0.6MPa; machine dimensions: L2000xW1160xH2100 mm. Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty. Bjdpev Nldusfx Abcedi

Condition: new, Year of construction: 2025, Fully automatic tube filler for pastes and liquids. Typically for cosmetics such as make-up, creams, general care products such as shower gel, hair shampoo, hair gel, toothpaste, sun blocker etc. Suitable for premade aluminum tubes with closed cap. Fully automatic feeding, alignment of the tubes (rotation in the mould) based on print markings as well as filling and sealing of the tubes. Before filling, the tube is air-flushed to prevent contamination. No-tube-no-filling is also a standard function. Water chiller, batch/date printer and dosing unit, consisting of pneumatic piston pump and storage hopper with level sensor, are included. PLC controlled, operation via touchscreen. Optional at surcharge: heated stirrer for storage hopper, additional format sets (moulds) for different tube diameters, external tube feed lift. - Specifications: max. speed of the machine in neutral: 80 cycles/minute; filling range: 1-300ml; accuracy: ±0.5%; tube diameter: 10-50 mm (one mould is required for each tube diameter); tube length: 50-210 mm; number of filling heads: 1; storage hopper capacity: 40L; parts in contact with the product are 316L stainless steel; power supply: 220/380V, power consumption: 3.1kW; compressed air: 0.4-0.6MPa; machine dimensions: L2270xW960xH2100 mm; machine weight: 1200kg. Bdedpjv Nldnsfx Abcsi Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.

Condition: new, Year of construction: 2025, Fully automatic tube filler for pastes and liquids. Typically for cosmetics such as make-up, creams, general care products such as shower gel, hair shampoo, hair gel, toothpaste, sun blocker etc. Suitable for premade aluminum tubes with closed cap. Fully automatic feeding, alignment of the tubes (rotation in the mould) based on print markings as well as filling and sealing of the tubes. Before filling, the tube is air-flushed to prevent contamination. No-tube-no-filling is also a standard function. Water chiller, batch/date printer and dosing unit, consisting of pneumatic piston pump and storage hopper with level sensor, are included. PLC controlled, operation via touchscreen. Optional at surcharge: heated stirrer for storage hopper, additional format sets (moulds) for different tube diameters, external tube feed lift. - Specifications: max. speed of the machine in neutral: 50 cycles/minute; filling range: 1-120ml; accuracy: ±1%; tube diameter: 10-28 mm (one mould is required for each tube diameter); tube length: 50-180 mm; number of filling heads: 1; storage hopper capacity: 40L; parts in contact with the product are 316L stainless steel; power supply: 220/380V, power consumption: 3.1kW; compressed air: 0.4-0.6MPa; machine dimensions: L1950xW750xH1850 mm; machine weight: 900kg. Bedov Nldhepfx Abcedi Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.

Condition: new, Year of construction: 2025, Fully automatic tube filler for pastes and liquids. Typically for cosmetics such as make-up, creams, general care products such as shower gel, hair shampoo, hair gel, toothpaste, sun blocker etc. Suitable for premade plastic tubes with closed cap. Fully automatic feeding, alignment of the tubes (rotation in the mould) based on print markings as well as filling and sealing of the tubes. Before filling, the tube is air-flushed to prevent contamination. No-tube-no-filling is also a standard function. Water chiller, batch/date printer and dosing unit, consisting of pneumatic piston pump and storage hopper with level sensor, are included. PLC controlled, operation via touchscreen. Optional at surcharge: heated stirrer for storage hopper, additional format sets (moulds) for different tube diameters, external tube feed lift. - Specifications: max. speed of the machine in neutral: 50 cycles/minute; filling range: 1-250ml; accuracy: ±1%; tube diameter: 10-50mm (one mould is required for each tube diameter); tube length: 50-200mm; number of filling heads: 1; storage hopper capacity: 40L; parts in contact with the product are 316L stainless steel; power supply: 220/380V, power consumption: 7kW; compressed air: 0.4-0.6MPa; machine dimensions: L1950xW760xH1850mm; machine weight: 950kg. Bjdpfx Ajv Nldbobcodi Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.

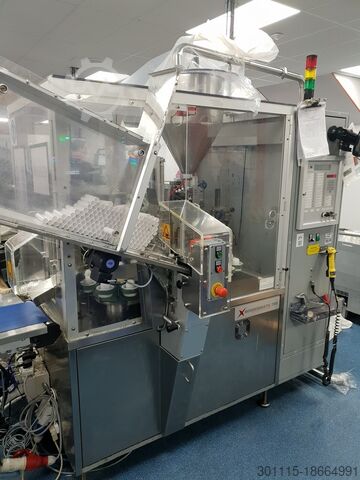

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, Norden 700 Plastic Tube Filler Bodpfx Ajv Hxu Uobcodi Provides outputs of up to 70 tubes per minute and is designed and manufactured to produce the highest possible packaging quality standards at maximum operational efficiencies. Plastic and laminate tubes may be sealed using the Norden´s patented Hot-Air Sealing system. Year: 2006 Model:700 Key information: – Production capacity: 70 tpm – Filling volume: 1-300 ml – Tube length: 50-250 mm – Tube diameter: 10-60 mm – Infeed system: cassette – Blow off filling nozzle - Fully working condition

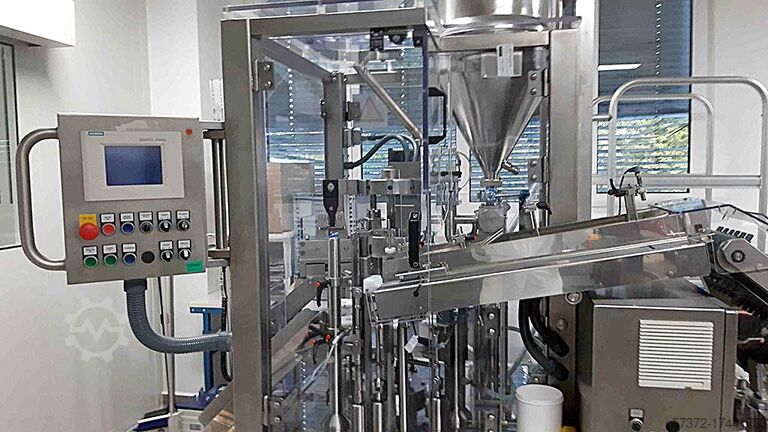

Condition: ready for operation (used), Year of construction: 2006, A Gustav Obermeyer tube filling machine including a SpeMaBa labeler is available. Filling capacity: 15-20 tubes/min, hopper volume: 40l, dosing piston diameter: 35mm (10cm³-100cm³), tube format: 30mm/150mm, tube material: HDPE/LLDPE, tube diameter range: 5mm-90mm, tube length range: 65mm-240mm. Printing system: Allen NX 4 (ITW-Diagraph), processed labels: 80mm/77mm, printing: thermal transfer, printing foil: N508SW110 x 600 (Novexx), labeling machine: BBK Rapid SR 160/610-3800 S. Documentation available. On-site inspection is possible. Bdodpfx Absuyk Tgscei

Condition: ready for operation (used), Year of construction: 2022, A complete tube filling and packaging line for ointments is available. 1) Tube feeder IWK TZK 200, year of manufacture: 1991. 2) Tube filling machine IWK TFS 30, year of manufacture: 1991. 3) Cartoner IWK CPS-R, year of manufacture: 1991. 4) Serializer Laetus MV-70-F-130-TL, year of manufacture: 2019. 5) Checkweigher Mettler & Toledo C3570, year of manufacture: 2019. 6) Bundle packer Kiener ASK 450, year of manufacture: 1993. 7) Case packer Skinetta PAL 145, year of manufacture: 1997. 8) Palletizer Skinetta PAL 1400, year of manufacture: 1997. 9) Horizontal laminar flow machine Marchhart LF-ZP-Horizontal, year of manufacture: 2020. 10) Accumulating roller conveyor RBS 140, year of manufacture: 1998. 11) Ointment pump Netzsch BEF200/NM045BH, year of manufacture: 2022. Documentation is available. On-site inspection is possible. Bdodpjuf T Nlofx Abcji

Year of construction: 2008, condition: excellent (used), Piston filling machine Bedpfx Abjigytijcodi Make: EFM/LVS Type: 2 station piston fillingmachine with heatable funnel with agitator Capacity: max 3000/hr Range: 200ml-1000ml (easy manualy adjustable) Dimensions: L x B x H = 1.700 x 1.100 x 1.900 mm Electro: 400 Volt - 50 Hz - 0.75 kW(agitator) compressed air: minimal 6 bar Features: Pneumatic driven filler/ Logo Plc/ Mobile Machine can be optional be delivered with conveyor system with peumatic starwheel for positioning

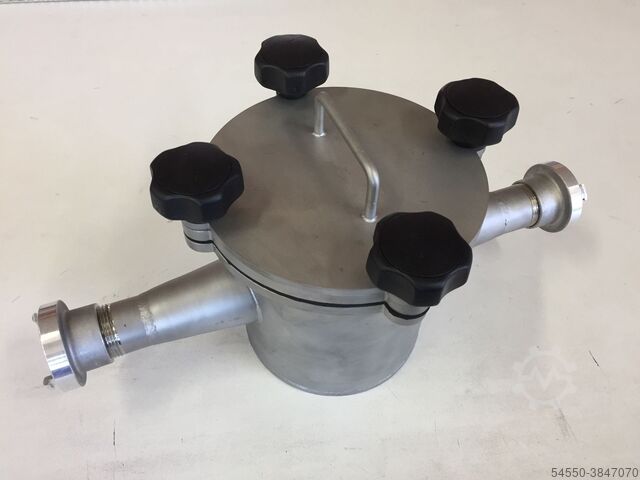

Year of construction: 2018, condition: new, For sale is a first einal user magnetic filter. Sealed 9 PCs Magnetfitlerstäbe, including Reinigugnsfunktion. Bedpfx Abjdzp R Tjcodi
