Conveyor belt Trio Technik (67)

Trio-technik

Condition: good (used), Year of construction: 2010, functionality: fully functional, conveyor belt length: 3,800 mm, conveyor belt width: 290 mm, conveyor belt speed: 35 mm/s, total length: 3,400 mm, total width: 650 mm, total height: 1,860 mm, overall weight: 140 kg, discharge height: 1,780 mm, power: 0.21 kW (0.29 HP), Equipment: emergency stop, type plate available, TAF item number: 1000005842 Manufacturer: Trio-Technik Year of manufacture: 2010 Overall dimensions (LxWxH) in mm: 3,400 x 650 x 1,860 Width incl. side panel in mm: 380 Width incl. drive in mm: 550 Side height in mm: 200 Total conveyor length in mm: 3,800 Conveyor length, horizontal in mm: 1,500 Conveyor length, vertical in mm: 2,300 Conveyor width in mm: 290 Belt type: Plastic slats / link chain belt Belt width in mm: 300 Treads (height of treads/tread pitch) in mm: 50 / 36 Substructure: rollable / height-adjustable Sliding surface: steel Inlet height in mm: max: 200 min: 140 Outlet height in mm: max: 1,780 min: 1,720 Drive: head drive Kodpfxox R D U He Abnjlp Motor type: Angle gear motor Motor data: 50/50 Hz, 0.18/0.21 KW, 460/400 V Conveyor speed in m/s: 0.035 Net weight in kg: 140 Special features: Programmable cycle control / emergency stop, tunnel partially damaged Condition: used / fully functional Function test: OK

Condition: used, Year of construction: 1997, TRIO-Technik belt conveyor GF 2530-940-840 RA1962 Technical data: Conveyor length (NL): 2530 mm stand width (NB): 940 mm Belt width (GuB): 840 mm Overall height (BH): 85 mm Adjusted height: 630 mm Support feet: 2 pieces Conveying speed (v m/s): 0,078 Electrical data: 50Hz V380-500, kW 0,18 / S1 Belt: Green, smooth Year of manufacture: 10/1997 Optionally available: Frequency converter For individual, professional advice, simply get in touch with us. Simply contact us by phone or by mail. We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team of Dr. Sonntag GmbH & Co. KGYour specialist and contact for intralogistics Kledsk Abncopfx Abnep

Condition: used, functionality: fully functional, The separator is for sale from the company trio-technik ; Filling via funnel with a plexiglass cover L: 900mm W: 700 mm Klodpfx Ajuhzvlebnep H: 700-1200mm Inclination max. 20 degrees Speed const. Discs can be adjusted

Condition: used, Year of construction: 2010, functionality: fully functional, conveyor belt length: 3,350 mm, conveyor belt width: 290 mm, conveyor belt speed: 30 mm/s, total length: 2,450 mm, total width: 650 mm, total height: 2,250 mm, overall weight: 125 kg, discharge height: 2,200 mm, power: 0.18 kW (0.24 HP), Equipment: emergency stop, type plate available, TAF item number: 1000005841 Manufacturer: Trio-Technik Year of manufacture: 2010 Overall dimensions (LxWxH) in mm: 3,400 x 650 x 1,860 Width incl. side wall in mm: 380 Width incl. drive in mm: 550 Side wall height in mm: 200 Conveyor length, total in mm: 3,800 Conveyor length, horizontal in mm: 1,500 Conveyor length, vertical in mm: 2,300 Conveyor width in mm: 290 Belt type: Plastic slats / link chain belt Kljdpexyk Ehsfx Abnep Belt width in mm: 300 Treads (height of treads/tread pitch) in mm: 50 / 36 Substructure: Rollable / height-adjustable Sliding surface: Steel Inlet height in mm: max: 200 min: 140 Outlet height in mm: max: 1,780 min: 1,720 Drive: head drive Motor type: angular gear motor Motor data: 50/50 Hz, 0.18/0.21 KW, 460/400 V Conveyor speed in m/s: 0.035 Net weight in kg: 140 Special features: Programmable cycle control / emergency stop, tunnel partially damaged Condition: used / fully functional Function test: OK

Condition: used, Year of construction: 1993, functionality: fully functional, conveyor belt length: 2,730 mm, conveyor belt width: 360 mm, conveyor belt speed: 50 mm/s, total length: 2,730 mm, total width: 490 mm, total height: 1,620 mm, power: 0.762 kW (1.04 HP), motor manufacturer: BONFIGLIOLI, Equipment: type plate available, TAF item number: 1000004806 Manufacturer: trio-technik Year of manufacture: 1993 Overall dimensions: 2,730 x 490 x 1,620 mm (LxWxH) Width including side panel: 490 mm Width including drive: 490 mm Side panel height: 80 mm Total conveyor length: approx. 2,820 mm Conveyor length, horizontal: approx. 820 mm Conveyor length, vertical: approx. 2,000 mm Conveyor width: 360 mm Belt type: PVC, cleated belt Ksdpfowgmrmjx Abnjlp Belt width: 400 mm Cleats: H = 20 mm, cleat spacing = 400 mm Substructure: mobile, height-adjustable, max: 1,620 mm | min: 1,250 mm Drive: chain drive Motor: gear motor Motor data: 0.762 kW Conveyor speed: 0.05 m/s, constant Net weight: 82 kg Special features: incl. ON/OFF switch Condition: Used / fully functional Function test: OK

Condition: good (used), Year of construction: 2010, functionality: fully functional, conveyor belt length: 3,100 mm, conveyor belt width: 290 mm, conveyor belt speed: 30 mm/s, total length: 2,400 mm, total width: 650 mm, total height: 2,300 mm, overall weight: 160 kg, discharge height: 2,170 mm, power: 0.22 kW (0.30 HP), input voltage: 270 V, input frequency: 50 Hz, motor manufacturer: DRdrivers, Manufacturer: Trio-Technik Year of manufacture: 2010 Overall dimensions (LxWxH) in mm: 2,400 x 650 x 2,300 Width incl. side panel in mm: 400 Width incl. drive in mm: 600 Side height in mm: 200 Total conveyor length in mm: 3,100 Conveyor length, horizontal in mm: 800 Conveyor length, vertical in mm: 2,300 Conveyor width in mm: 290 Belt type: Plastic slats / link chain belt Belt width in mm: 300 Treads (height of treads/tread pitch) in mm: 50, 360 Substructure: Rollable Height adjustable: / Sliding surface: Steel Inlet height in mm: max: 280 min: 250 Kledpjycr Tgsfx Abnjp Outlet height in mm: max: 2,170 min: 2,140 Drive: Head drive Motor type: Gear motor Motor manufacturer: DRdrives Motor data: 50/60 Hz, 0.18/0.22 kW, 230/270 V Motor position (in conveyor direction) left Conveyor speed in m/s: 0.03 Net weight in kg: 160 Special features: Programmable, digital cycle control, incl. CEE plug Condition: used / fully functional Function test: OK

Condition: used, Year of construction: 2000, overall weight: 150 kg, terms of delivery: FCA Pegnitz Ksdpfjx H Ttkex Abnolp delivery time: on request terms of payment: 100% prior to delivery

Condition: as good as new (ex-display), Year of construction: 2014, functionality: fully functional, The separating device from trio-technik is for sale. This unit is designed for the separation of objects with various geometries. Length: 950 mm Width: 700 mm Height adjustable: 700-1380 mm Klodpfx Abox Dm Rzonjp Possible gap width: 50 mm Tilt angle: max 20 degrees Drive/three-phase current: 400V 50Hz Power consumption: 0.09 kW/h Speed adjustable.

Condition: good (used), functionality: fully functional, The bunker conveyor belt with cycle control of the company trio-technik is for sale, here are a few tech. Hints! Video of the belt available !!! Total length: 2000 mm Belt width: 400 mm Cleat height: 20 mm FDA blue belt Kodpjt Uqv Nsfx Abnjlp Mobile Hopper made of VA sheet metal Belt speed const. 7m/min Discharge height: 1500 mm Total height: 2200 mm Stable base frame etc.

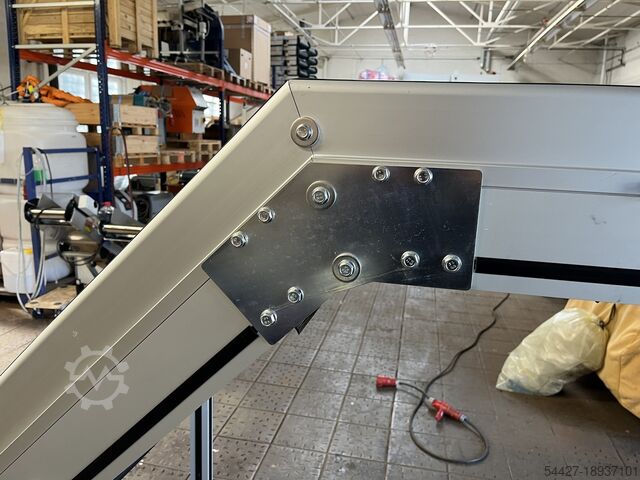

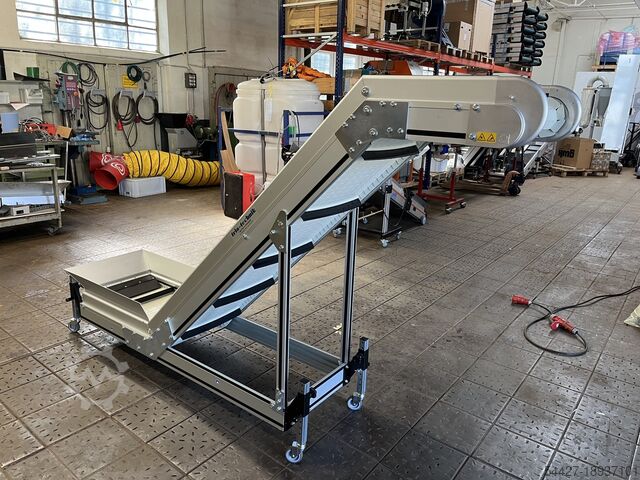

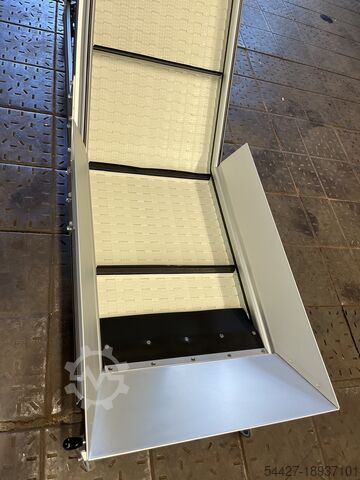

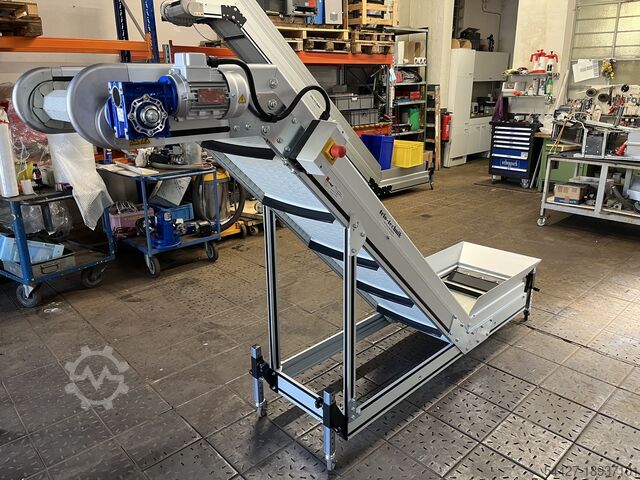

Condition: new, Year of construction: 2021, functionality: fully functional, The Z-shaped conveyor belt from trio.technik is for sale; Kodswb Skqjpfx Abnslp Infeed: 600 mm with complete hopper Incline: 1900 mm Discharge: 500 mm Usable width: 450 mm Constant belt speed: 3 m/min Mobile Adjustment range via the wheels: 300 mm
