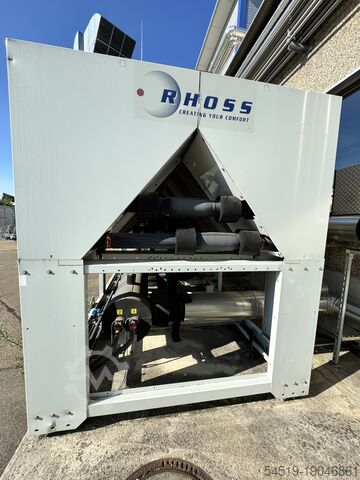

RHOSS FreeCooling refrigeration system

Condition: as good as new (ex-display), Year of construction: 2023, The ENR series are air-cooled chillers for industrial use for outdoor installation. The ENR 038 has axial fans, scroll compressors, condensers with finned aluminum fins and self-cleaning coaxial evaporator for maximum reliability. Internal pump, tank, fan control, low GWP refrigerant R454B. Refrigerating capacity 37 Kw, envious GWP refrigerant R454B We have a lot of chillers directly from stock available used and new . contact us for a no obligation quote. We rent / sell / and also take over the service for all refrigeration systems Germany-wide. Ledpfx Afefmd Hhe Sehr

Year of construction: 2021, condition: excellent (used), power: 10 kW (13.60 HP), input voltage: 415 V, belt width: 407 mm, product height (max.): 85 mm, Lomax Spiral Conveyor Year of manufacture 2021 304 Stainless steal mesh belt Product gap 85m Tier pitch 140mm 2 Drums 1.62m Drum Ljdpfotzmk Nox Af Sshr 24 Tiers on up drum 24 Tiers on down drum Belt Width 407mm Effective Belt Width 337mm -Approx Dimensions- L 6.86m W 3.72m H 4.95m

Condition: excellent (used), Year of construction: 2024, operating hours: 5,000 h, functionality: fully functional, machine/vehicle number: 2MAM022829, cooling capacity: 1,000 kW (1,359.62 HP), Cooling Capacity: 959 kW Type of Input Current: 3 Phase / 50 Hz / 400 V Type of Cooling: Air-cooled Overall Weight: 7,973 kg (Operating) / 7,597 kg (Rigging) Ambient Temperature (max.): 35°C Lhodpoimz Uaofx Af Ssr Ambient Temperature (min.): 12.8°C (based on part load performance) Compressor Type: Screw, semi-hermetic, VSD controlled Total Power Consumption: 309.9 kW Noise Level: 74 dB(A) 10 m Refrigerant Type: R134a, total charge: 242 kg Water Flow Rate: 146.7 m³/h (40.76 L/s) Pressure Drop (Evaporator): 52.2 – 64.1 kPa COP (Full Load): 3.09 IPLV (Part Load): 5.12 Number of Fans: 14 units (7+7), with low sound kit Nameplate Available: Year of Manufacture: 2018

Condition: good (used), functionality: fully functional, motor manufacturer: VEM, power: 110 kW (149.56 HP), volume flow: 679 m³/h, Used ammonia compressor Sabroe TSMC - 116 S. Water cooled, well maintained, working condition, replaced because of new Sabroe compressor installation. Cooling capacity ~100kW (-20C). Controlled by Carell controller which can be included if requested. Motor 110kW. Some original parts also will be included. The compressor has been used in the production of fat/margarine. It normally operated at a suction pressure of 0.1–0.2 BAR, which resulted in an evaporating temperature (T₀) of -25°C and a condensing temperature (Tₖ) of +35°C, with a compressor capacity of approximately 100 kW. Lhedpfsuq Hnyjx Af Ser The compressor can also operate at a lower suction pressure to achieve lower temperatures, for example, between -30°C and -35°C.

Condition: used, Used DSI V-5 32/100 vertical plate freezer on Freon/NH3 with 32 stations. Inner dimensions 1 station: 810x100x580 mm (LxWxH). Total block dimensions with a volume of 239 liter: 4100x840x580 mm (LxWxH).It is possible to freeze 507,7 kg of fish fillet each hour with a thickness of 100 mm. Lsdpforlk H Rsx Af Sohr

Condition: excellent (used), functionality: fully functional, WORKING MEASUREMENTS: Useful tape width: 55cm Number of spirals: 18 Spiral diameter: 4.20 m approx. Height of product entry: 1.20 m Height of product exit: 3.70 m Technical description: DRUM: It is the element in charge of transmitting the movement to the belt, it is built by stainless steel profiles welded to a base ring formed a kind of cage. MAIN STRUCTURE: It is the part of the tunnel that supports the conveyor belt (through an auxiliary structure) and the drum (through the bearings). It is built with folded and welded stainless steel plate profiles. AUXILIARY STRUCTURE: It supports the belt in its movement. To avoid metal-to-metal contact, it is covered with a special high density polyethylene profile. DRUM SUPPORTS: The lower supports have two main functions: centering the drum and supporting its weight. In the upper part, other supports are placed whose mission is exclusively to collaborate in the centering of the drum. EVAPORATOR: A circular evaporator located at the bottom of the drum is used, which results in an important space saving and in a horizontal air circulation without dead spaces. Ljdjwnzahepfx Af Sehr FANS: Fans are placed at the top and at the bottom with the discharge directed towards the inside of the evaporator so that the air flows through the evaporator towards the product. The fans will be sized so that the air velocity, both through the evaporator and through the product, is adequate. TRACTION: Consists of an electric motor-reducer of adequate power, with previously calculated reduction ratio, so that the speed of the drum and therefore of the belt are suitable. SPEED VARIATION EQUIPMENT: This consists of a frequency variator that, by varying the power supply frequency to the preset electric motor drive (between 20 Hz. and 60 Hz.), modifies its speed and therefore the output speed of the reducer, which allows us an appropriate retention time in each case. CONTROL PANEL AND MANEUVERING BOARD: The control panel includes the electrical and maneuvering elements of the Tunnel. In its front panel there are the general maneuvering controls, as well as a synoptic of operation and with the indications of the safety and alarms indicated with a luminous signal. Inside are the control elements, frequency variator with potentiometer, electronic starters for fans and other equipment protection elements.

Year of construction: 2019, condition: ready for operation (used), An Evapco cooling tower is available. Fan power: 11kW, Fan type: axial, Fan diameter: 84 inches, Fan material: aluminium, Fan shaft: heavy-duty design, Drive system: Powerband belt drive with Taper-Lock pulley, Maintenance access: galvanized steel doors, Water treatment: integrated droplet separator, Motor hours: 12471h. Documentation available. On-site inspection is possible. Lhjdpfov E Ragex Af Sjr

Condition: used, Year of construction: 2017, Used Goedhart LLK.p 14x6-3006-50x50 evaporator for Freon/Glycol. Complete with 3 Ziehl-Abegg .A7P2 fans - 50/60 Hz - 1,0 kW - 1550 RPM - diameter 500 mm and a total airflow of 25.000 m³/h. Ljdpfx Asrlk Dcef Sshr

Year of construction: 2017, condition: excellent (used), Dohmeyer Cryogenic Spiral Freezer with pre-chilling tunnel Dohmeyer spiral cryogenic freezers are designed for rapid freezing or chilling of food products using liquid nitrogen (LIN – Liquid Nitrogen). They are primarily used in the food industry, especially for products requiring rapid freezing such as meat, seafood, bakery goods, ready meals, and other delicate products. Ljdpfx Afswmxlxs Sehr Model: DOH-SPK-D244-W26-E21-LIN-2017 Type: Cryogenic Freezer Spiral Serial Number: 201703033177 Year of manufacture: 2017 Cryogenic gas/operating pressure: LIN / 2…4 bar Compressed air/pressure range: 6…8 bar Power supply: 3x400V + N + PE, 50 Hz Weight: 16,000 kg Pre-chilling tunnel/cryogenic tunnel freezer Brand: ENT Edelstahl- und Nahrungsmitteltechnik Type: CFP 600 Serial number: 03 133/2 Year of manufacture: 2003

Year of construction: 2022, condition: like new (used), functionality: fully functional, Description: JACIR Water Cooling Tower RXH-6029-84-N245-370-BR Characteristics: Thermal power: 4610 kW Incoming temperature: 43 °C Outgoing temperature: 30 °C Lhsdpfx Afevzw H Es Ssr dBa (20 m): 55 Max. H2O flow: 305 m3/hour
