Pick-up van
Fuso 3S15 Alu Pritsche 2.80m Ladekran Bohrgerät

Name: Fuso 3S15 Alu Pritsche 2.80m Ladekran Bohrgerät
Brand: Fuso
Price: 63900 EUR
Availability: InStock

Fixed price plus VAT

€63,900

Condition

New

Location

Bad Salzuflen Germany

Pick-up van Fuso 3S15 Alu Pritsche 2.80m Ladekran Bohrgerät

Fuso 3S15 Alu Pritsche 2.80m Ladekran Bohrgerät

Show map

Machine data

Machine type:: Pick-up van

Manufacturer:: Fuso

Model:: 3S15 Alu Pritsche 2.80m Ladekran Bohrgerät

Condition:: new

Price & Location

Fixed price plus VAT

€63,900

Seller location:: Meerbrede 9, 32107 Bad Salzuflen, Germany

Call

Technical details

Mileage:: 21 km

Power:: 110 kW (149.56 HP)

Fuel type:: diesel

Gearing type:: mechanical

Axle configuration:: 4x2

Overall weight:: 3,500 kg

Empty load weight:: 2,850 kg

Maximum load weight:: 650 kg

Loading space length:: 2,720 mm

Loading space width:: 1,820 mm

Loading space height:: 500 mm

Emission class:: euro6

Color:: white

Driver cabin:: day cab

Suspension:: other

Number of seats:: 3

Fuel:: diesel

Equipment:: ABS, air conditioning, central locking, crane, immobilizer system, soot filter, trailer coupling

Details about the offer

Listing ID:: A191-98006

Reference number:: 3s15_Bohr_2

Update:: 12.11.2025

Description

FUSO Canter 3S15 aluminum flatbed with loading crane and drilling rig preparation. The vehicle is available for lease with an option to purchase.

Chassis: Fuso 3S15 Canter
- Gross vehicle weight 3500 kg, payload (complete vehicle with loading crane and aluminum platform) approx. 600 kg
- Manual transmission
- Limited-slip differential lock
- 2 x 100 AH batteries
- 3500 kg tow bar with electrical kit (factory fitted)
- Heated exterior mirrors
- Automatic climate control
- Radio preparation
- Reversing alarm
- Power take-off with speed boost
- Battery cover and AdBlue tank cover
- Battery isolation relay preparation
- Continental 195/75/R16C traction tires
- Seat covers

Aluminum platform:
- Interior: 2720 mm x W 1820 mm x H 400 mm
- 18 mm floor plate
- Floor frame with all-round airline rails
- Airline rails also in the bulkhead
- Anodized aluminum side panels with easily removable folding steps
- Storage box
- Work lights
- Other platform dimensions also available

Loading crane: with 3 hydraulic extensions
(Country of production: Italy)
- Lifting capacity according to manufacturer: Max. 995 kg 3.2 m = 815 kg, 4.4 m = 575 kg, 5.6 m = 400 kg, 6.8 m = 300 kg, 8.05 m = 220 kg
- Design according to CE directive (EN 12999)
- Swivel range 370° (swivel range limitation 190°)
- All hydraulic cylinders double-acting
- Piston rods hard chrome-plated
- Pressure relief and load-holding valves
- Emergency stop
- Control block with 4 control valves
- Control system for 2 additional functions with 2 hose guides
- Separate hydraulic tank (33 l) with filter, mounted on the crane base
- Outriggers extendable on both sides Special outriggers, outrigger width 3.10 m
- Hydraulic outriggers, swivelable 30° and 180° - CE, including M.O.L.
- Standard color RAL 3020 traffic red - all cylinders painted black
- Load hook and mounting clamps
- On-board voltage 12V
- Control system for 2 additional functions
with 2 hose guides
- Special outriggers, support width 3.10m (1.00 pc.)
- Additional charge for shortened outriggers » by 80mm
Gbjdpswl Rb Aefx Ah Sow
- Mechanical arm extension N » Lift 1.30m (7.0k=)
- Additional charge for stainless steel screws and stainless steel pipe clamps
- Additional charge for Dinitrol application (cavities)
- Additional charge for zinc primer
- Additional charge for RAL 7016

- Optional: Rearview camera with CarPlay, spade holder, 90° cable, additional storage box available

Subject to errors and prior sale. ... Air conditioning, climate control, VAT deductible, ABS, electric WFS, central locking with remote control, trailer hitch, power steering, spare wheel, Cab: Local transport, crane, new, emission class: Euro 6, diesel, rear-wheel drive, very good condition, hydraulics, consumption: 0.0/0.0/0.0 l/100 km (combined/inside/outside), particulate filter, available for rent, particulate sticker: 4 - green

The listing was translated automatically. Translation errors are possible.

Seller

Registered since: 2005

66 listings online

Call

Send inquiry

Telephone & Fax

+49 5221 ... show

Fax:

These listings may also fit your interest.

Listing

Hydraulic pressbrakes LVD PPEB 640 ton x 4500 mm CNC

Deinze

7,478 km

Hydraulic pressbrakes
LVDPPEB 640 ton x 4500 mm CNC

Call

Condition: ready for operation (used), controller manufacturer: 2D Touch, throat depth: 405 mm, installation height: 820 mm, operating speed: 8 mm/s, reverse speed: 100 mm/s, total length: 7,360 mm, total width: 3,025 mm, power: 55 kW (74.78 HP), travel distance Z-axis: 420 mm, empty load weight: 60,000 kg, passage width: 3,760 mm, table width: 500 mm, 8 assen: Y1 / Y2 / X1 / X2 / R2 / R2 / Z1 / Z2 Bovenste hydraulische klemming Laserveilige beveiliging = u kunt snel tot 1 mm van uw werkstuk laten zakken en daarna overschakelen naar een lagere buigsnelheid Robuuste kantbank ram geschikt voor het verwerken van gereedschappen tot 300 ton per meter! Er is veel zwaar gereedschap beschikbaar Gereedschap is OPTIONEEL! Gbedpov Rwm Rofx Ah Sjw Capacity: 640 ton x 4500 mm Backgauge: CNC Locking speed: 80 mm/sec Height: 5385 mm (4445 mm above floorlevel)

See details

Listing

Germany

7,694 km

Press brake
HACOERMS 60-260

Call

Condition: used, Year of construction: 2003, pressing force: 260 t, Hydraulic press brake Manufacturer: HACO Type: ERMS 60-260 Year of manufacture: 2003 Gedpfx Ahswkttre Sjbw Technical specifications Manufacturer: HACO Type: ERMS 60-260 Year of manufacture: 2003 Pressure capacity: 260 t Bending length: 6000 mm Dimensions (L x W x H): approx. L 7.0 x W 2.0 x H 3.70 m Weight: approx. 31 t Equipment • ATS 560 digital control system • Fiessler light barrier at the front • Centrally adjustable crowning • Amada tool system • Controlled axes: Y1, Y2, X • Manual R-axis • 1 set of upper tools • 1 set of lower tools All information is subject to change. A demonstration is available at any time in the exhibition hall.

See details

Listing

Press brake DURMA AD-S 611600 - 6m - 1600 t.

Staufenberg

7,804 km

Press brake
DURMAAD-S 611600 - 6m - 1600 t.

Call

Condition: new, Year of construction: 2025, The DURMA AD-S 611600 is a powerful hydraulic press brake that ensures the highest precision and efficiency in sheet metal processing. With a pressing force of 1600 tons and a working length of 6 meters, it is ideal for demanding applications, especially when processing large and thick materials. Technical details: - Model: DURMA AD-S 611600 - Pressing force: 1600 tons - Working length: 6 meters - Condition: As good as new, available immediately Features and advantages: Gbodpevy Srajfx Ah Sew - High bending accuracy thanks to the latest CNC control - Robust construction for a long service life - Flexibility thanks to the backgauge control - Support for heavy and large sheets thanks to the integrated bending aid The machine is available immediately and can be inspected on request. We are happy to provide you with further information or to arrange an appointment.

See details

Listing

Germany

7,870 km

CNC Press Brake
WeinbrennerGP320/4050

Call

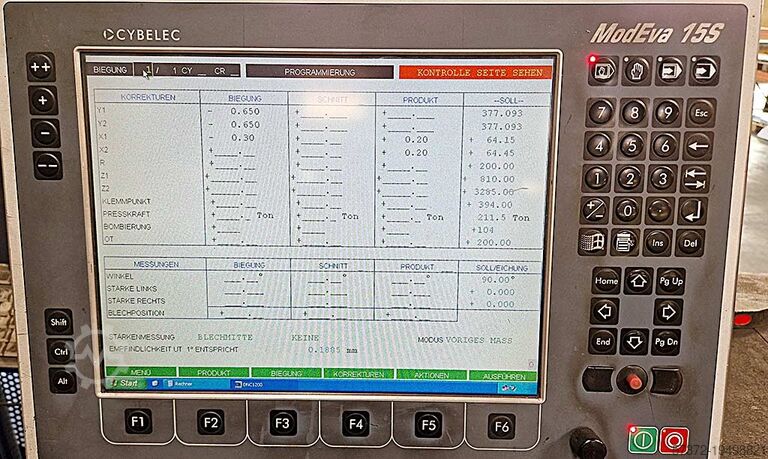

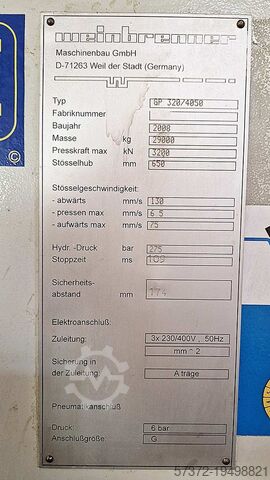

Condition: ready for operation (used), Year of construction: 2008, Pressing force: 3200kN, enlarged stroke: 810mm, working width: 4050mm, ram speed: downwards: 130mm/s, pressing: 6.5mm/s, upwards: 75mm, stop time: 109ms, safety distance: 174mm, weight: approx. 29000kg, operating hours: 16010h, control: Cybelec ModEva 15S. Including 4 bending aids and angle measuring sensor. Dies, embossing tools, pointed punches, roe foot punches, closing bar, extension for upper tool, radius tool and adapter available on request. Documentation available. Gbedpfx Ahswxb Ige Sew

See details

Listing

Trittau

7,709 km

Folding machine
Fasti213 - 2040 x 10mm

Call

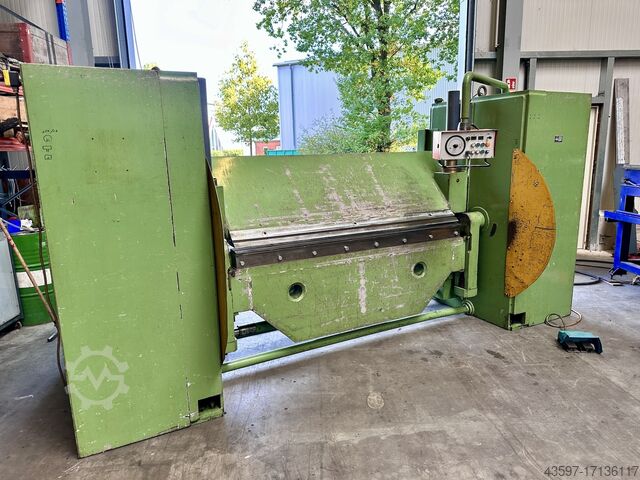

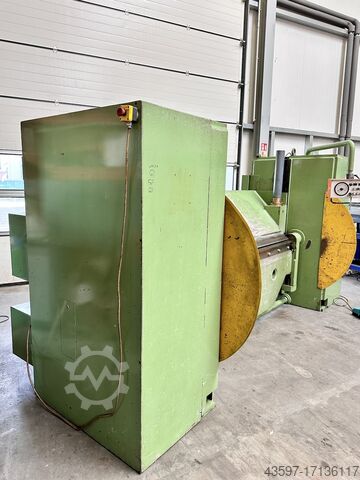

Condition: good (used), Year of construction: 1987, Motorized folding machine Fab. FASTI Typ. 213-20-10 year 1987 Technical data Make: Fasti Type: 213-20-10 Year of construction: 1987 Gbjdpfx Ajum Ttzsh Sew Effective length: 2040 mm Sheet thickness: 10 mm Stroke upper beam: 500 mm Lower beam stroke: 80 mm Dimensions: approx. L 4.40 x W 2.00 x H 2.40 m Weight: approx. 8 tons Equipment - Central lubrication - Bending beam drive on both sides - Potentiometer with digi-display for bending angle - Bending rail 35 mm - Focusing rail 45° All data without guarantee. A demonstration under power is possible at any time in our exhibition hall.
