Condition: not inspected (used), Bar feeder from manufacturer FMB, model turbo 5-42 XT Kledpfxoyl Ng Ne Ahwon Condition: used. Available immediately. The bar feeder was mounted on a MAZAK SQT10MS. The price is fixed and includes loading: €650

Year of construction: 2011, condition: ready for operation (used), An inline SMT stencil printer/solder paste printer is offered. Print area X/Y: 50mm/40.5mm - 510mm/508.5mm, PCB thickness: 0.2mm - 6mm, board weight max.: approx. 1kg, print pressure range: 0 - 20kg, core cycle time: approx. 12s, machine alignment capability: greater 2Cpk at +/-12.5µm 6 Sigma, process/wet print accuracy: greater 2Cpk at +/-25µm 6 Sigma, installation space L/W/H: approx. 2060mm/1500mm/1570mm, machine weight: approx. 800kg. Inspection by arrangement possible. Kjdpfx Aeylzhlohwjln

Year of construction: 2012, condition: ready for operation (used), A placement machine is offered. Manufacturer: MYDATA Mycronic, PCB size X/Y: 70mm/50mm - 554mm/443mm, PCB thickness: 0.4mm - 6.0mm, PCB weight max.: 8kg, SMEMA transfer height typ.: 892mm - 987mm, installation dimensions W/L/H: approx. 2740mm/1740mm/1500mm, machine weight: approx. 1700kg. Inspection by arrangement possible. Ksdeylzh Sepfx Ahwjln

Condition: good (used), Year of construction: 2019, For sale is a TTnS TCM45A XL C-Coating WorkCell, a fully automatic conformal coating system with a 5-axis Cartesian robotic system for precise PCB coating, including board handling by Kiheung. Key features: - 5-axis robot (±25 µm accuracy) - X/Y speed up to 1,000 mm/s - PCB size: 60 x 60 mm to 450 x 400 mm - PCB thickness: 0.8 – 4.0 mm - Conveyor speed: up to 300 mm/s - Film, spiral, and needle dispensing available - Pulse-spray technology (TPC999 Controller) - EasyCoat Manager ECM v2.0 - 220 V, single phase, max. 3 kVA - Dimensions: 1,470 x 1,650 x 1,580 mm - Weight: approx. 740 kg Kljdpfxjylyrvs Ahwjn Ideally suited for precise conformal coating applications in SMT production lines. Inspection possible by appointment. Disassembly and worldwide shipping can be arranged. Sale in cooperation with AS-Equipment.

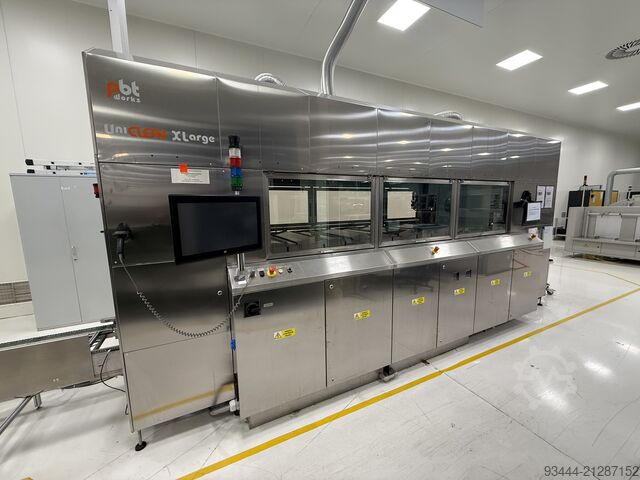

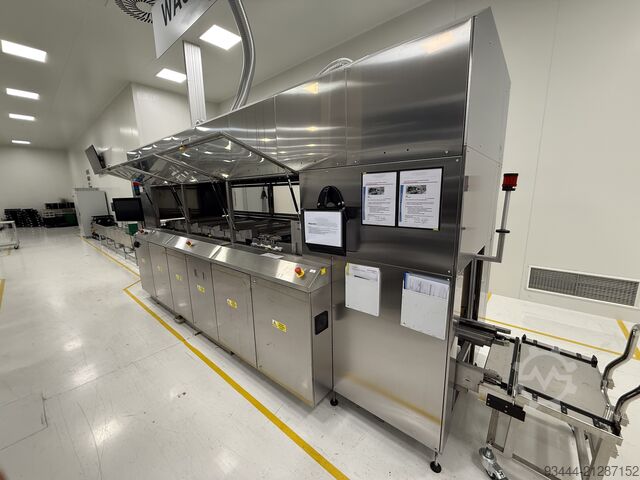

Condition: excellent (used), functionality: fully functional, Year of construction: 2019, For sale is a fully automatic industrial cleaning system with a multi-bath setup, integrated drying, and vacuum function. A water treatment system is also included as part of the package. Key specifications: Dimensions: 5,700 x 2,300 x 2,600 mm Weight: approx. 2,300 kg 3 x 400 V / 230 V, 50 Hz Power consumption: 63 kVA Protection: 3 x 100 A Protection class: IP2X Noise level: 72 dB Process parameters (adjustable via software): Washing temperature: 20–60 °C Rinsing temperature: 20–40 °C Drying: 20–110 °C 99 storable programs Inspection by appointment possible. Disassembly and worldwide shipping can be arranged. Kjdoylyiujpfx Ahwjln Sale is carried out in cooperation with AS-Equipment.

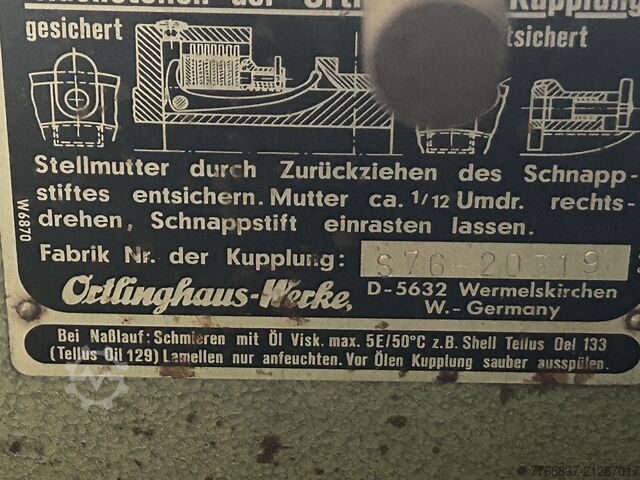

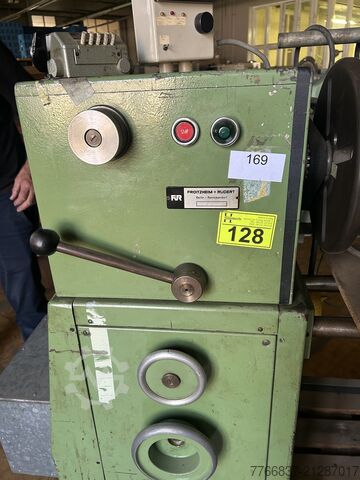

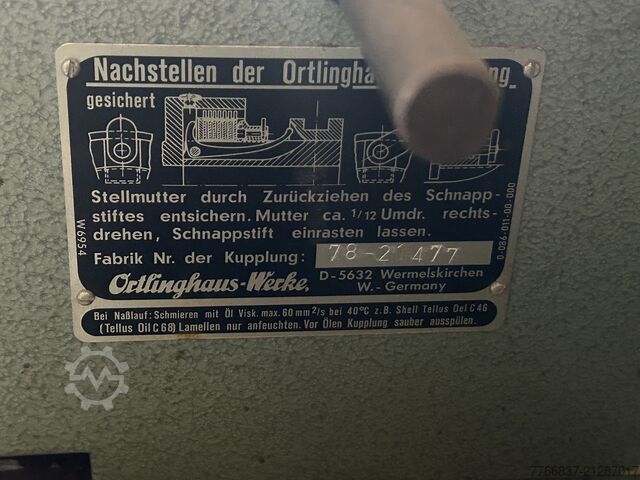

Condition: used, functionality: fully functional, Coil winding machine Froitzheim und Rudert Winding diameter 250 mm, winding width 500 mm Pneumatic tailstock Kodpfx Ahjylydlswsln

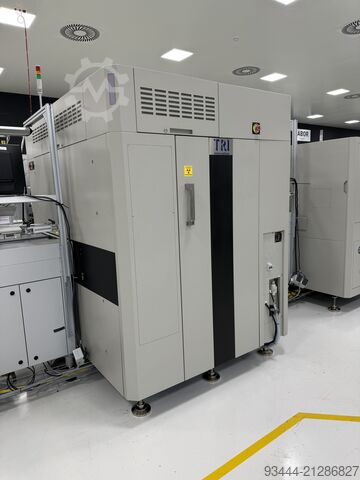

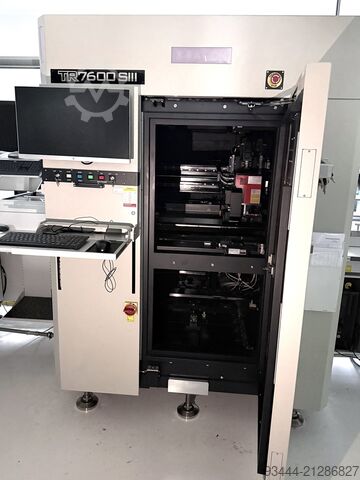

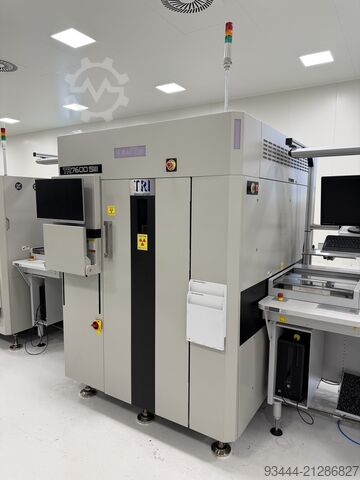

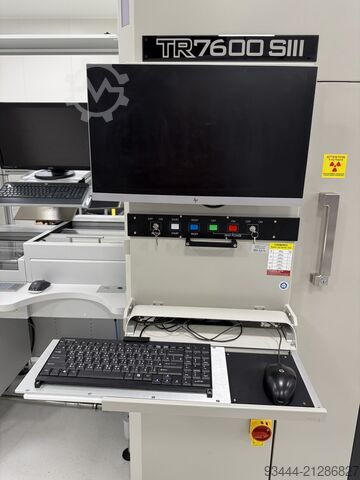

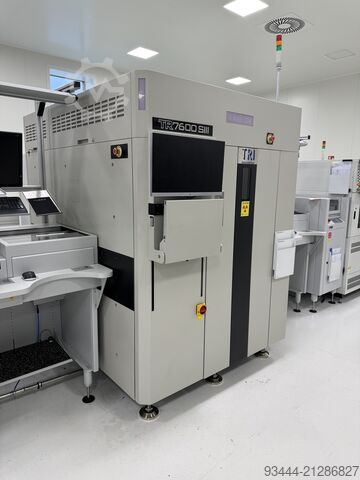

Year of construction: 2018, condition: excellent (used), For sale is a Test Research, Inc. TR7600 SIII Automated X-Ray Inspection (AXI) System – High-Speed 3D CT solution for SMT production lines. Key specifications: 3D CT X-ray inspection (Selective Planar CT + 3D Slicing) X-ray source: up to 130 kV (adjustable) Resolution: 7 / 10 / 15 / 20 µm X-Y resolution: 1 µm Max. PCB size: 900 x 460 mm PCB thickness: 0.6 – 7 mm Max. PCB weight: 12 kg Machine weight: approx. 3,850 kg 200–240 V, single phase, 4 kVA Detects: voids, bridging, head-in-pillow, open, lifted lead, tombstoning, misalignment, among others. Inspection by appointment. Dismantling and worldwide shipping can be arranged. Kedpsylx Snefx Ahwsln The sale is carried out in cooperation with AS-Equipment.

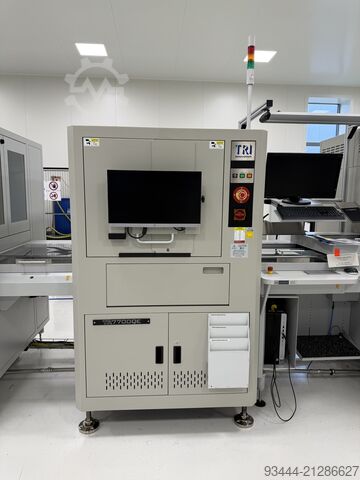

Year of construction: 2018, condition: excellent (used), For sale is a Test Research, Inc. TR7700QE 3D Automated Optical Inspection System for pre- and post-reflow inspection in SMT lines. Key Specifications: - 3D AOI with Quad Digital Fringe Projection - 12 MP top camera - 3D height measurement range: 0 – 40 mm - Optical resolution: 10 / 15 µm - X-Y-Z resolution: 1 µm - Max. PCB size: 510 x 460 mm - PCB thickness: 0.6 – 5 mm - Weight: approx. 920 kg - 200–240 V, single phase, 3 kVA - Detection of: missing components, tombstoning, bridging, lifted lead, polarity, shift, insufficient/excess solder, and much more. Kodpfx Ahsylx Ddewjln Inspection by appointment possible. Dismantling and worldwide shipping can be arranged. Sale conducted in cooperation with AS-Equipment.

Condition: excellent (used), Year of construction: 2018, TE Insertion Machine P350 Pin Insertion System 2 processing stations Incl. Asys infeed and outfeed conveyor Inspection possible by appointment. Ksdpfx Aheylxuiswjln Dismantling and worldwide shipping can be arranged. The sale is conducted in cooperation with AS-Equipment.

Year of construction: 2015, condition: excellent (used), OSAI NeoPlace 304 modula Kedpfoylxncex Ahwsln Pick-and-place machine for capacitors Inspection possible by appointment. Disassembly and worldwide shipping can be arranged. The sale is carried out in cooperation with AS-Equipment.

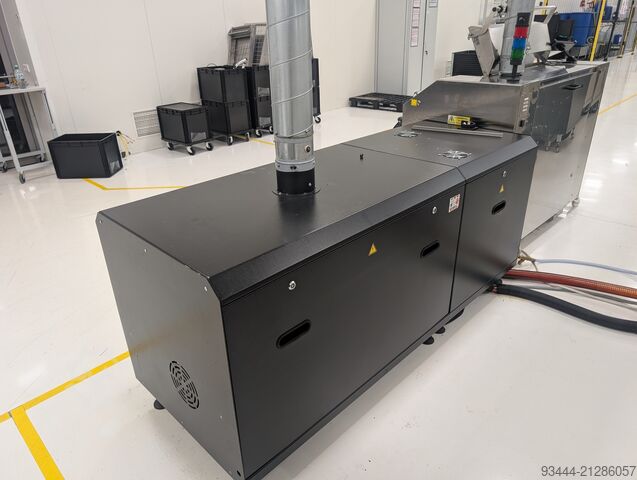

Year of construction: 2018, condition: excellent (used), Technical Data Max. Product Size (Vacuum Chamber): 450 x 510 mm (L x W) Conveyor Width: 65 – 510 mm Transport Direction: left → right Entry Height: 950 +/- 20 mm Clearance Height: 30 / 30 mm (top/bottom) Klodoylxglepfx Ahwjn Conveyor Speed: 0.20 – 3.0 m/min, controlled and monitored Conveyor Chain: 5 mm cam length PCB Support: triangular, 10 mm high / 10 mm lowerable, per lane Automatic Width Adjustment (Conveyor & Support) Automatic Chain Lubrication, per lane Bottom Heating in Preheating Zones SMEMA Interface Nitrogen Version (N2) incl. Calibration Protocol Software & Interfaces Maintenance Software System Monitoring Fan Monitoring Watcher Software Barcode Software incl. Barcode Reader MES Connection via General Interface (Customer PC) Equipment & Safety Motorized Hood Opening 2x Emergency Stop Optical Warning Light (red/yellow/green) Conveyor Overload Cut-off Exhaust Monitoring incl. Volt-free Contact Conveyor Start Interlock (100°C) Conveyor Rail Parallelism +/- 0.5 mm Operating Hours Counter Standard Painting RAL 7035 ESD, VAC Module RAL 7021 ESD Electrical Data Connection: 1x3~N, PE 230/400V, 50 Hz Vacuum Units: 2x3~N, PE 230/400V, 50 Hz Documentation & Protocols Operating Manual, Mechanical Drawings & Circuit Diagrams (USB) The sale is carried out in cooperation with AS-Equipment.

Condition: excellent (used), Year of construction: 2018, For sale: Test Research, Inc. TR7007DI 3D Solder Paste Inspection System for precise solder paste inspection in SMT lines. Kedpfsylxcyjx Ahwoln Key specifications: Dual digital projector (shadow-free technology) Camera: 12 MP Height resolution: 0.5 µm Height accuracy: 1.5 µm Max. PCB size: 510 x 460 mm PCB thickness: 0.6 – 5 mm Weight: approx. 675 kg 200–240 V, single phase, 3 kVA Inspection by appointment. Disassembly and worldwide shipping can be arranged. The sale is in cooperation with AS-Equipment.

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, MTA Selective Soldering System Inspection possible by appointment. Disassembly, packaging, and worldwide shipping can be arranged. Kjdpfx Aoylw Etehwoln Sale in cooperation with AS-Equipment.

Condition: used, functionality: limited functionality, Various conveyor belts available – see photos. For sale both as a package and individually. Inspection possible at any time. Kljdpfsyll Dwex Ahwen

Year of construction: 2026, condition: new, working length 1000-1600 mm Klodpfx Aeyk H Tdohwjn Working width 40-150 mm Thickness 10-80 mm

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, For sale: Zeroclamp Zerobot 100P automation system, commissioned in 2015. (Perfectly suited for a Haas UMC 750, but also compatible with other machine types.) This automation system allows for either vice handling or raw part handling. Offers completely flexible configuration options. Large workpiece storage for many raw parts (fully customizable). Compact footprint. Kljdpfx Ahsyk D Dyowsn Features: * Various mounting plates for raw part handling * Raw part gripper * Second rack for increased part capacity * and much more This solution enables both raw part and clamping device handling. There are numerous possible applications, and we are happy to provide advice.

Year of construction: 2022, condition: used, Operational condition! Ksdpfx Ahjyi Uwuowjln Ask for specification and quotation!

Year of construction: 2022, condition: used, Operational condition units. Multiple ovens available from 2017 to 2022. Klodpfx Aheyi Uu Hjwjn Ask for quotation!

Year of construction: 2013, condition: used, functionality: fully functional, machine/vehicle number: 7.50.1081, Schneider & Koch AOI TS-LV6 / LaserVision Twin LV6 Automated Optical Inspection System (used 2D/3D AOI for SMT circuit boards, fully functional, manufactured approx. 2014–2016, for precise inspection of components, solder joints, and paste) Test technology: Schneider & Koch Kedpfx Aeyid Duehwoln Model: TS-LV6 AOI unit Fully operational

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: 700168, type of input current: AC, Automatic stencil printer Klodpfx Aheyidw Uowon Speedprint Technology Model: SP700 AVI Used, fully functional

Year of construction: 2011, operating hours: 6,402 h, condition: used, functionality: fully functional, machine/vehicle number: A03277, Yamaha i-Pulse M6ez High-Speed SMT Pick-and-Place Machine (6-head mounter, year of manufacture approx. 2011, fully functional, suitable for SMD components from 01005 up to large parts, PCB up to 460x410 mm) - Operating hours: 6,402 hours Placed components: 21,649,312 pieces Machine is fully operational - Price does not include feeders! The following feeders are available: - 100 pcs Intelligent Splice Tape Feeder F2-8/4mm 5 pcs Intelligent Splice Tape Feeder F2-12mm 3 pcs Intelligent Splice Tape Feeder F2-16mm 1 pc Intelligent Splice Tape Feeder F2-24mm Kodpfx Aoyidqhjhweln

Condition: used, Year of construction: 2006, Operational unit. Head configuration: CP20/CP20/CP12 Flexible dual lane transport L->R Available in Q1 2026 Kodpfjyh Hdzox Ahwsln

Year of construction: 2011, condition: used, Operational unit. Kledpjyh Ha Njfx Ahwjn Recently taken from the production!

Year of construction: 2021, condition: excellent (used), functionality: fully functional, Complete AOI Production Line GÖPEL Vario Line 3D X100 incl. Handling – Used System For sale is a complete, integrated AOI production line consisting of a GÖPEL Vario Line 3D X100 inline AOI system including full PCB handling (loading and unloading, buffer and verification stations). Line configuration (excerpt): - GÖPEL Vario Line 3D X100 Inline AOI - 3D measurement module (ViewZ) - Orthogonal and angled view inspection - PILOT AOI software incl. CAD import, OCR/OCV, statistics - Inspection area: 510 x 470mm Kodeyhzunepfx Ahwjln PCB Handling (RG Modules): - LPE-1M Loader (magazine loader) - PB 500/1 buffer conveyor - PB 500/3-AP buffer conveyor with integrated inspection/verification station - LPA-2M/QV unloader with pass/fail sorting (2 magazines) - Electric width adjustment (bus connection) - Inline interfaces (SMEMA) - Verification and analysis workstations Condition: - Used equipment from ongoing production - Well maintained and fully functional - Sale as a complete line, not individual components Viewing & Service: - Sale on behalf of a customer - On-site inspection possible - Training and commissioning can be offered on request - Support with disassembly, transport, and recommissioning available by arrangement - Ideal for EMS providers and electronics manufacturers Location: Germany Scope of delivery: as inspected

Condition: new, Year of construction: 2026, Aluminum Incline Conveyor with Substructure (PU/PVC with Cleats & Corrugated Sidewalls) We offer a robust incline conveyor in aluminum construction design for the reliable transport of piece and bulk materials—ideal for industry, trade, recycling, woodworking, and much more. Thanks to cleats and corrugated sidewalls, secure material transport is ensured even on steep conveyor routes. _____ Technical Data (Sample Configuration): ✔ Infeed height: customisable ✔ Inclined section: length freely selectable ✔ Discharge height: customisable ✔ Substructure with adjustable leveling feet & machinery feet or with transport castors → for compensating uneven surfaces / stable positioning _____ Design / Frame: ✔ Aluminum construction profile ✔ Double profile 90x45 mm or reinforced triple profile 135×45 mm ✔ Continuous wear plate 2.0 mm galvanized or 1.4301 stainless steel (VA) _____ Rollers / Drive: ✔ Drive and deflection rollers made from S235 steel, welded & machined ✔ Diameters: Ø100, 150 or 220 mm ✔ Shafts fixed with pillow block bearings ✔ Drive: shaft-mounted geared motor 0.18 – 3.0 kW ✔ Belt speed: individually adjustable ✔ Connection: 230/400V, 50Hz, IP54 protection class (standard) ✔ Drive prewired up to the motor terminal box ➡️ Commissioning must be carried out by a qualified electrician _____ Conveyor Belt / Cleats: ✔ PVC conveyor belt DM 10/2 0+005 PVC green ✔ Belt widths: 100, 200, 300, 400, 500, 600, 700, 800, 900, or 1,000 mm Klodoyhzplspfx Ahwen ✔ Endless high-frequency welded (stepped joint) ✔ 2-ply, 3-ply with extra lateral stability ✔ Corrugated sidewalls: up to 80 mm high ✔ Cleats: customizable ✔ Pitch customizable _____ Options / Accessories Available: ✔ Infeed plates ✔ Hoppers / infeed hoppers ✔ Bunkers / loading bunkers ✔ Discharge hoppers ✔ Special lengths / special widths ✔ Cleats & corrugated sidewalls as required _____ ✔ Custom solutions made to your specifications ✔ Industrial quality ‘Made in Germany’ Dimensions, versions, and pricing on request Simply reach out—we provide fast and straightforward advice. Discover tailored solutions for your industry! As an innovative mechanical engineering company, we are proud to offer bespoke solutions for the recycling, food, and processing industries. Our comprehensive product portfolio covers everything from conveyor systems and flat belt conveyors to incline conveyors, angle conveyors, and Z-conveyors. In addition, we manufacture loading bunkers, magnetic separators, overband magnetic separators, drum magnetic separators, and dosing bunkers—all tailored to meet our customers’ specific requirements. We understand that every industry and every project is unique, which is why we tailor our solutions precisely to your needs and specifications. Complex projects are an exciting challenge for us, and we look forward to developing innovative solutions together with you. With us, there are no off-the-shelf solutions—every problem gets the right answer! Challenge us! Contact us and discover how we can turn your requirements into custom solutions. Together, we will shape the future of your production processes!
