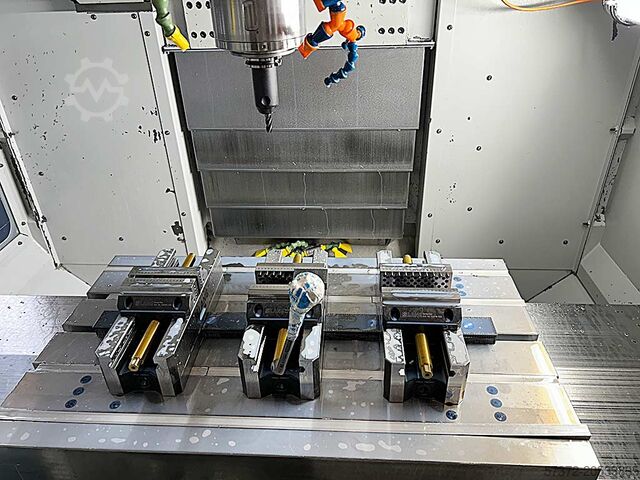

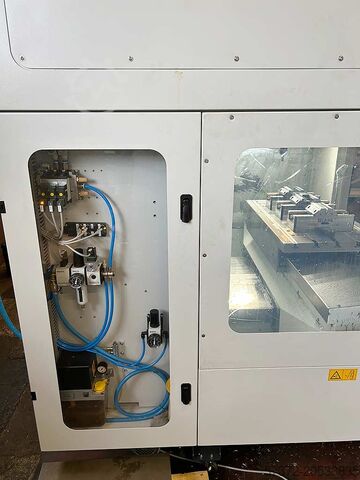

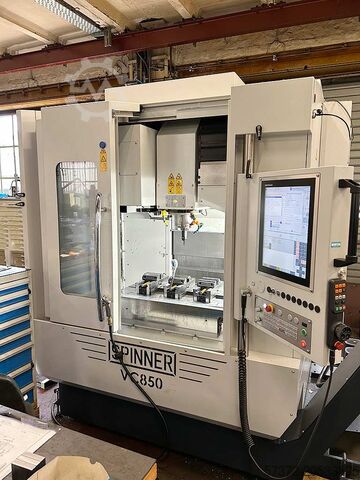

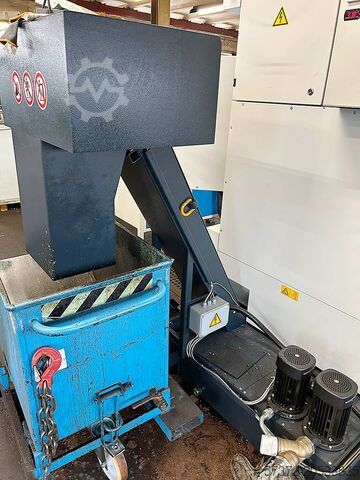

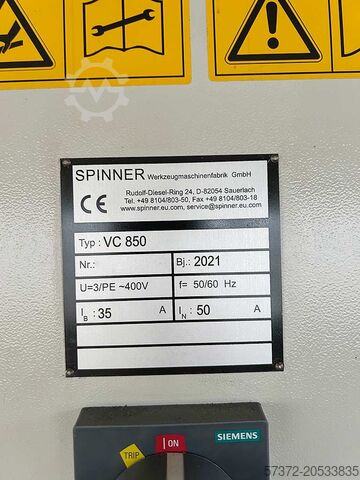

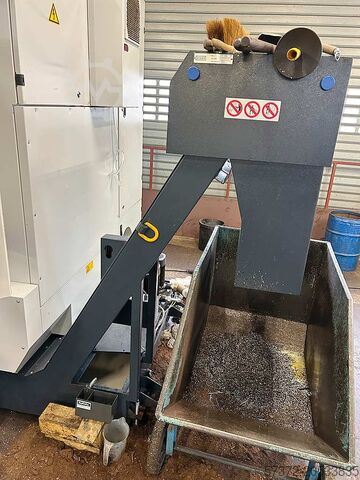

Condition: ready for operation (used), Year of construction: 2021, A vertical CNC machining center Spinner is available. Travel X/Y/Z: 850mm/510mm/510mm, speed: approx. 12000rpm, tool holder: SK40, tool stations: 30, rapid traverse: 36m/min, feed rate: 15m/min, table dimensions X/Y: 1000mm/510mm, max. table load: 600kg. Machine dimensions X/Y/Z: approx. 1900mm/1900mm/2450mm, weight: approx. 4500kg, control: Heidenhain TNC, operating hours: 3891h, spindle hours: 702h. Including coolant system, chip conveyor, oil mist extraction and probe. Documentation vorhanden. An on site inspection is possible. Hfjdpfxoxwywns Ah Uep

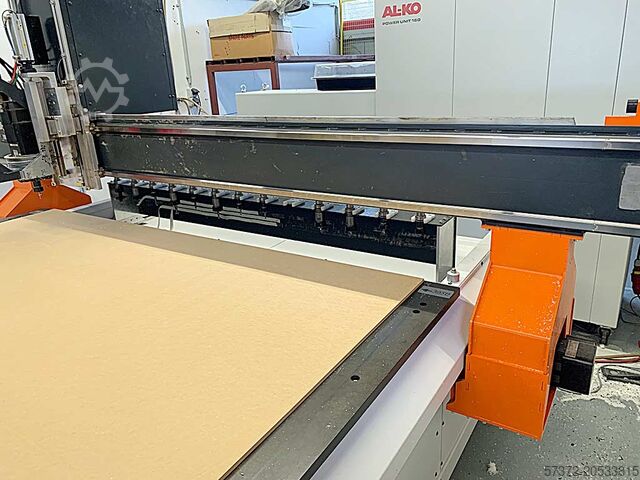

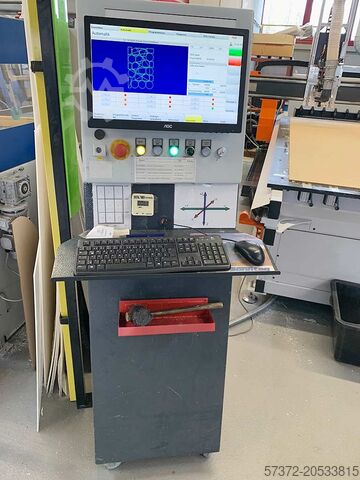

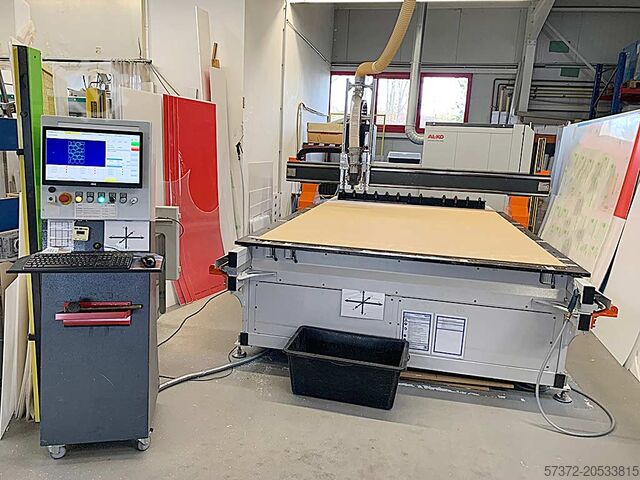

Condition: ready for operation (used), Year of construction: 2014, A CNC gantry machining center BES with vacuum table is available. Travel path X/Y/Z: 2100mm/2100mm/150mm, max. gantry clearance: 150mm, max. working speed: 85m/min, rapid traverse: 85m/min, max. Z-stroke: 250mm, max. tool diameter: 100mm. Table material: phenolic resin, table thickness: 25mm, vacuum groove width: 6mm, groove pitch: 30mm, segments: 9. Spindle type: HSD H616, power: 6.5kW/8kW, speed: 36000rpm, tool holder: HSK E40, tool positions: 13. Machine dimensions X/Y: 5800mm/4000mm, weight: approx. 3000kg. Documentation is available. An on-site inspection is possible. Hjdpfx Aexwyv Dsh Ujfp

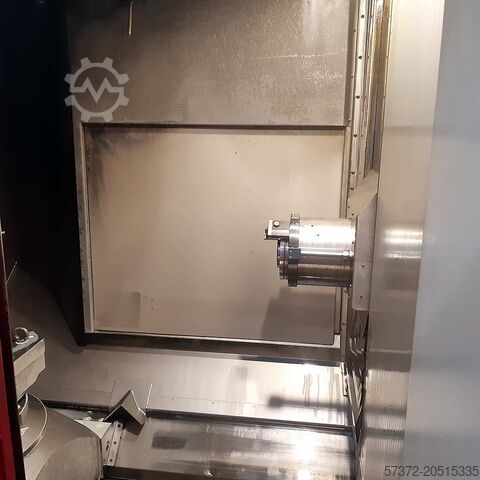

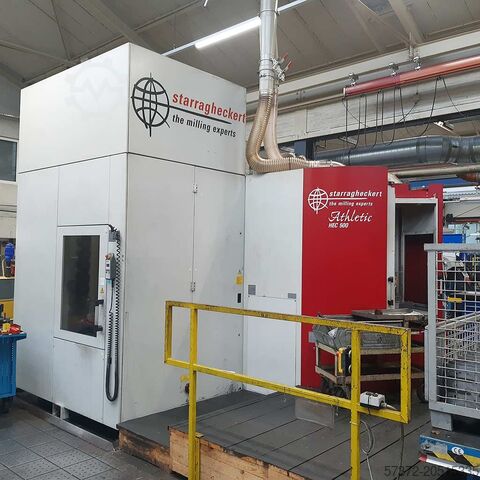

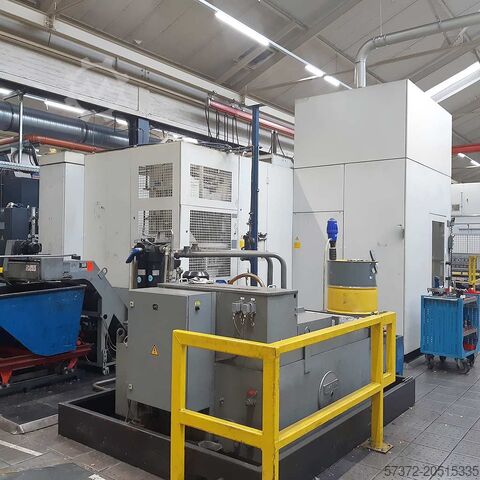

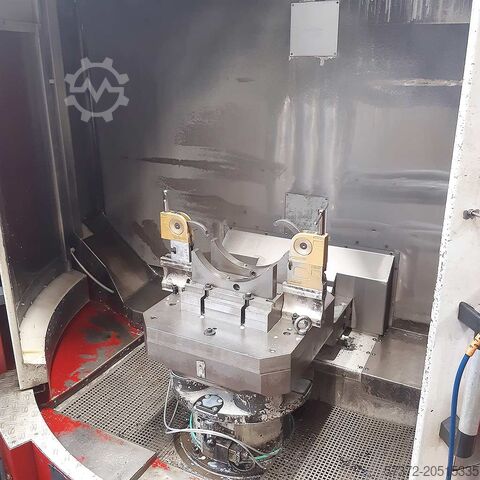

Condition: ready for operation (used), Year of construction: 2007, Travel X/Y/Z: 800mm/700mm/700mm, clamping area: 500mm/500mm, max. pallet load capacity: 1000kg, max. load difference: 500kg, table speed: 80rpm, feed rate: 60m/min, rapid traverse: 60m/min, tool holder: HSK-A100, speed: 6000rpm, tool stations: 60, positioning accuracy: 0.007mm, pallet dimensions X/Y: 500mm/630mm, weight: approx. 21000kg. Documentation available. An on-site inspection is possible. Hsdpfxsxwcuio Ah Uofp

Condition: ready for operation (used), Year of construction: 2004, Travel X/Y/Z: 3000mm/800mm/800mm, speed: 9000rpm, tool positions: 48, rapid traverse: 30m/min, table dimensions X/Y: 3500mm/900mm, weight: approx. 12000kg. Documentation available. An on-site inspection is possible. Hfsdpfexwcucjx Ah Uop

Condition: ready for operation (used), Year of construction: 2000, Travel X/Y/Z: 1150mm/710mm/710mm, table dimensions X/Y: 1500mm/800mm, rotary table diameter: 800mm, max. table load: 900kg/450kg, spindle speed: 12000rpm, tool holder: SK40, tool stations: 32, rapid traverse: 30m/min, feed rate: 15m/min. Machine dimensions X/Y/Z: 5000mm/4000mm/3000mm, weight: approx. 10000kg. Documentation available. An on-site inspection is possible. Expected to be available in February 2026. Hfsdpfjxv A Hvjx Ah Uop

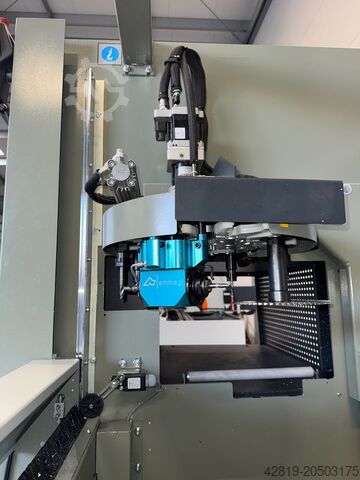

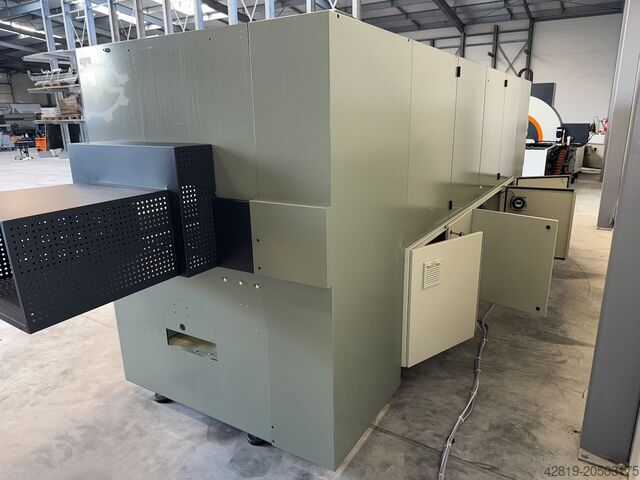

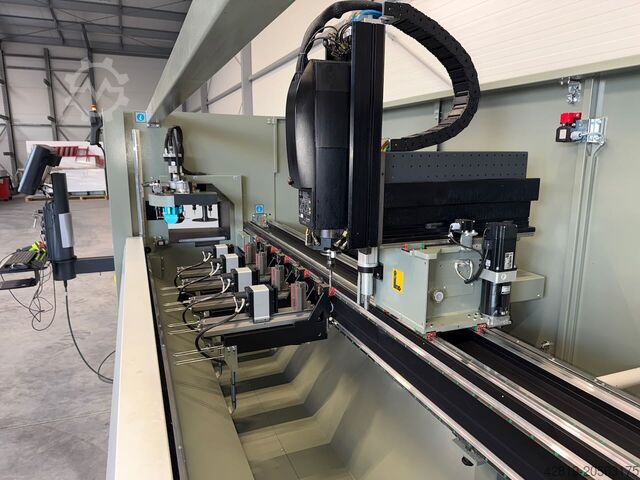

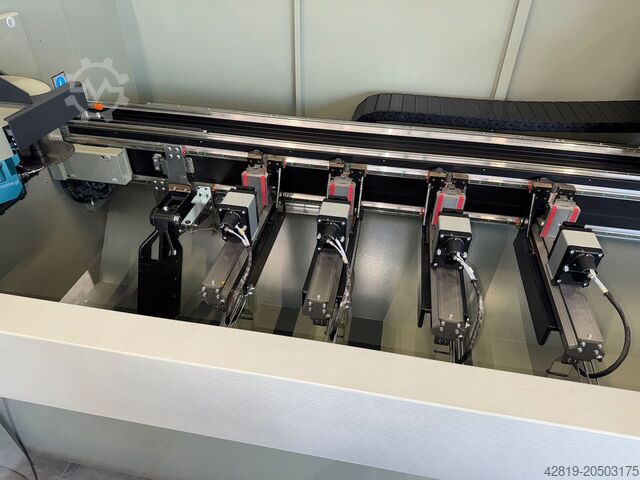

Condition: excellent (used), Year of construction: 2022, machine/vehicle number: C127242, Machining centre with 3 CNC-controlled axes for processing profile bars or parts made of aluminium, PVC, non-ferrous metals, and steel up to 3 mm. The machine is equipped with a tool changer with 4 stations, accommodating 2 angle heads and a disc milling cutter for 5-sided machining of the workpiece. Hfsdpfx Aexv Ayijh Usp

Condition: ready for operation (used), Year of construction: 1989, Travel path X/Y/Z: 510mm/380mm/460mm, table dimensions X/Y: 720mm/480mm, max. table load: 250kg, speed: 4000rpm, tool stations: 16, feed rate: 5m/min, rapid traverse: 12m/min. Machine dimensions X/Y/Z: approx. 2000mm/2000mm/2600mm, weight: approx. 3500kg, control: Fanuc. Documentation available. An on-site inspection is possible. Hfjdpfx Ahexvrvto Uep

Condition: ready for operation (used), controller manufacturer: AZ-102 - Windows, total height: 3,315 mm, total length: 5,055 mm, total width: 3,745 mm, empty load weight: 8,500 kg, Bewerkingscentrum dat vroeger werd gebruikt voor het vervaardigen van bandenmallen. Gereedschapswisselaar met 24 posities 5 assen tegelijk! Max longitudinal travel X-axe: 1100 mm Max cross-travel Y-axe: 600 mm Hfjdpfjxuwx Rox Ah Uep Max travel Z-axe: 500 mm Max height workpiece: 580 mm Power on spindle: 2.2 kW Admission in boring head (ISO): F12 Spindlespeeds: 3 - 40 000 rpm Table size: 1700 x 600 mm Table turning angle: 360° Digital screen: ja ACCESSORIES & TOOLING: yes Coolant pump: yes Toolholder: yes Number of tools: 24 positions

Condition: ready for operation (used), Year of construction: 2004, Travel X/Y/Z: 700mm/630mm/700mm, max. workpiece dimensions X/Y: 750mm/700mm, pallet clamping surface X/Y: 500mm/500mm, max. pallet load capacity: 500kg, tool holder: SK40, feed rate: 50m/min, rapid traverse: 50m/min, positioning accuracy: +/-0.004mm, repeatability: +/-0.001mm, spindle speed: 12000rpm. Machine dimensions X/Y/Z: approx. 4000mm/3800mm/3000mm, weight: approx. 12500kg, control: Fanuc Series 21i-MB, operating hours: approx. 42400h, spindle hours: approx. 11500h. Includes Renishaw OMP 40-2, central lubrication, and 4 pallets. Documentation available. On-site inspection possible. Expected to be available from January 2026. Hfodpfjxuvpbjx Ah Ujp

Condition: ready for operation (used), A Fidia CNC vertical machining center is available. 1) Travel X/Y/Z: 1000mm/600mm/500mm, speed: 20000rpm, spindle-to-table distance: 630mm, spindle-to-base distance: 190mm. Machine dimensions X/Y/Z: approx. 2800mm/2700mm/2700mm, weight: approx. 5400kg, control: Fidia M30, operating hours: 44415h, spindle hours: approx. 2000h. The second spindle is new. Without internal coolant supply and 4th axis. Documentation available. On-site inspection possible. Hfjdpfx Asxt Rlzeh Uep

Condition: ready for operation (used), Fanuc Robot + 3 Breton machining centers 5 axes Hfsdpfx Aextgkgeh Uep Max longitudinal travel X-axe: 18 000 mm

Condition: used, Year of construction: 2008, x-travel 2360 mm Hfedpsxtf Abjfx Ah Ujp y-travel 600 mm z-travel 800 mm Control Heidenhain ITNC 530 total power requirement 45 kW weight of the machine ca. 15 t dimensions of the machine ca. 3,7 x 3,5 x 3,3 m

Condition: ready for operation (used), Year of construction: 2006, A Heller CNC horizontal machining center is available. Axes: 5, travel X/Y/Z: 1000mm/1240mm/1100mm, tool holder: HSK-100, control: Siemens Sinumerik 840D. Including pallet changer. Documentation available. An on-site inspection is possible. Hsdpfoxtfhkox Ah Uefp

Condition: ready for operation (used), Year of construction: 2006, A Heller CNC horizontal machining center is available. Axes: 4, travel X/Y/Z: 800mm/800mm/800mm, tool holder: HSK-100, control: Siemens Sinumerik 840D. Including pallet changer. Documentation available. An on-site inspection is possible. Hjdpoxtfhdofx Ah Ujfp

Condition: used, Year of construction: 2006, x-travel 850 mm y-travel 700 mm z-travel 500 mm Control HEIDENHAIN iTNC 530 rotary table 800 mm Hsdpfx Ajxrvldoh Uofp c-axis 0.001º ( ±360º) 0 B-axis (table) º mm number of spindle speeds 18.000 U/min/rpm tool taper SK 40 DIN 69871 spindle drive 15 kW max. torque on the spindle 130 Nm Tools changer 38 fach/tools Internal cooling system 80 bar handwheel HR- 410 total power requirement 41 kVA weight of the machine ca. 10,5 t Equipment- Paper belt filter – 200 l tank- Active control cabinet cooling- Infrared probe M&H (Heidenhain)- Laser tool measuring system Blum- Chip conveyor- Cleaning pistol with pump 2 bar / 40 l min- 3D Quick Set- Electronic handwheel

Condition: ready for operation (used), Year of construction: 2013, Travel X/Y/Z: 2000mm/610mm/630mm, tool holder: SK40, spindle speed: 9000rpm, tool stations: 40, rapid traverse: 60m/min, table dimensions X/Y: 2100mm/720mm, max. table load: 1000kg. Control: Siemens Sinumerik 840D, operating hours: 18272h. Including conveyor and coolant system. Documentation available. An on-site inspection is possible. Hfsdpfx Ahjxrui Uo Uop

Condition: ready for operation (used), Year of construction: 2009, Travel path X/Y/Z: 1035mm/560mm/510mm, table dimensions X/Y: 1200mm/560mm, max. table load: 1000kg, tool holder: SK40, tool stations: 20, spindle speed: 8000rpm, power: 13kW/9kW, torque: 83Nm/57Nm, feed rate: 20m/min, rapid traverse: 25m/min. Machine dimensions X/Y/Z: approx. 4000mm/4000mm/2600mm, weight: approx. 4500kg, control: Siemens Sinumerik 810D powerline, operating hours: 27241h. Including conveyor. Documentation available. An on-site inspection is possible. Hfedpoxrui Ijfx Ah Uep

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 122000029, spindle motor power: 7,000 W, 5-AXIS PROFILE MACHINING CENTER ALU | PVC | STEEL Profile Machining Center SBZ 122/75 5-axis version for metal construction customers and industrial users • For efficient and economical machining of aluminum, plastic, and thin-walled steel profiles • All operations such as milling, drilling, and thread cutting are performed with the profile bar stationary to protect the profile surface • Continuously adjustable A-axis positioning from -120° to +120° • Continuously adjustable C-axis positioning from -220° to +220° • All five axes can be run simultaneously via RTCP (Rotation Tool Center Point) • Additional C-axis allows for frontal machining from both the left and right sides • Linear guides for autonomous fixture displacement • Work results improved by intelligent control systems • Rapid positioning of the machining unit at up to 120 m/min. enabled by dynamic servo drives • Thread cutting without compensation chuck • The 2-axis unit with A- and C-axis can accommodate a 180 mm diameter saw blade • Automatic clamp detection and positioning • Ergonomic operation thanks to modern slant bed design • Automatic tool changer with twelve tool storage slots (tools not included) • Modern 5-axis CNC control • No homing run required for the main axes due to use of absolute encoder systems • Collision avoidance through automatic clamp detection and positioning • Power-torque milling motor with closed-loop speed control for short spindle acceleration and deceleration times • Certified, drive-integrated safety functions • Low power consumption thanks to intelligent control engineering Hedjxrbczopfx Ah Ujfp • Enhanced energy efficiency through DC bus coupling of the axis drives • Uninterruptible power supply (UPS) • Windows operating system • 18.5" panel PC, i5 processor, USB ports and network connectivity • Simple and user-friendly programming via eluCam at the operator terminal, even during operation • Remote maintenance via Internet

Condition: ready for operation (used), Year of construction: 2012, Travel X/Y/Z: 670mm/430mm/460mm, table dimensions X/Y: 900mm/410mm, max. workpiece weight: 350kg, tool holder: SK40, spindle speed: 8000rpm, spindle inner diameter: 60mm, max. spindle-to-column distance: 460mm, rapid traverse: 24m/min, feed rate: 10m/min. Machine dimensions X/Y/Z: approx. 2200mm/2050mm/2500mm, weight: approx. 3700kg, control: Heidenhain TNC 620, operating hours: approx. 21550h, spindle hours: approx. 3500h. Documentation available. An on-site inspection is possible. Hfjdexq Exdjpfx Ah Uop

Condition: ready for operation (used), Year of construction: 2013, Travel X/Y/Z: 1800mm/900mm/900mm, table dimensions X/Y: 1950mm/900mm, max. table load: 3000kg, tool holder: SK40, max. spindle speed: 12000rpm, feed rate: 12m/min, repeatability: +/-0.003mm, positioning accuracy: +/-0.005mm, weight: approx. 17000kg, control: Heidenhain. Documentation available. An on-site inspection is possible. Hfedpfx Ahjxp Rb Uo Uop

Condition: ready for operation (used), empty load weight: 1,300 kg, Holke F-10-V X: 815 - Y: 400 - Z: 420 mm Max longitudinal travel X-axe: 815 mm Max cross-travel Y-axe: 400 mm Max travel Z-axe: 420 mm Power on spindle: 2 HP Admission in millinghead: ISO 40 Max quill travel Z': 130 mm Hfedpfxjxpgfis Ah Uep Spindlespeeds: 57 > 2275 rpm Table size: 1120 x 255 mm

Condition: ready for operation (used), total height: 2,100 mm, total length: 1,235 mm, total width: 1,500 mm, empty load weight: 1,000 kg, Chevalier FM 3VS X: 762 - Y: 305 - Z: 406 mm Max longitudinal travel X-axe: 762 mm Max cross-travel Y-axe: 305 mm Max travel Z-axe: 406 mm Max height workpiece: 70 > 476 mm Power on spindle: 3 HP Hfsdpfx Aexpgfcsh Usp Admission in boring head (ISO): ISO 30 Spindlespeeds: 3750 rpm Table size: 1220 x 230 mm

Condition: ready for operation (used), Year of construction: 1998, Travel X/Y/Z: 630mm/630mm/630mm, B-axis: 360°, B-axis resolution: 0.001°, Tool holder: SK40, Tool positions: 160, Pallet positions: 6, Pallet dimensions X/Y: 400mm/500mm, Rapid traverse: 40m/min, ICS pressure: 50bar. Machine dimensions X/Y/Z: approx. 5850mm/2500mm/2750mm, Weight: approx. 12500kg, Control: Siemens Sinumerik 840D. Including Blum probe and drill breakage control. Documentation available. An on-site inspection is possible. Hfedpfxoxmkb Nj Ah Usp

Condition: ready for operation (used), Year of construction: 1999, Travel X/Y/Z: 600mm/525mm/500mm, rapid traverse: 15m/min, feed rate: 10m/min, speed: 12000rpm, spindle power: 10kW/15kW, spindle taper: SK40, tool positions: 25, table dimensions X/Y: 1000mm/540mm, max. table load: 350kg. Machine dimensions X/Y/Z: approx. 3000mm/2100mm/2300mm, weight: approx. 4500kg, control: Heidenhain TNC 426M, operating hours: 34055h, spindle hours: 8787h. An on-site inspection is possible. Hjdoxl Up Iepfx Ah Ujfp

Condition: ready for operation (used), Year of construction: 1994, A CNC 3-axis machining center Stama is available. Travel X/Y/Z: 1000mm/400mm/350mm, table dimensions X/Y: 1500mm/430mm, max. table load: 1200kg. Spindle power: 5.5kW, spindle taper: SK30, tool positions: 12, torque: 47Nm, spindle bearing diameter: 60mm, speed: 6000rpm. Positioning resolution: 0.001mm, positioning tolerance: +/-0.01mm, repeatability: 0.005mm, rapid traverse: 20m/min, feed rate: 5m/min. Drilling capacity (steel): 25mm, tapping capacity (steel): M24, milling capacity (steel) SK30/SK40/aluminum: 150cm³/180cm³/500cm³. Machine dimensions X/Y/Z: approx. 3200mm/2300mm/2500mm, weight: approx. 5500kg, control: Fanuc Series 0-M. Including C-axis and floppy disk drive. Without vises and tool holders (SK30). The cover of the Y-axis ball screw is missing. Documentation available. An on-site inspection is possible. Hfjdpfxoxl Upue Ah Uep
