promatec cnc service GmbH & Co Kg

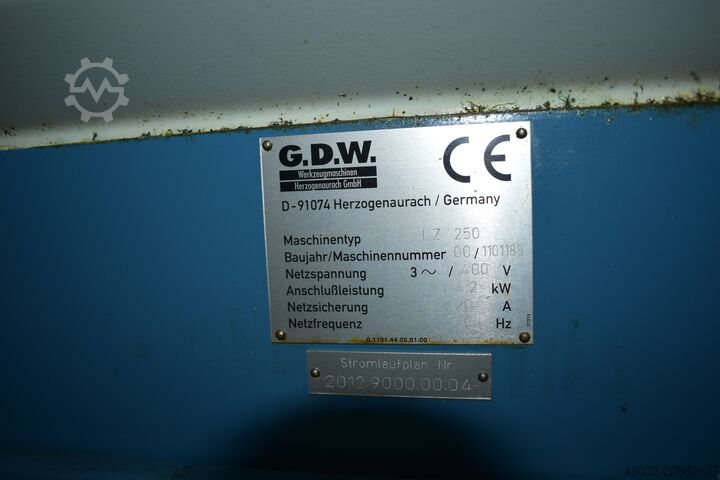

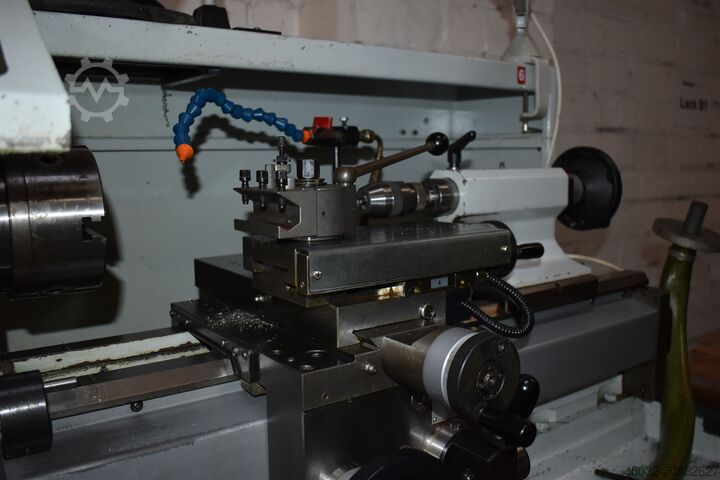

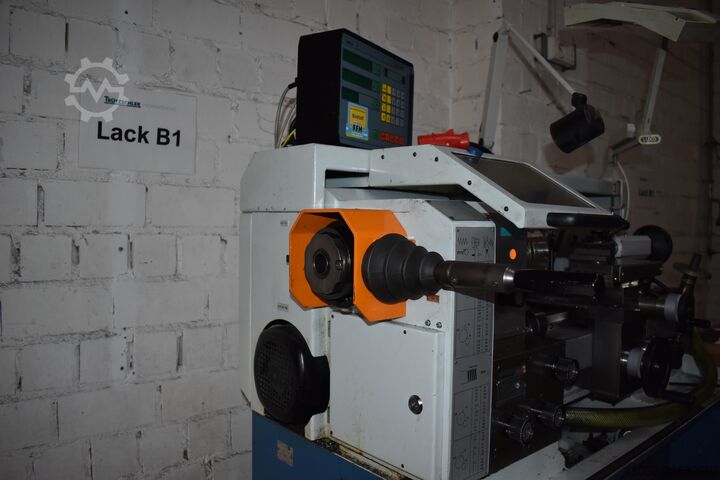

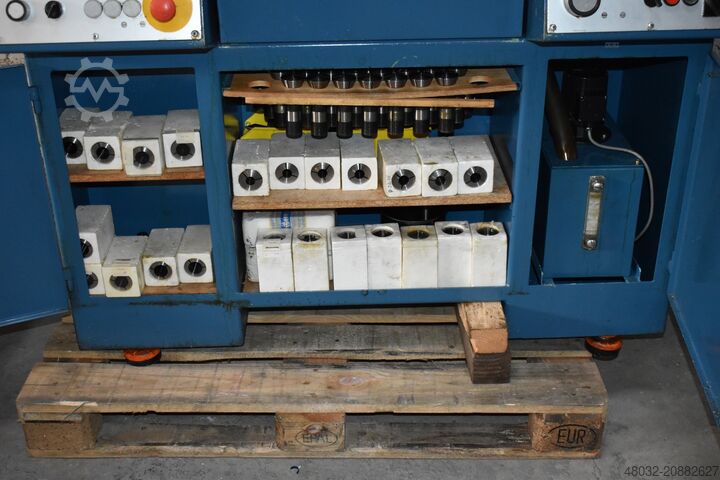

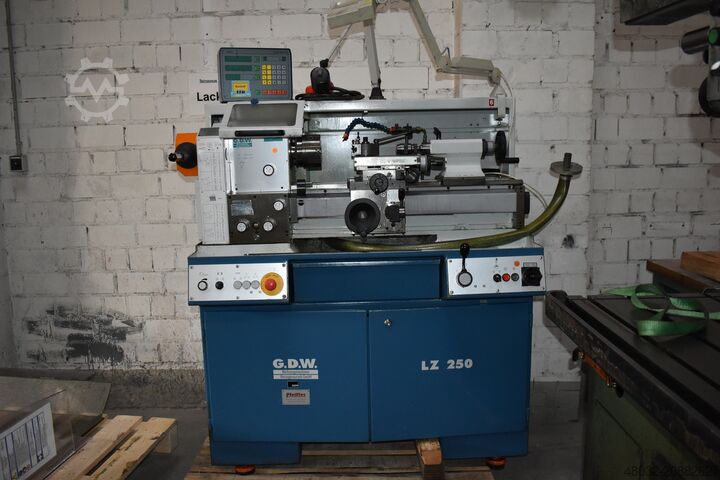

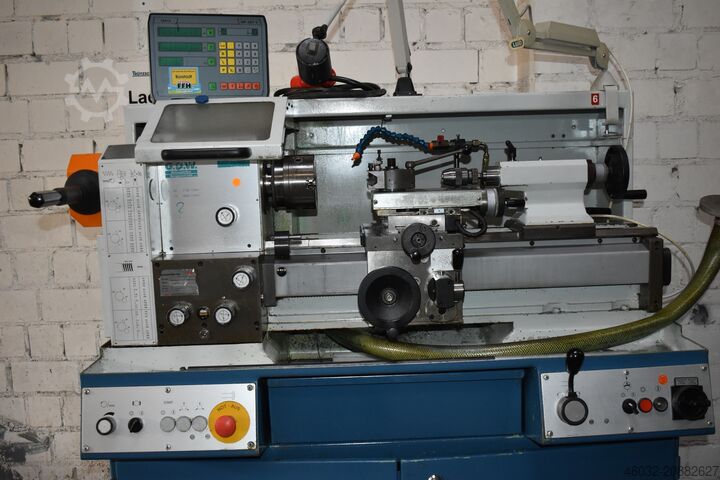

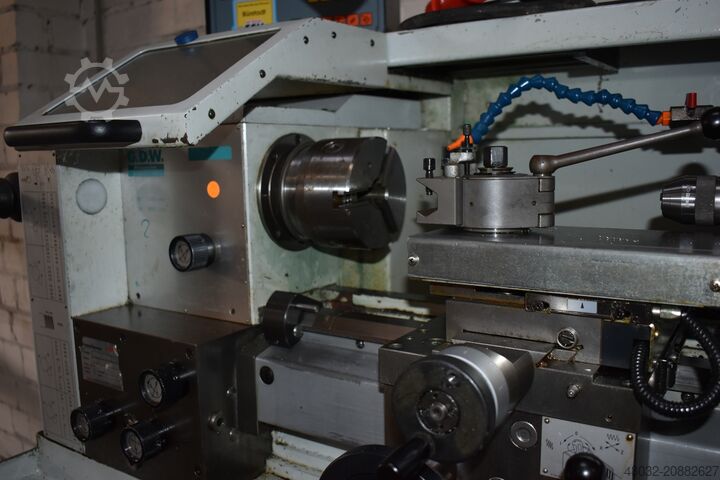

Condition: good (used), Year of construction: 2000, machine/vehicle number: 1101188,

Condition: used, Year of construction: 1976, In our opinion, the machine is in good used condition and can be inspected condition and can be inspected under power by appointment. Accessories, illustrated tools and clamping devices are only included in the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as subject to prior sale! Cpodpjx R U Siefx Abret

Condition: new, Year of construction: 2026, 0330 mm 210 mm 0635 mm 167 mm 40 mm Csdpfjx R Eqcsx Abrspt 2,2 kW spindle turning speed - stepless 30-3000 U/min

Condition: ready for operation (used), Year of construction: 1966, Immediately available from location: Cpedpex Rxvlofx Abret L & Z Lathe Weiler Year of manufacture approx. 1966 Centre height 140 mm Swing diameter 280 mm Over carriage 180 mm Turning length 800 mm Spindle bore 24 mm Spindle speeds up to 1600 rpm Drive power 2 kW Chuck diameter 140 mm Multifix tool holder with inserts Weight 1 ton Priced at EUR 1,500.— plus VAT ex location

Condition: like new (used), – Centre distance 1000 mm – Swing over bed 360 mm – Swing over gap 490 mm – Swing over cross slide 180 mm – Spindle bore 52 mm Csdpfx Aox N A D Debrspt – 70–2000 rpm – Infinitely variable speed – Digital speed display – Longitudinal and cross feed – Digital readout on two axes – Brake – Coolant system – Lighting – Safety cover – Fixed steady rest – Travelling steady rest – Three-jaw chuck – Four-jaw chuck – Emergency stop – Documentation – 400V

Condition: excellent (used), For sale: the Austrian-made Voest DA160 lathe shown in the photos. The machine is in very good condition, as indicated by the quiet spindle operation and the absence of play in the mechanisms. The machine was purchased from a training workshop. Overall condition is rated as very good. Loading of the machine is provided. Price is net. Spindle speed: 30–2500 rpm Two-speed motor Motor power: 2/2.4 kW 16 spindle speeds Rohm 160 chuck Internal, external, and split jaws Spindle bore: 36 mm Csdsx Nxulopfx Abrept Tailstock quill: MK3 Quill travel: 100 mm Turning diameter: 320 mm Turning diameter over carriage: 190 mm Turning length: 650 mm Dimensions: 85x150x140 + 15 (pallet) Weight: 700 kg

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Weiler Praktikant 160 B Lead and Feed Screw Lathe with K&C 3-Axis Digital Readout, from Vocational School Technical Data: >> Year of manufacture: 1992; Machine No.: 92 160 3271 >> Center height: 160 mm Cedjx H S D Ijpfx Abrept >> Distance between centers: 650 mm >> Spindle speeds: from 24 to 2500 rpm >> Spindle bore: 40 mm >> Short taper spindle nose DIN 55027, size 5 with bayonet lock >> Tailstock: Morse taper 3 >> Feeds: from 0.02 to 0.63 mm/rev >> Thread cutting capability: metric, inch, module, and diametral pitch threads >> Metric thread pitches: from 0.25 to 8 mm >> Weight: approx. 680 kg >> Switchable spindle brake >> Dimensions: 1.6 m (L), 1.25 m (H), 0.7 m (D) Accessories and Features: >> 3-axis digital readout by K&C incl. operating manual Functions: mm/inch switching, coordinate selection ABS/INC, display value halving, reference mark, tool programming for up to 200 tools, taper calculation, radius/diameter, quick zeroing, count direction switching >> Collet system with NEW collets from 3 to 26 mm in 1 mm increments >> 160 mm 3-jaw chuck (clamping jaws) with 1 set of jaws >> Quick-change system with 4 toolholders >> Bed stop >> Electronic spindle guard >> Rear cover >> Coolant system >> Operating manual, spare parts diagram About the Machine: Offered is a Weiler Praktikant 160 B lead and feed screw lathe, toolroom accuracy, year 1992, in very good condition. The machine is, of course, fully functional. All slides move smoothly and evenly. Even at high spindle speeds, the Weiler runs quietly. This newer generation of Weiler lathes is very user-friendly and enables the production of ground-like surface finishes. Take the opportunity to inspect this machine under power on-site and see for yourself its excellent condition.

Condition: used, Year of construction: 2003, machine/vehicle number: 1527, Used lead and feed screw lathe COLCHESTER Triumph VS 2500 Codpfxjx Hrume Abropt Centre height: 195mm Distance between centers: 650mm Spindle bore: 54mm Infinitely variable speed: 14–2500 rpm Tailstock quill: MT5, coolant system, quick thread cutting device Digital readout: FAGOR NUP 300 TS-RS 1 x RÖHM 3-jaw chuck, 5-position stop drum, spindle stop, machine lamp, 1 x PARAT 4-way turret, 4 x PARAT tool holders, live centre and quick-action drill chuck. The machine is located at our premises in 71334 Waiblingen-Beinstein and is available immediately. Inspection of the machine is possible by appointment.

Condition: excellent (used), functionality: fully functional, Schaublin 135 High Precision Lathe with 3-Axis Digital Readout (ELESTA) and Accessory Cabinet in Excellent University Condition! Technical Data: - Centre Height: 135 mm - Distance Between Centres: 630 mm - Swing Over Bed: 315 mm - Spindle Nose: Camlock D1-4 - Spindle Bore: 40 mm - Longitudinal and Cross Feeds: 0.025–0.35 mm/rev - Metric Threads: 0.25–14 mm Codpox Hivnofx Abropt - Tailstock Taper: MK3 - Infinitely Variable Speeds: 55–3000 rpm - Total Power Requirement: 4.45 kW - Weight: approx. 1,200 kg Accessories: - 3-Axis Digital Readout (ELESTA) with Heidenhain Scales - Accessory Cabinet including: - 160 mm 3-jaw chuck with 2 sets of jaws - Multifix B, 3 tool holders - Internal and external quick-change collet system - Change gears - Eccentric chuck - Faceplates - Fixed and travelling steadies - Coolant system - Centre points - Operating manual - And much more About the Machine: For sale is a Schaublin 135 high precision lathe. The machine is in very good condition, comes from a university, and has seen very little use. It is equipped with a 3-axis digital readout and a wide range of accessories. Take the opportunity to inspect the machine under power on site and see the condition for yourself.

Condition: used, Year of construction: 2000, used CONDOR AC, partially overhauled Centre height: 165 mm Between centres: 750 mm Spindle bore: 40 mm Spindle speeds: 22–2,800 rpm, infinitely variable - Quick-change tool post size B - WEILER DZ-V digital readout - Hollow spindle stop - Fixed steady rest - 7 Multifix tool holders - Flat splash guard - Electrically interlocked chuck guard - Change gears and various soft jaws The machine is partially overhauled: Codpfx Abex E Um Nerspt - Bed slide: guideways re-coated and hand-scraped, gibs and lower guide strips adjusted - Cross slide measured and aligned on bed slide; cross slide dovetail guide newly scraped, gibs adjusted and scraped - Top slide newly scraped and gib matched - All measuring scales overhauled and cables replaced The machine is located in our showroom at 71334 Waiblingen-Beinstein and is immediately available. For details on equipment, please contact us.

Condition: used, Year of construction: 2014, turning diameter: 340 mm, turning length: 2,000 mm, total length: 4,270 mm, total width: 2,130 mm, total height: 1,840 mm, overall weight: 3,900 kg, 2-Axis Teach-In / Cycle controlled CNC Lathe CNC Control Fagor 8055 I Power TC Turning diameter 340/570 mm Turning length 2000 mm Center height 275 mm Spindle bore diameter 108 mm Spindle nose D 1-8 Spindle speed 0-2.500 R/min Codjx E Tahjpfx Abropt Movement X-axis 310 mm Movement Z-axis 2000 mm If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, total length: 1,500 mm, total width: 750 mm, total height: 1,350 mm, Empty weight: 700 kg - Documentation available: Yes - CE certificate present: No - Drive system: Conventional - Centre height [mm]: 150 - Swing over bed [mm]: 300 - Carriage turning diameter [mm]: 160 - Distance between centres [mm]: 500 - Bed width [mm]: 210 Cedpjx D Tlrjfx Abrept - Spindle bore [mm]: 36 - Min. spindle speed [rpm]: 15 - Max. spindle speed [rpm]: 3550 - Transport dimensions: 1500mm x 750mm x 1350mm (l x w x h) - Transport weight [kg]: 700kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), Year of construction: 1969, functionality: fully functional, turning diameter over cross slide: 240 mm, spindle bore: 52 mm, turning diameter: 360 mm, center height: 180 mm, turning length: 1,000 mm, total length: 2,200 mm, total width: 750 mm, total height: 1,400 mm, spindle speed (max.): 1,750 rpm, spindle speed (min.): 60 rpm, overall weight: 1,800 kg, Conventional lathe, center high 180 mm, between centers 1000 mm, bore Ø 52 mm, 12 speed 60 - 1750 rpm, motor 4 kw, camlock 5'', ; equipement: coolant device, 3-jaws chuck Ø 200 mm, 4-jaws chuck, rotating pin, drill chuck, tool post RAPID with 5 toolholders, steady and following rest, lamp, dimensions 230x115x165 cm, weight ca. 1750 kgs Cpedpfx Asx Dl Nvebrst

Condition: used, total length: 1,700 mm, total width: 800 mm, total height: 1,500 mm, Empty weight: 1.000 kg - Documentation available: Yes - CE certificate present: No - Drive system: Conventional Codpox Dkh Rsfx Abropt - Centre height [mm]: 150 - Swing over bed [mm]: 305 - Distance between centres [mm]: 750 - Bed width [mm]: 250 - Spindle bore [mm]: 45 - Min. spindle speed [rpm]: 50 - Max. spindle speed [rpm]: 2400 - Options: Three-jaw chuck - Transport dimensions: 1700mm x 800mm x 1500mm (l x w x h) - Transport weight [kg]: 1000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), Lead and feed screw lathe WEILER PRAKTIKANT 800 R - Swing diameter over bed: 300 mm - Swing diameter over cross slide: 150 mm - Turning length: 800 mm - Spindle bore: 42 mm - Speed range: 40 - 2000 rpm - Automatic longitudinal / cross feeds - Thread cutting / metric / inch etc. - Tailstock Morse taper 3 Cedpfxox A Ukto Abrjpt - Three-jaw chuck - Chip guard rear wall + work light - Chip tray - Change gears - Tool cabinet - Documentation Dimensions: LxWxH 1.8x0.8x1.6 meters / Weight 750 kg Errors and input mistakes excepted

Condition: good (used), Leadscrew & feed rod lathe WEILER CONDOR - Original paint - Centre height: 165 mm - Swing over bed: 330 mm - Swing over cross slide: 170 mm - Distance between centres: 800 mm - Spindle speeds: 24 - 2800 rpm - Automatic longitudinal/cross feeds - Spindle bore: 38 mm - Tailstock MT 3 - Collet chuck system + 17x collets - Three-jaw chuck - Multifix toolpost with inserts - Electric chuck guard - Chip guard rear panel Csdpfx Asx A D Ubebrspt - Work lamp - Various accessories - Documentation Dimensions: LxWxH 1.8x0.9x1.6 m / Weight 800 kg Errors and omissions excepted.

Condition: like new (used), – Distance between centres 910 mm – Swing over bed 300 mm – Swing over gap 430 mm – Swing over cross slide 180 mm – Spindle bore 40 mm – 75/1400 rpm – Digital speed display – Longitudinal and cross feed – Digital readout on two axes – Brake – Coolant system – Multifix quick-change toolpost with 4 tool holders – Lighting – Safety cover – Fixed steady rest – Travelling steady rest Cpjdoxz S Umepfx Abrst – 3-jaw chuck – 4-jaw chuck – Emergency stop – Documentation – 400V

Condition: ready for operation (used), Year of construction: 1990, functionality: fully functional, turning diameter over cross slide: 190 mm, spindle bore: 56 mm, turning length: 1,000 mm, For sale: used Weiler Commodor lathe, year of manufacture approx. 1990. Turning length: 1000mm. Swing over bed: 380mm. Swing over cross slide: 190mm. Spindle bore: 56mm. Spindle speed: 25–2000 rpm. Tailstock: MK4. Equipment: 2-axis digital readout by Heidenhain, 200mm three-jaw chuck, Multifix including 1 toolholder, coolant system, longitudinal and cross feeds, machine feet, various chuck keys, bed stop, live centres, complete documentation. Cjdpfxexzu Ipo Abrept

Condition: good (used), turning diameter over cross slide: 175 mm, turning diameter over bed slide: 310 mm, – Centre distance: 750 mm – Swing diameter over bed: 310 mm – Swing diameter over cross slide: 175 mm – Spindle bore: 32 mm – Speed range: 65–2200 rpm Codjxy Ry Eopfx Abropt – Infinitely variable speed control – Digital speed display – Longitudinal and cross feed – Digital readout (DRO) – Brake – Coolant system – Tool equipment – Lighting – Safety cover – Emergency stop – Documentation – 400V

Condition: good (used), Year of construction: 2006, EMCO EMCOMAT 14 D Lathe EMCO EMCOMAT 14 D with Emco digital readout, year of manufacture 2006, in excellent original condition. The machine comes from the special production department of a renowned German mechanical engineering company. CE-compliant! Technical data: Year of manufacture: 2006 EMCO EMCOMAT 14 D Technical Data Cjdpfx Ajxyvbnobropt Working Area Travel distance in X/Y/Z: 135 / - / 590 mm Centre distance: 650 mm Centre height: 140 mm Main spindle Max. speed: 4,000 rpm Spindle mount: Size 4 (DIN 55029) Max. drive power: 7.5 kW Tailstock Quill diameter: 30 mm Internal taper: MK 2 Quill stroke: 80 mm Dimensions (LxWxH): 1,280 x 730 x 1,480 mm Machine weight: 420 kg About the machine: The EMCOMAT 14D is the smallest machine in the EMCOMAT series. The EMCOMAT 14D is a lathe designed for the highest demands: with stepless speed control, constant cutting speed, and a robust 7.5 kW drive power (40% duty cycle). The compact machine with outstanding performance is ideal wherever maximum precision in limited space is required, such as optical, electrical, and automotive workshops, laboratories, and even Formula 1. Offered here is a lathe EMCO EMCOMAT 14 D with Emco digital readout, manufactured in 2006. This lathe is in excellent original condition. It was only used occasionally in special production. The control system is very user-friendly. The guides are regularly lubricated by a central lubrication system. The EMCO EMCOMAT 14 D has been mechanically and electrically tested by us. You are welcome to inspect and test the EMCO EMCOMAT 14 D under power at our premises. You will find further lathes from renowned manufacturers on our website.

Condition: good (used), Year of construction: 2006, EMCO EMCOMAT 14 D Lathe EMCO EMCOMAT 14 D with EMCO digital readout, year of manufacture 2006, in excellent original condition. The machine comes from the special construction department of a renowned German mechanical engineering company. CE compliant!! Technical Data: Year of manufacture: 2006 EMCO EMCOMAT 14 D Technical Data Working area Travel in X/Y/Z: 135 / - / 590 mm Centre distance: 650 mm Centre height: 140 mm Main spindle Max. speed: 4000 rpm Spindle mount: Size 4 (DIN 55029) Max. drive power: 7.5 kW Tailstock Quill diameter: 30 mm Inner taper: MT 2 Quill stroke: 80 mm Dimensions Cedpfx Abjxyvbbjrept (LxWxH): 1280 x 730 x 1480 mm Machine weight: 420 kg About the Machine: The EMCOMAT 14D is the smallest machine in the EMCOMAT series. The EMCOMAT 14D is a lathe designed for the highest standards: with infinitely variable speed control, constant cutting speed, and a robust 7.5 kW drive (40% duty cycle). This compact powerhouse excels wherever maximum precision is required in limited space, such as in optical, electrical, and automotive workshops, laboratories, and even in Formula 1. For sale is an EMCO EMCOMAT 14 D lathe with EMCO digital readout, year of manufacture 2006. This lathe is in excellent original condition. It comes from a facility where it was only lightly used for special construction purposes. It features an extremely user-friendly control. The ways are regularly lubricated by the central lubrication system. The EMCO EMCOMAT 14 D has been mechanically and electrically tested by us. Take the opportunity to view and test the EMCO EMCOMAT 14 D under power on-site. You will find more lathes from well-known manufacturers on our website.

Condition: good (used), Year of construction: 2006, EMCO EMCOMAT 14 D Lathe EMCO EMCOMAT 14 D with Emco digital display, year of manufacture 2006, in excellent original condition. The machine comes from the special production department of a renowned German mechanical engineering company. CE compliant!! Technical specifications: Year of manufacture: 2006 Model: EMCO EMCOMAT 14 D Technical Data Working area Travel in X/Y/Z: 135 / - / 590 mm Centre distance: 650 mm Centre height: 140 mm Main spindle Max. speed: 4000 rpm Spindle mount: Size 4 (DIN 55029) Max. drive power: 7.5 kW Tailstock Quill diameter: 30 mm Internal taper: MT 2 Quill stroke: 80 mm Dimensions Dimensions (LxWxH): 1280 x 730 x 1480 mm Machine weight: 420 kg About the machine: The EMCOMAT 14D is the smallest machine in the EMCOMAT series. The EMCOMAT 14D is a lathe for the highest demands: with stepless speed control, constant cutting speed and an impressive 7.5 kW drive power (40% duty cycle). This compact machine with outstanding performance is ideal wherever maximum precision is required in limited spaces, such as in optical, electrical, and automotive workshops, laboratories, and even Formula 1. Offered here is an EMCO EMCOMAT 14 D lathe with Emco digital display, year of manufacture 2006. This lathe is in excellent original condition and comes from a facility where it was only used occasionally for special applications. The control system is very user-friendly. The guideways are lubricated regularly by a central lubrication system. The EMCO EMCOMAT 14 D has been mechanically and electrically tested by us. Take the opportunity to view and test the EMCO EMCOMAT 14 D under power at our premises. Cpsdpfx Aoxyvaqsbret You will find more lathes from renowned manufacturers on our website.

Condition: good (used), WEILER Praktikant 800 R / Lead and Feed Screw Lathe from Educational Institution - Swing over bed: 300 mm - Swing over cross slide: 150 mm - Turning length: 800 mm - Spindle bore: 42 mm - Speed range: 40–2000 rpm - Automatic longitudinal and cross feeds - Threads / Metric / Inch - Tailstock taper: MT 3 - Drive power: 3 kW - Multifix quick-change toolpost with holders - Collet quick-clamping device incl. collets Cjdpfsxyqxnjx Abrjpt - Chuck guard - Chip guard with work light - Emergency stop - Change gears - Live center + drill chuck - Tool cabinet - Documentation Dimensions: LxWxH: 1.8 x 0.8 x 1.6 meters / Weight: 750 kg Errors and omissions excepted.

Condition: used, Year of construction: 1965, multifix ja centre distance 1500 mm documentation ja Csdpfxjxylq Eo Abrspt weight of the machine ca. 3 t

Condition: like new (used), Year of construction: 2024, Manufacturer: Optimum Year of manufacture: 2024 Condition: as new, workshop-tested Delivery time: immediately available Technical Specifications Centre height: 165 mm Centre distance: 830 mm Swing over bed: 330 mm Swing over cross slide: 208 mm Turning length in bed gap: 430 mm Spindle speed range: 16 steps, 70–2000 rpm Drive motor: 1.5 kW, 400 V, 50 Hz Spindle mount: Camlock DIN ISO 702-2 No.4 Spindle bore: 38 mm Spindle taper: MK5 Tailstock taper: MK3, quill travel 110 mm Weight: approx. 512 kg Machine dimensions (L×W×H): 1685 × 745 × 1590 mm Feeds and Thread Cutting Metric: 0.4–7 mm/rev (26 pitches) Imperial: 56–4 TPI (34 pitches) Longitudinal feed: 0.052–1.392 mm/rev (32 feeds) Cjdpfx Absxyknijropt Cross feed: 0.014–0.38 mm/rev (32 feeds) Accessories: Fixed steady rest (Ø 6–50 mm) Travelling steady rest (Ø 8–30 mm) LED machine lamp Reducing sleeve MK5/MK3 Two fixed centre points MK3 Four-way tool post 16 mm Change gear set Machine base Initial fill with quality oil Operating tools
