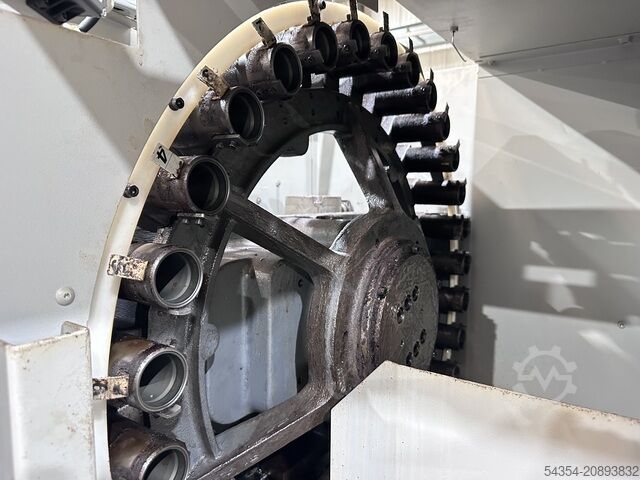

Condition: used, Year of construction: 2013, Mori Seiki NVX5100-II/40 Vertical Machining Centre with MAPPS IV/M730BM Control, Travel X/Y/Z = 1050/530/510mm, Table Size 1350 x 600mm x 1200kgs, Spindle Taper BT40, 30 Position ATC, Max Spindle Speed 13,000rpm, High-Pressure Through Spindle Coolant, Swarf Conveyor, Machine Weight 7,000kgs, Floor Space (L x W x H) 3084 x 2851 x 2597mm. S/No. NV502130614 (2013) Dedpfxsx Syfko Abrecb Location: These lots are located in Tamworth, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described.

Condition: used, Year of construction: 2023, functionality: limited functionality, total height: 2,100 mm, total length: 8,500 mm, total width: 1,400 mm, overall weight: 1,800 kg, MAKENSIS FULL SERVO ALUMINIUM PROCESSING CENTER High-Precision Solution for Solar Panel Frame Corner Connection Elements (Cleats) This specially engineered machine is designed to optimize the production process of connection blocks for solar panel frames. It performs drilling, tapping, and cutting operations simultaneously within a single unit, all in a fully automatic cycle, thereby maximizing your production speed and precision. Key Advantages Integrated Operation: Once the profile is positioned, drilling, tapping, and cutting operations continue automatically along the entire length of the profile. Full Servo Control: All machine movements and the saw feed rate are equipped with servo systems, allowing for precise adjustment according to the profile type. Precision Robotic Feeding: Thanks to the servo-controlled robotic arm (drag and drop) system, even long profiles can be cut with millimeter-level accuracy. Flexible Software: With the 'Program Yumens' interface, you can easily create recipes and prepare cutting lists for your parts. Technical Specifications Control System: Beckhoff PLC Control System. Saw Unit: Ø500 mm saw blade diameter, 3000 rpm. Dsdpfxox Sw Txo Abrocb Drilling Unit: Servo motion capability on X-Y-Z axes. Power and Consumption: 6.2 kWh total power; 30 l/min air consumption. Cooling and Cleaning: Spray cooling system for saw and spindle; integrated chip extraction system. Premium Components Used Servo Motor: Beckhoff Pneumatics: SMC - Festo Mechanical Motion: Schneeberger - Gambini Bearings and Lubrication: SKF - FAG / SKF Automatic Lubrication Saw Motor: Hertz A dust extraction machine and air dryer are provided alongside the machine. Safety: Magnetic safety switches on the covers and piston-protected systems are available to ensure operator safety.

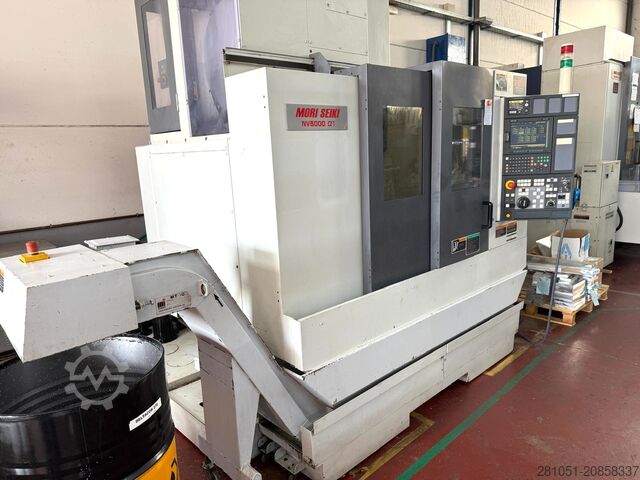

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, CNC Control: MSG-501 + MAPPS X axis mm: 800 Y axis mm: 510 Dcedjx Rvtbjpfx Abrsb Z axis mm: 510 Worktable dimensions mm: 1,100 x 600 Table load capacity kg: 1,000 Cutting feedrate mm/min (X, Y, Z): - Max. rapid traverse m/min (X, Y, Z): 42, 42, 42 Spindle speed rpm: 12,000 Spindle power kW: 18.5 Taper type: ISO-40 Torque Nm: - Tool changer type: RANDOM Tool changer positions: 30 Max. tool diameter mm: 80 Max. tool diameter with adjacent positions empty: 125 Max. tool length mm: 300 Max. tool weight kg: 8 Coolant tank capacity l: 230 Through spindle coolant bar: - EQUIPMENT Chip conveyor Oil chiller Automatic shutdown system DIMENSIONS Length mm: 2,788 Width mm: 2,710 Height mm: 2,603 Weight kg: 6,350

Condition: ready for operation (used), Year of construction: 2012, operating hours: 45,656 h, functionality: fully functional, machine/vehicle number: AX4E -NAOS 12-160, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 880 mm, table load: 500 kg, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel X-axis: 730 mm Travel Y-axis: 730 mm Travel Z-axis: 880 mm Max. spindle speed: 12,000 rpm Spindle drive power: 15 / 11 kW Max. torque: 102 Nm Tool holder: SK 40 Dsdpfx Abex I Amiorjcb Distance spindle center to table: 80 - 800 mm Distance spindle nose to table center: 70 - 950 mm Number of pallets: 2 Pallet size: 500 x 500 mm Max. workpiece weight: 500 kg Max. workpiece diameter: 800 mm Max. workpiece height: 1,100 mm Pallet change time: 9.5 s Indexing time: 1.49 s Number of tool stations: 60 Max. tool diameter: 70 mm Max. tool diameter with adjacent stations free: 170 mm Max. tool length: 550 mm Tool-to-tool change time: 0.9 s Rapid traverse: 60 m/min Max. feed rate: 60,000 mm/min Creep feed range: 0 - 5,000 mm/min MACHINE DETAILS Total power requirement: 34 kVA Dimensions & Weight Footprint: approx. 5500 x 3000 x 2800 mm Machine weight: approx. 11.1 t Operating hours: 45,656 h EQUIPMENT Chip conveyor Coolant system Internal coolant supply IF Knoll Tool changer B-axis Pallet changer Oil mist separator Magazine tool breakage control Thread milling Note: Proof of spindle replacement in 2019 is attached.

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, Chip conveyor Dsdpfox Iu Dysx Abrocb 80-tool magazine, CAT 40 taper Spindle 15,000 rpm Through-spindle coolant, 15 bar Performance package

Condition: ready for operation (used), Year of construction: 2003, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 880 mm, overall weight: 13,000 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 30,000 W, number of axes: 4, General Data Machine weight 13000 kg Main Drive Number of axis 4 Spindle Speed 12000 RPM Spindle motor power 30 kW Tool taper BT 40 Movement X-Axis Movement 730 mm Z-Axis Movement 880 mm Y-Axis Movement 730 mm Dcsdpfx Ajx Imt Tsbreb This 4-axis MORI SEIKI NH-5000 40 was manufactured in 2003, featuring a robust horizontal machining centre with a spindle speed up to 20,000 rpm and a power range of 22-30 kW. It includes a versatile tool magazine with a capacity up to 180 tools and a dual-pallet automatic changer to enhance productivity. Pallet size is 500 × 500 mm, supporting a maximum workpiece height of 1,000 mm. Consider the opportunity to buy this MORI SEIKI NH-5000 40 horizontal machining centre. Contact us for more information. Application Types Milling

Condition: used, Year of construction: 2014, x-travel 600 mm y-travel 770 mm z-travel 805 mm Control Heidenhain iTNC 530 spindle tunring speed 16.000 U/min spindle drive 25/32 kW torque 159/206 Nm Dcjdpfx Asx Ik Tqebrjb tool taper HSK-A 63 number of tool places 40 Pos. size of pallet 400 x 400 mm numbers of pallets 2 auto power on hours ca. 38.013 spindle hours ca. 17.871 h In our assessment, the machine is in good used condition and can be inspected under power by appointment. Technical Features & Accessories: - Interchangeable inserts - Chip conveyor - Internal coolant system - Tool cleaning system - Tool length measuring device - Laser measuring system for tool monitoring, Blum - Compressed air supply through the spindle center - Cleaning gun - Blow gun - Electronic handwheel, Heidenhain HR 520 - Decentralized work area extraction, 800 m³/h Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Condition: used, Year of construction: 2011, x-travel 600 mm y-travel 560 mm z-travel 565 mm Control Fanuc Series 32-i MODEL A spindle tunring speed 8.000 U/min tool taper BT 40 spindle hours ca. 11.298 h In our assessment, the machine is in good used condition and can be inspected under power by appointment. Commissioning: 2016 Technical Features & Accessories: - Interchangeable plates/table Accessories, tools, and clamping devices shown are only included if noted in the additional information. Subject to changes and errors in technical data and specifications, as well Dedpsx Ik S Hsfx Abrscb as prior sale!

Condition: excellent (used), Year of construction: 2008, CNC Horizontal Machining Center MAZAK HCN 5000 II Year of manufacture: 2008/10 Tool magazine: 40 tools Spindle speed: 18,000 rpm NC rotary table (fourth axis / 0.001 x 360,000 positions) Technical Specifications: Max. workpiece diameter: 800 mm Max. workpiece height: 1,000 mm X-axis travel: 730 mm Y-axis travel: 730 mm Z-axis travel: 740 mm Distance from spindle center to pallet center, min.: 70 mm Distance from spindle center to pallet center, max.: 810 mm Distance from spindle center to pallet surface, min.: 100 mm Distance from spindle center to pallet surface, max.: 830 mm Tool holder: SK40 Tool magazine: 40 tools Spindle speed: 18,000 rpm Dodpfx Abex Hgh Isrocb Pallet working area: 500 x 500 mm NC rotary table (fourth axis / 0.001 x 360,000 positions)

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, workpiece weight (max.): 300 kg, spindle speed (max.): 12,000 rpm, The machine spindle was recently replaced. The corresponding report can be provided upon request. TECHNICAL DETAILS Travel X-axis: 730 mm Travel Y-axis: 510 mm Travel Z-axis: 510 mm Rapid traverse X-axis: 50 m/min Rapid traverse Y-axis: 50 m/min Rapid traverse Z-axis: 40 m/min Table width: 500 mm Table height: 870 mm Table length: 500 mm Dcodpfxex Exvze Abreb Table load capacity: 300 kg Rotary table diameter: 500 mm Rotational speed (max.): 1,200 rpm Spindle speed (max.): 12,000 rpm Spindle interface: HSK-A63 Workpiece height (max.): 450 mm Workpiece weight (max.): 300 kg Tool length: 300 mm Tool diameter: 125 mm Tool weight: 8,000 g Number of tool magazine slots: 180 MACHINE DETAILS Control unit: Siemens 840 D Total weight: 14,800 kg Incoming voltage: 400 V EQUIPMENT Mori Seiki tool application manual KNOLL FKA/500 band filter system + 3 filter rolls Filtermist FX5000 emulsion extraction unit Renishaw OMP60 3D probe Chip conveyor Spindle chiller Documentation + circuit diagrams

Condition: as good as new (ex-display), Year of construction: 2022, functionality: fully functional, travel distance X-axis: 760 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 800 mm, rapid traverse X-axis: 63 m/min, rapid traverse Y-axis: 63 m/min, rapid traverse Z-axis: 63 m/min, nominal power (apparent): 48 kVA, controller manufacturer: Fanuc, controller model: F31i-B Plus, workpiece height (max.): 1,150 mm, workpiece diameter (max.): 800 mm, workpiece weight (max.): 700 kg, table width: 500 mm, table length: 500 mm, table load: 700 kg, spindle speed (min.): 100 rpm, spindle speed (max.): 15,000 rpm, coolant supply: 70 bar, spindle nose: BT40, number of slots in tool magazine: 60, type of input current: three-phase, Equipment: chip conveyor, Machine Technical Specifications: Travels: X: 760mm Y: 760 mm Z: 800 mm Table: 500x500mm Load capacity: 700kg Workpiece dimensions: Ø 800 x 1150mm (depending on workpiece shape) Taper: BT40 (dual contact) Spindle power: 37/26/18.5 kW Maximum speed: 15,000 rpm Controller: FANUC 31i 5Plus Tool magazine slots: 60 Max. tool length: 550mm Max. tool diameter: 95mm (170mm with no tools in adjoining pockets) Dedjx Ekfuepfx Abrjcb Max. tool weight: 12kg Machine dimensions: 4605 x 2750 x 3605 mm (L x W x H) Weight: 10,500kg Additional equipment: CTS (Coolant Through-Spindle) preparation High-pressure unit (70 bar) Tool breakage detection in magazine (contact type) Lift-up chip conveyor – scraper type with drum filter & floor magnet (Type E) Soft AC Coolant shower gun (medium pressure)

Condition: ready for operation (used), Year of construction: 2016, General Data Machine weight 12240 Kg Control Unit Brand FANUC Main Drive Number of axis 4 Movement X-Axis Movement 710 mm X-Axis Rapid Traverse 60 m/min Y-Axis Movement 680 mm Y-Axis Rapid Traverse 60 m/min Dodjx D Ekaepfx Abrjcb Z-Axis Movement 680 mm Z-Axis Rapid Traverse 60 m/min Table Outer length 500 mm Outer width 500 mm This TONGTAI HA-500II Horizontal Machining center was manufactured in the year 2016 in Taiwan. It is equipped with a Fanuc control unit and has 4 axis. The machine has a spindle speed of 12000 rpm. Application Types Milling

Condition: ready for operation (used), Year of construction: 2000, operating hours: 48,804 h, General Data Measurements width 7000 Measurements depth 5000 mm Machine weight 3400 kg Control Unit Brand SIEMENS Model Sinumerik 840D Main Drive Spindle speed range 8000 Number of axis 4 Movement X-Axis Working Feed 60000 mm/min X-Axis Rapid Traverse 60 m/min Y-Axis Working Feed 60000 mm/min Y-Axis Rapid Traverse 60 m/min Z-Axis Working Feed 60000 mm/min Z-Axis Rapid Traverse 60 m/min X-Axis Movement 600 mm Y-Axis Movement 560 mm Z-Axis Movement 560 mm Table Dcjdpfox D H S Eox Abrob Table load 350 kg Tools Slots in storage 90 Max weight 10 kg Max tool diameter 80 mm Max tool length 350 mm Type of tool holder DIN 69871-SK40 Media Chip conveyor Yes Additional Equipment Coolant Type/Content: Emulsion (internal & external) / approx. 1100L Coolant Unit: Knoll with drum filter 30, 40, 50 bar via M-command Machine Accuracy: VDI / DGQ 3441 Renishaw Measuring Probe Tool Breakage Detection Drum filter Pallet Sequential Operation Enclosed Work Area Enclosure Network Connection Technical Documents and Layout Plan available This 4-axis DECKEL MAHO DMC 60H hi-dyn was manufactured in 2000. It features a Siemens Sinumerik 840D control, a spindle speed up to 8000 rpm, and a 90-position tool magazine. The machine includes a pallet changer with 4 storage locations and a rapid traverse rate of 60 m/min. Ideal for high precision horizontal machining. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2005, General Data Measurements width 4800 mm Measurements depth 5800 mm Machine weight 12800 kg Control Unit Brand SIEMENS Model Sinumerik 840D Main Drive Spindle speed range 10000 Spindle motor power 24 kW Number of axis 4 Movement X-Axis Movement 625 mm X-Axis Rapid Traverse 40 m/min Y-Axis Movement 650 mm Y-Axis Rapid Traverse 40 m/min Z-Axis Movement 650 mm Z-Axis Rapid Traverse 40 m/min Table Table load 4000 kg Tools Max weight 10 kg Max tool diameter 80 mm Max tool length 350 mm Type of tool holder DIN 69893-HSK-A63 Media Chip conveyor Yes Additional Equipment Renichaw measuring probe Tool breakage detection: Yes, in tool magazine Flushing gun at the setup station Waterfall shower Paper belt filter Pallet sequential operation Enclosed work area enclosure according to UW Computer connection via Ethernet interface Dcjdpfxox D H S Se Abreb Network connection This 4-axis Starrag Heckert Dynamic CWK 400D was manufactured in 2005. It features a Siemens Sinumerik 840D control system, spindle speeds up to 10,000 rpm, and a dual pallet system with rapid 8-second pallet changes. The machine includes a tool magazine with 60 positions and a high-capacity coolant system. Ideal for complex machining tasks. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2004, General Data Measurements width 5585 mm Measurements depth 3080 mm Measurements height 3280 mm Machine weight 21000 kg Control Unit Model OSP-E100M Brand OKUMA Main Drive Spindle speed range 20000 rpm Number of axis 4 Dcodpfex D Ib Iex Abrjb Movement X-Axis Movement 700 mm Y-Axis Movement 900 mm Z-Axis Movement 980 mm Media Internal cooling Yes This Okuma MA-500HA was manufactured in 2004. A robust horizontal machining centre, it features a spacious X-axis travel of 700mm, Y-axis of 900mm, and Z-axis of 980mm. It includes a high-speed spindle capable of 20000 RPM and an efficient through coolant pump. For more information about this horizontal machining centre, please reach out to us. Application Types Milling

Condition: ready for operation (used), Year of construction: 2001, Main Drive Number of spindles 1 Number of axis 5 Spindle speed range 120-12000 Tool taper BT 40 Movement X-Axis Movement 650 mm Y-Axis Movement 560 mm Z-Axis Movement 560 mm Table Outer length 300 mm Outer width 300 mm Tools Slots in storage 60 Additional Equipment Two pallets measuring 300 x 300 mm each Dedpfx Absx D Nc Tsrscb This 5-Axis YASDA H-30i horizontal machining center was manufactured in 2001. It features a 650mm X-axis, 560mm Y-axis, and 560mm Z-axis with a spindle speed range of 120-12,000 RPM and a BT 40 Big Plus spindle. Equipped with a 60-position automatic tool changer and cooling through the spindle, this machine is controlled by a Fanuc 16iM system. Buy this YASDA H-30i horizontal machining center for precise and efficient milling operations. Reach out for further details. Application Types Milling

Condition: ready for operation (used), Year of construction: 2009, operating hours: 18,098 h, Movement X-Axis Movement 610 mm Djdpfx Aex D H Hvobrscb Z-Axis Movement 610 mm Y-Axis Movement 510 mm This 4-axis Yida MH-500 horizontal machining center was manufactured in 2009. It features a spindle speed of up to 10,000 rpm, a pallet size of 500 × 500 mm, and a tool magazine with a 40-tool capacity. Ideal for high-precision machining with its LM linear guideways and rapid traverse rates. If you are looking to get high-quality milling capabilities, consider the Yida MH-500 machine we have for sale. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2013, General Data Measurements width 5050 Measurements depth 5800 mm Measurements height 3300 mm Machine weight 12500 kg Control Unit Model SINUMERIK 840D sl Brand SIEMENS Main Drive Spindle motor power 6 kW each (S6/25% ED), 21 kW each (S1/100% ED) Tool taper HSK-A100 Spindle speed range 1 - 6000 Dcsdpfx Aex D Ng Sobrob Movement X-Axis Movement 600 mm Y-Axis Movement 525 mm (extendable to 890 mm) Z-Axis Movement 400 mm Additional Equipment Liquid-cooled motorised spindle in AC synchronous technology This 4-axis SW BX 621 horizontal machining center was manufactured in 2013. It features a robust SINUMERIK 840D sl CNC control system and dual liquid-cooled motorized spindles, each offering up to 6,000 rpm and 26 kW power. The machine supports a maximum tool diameter of 115mm and a tool length of 300mm, with a rapid traverse speed of up to 60 m/min. Ideal for precision machining, the SW BX 621 machine we have for sale. Contact us for more information. Application Types Milling

Condition: ready for operation (used), Year of construction: 2008, Control Unit Brand FANUC Model 16 i MB Movement X-Axis Rapid Traverse 50 m/min Y-Axis Rapid Traverse 50 m/min Z-Axis Rapid Traverse 50 m/min X-Axis Movement 735 mm Dodpfx Asx D Ntxjbrjcb Y-Axis Movement 610 mm Z-Axis Movement 610 mm This Kitamura HX500 ia was manufactured in 2008. It features X-Y-Z Axis Travels of 735, 610, and 610 mm, a table size of 500x500 mm, and a spindle speed of 13,000 rpm. The machine includes a BT40 spindle mount, a 50-position tool changer, and a FANUC 16 i MB control system with a 10.4" color LCD. Consider the opportunity to buy this Kitamura HX500 ia horizontal machining centre. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2019, operating hours: 5,936 h, General Data Machine weight 10000 kg Control Unit Brand SIEMENS Model Sinumerik 840 D SL Main Drive Spindle speed range 50 - 10000 rpm Tool taper HSK-A63 Number of axis 5 Movement X-Axis Movement 715 mm X-Axis Rapid Traverse 50000 mm/min Y-Axis Movement 400 mm Y-Axis Rapid Traverse 50000 mm/min Z-Axis Movement 500 mm Z-Axis Rapid Traverse 50000 mm/min Turret Number of turrets 1 Tools Number of index 30 Max weight 8 kg Max tool diameter 80 mm/ 125 mm with free secondary positions Max tool length 245 mm Dsdox D N Tfepfx Abrjcb Media Chip conveyor Yes Additional Equipment Shuttle table 2x NC rotary swivelling unit Chip conveyor Knoll 600K-1/II 2019 Filter system Recooling system Lahntechnik KOF1803-100 2020 Hydraulic unit Switch and control cabinets Rotary table rotation axes NC/hydr. clamping : 360 x n° degrees Rotary table diameter : 284 mm, This 5-axis SCHMID SE 371 horizontal machining centre was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control system, a shuttle table, and a 30-position tool changer with HSK-A63 tool holders. Additional highlights include a chip conveyor by Knoll and a recooling system by Lahntechnik. A great opportunity to buy this SCHMID SE 371 horizontal machining centre. Contact us for further details regarding this horizontal machining centre. Application Types Milling

Condition: ready for operation (used), Year of construction: 2010, General Data Measurements height 2864 mm Machine weight 11500 kg Main Drive Spindle speed range 50–15,000 Tool taper SK40 Number of axis 4 Movement X-Axis Movement 760 mm X-Axis Rapid Traverse 60 m/min Y-Axis Movement 760 mm Y-Axis Rapid Traverse 60 m/min Z-Axis Movement 760 mm Z-Axis Rapid Traverse 60 m/min Tools Max weight 10 kg Max tool diameter 70 mm / 150 mm Max tool length 300–450 mm Type of tool holder BT40 This 4-axis Okuma MB 5000H was manufactured in 2010. It features a robust 500 × 500 mm pallet, capable of handling a maximum load of 500 kg, and offers a comprehensive range of movements with 760 mm travel in X, Y, and Z axes. Equipped with a high-speed spindle up to 15,000 min⁻¹ and a 64-tool magazine, this horizontal machining centre is ideal for complex machining tasks. Contact us for more information about this machine. Dcodpfxex D Rrcj Abrob Application Types Milling

Condition: ready for operation (used), Year of construction: 2011, General Data Measurements width 4710 mm Measurements depth 2700 mm Measurements height 2864 mm Machine weight 11500 kg Main Drive Spindle speed range 50 to 15000 Tool taper SK40 Number of axis 4 Movement Djdpfx Aex D Rriebrocb X-Axis Movement 760 mm X-Axis Rapid Traverse 60 m/min Y-Axis Movement 760 mm Y-Axis Rapid Traverse 60 m/min Z-Axis Movement 760 mm Z-Axis Rapid Traverse 60 m/min Table Table load 500 kg Tools Max weight 10 kg Max tool diameter 70 / 150 mm Max tool length 300–450 mm This 4-axis Okuma MB 5000H was manufactured in 2011. It features a robust horizontal machining center design with a 500 × 500 mm pallet size, capable of handling a maximum load of 500 kg. The spindle supports speeds from 50 to 15,000 min⁻¹ with a SK40 taper, enhancing its versatility. Additional features include a chip conveyor, shower system, and provision for a Renishaw probe. If you are looking to get high-quality milling capabilities consider the Okuma MB 5000H machine we have for sale. Contact us for more information. Application Types Milling

Condition: good (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 630 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 650 mm, controller manufacturer: Siemens, controller model: Sinumerik 840 D, rotational speed (max.): 18,000 rpm, overall weight: 14,000 kg, spindle speed (max.): 18,000 rpm, coolant supply: 70 bar, number of spindles: 1, number of slots in tool magazine: 180, Horizontal machining center DECKEL MAHO DMC 60 H Linear with double pallet changer and 180 tool magazine positions Year of manufacture: 2009 Control: Sinumerik 840D Technical data: Spindle speed: 0–18,000 rpm Drive power: 35 kW Torque: Spindle taper: HSK 63 Number of magazine positions: 180 pcs Number of pallets: 2 Dcodpfx Aex Dlgnjbrob Pallet size: 500x500 mm Travel distances: X-axis: 630 mm Y-axis: 800 mm Z-axis: 650 mm C-axis: 0.001° All axes with linear drives Equipment: -Coolant system -Chip conveyor The machine has been regularly maintained and is still very precise! More pictures will follow. Video available on request.

Condition: used, Year of construction: 2008, machine/vehicle number: 1160821, BA 600-2 CNC, Horizontal Milling and Drilling Center SW Schwäbische Werkzeugmaschinen GmbH Machine No.: 166 0821 Year of manufacture: 2008 Used, ready for operation Travel axes: X-axis 600 mm Y-axis (alternate position) 600 (975) mm Z-axis 500 mm Control: Siemens 840D control, side-mounted Feed / rapid traverse speed: X, Y, Z 1 – 45,000 mm/min Max. feed force X, Y, Z 15,000 N Average acceleration: X, Y, Z 2.5 m/s² Measuring system: Absolute linear measuring system X, Y, Z Spindles: Spindle speed (stepless) 20-10,000 rpm Torque 2 x 363 Nm (S6/40%ED) Power 2 x 38 kW (S6/40%ED) HSK-A 100, horizontally arranged side by side Spindle center distance 600 mm Spindle bearing diameter 100 mm Motor spindles, liquid-cooled, AC technology Working area: Swing-arm carrier with straight-toothed gearing, max. workpiece weight 2,000 kg Swivel time 0/180 degrees approx. 6.0 sec Partition wall between machining and loading area Tool magazine: 2 x 40 tool HSK-A 100 chain magazines, position-coded Automatic pickup Tool change time (chip-to-chip): 4.9 sec Max. tool diameter 100 mm 250 mm if adjacent pocket is empty Max. tool length 350 mm Max. tool weight 20 kg Equipment: Central lubrication Minimum quantity oil lubrication (spindle lubrication) Chip conveyor Connection for central coolant system Hydraulic system Service unit Water recooler Fully enclosed; crane loading possible Dimensions with paper band filter: approx. 5.15 x 8.50 x 4.20 m Weight approx. 20,000 kg Dimensions without paper band filter: approx. 5.15 x 6.60 x 4.20 m Other details: - Condition appropriate for its age - Annual maintenance was regularly performed by the previous owner --- Machine is sold without clamping devices --- --- without foundation parts --- Dcedpfx Aox Db S Hebrsb Immediately available, timing by arrangement EXW 72793 Pfullingen Dismantled into main components Transport to site by the customer/buyer! Dimensions/transport dimensions of main machine components: 1 pc. machine unit (X, Y, Z) mm 3800 x 3350 x 3400 approx. 13,000 kg 1 pc. table unit mm 4400 x 2400 x 3400 approx. 10,000 kg Additionally, peripheral equipment such as chip conveyor, small parts, sheet metal, etc. Short delivery time possible! Schedule by arrangement.

Condition: excellent (used), FANUC 310 is-A Control Working travels 730 x 730 x 650 mm Tool changer with 60 Positions Spindle speeds 50-12'000 rpm Spindle taper HSK63 2 paletts 500 x 500 mm B-axis 0.001° Dcodsx A E Ayopfx Abrob Cooling through spindle 3D measuring taper Tool breakage control device Tool lenght measuring device Chip conveyor Misc. accessories MARCELS MASCHINEN AG
