Wieland-Werke AG

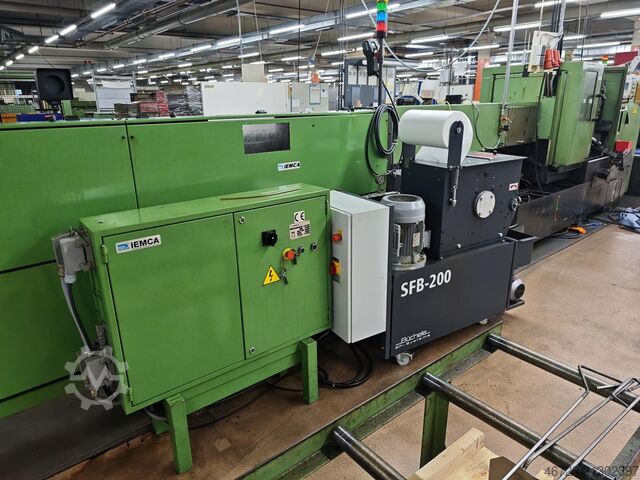

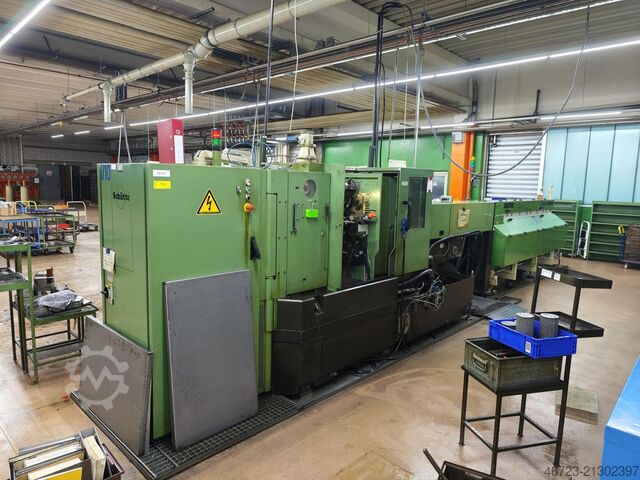

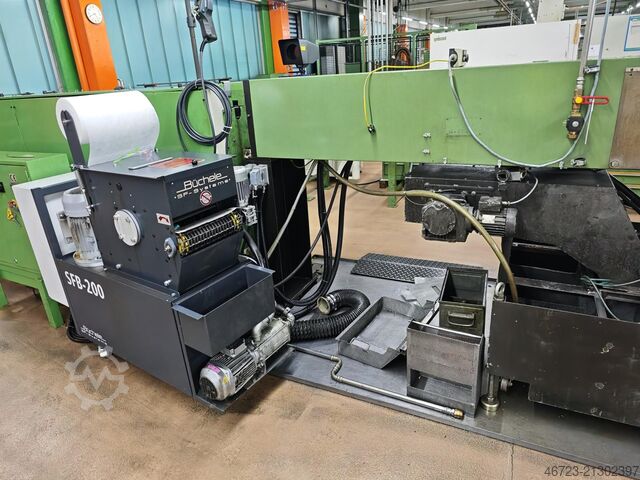

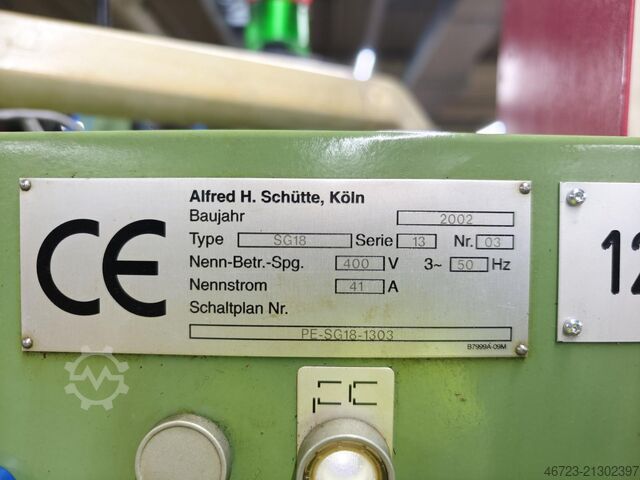

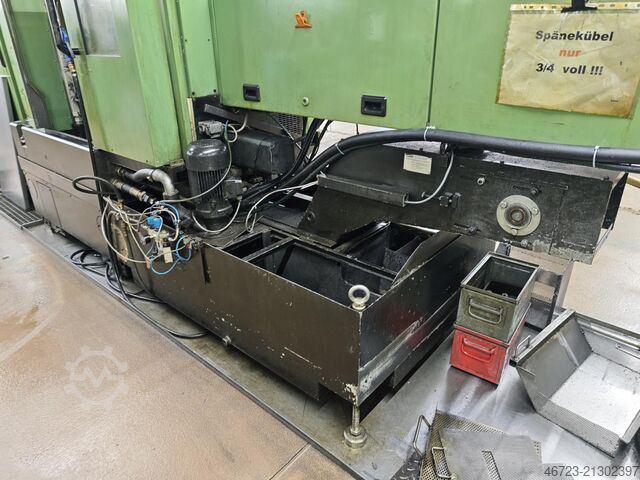

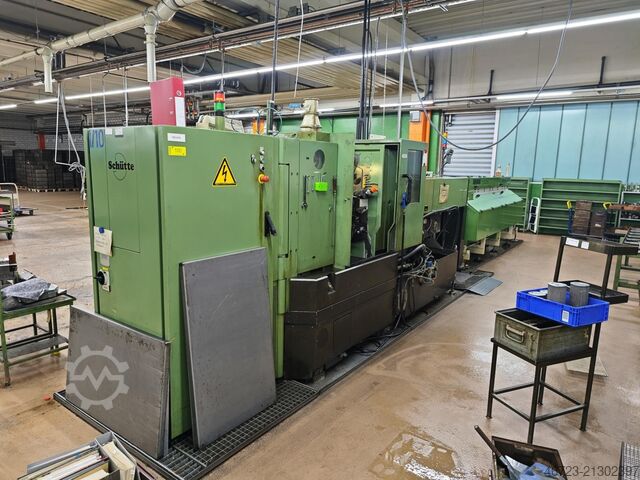

Condition: used, Year of construction: 2002, SCHÜTTE SG 18 Max. bar diameter round / square: 18 / 13 mm Spindle pitch circle diameter: 180 mm Bar feed: 80 mm Longitudinal slide travel (total / working): 63 / 50 mm Cross slide travel (total / working): 32 / 20 mm Kjdpfx Ahsymdd Sewjwu Spindle speeds (stepless): 800 – 10,000 rpm Main times (stepless): min. / max. 0.24 – 45 s Secondary times: 0.30 s Main drive: 11 kW Feed motor torque: 18 Nm Dimensions (incl. bar guide): approx. L x W 5.5 x 1.3 m Weight: approx. 5 t Voltage: 400 V / 50 Hz Operating hours: 14,304 h Scope of delivery: Bar feeder Pra 52 P IEMCA RUEZ KF0WW2/312 DAS, year 2002

Condition: used, Year of construction: 1994, INDEX MS 25E Max. bar diameter round / square: 26 / 18 mm Spindle pitch circle diameter: 230 mm Max. bar feed: 100 mm Longitudinal slide travel (total / working / adjustment): 85 / 50 / 330 mm Cross slide travel (total / working / adjustment): 36 / 16 / 20 mm Spindle speeds (12 / 24 steps with 1.25 / 1.12): 366 – 5,020 rpm Main drive: 15 kW / 1,450 rpm Voltage: 400 V / 50 Hz Operating hours: 62,283 h Working hours: 4,916 h Dimensions (incl. bar guide): approx. L x W x H approx. 7 x 1.5 x 2 m Weight: approx. 6 t Scope of delivery: Kjdpfsymdchjx Ahwowu Machine INDEX MS 25E

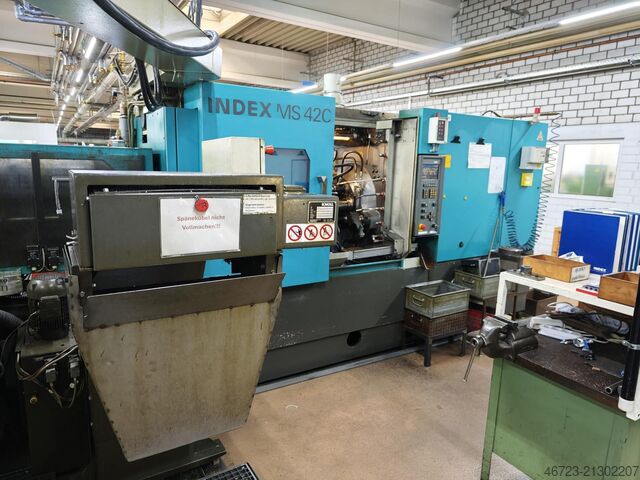

Condition: used, Year of construction: 2000, INDEX MS42C Max. bar diameter: 42 mm Spindle pitch circle diameter: 320 mm Main spindle: - Power clamping with INDEX spring-loaded hollow clamping cylinder and collet - Max. clamping stroke: 4 mm - Actuation force: 26 kN Main spindle drive: - Rated power: 5 kW - Rated speed: 1,500 rpm - Rated torque: 32 Nm - Max. speed: 5,000 rpm Synchronous spindle and driven tool holder: - Rated power: 5.3 kW - Rated speed: 1,500 rpm - Rated torque: 34 Nm - Max. speed: 5,000 rpm Cross slides: - Max. number: 10 - Travel (X): 70 mm - Travel (Z): 140 mm - Max. feed force +X: 11.4 kN Kwodpoymc S Ujfx Ahwju - Max. feed force −X: 7.9 kN - Max. feed force +Z: 11.4 kN - Max. feed force −Z: 7.9 kN - Rapid traverse speed: 15 m/min Longitudinal spindles: - Quantity: 6 - Travel (Z): 240 mm - Max. feed force +Z: 15.1 kN - Max. feed force −Z: 11.6 kN - Rapid traverse speed: 15 m/min Cross slides for longitudinal spindles: - Max. number: 6 - Travel (X): 70 mm - Max. feed force +X: 11.4 kN - Max. feed force −X: 7.9 kN - Rapid traverse speed: 15 m/min Synchronous spindle: - Clamping system: spring-loaded clamping cylinder - Max. clamping diameter: 42 mm - Chuck outer diameter: 112 mm - Jaw stroke: 1 mm - Max. total clamping force: 13 kN Weight: approx. 11,000 kg Scope of delivery: - Hydraulic unit KNOLL KTS 32-48-T - Bar loader CUCCHI PLURIMANDRINO, year 2000 - Workshop cabinet with machine accessories - KNOLL VRF 500 - Chip conveyor KNOLL 400 S-1/250

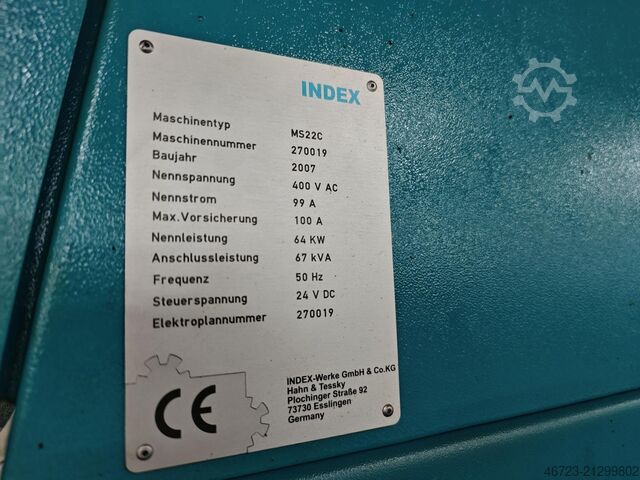

Condition: used, Year of construction: 2007, operating hours: 26,721 h, number of spindles: 6, spindle speed (max.): 10,000 rpm, bar diameter (max.): 22 mm, total width: 1,800 mm, total length: 3,200 mm, total height: 2,850 mm, travel distance X-axis: 62 mm, travel distance Y-axis: 12 mm, travel distance Z-axis: 85 mm, overall weight: 6,500 kg, Working spindles: Quantity: 6 Kodpfxsymaw Ie Ahwjwu Maximum bar diameter: 22 mm Spindle pitch circle diameter: 230 mm Travel distances X / Z: 62 / 85 mm Rapid traverse speed: 15 m/min Synchronous hollow spindle drives: Quantity: 6 Maximum speed: 10,000 rpm Nominal speed: 8,300 rpm Power: 15 kW at 18 Nm Chuck diameter: 110 mm Swiveling synchronous spindles: Quantity: 2 Z-axis travel: 120 mm Feed force: 2.5 kN Rapid traverse speed: 15 m/min Swiveling angle: 132° Counter spindle: Maximum speed: 10,000 rpm Nominal speed: 8,000 rpm Power: 9.2 / 12 / 14 kW at 11 Nm Tool carriers: Maximum quantity: 11 Travel distances X / Y / Z: 62 / ± 12 / 85 mm CNC control: C 200-4D (Siemens Sinumerik 840D) Dimensions: approx. L x W x H 3.2 x 1.8 x 2.85 m Weight: approx. 6.5 t Operating hours: 61,997 h Working hours: 42,235 h Scope of delivery: - INDEX bar loader - Bar loader IEMCA SIR MS22 P, year 2008 - Coolant unit with belt filter - Chip conveyor KNOLL 400 S-1/290 - Coolant filter unit KNOLL FKA/1780 RSF 100 - Workshop cabinet with machine accessories

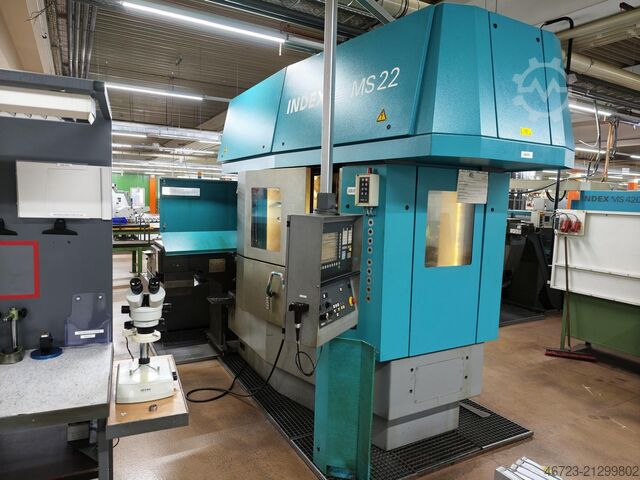

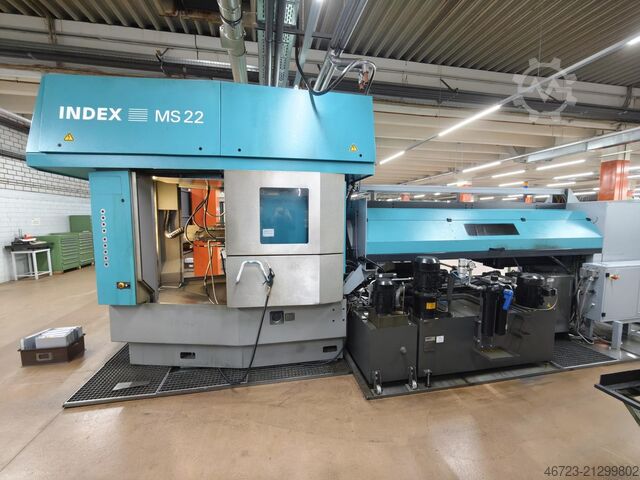

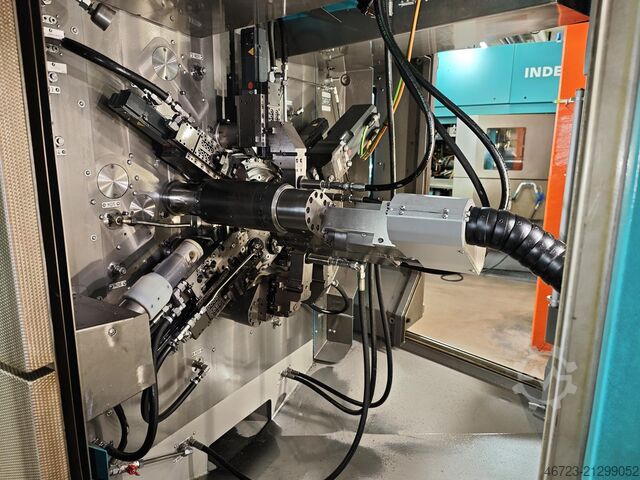

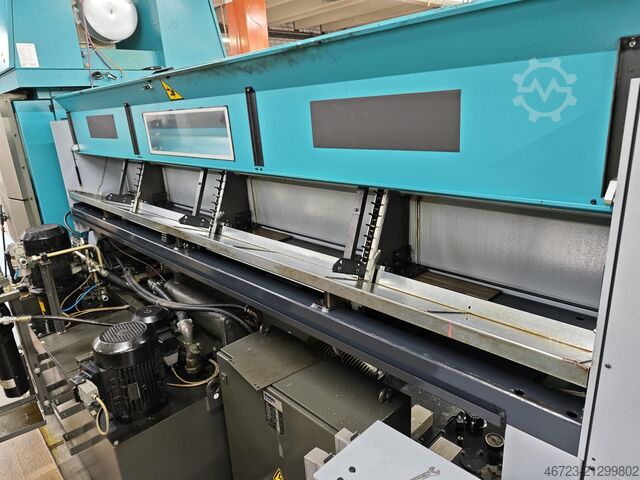

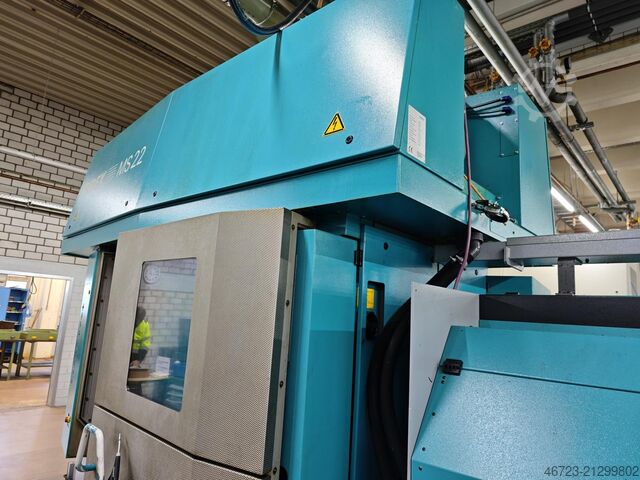

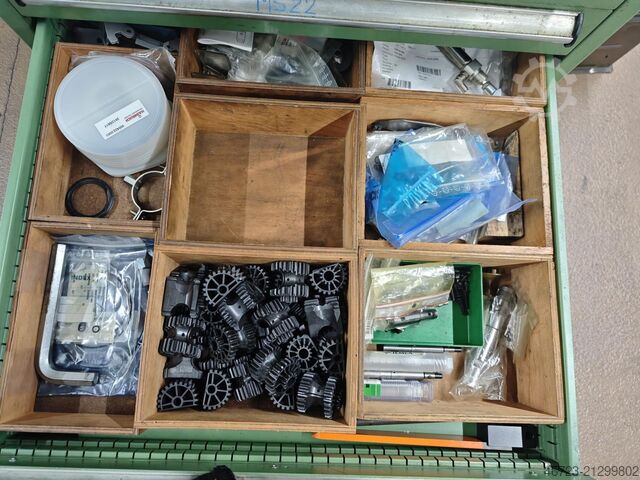

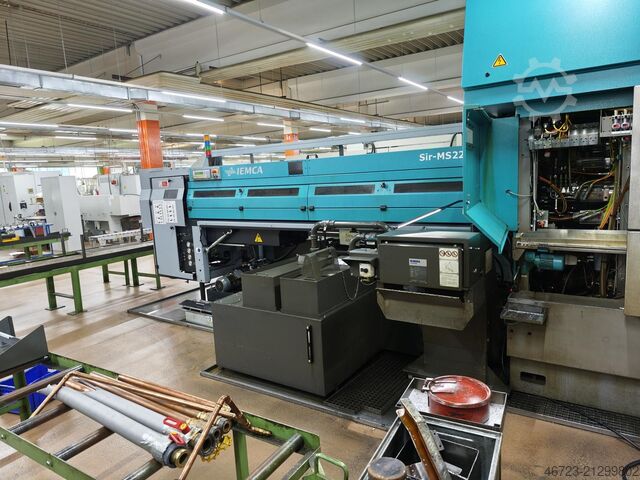

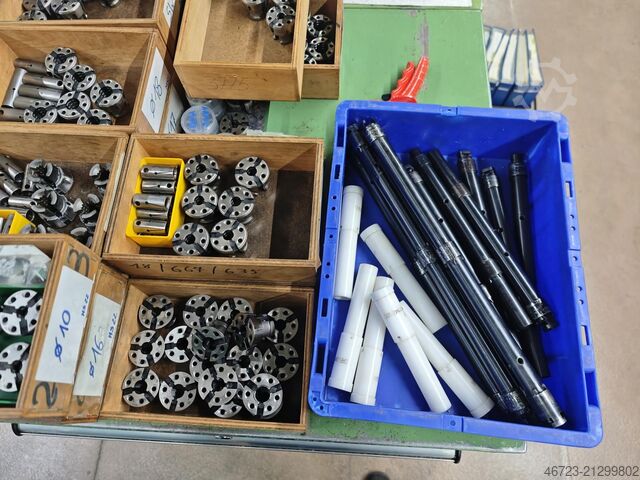

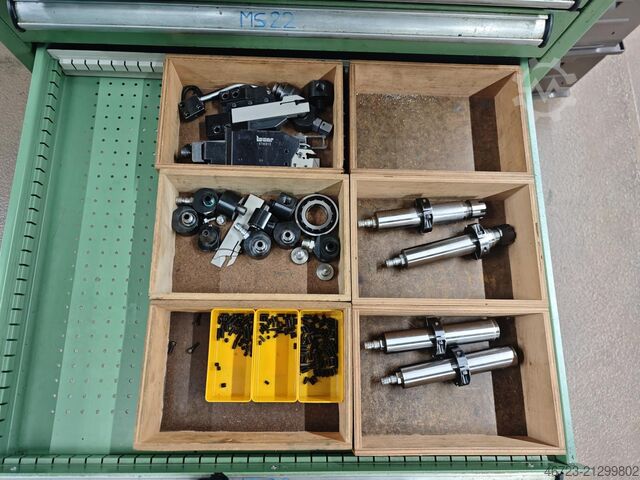

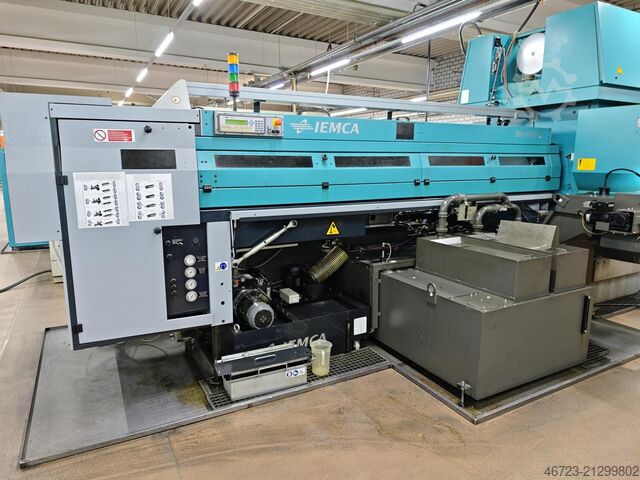

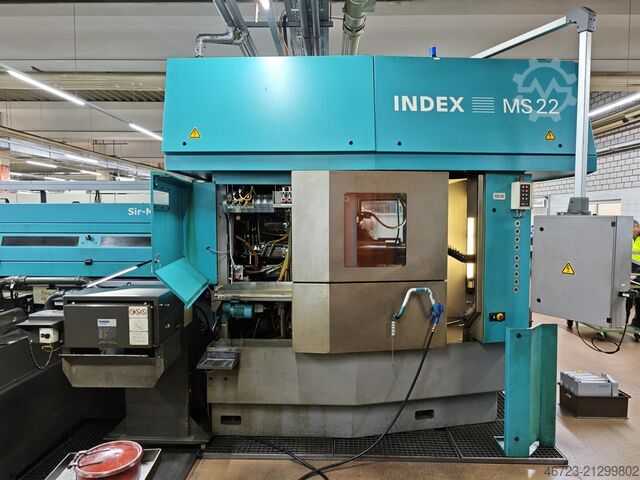

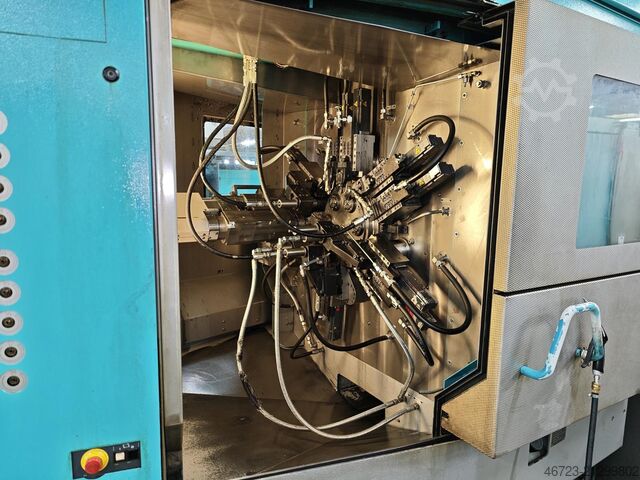

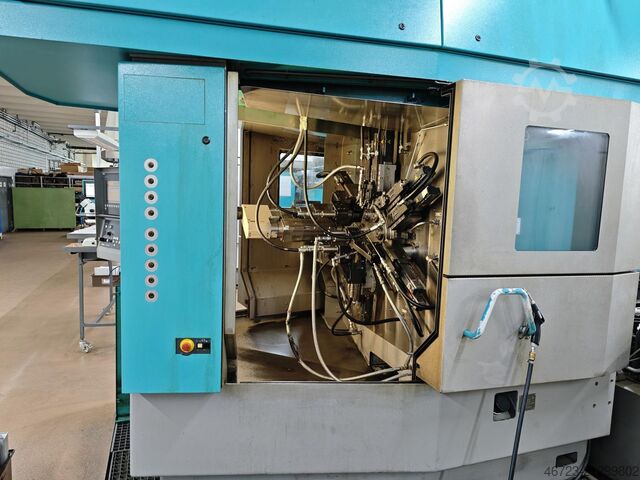

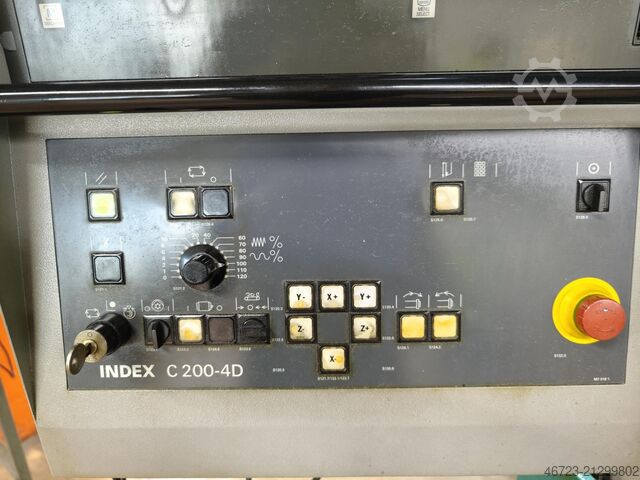

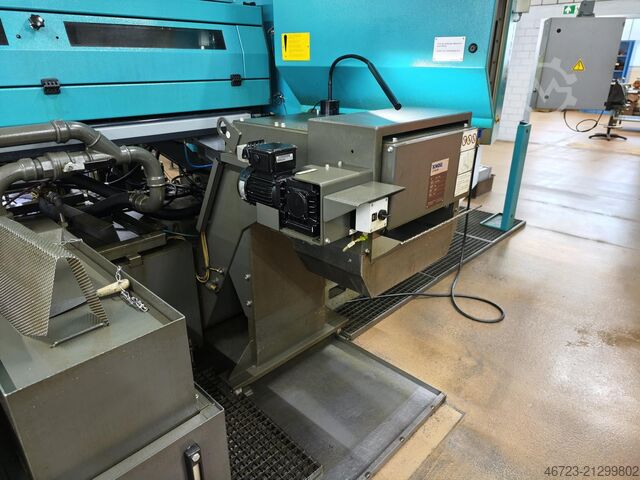

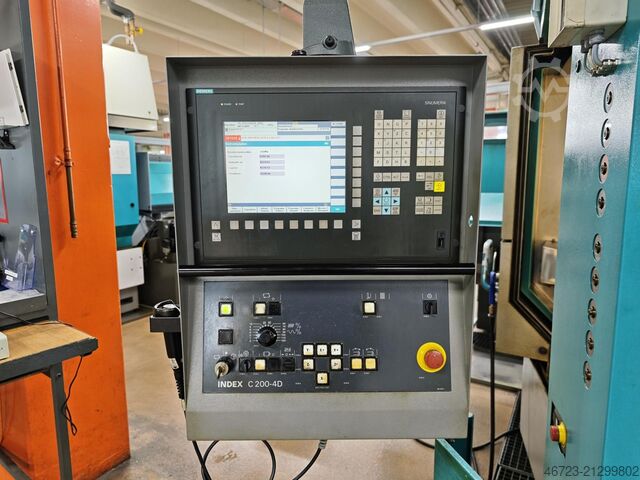

Condition: used, Year of construction: 2015, operating hours: 26,721 h, number of spindles: 6, spindle speed (max.): 10,000 rpm, bar diameter (max.): 22 mm, total width: 1,800 mm, total length: 3,200 mm, total height: 2,850 mm, travel distance X-axis: 62 mm, travel distance Y-axis: 12 mm, travel distance Z-axis: 85 mm, overall weight: 6,500 kg, number of tool stations in tool turret 3: 11, INDEX MS 22C Working spindles: Number: 6 Maximum bar diameter: 22 mm Spindle pitch circle diameter: 230 mm X / Z axis travels: 62 / 85 mm Rapid traverse: 15 m/min Synchronous hollow spindle drives: Number: 6 Maximum speed: 10,000 rpm Nominal speed: 8,300 rpm Kwsdsyl U Npopfx Ahwju Power: 15 kW at 18 Nm Chuck diameter: 110 mm Swiveling synchronous spindles: Number: 2 Z axis travel: 120 mm Feed force: 2.5 kN Rapid traverse: 15 m/min Swiveling angle: 132° Counter spindle: Maximum speed: 10,000 rpm Nominal speed: 8,000 rpm Power: 9.2 / 12 / 14 kW at 11 Nm Tool carriers: Maximum number: 11 Travels X / Y / Z: 62 / ±12 / 85 mm CNC control: C 200-4D (Siemens Sinumerik 840D) Dimensions (approx.) L x W x H: 3.2 x 1.8 x 2.85 m Weight (approx.): 6.5 t Operating hours: 26,721 h Machine hours: 20,859 h Scope of delivery: INDEX bar loader Coolant unit with belt filter

Condition: ready for operation (used), Year of construction: 2006, spindle speed (max.): 6,300 rpm, number of axes: 12, This 12s Index MS32C multi-spindle turning machine was manufactured in 2006. It features a maximum bar diameter of 32 mm and a maximum spindle speed of 6,300 rpm. The machine is equipped with a Siemens 840D CNC control and includes a bar loader, coolant tank, and chip conveyor. If you are looking to get high-quality turning capabilities, consider the Index MS32C machine we have for sale. Contact us for further details. • Number of spindles: 6 • Max. bar diameter: 32 mm • Slide units 1.1–6.2: CNC-controlled X and Z axes • Synchronous unit at spindle position 6.1 Kwedpeylk R Aofx Ahwsu • Counter spindle • CNC control: Siemens 840D with control panel and 2× NCU Additional equipment • Bar loader: IEMCA SIR MS32 F • Coolant tank: KNOLL, with high-pressure pump • Chip conveyor: KNOLL • Cooling unit (chiller): Riedel WTS 030.02-NE • Unloading system with 2 CNC axes • Fire extinguishing system: KRAFT UND BAUER

Condition: repair required (used), 3x SCHÜTTE SF40 offered as a package at a low price – machines require overhaul Ksdsylhp Nopfx Ahwswu

Condition: used, 2x 6-spindle bar automatics as a package Kodsylhlqspfx Ahwowu Make: INDEX Model: MS25E (1 machine defective, used as a parts donor)

Condition: ready for operation (used), Year of construction: 1967, functionality: fully functional, machine/vehicle number: 68-3-2329, spindle speed (max.): 855 rpm, spindle speed (min.): 137 rpm, turning length: 225 mm, disc diameter: 317 mm, No reserve price – guaranteed sale to the highest bidder! Bidding obliges the buyer to collect within the timeframe 08.04.26 to 16.04.26. TECHNICAL DETAILS Spindle speed range: 137 – 855 rpm Maximum material feed: 260 mm Maximum turning length: 155/225 mm Drive pulley diameter: 317 mm Drive pulley width: 170 mm MACHINE DETAILS Dimensions & weight Dimensions (L x W x H): 7000 x 2000 x 2500 mm Machine weight: 18 t Operating voltage: 380V Frequency: 50 Hz Rated current: 120 A EQUIPMENT Kwjdpfx Asyk A Htjhwsu Configured for 6 spindles

Condition: ready for operation (used), Year of construction: 1967, functionality: fully functional, machine/vehicle number: 67-3-2142, spindle speed (max.): 855 rpm, spindle speed (min.): 137 rpm, turning length: 225 mm, overall weight: 18,000 kg, disc diameter: 317 mm, No minimum price – sale guaranteed to the highest bidder! Placing a bid commits you to collect within the period from 08.04.26 to 16.04.26. TECHNICAL DETAILS Spindle speed range: 137 - 855 rpm Maximum material feed: 260 mm Maximum turning length: 155/225 mm Drive pulley diameter: 317 mm Drive pulley width: 170 mm MACHINE DETAILS Operating voltage: 380V Frequency: 50 Hz Rated current: 120 A Kwodpeyk Alpsfx Ahwou Dimensions & Weight Dimensions (L x W x H): 7000 x 2000 x 2500 mm Machine weight: 18 t EQUIPMENT Set up for 6 spindles

Condition: used, TECHNICAL DETAILS - Number of spindles : 8 - Number of counter-spindles : 1 - Max. bar feed : 178 [mm] - Number of cross slides : 8 SPINDLES - Max. bar diameter : 32 [mm] - Spindle speeds : 199-2737 [rpm] - Electromagnetic clutch COUNTER-SPINDLE - Counter-spindle position : 7 POWER SUPPLY - Supply voltage : 380 [V] Kwjdpoyh Rnqofx Ahwsu WEIGHT & DIMENSIONS - Machine floor space : 6632 X 1357 [mm] - Machine weight : 7950 [kg] EQUIPMENT - CNC : Fanuc Series 0i-TD - Parts catcher - Coolant tank - Bar loader : IEMCA PRA 40/42F - Bar holder and stand

Condition: used, TECHNICAL DETAILS - maxi bar diameter : 32 [mm] - maxi feed length : 178 [mm] - maxi turning length : 63.5 [mm] - number of spindles : 8 - number of cross slides : 8 - electromagnetic clutch - number of spindle speeds : 26 - spindle speed : 199-2737 [rpm] - independent feeds normal strokes : 73 [mm] - dimensions : 6632 x 1357 [mm] Kwedpfeyh Rm Hex Ahwou - weight : 7950 [kg] EQUIPMENT - Saco hydraulic pick up station 7 - Stock reel and stand - Magnetic swarf conveyor - Fume extractor - Part catcher - End of bar catcher - Part conveyor belt - High pressure pump - Part off toolholder station 7 - Drill holder station 8 - Bracket toolholder for center bloc station 1 - Bracket toilholder and drill holder station 1 - CNC cross slide RTECH position 5 : 2 axis with CNC FANUC Oi-TD command - Barloader IEMCA PRA40/42F

Condition: good (used), Year of construction: 2004, Schütte SF51 6-Spindle Automatic Turning Machine Suitable for complex turning operations in metalworking The Schütte SF 51 is a proven, cam-controlled 6-spindle automatic turning machine with a 51 mm spindle bore, ideal for the efficient series production of turned parts. These robust machines feature an electronic cam switch that offers high process stability and flexibility in turning, drilling, and tapping. The machine is valued for its stability and flexibility in the production of demanding workpieces. Manufacturer: Schütte Type: SF 51 Crank-controlled multi-spindle automatic lathe Number of spindles: 6 main spindles Control: Conventional Spindle bore: 51 mm Maximum feed rate: 125 mm Maximum turning length: 102 mm Kjdpfx Ahsyhpy Ujwjwu Maximum drilling depth: 102 mm Tapping unit Chip conveyor 6-station bar feeder Voltage: 400 V Year of manufacture: 2004 Dismantling and removal by buyer Dismantling by our assembly team is also possible (from €5,000 net) Location: 21079 Hamburg Financing through our bank is also possible. komplett-konzept.leasingo.de Further items – new and used – can be found in our shop! International shipping costs on request!

Condition: good (used), Year of construction: 1979, Schütte SF51 6-Spindle Automatic Turning Machine Suitable for complex turning operations in metalworking The Schütte SF 51 is a proven, cam-controlled 6-spindle automatic turning machine with a 51 mm spindle bore, ideal for the efficient series production of turned parts. These robust machines feature an electronic cam switch that offers high process stability and flexibility in turning, drilling, and tapping. The machine is valued for its stability and flexibility in the production of demanding workpieces. Manufacturer: Schütte Type: SF 51 Crank-operated multi-spindle automatic lathe Number of spindles: 6 main spindles Control: Conventional Spindle bore: 51 mm Kwsdjyhpvpjpfx Ahweu Maximum feed rate: 125 mm Maximum turning length: 102 mm Maximum drilling depth: 102 mm Tapping unit Chip conveyor 6-station bar feeder Voltage: 400 V Year of manufacture: 1979 Dismantling and removal by buyer Dismantling also possible by our assembly team (from €5,000 net) Location: 21079 Hamburg Financing through our bank is also possible. komplett-konzept.leasingo.de Further items - new and used - can be found in our shop! International shipping costs on request!

Condition: good (used), Year of construction: 2000, Schütte SF51 S DNT 6-Spindle Automatic Turning Machine Suitable for high-speed machining, including drilling, milling, and tapping The Schütte SF 51 S DNT is a proven, cam-controlled, 6-spindle automatic turning machine with a 51 mm spindle bore, ideal for the efficient series production of turned parts. These robust machines feature an electronic cam switch, which offers high process stability and flexibility in turning, drilling, and tapping. Ksdpfsyhpq Hex Ahwswu The SF 51 S DNT is characterized by its robust construction and reliability in industrial applications. Manufacturer: Schütte Type: SF 51 S DNT Series: 67-05 Crank-operated multi-spindle automatic bar feeder Number of spindles: 6 main spindles Control: Conventional / electronic cam switch (DNT) Number of spindles: 6 main spindles Spindle bore: 51 mm Gripper for back-loading, sorting chute Independent longitudinal feed, position 5 Thread cutting couplings 1 CNC cross slide Coolant high-pressure pump Coolant system Screw chip conveyor Voltage: 400 V Year of manufacture: 2000 Dismantling and removal by buyer Dismantling also possible by our assembly team (from €5,000 net) Location: Hamburg Financing through our bank is also possible. komplett-konzept.leasingo.de More items - new and Used items - find them in our shop! International shipping costs on request!

Condition: ready for operation (used), Year of construction: 2002, spindle speed (max.): 6,000 rpm, controller manufacturer: SIEMENS, controller model: SINUMERIK 840C, number of axes: 12, This 12s Index MS42C multi-spindle turning machine was manufactured in 2002. It features a maximum bar diameter of 42 mm and a spindle speed of approximately 5,000 rpm, making it suitable for high-quality turning capabilities. Consider the opportunity to buy this Index MS42C multi-spindle turning machine. Contact us for further details. • Maximum bar diameter: 42 mm • Number of spindles: 6 Kjdpfx Ajyhpgujhwewu • Spindle pitch circle diameter: approx. 320 mm • Number of CNC axes: 12 linear axes (6 × X, 6 × Z) • Axis configuration: X/Z per spindle station • Control system: Siemens SINUMERIK 840C (INDEX OEM) • Drive system: AC servo drives with SERCOS interface • Automation level: Fully automatic • Cooling system: Central coolant system • Lubrication system: Central automatic lubrication • Installed power: approx. 70–75 kW • Typical materials: Steel, stainless steel, aluminum, brass

Condition: ready for operation (used), Year of construction: 1998, controller manufacturer: SIEMENS, controller model: SINUMERIK 840C, number of axes: 12, This 12s Index MS42C was manufactured in 1998. It features a maximum bar diameter of 42 mm and operates with a fully automatic system, making it suitable for high-volume precision turned parts. The machine is equipped with a Siemens SINUMERIK 840C control system and AC servo drives, ensuring efficient performance. Consider the opportunity to buy this Index MS42C automation equipment. Contact us for further details. • Maximum bar diameter: 42 mm • Number of spindles: 6 • Spindle pitch circle diameter: approx. 320 mm • Maximum spindle speed: approx. 5,000 rpm • Number of CNC axes: 12 linear axes (6 × X, 6 × Z) • Axis configuration: X/Z per spindle station • Control: Siemens SINUMERIK 840C (INDEX OEM integration) • Drive system: AC servo drives with SERCOS interface • Automation level: Fully automatic • Operating mode: Continuous production (24/7 capable) • Cooling: Central coolant system • Lubrication: Central automatic lubrication • Electrical supply: 3-phase industrial power • Installed power: approx. 70–75 kW (configuration dependent) • Machine construction: Rigid cast iron base Kwodpfx Aeyhf N Ejhwju • Typical materials: Steel, stainless steel, aluminum, brass • Typical applications: High-volume precision turned parts

Condition: used, Year of construction: 1996, Technical details: number of spindles: 8 Kwsdpfjydnglox Ahwou spindle passage: 32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 S Dnt Yob: 1996 Eight-spindle automatic lathe with 8 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling configurable as 2x4 spindles, pick up preparing in positions 4 and 8 Thread cutting couplings Electronic cross slide adjustment in positions 1, 2, 5, 6; 2 independent feeds Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA40/42/P) Coolant tank with hinged chip conveyor Control: Siemens S7-300 PLC Display device: Siemens Simatic HMI Delivery without BDE Tooling included in the scope of delivery may differ from the images Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, total width: 45,000 mm, total length: 19,900 mm, total height: 23,000 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, bar length: 600 mm, CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Spindle bore diameter 65 mm Spindle speed 5.000 R/min Spindle motor 25/20 kW Kedoyddv Ajpfx Ahwowu Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Z-axis movement 220 / 150 / 650 mm W-axis movement (subspindle to mainspindle) 690 mm C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, total width: 45,000 mm, total length: 19,900 mm, total height: 23,000 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, bar length: 600 mm, CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Spindle bore diameter 65 mm Ksdpfoyddvvex Ahwowu Spindle speed 5.000 R/min Spindle motor 25/20 kW Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Z-axis movement 220 / 150 / 650 mm W-axis movement (subspindle to mainspindle) 690 mm C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: good (used), Year of construction: 2015, Ref. -No.: 10421 Manufacturer: SCHüTTE Type: SF 26 Kwsdpfx Ajycpwpjhwsu Year of construction: 2015 Storage location: Halberstadt Country of origin: Germany Serial no.: 3 Power consumption: 35 kW Weight Of The Machine Ca.: 6,6 t

Condition: like new (used), Year of construction: 2015, Pick-up Threading device No. 04 turning slides Ksdpfxeyck Rdo Ahwswu Integrated loader Cucchi BLT model MULTI-6, year 2016

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, Conveyor; Pick-up; Threading device; Combing device; 4 cross slides positions 1, 2, 4, 5; Integral loader Cucchi BLT compact version model MULTI L-6 year 2019 (diameter 38 mm); Tool holder, cams Ksdpfxjya Aq Ds Ahwjwu

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, number of spindles: 2, spindle speed (max.): 6,500 rpm, travel distance X-axis: 840 mm, travel distance Z-axis: 425 mm, Auction of a production line with robot and two workpiece palletizers! TECHNICAL DETAILS Kwodpfx Ahoyap Naswju X-axis travel: max. 840 mm Z-axis travel: max. 425 mm Feed diameter: max. 200 mm Spindle speed: 6,500 rpm Workpiece palletizer capacity: 24 workpiece carriers Number of main spindles: 2 Number of tool turrets: 2 Number of tools per turret: 12 MACHINE DETAILS High-pressure pump: up to 120 bar per line Machine weight: 8,000 kg Cooling: spindle and machine bed cooling EQUIPMENT Robot M6iB Workpiece shuttle system by Heilig Automation with 2 pick-up stations High-pressure pump up to 120 bar per line Chip crusher Workpiece palletizer with a capacity for 24 workpiece carriers

Condition: good (used), Year of construction: 1998, 4196 GM 25: Bar feeder year 2001 / GM 25 year 1991 3330 AS 25: Bar feeder year 2001 / GM 25 year 1969, completely overhauled in 1992 Kjdjx S E Svepfx Ahwewu 4423 GM 26: Bar feeder year 1998 / GM 26 year 1998 4283 GM 26: Bar feeder year 2000 / GM 26 year 1995
