Dielen CNC B.V.

Condition: good (used), Year of construction: 2014, spindle speed (min.): 2,500 rpm, Year of manufacture: 2014 Ndsdjx N A Ebopfx Af Sjf Chuck diameter: 10" Number of axes: 3 Swing over bed: 250 mm Spindle speed (rpm): 2500 Machinable materials: Steel, Aluminum, Titanium, Graphite, Copper, Invar, Composite, Derlin, Peek

Condition: good (used), Year of construction: 2001, spindle speed (min.): 2,500 rpm, Model Year: 2001 Nsdpfx Afsx N A Dwo Sodf Chuck Diameter: 10" Number of Axes: 2 Length: 650 mm Swing Diameter: 650 mm Spindle Speed (RPM): 2500 Machinable Materials: Steel, Aluminum, Titanium, Graphite, Copper, Invar, Composite, Delrin, PEEK

Condition: good (used), Year of construction: 2010, spindle speed (min.): 1,500 rpm, travel distance Z-axis: 650 mm, Model Year: 2010 Chuck Diameter: 17" Number of Axes: 2 Length: 650mm Spindle Bore Diameter: 650mm Spindle Speed (RPM): 1500 Machinable Materials: Steel, Aluminum, Titanium, Graphite, Copper, Invar, Composite, Derlin, Peek Nedox N A A Topfx Af Sjdf

Condition: good (used), Year of construction: 2004, spindle speed (min.): 3,500 rpm, travel distance Z-axis: 1,000 mm, Model Year: 2004 Chuck Diameter: 12" Ndodpfxex Nvpae Af Ssf Number of Axes: 2 Length: 1000 mm Swing Over Bed: 350 mm Spindle Speed (RPM): 3500 Processable Materials: Steel, Aluminum, Titanium, Graphite, Copper, Invar, Composite, Delrin, Peek

Condition: used, Year of construction: 1990, controller manufacturer: MAZATROL, controller model: T32-2, number of spindles: 1, CONTROLS .. CNC controls MAZATROL T32-2 BASIC FUNCTIONS .. number of spindles: 1 .. number of turrets: 1 .. live positions: no WORKING RANGE TURNING .. swing diameter (max): 440 mm .. turning diameter (max): 225 mm .. bar diameter (max): 51 mm .. worpiece length max.: 440 mm MAIN SPINDLE .. spindle revolutions (min): 45 /min .. spindle revolutions (max): 4500 /min .. spindle diameter: 61 mm X/Z SLIDE .. rapid traverse Z: 30000 mm/min .. rapid traverse X: 30000 mm/min .. tool fixture: Turret .. number of tool positions (total): 12 X SLIDE .. X-axis travel: 220 mm ELECTRICAL SPECIFICATIONS .. mains voltage: 400 V .. mains frequency: 50 Hz Ndsdpfx Aex Nvncjf Ssf DIMENSIONS / WEIGHTS .. space requirements -left/right-: 2500 mm .. space requirements -front/back-: 2600 mm .. total height: 1800 mm .. total weight approx.: 4300 kg ATTACHMENTS (TURNING) .. tailstock: yes .. chip conveyor: no .. coolant unit: yes

Condition: ready for operation (used), Year of construction: 1987, turning length: 260 mm, turning diameter: 180 mm, Fanuc OT 10-position turret Nodpfjx Ikunsx Af Ssdf maximum spindle speed 4500 rpm weight 2300 kg

Condition: good (used), turning length: 500 mm, turning diameter: 300 mm, spindle bore: 62 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 210 mm, travel distance Z-axis: 520 mm, Mori Seiki SL-15 CNC Turning Center Machine Type: CNC Turning Center (2-Axis) Serial Number: 1899 Control System: Mori Seiki MSC-516 Maximum Turning Diameter: approx. 300 mm Maximum Turning Length: approx. 500 mm Swing Over Bed: approx. 510 mm Axis Travels X-Axis Travel: approx. 210 mm Nsdpfjx Hp Ikox Af Sjdf Z-Axis Travel: approx. 520 mm Spindle Nose: A2-6 Spindle Bore: approx. 62 mm Maximum Spindle Speed: approx. 4,000 rpm Spindle Motor Power: approx. 11 / 15 kW Tool Turret: 12-Station Tool Size: 25 × 25 mm Equipment & Features Hydraulic Tailstock Tool Presetter 6.5" 3-Jaw Power Chuck Coolant System Machine Weight: approx. 4,000 kg Machine Dimensions (L × W × H): approx. 2,700 × 1,600 × 1,700 mm

Condition: good (used), Heid S-200 CNC Lathe Manufacturer: Heid Type: S 200 Machine Type: CNC Lathe Tailstock Travel: 175 mm Tailstock Spindle Taper: Morse Taper: MT4 Quad Stroke: 140 mm Quad Diameter: 95 mm Driving Force: 17 kN Power Supply: 50 Hz, 3x: 380 V Total Power Requirement: 65 kVA Spindle Speeds: Infinitely Variable from 0 rpm to 4000 rpm Spindle Bore: 77 mm Tool Shank Cross-Section: 25x25 mm Swing Diameter over Bed: 420 mm Nedex Elw Eopfx Af Sjdf Maximum Swing Diameter: 250 mm Turntable Slide: Longitudinal Travel (Z-Axis): 1150 mm Cross Travel (X-Axis): 230 mm You can find more items – new and used – in our Shop! International shipping costs on request!

Condition: good (used), Year of construction: 1992, functionality: fully functional, machine/vehicle number: 5088, spindle bore: 25 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 60 rpm, total height: 1,300 mm, total length: 1,200 mm, total width: 800 mm, overall weight: 700 kg, WEILER PRIMUS GS Lead and Feed Screw Lathe - Operating voltage: 380 V - Control voltage: 220 V - Power connection: 2 kW - Rated current: 4.1 A Nedpfox Ekm Eox Af Sedf - Frequency: 50 Hz - Distance between centers: 450 mm - Center height over bed: 130 mm - Swing over bed: 260 mm - Center height over cross slide: 70 mm - Swing over cross slide: 140 mm The machine is equipped with a tailstock, a Multifix quick-change tool post, and a three-jaw chuck by RÖHM, diameter 120 mm. Comes complete with a matching workshop cabinet and appropriate accessories. This item comes from a training workshop. FCA D-73235 Weilheim Teck, loaded onto truck.

Condition: excellent (used), Year of construction: 2020, turning diameter: 200 mm, spindle speed (max.): 4,500 rpm, travel distance X-axis: 160 mm, travel distance Z-axis: 230 mm, 4-Spindle, 2-Turret CNC Lathe KITAKO SHIMADA HS4200, Year 2020, Fanuc-0iTF control, Max. working diameter 200mm. Ndjdpfx Afex Eht Tj Sof

Condition: not inspected (used), Year of construction: 1989, We are offering the following as part of an insolvency sale: 2 x CNC lathes (1 x with sub-spindle, 1 x with lower turret), used + Bar feeder + Accessories Ndsdpfxox Ed A Ds Af Sef 1. CNC lathe with sub-spindle Make: MIYANO Model: BNC 34-S Year: 1989 Control: Fanuc 0-T - HYDROBAR bar feeder - 2 x collet chucks - 1 x 3-jaw chuck 2. CNC lathe with 2 x turrets Make: MIYANO Model: JNC 45-T Year: 1989 Control: Fanuc 0-T - HYDROBAR bar feeder - 1 x collet chuck - 1 x 3-jaw chuck 3. Accessories - Approx. 65 x collets - Approx. 40 x jaw sets - Various tool holders + tools - Documentation The machines are untested, but they were in operation until decommissioning. Sale is ex-location; loading can be provided at extra cost.

Condition: excellent (used), operating hours: 8,500 h, functionality: fully functional, * Muratec MT 25 MC. * Extremely well equipped, equipment value: €30,000–35,000. * 7 controlled axes machine. * Twin spindles. * Two turrets. * Each turret with 15 positions, all motorized. * Live tooling, C axis. * Integrated spindle motor, 15 kW. * Spindle motor starting torque: 420 Nm. * Live tool drive motor: 4 kW. * Spindle nose size: A2-6. Ndodex Ab N Ajpfx Af Sef * Maximum machining diameter: 370 mm. * Maximum machining length: 920 mm. * Bar capacity: 65 mm. * Box way guides on all axes. * Two 250 mm hydraulic chucks per spindle, metric system. * Automatic finished parts catcher arm. * Automatic secondary spindle cleaning with air or coolant. * Conveyor belt for finished parts. * Interface for bar feeder. * Multifeed bar loader, 1.5 meters. * Automatic load monitoring and tool consumption monitor. * Part transfer system between spindles with automatic torque control. * Fanuc CNC. * Fanuc motors and servos. * Rapid traverse speeds: 20 and 25 m/min. * Main spindle speed: 3,500 rpm. * Live tool speed: 3,000 rpm. * Turret index time: 0.2 seconds. * Rear chip conveyor, hinged type. * Complete set of external and internal static tool holders included. * Complete set of axial and radial live tool holders included (valued at €13,000). * Machine currently in operation. * Weight: 10,800 kg. * Immediate delivery unless previously sold.

Condition: used, TECHNICAL DETAILS - Number of axes : 2 MAIN SPINDLE - Spindle nose : A2-6" - Spindle power : 11 [kW] - Spindle speeds : 50- 6.000 [rpm] - Max. bar diameter : 60 [mm] - Max. turning diameter : 430 [mm] - Max. diameter on bench : 580 [mm] - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 12 - Z stroke : 390 [mm] - X stroke : 260 [mm] - Tool type : V12 POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 38 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.200 x 1.734 [mm] - Machine height : 1.839 [mm] - Machine weight : 3.400 [kg] MACHINE HOURS - Number of hours under power : 23.682 [h] - Number of working hours : 11.795 [h] - Number of spindle hours : 7.225 [h] Ndodpfexz Hrgox Af Sof EQUIPMENT - CNC : OKUMA OSP-P200 LA - Interface : Ethernet / RS232 / USB - Interactive programming : Advanced One Touch IGF-L V302A - 3 colors status lamp - Coolant tank - Chips conveyor : Droite MAYFRAN - Tool probe : manuel - Parts catcher - Bar loader : FMB 5-55 /3200 - Electric transformer - Collet chuck : Nann KSF 40/6 -6000 t/min - Collet chuck : TYPE 173E/48F Ø de barre max 42 mm

Condition: good (used), Year of construction: 2020, 400mm swing, Ndedpfxexy Rt Se Af Sjf 220mm max diameter, 490mm between Centres, Siemens 828 Control, 65mm bar capacity, 12 station VDI30 turret, 17kW Spindle Motor, Spindle Speed 4000rpm, 0.001 degree C axis, +/- 35mm Y axis, 3 jaw power chuck, low volt light, coolant, Tool setter, Tailstock, swarf conveyor

Condition: used, Year of construction: 2000, machine/vehicle number: 202000, Hegenscheidt MFD 7893 CNC Deep Rolling Machine Ndodpfx Afoxxylus Sof max length 920mm, max radius of counter weight (deending on dtroke and bearing width) 195 - 270mm, max 8 main + 6 pin bearings, min/max main bearing dia 33 - 88mm, min/max pin bearing dia 30 - 84mm, max bearing width 18,5mm, max stroke 140mm, CNC SIEMENS SINUMERIK 840D, 400V 50Hz 35kVA, weight 13to

Condition: excellent (used), Year of construction: 2013, CNC lathe DMC Korea model Q6 year of manufacture: 2013 chuck: 6 inches max turning diameter: 170 mm max turning length: 240 mm Ndjdpfjxxb Scox Af Sof spindle bore: 44 mm weight: 2,500 kg dimensions: 2370x1430 mm machine height: 1640 mm

Condition: used, Year of construction: 2008, LATHE MIND MACH 225 YEAR OF FIRST INSTALLATION: 2008 CNC FANUC 0i Series Mate - TC MAX. PERMISSIBLE DIAMETER: 420 mm Nedpfx Ajxw Ebrjf Sedf MAX. PERMISSIBLE DIAMETER OVER CARRIAGE: 330 mm MAX. TURNABLE DIAMETER: 250 mm BAR CAPACITY: 52 mm SPINDLE SPEED: 4,500 RPM ASA – 6 SELF-CENTERING CHUCK: 210 mm TRAVEL: X: 180 mm Z: 370 mm TOOL TURRET: 10 POSITIONS POWER (KW): 11/15 WEIGHT: 3,200 kg CHIP CONVEYOR

Condition: used, Year of construction: 2006, BIGLIA B 301 M LATHE Max. bar working diameter: 42 mm Max. chuck working diameter: 220 mm Max. working length: 380 mm Nsdpfx Aoxw Eabef Sjdf Max. swing diameter: 400 mm MAIN SPINDLE: Variable speed range: 100-5000 rpm Spindle nose: ASA 5" Spindle bore: 55 mm Front bearing inner diameter: 90 mm Chuck diameter: 165/210 mm Motor power: 11-15 kW (50%) TURRET: Number of positions: 12 Type: bidirectional External tool shank: 20x20 mm Boring bar shank: Ø25, Ø32 mm Indexing time (1 position): 0.15 sec LIVE TOOLS: Number of positions: 12 Variable speed range: 50-4000 rpm Motor power: 3.7 kW (50%) HYDRAULIC TAILSTOCK: Automatic quill stroke: 100 mm Morse taper: No. 4-5 Manual positioning: 380 mm AXES: X axis travel: 160 mm (145+15) Z axis travel: 380 mm (360+20) B axis travel: 440 mm DIMENSIONS – WEIGHT: Overall size with chip conveyor: 3500 x 1754 x 1935 mm (H) Weight with chip conveyor: 3550 kg

Condition: good (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 15KX239200001, Technical specifications: Work Area - Maximum turning diameter: 210 mm - Maximum machining diameter: 200 mm - Maximum workpiece length: 220 mm - X1/X2 axis travel: 220 mm / Rapid traverse in X: 24 m/min - Z1/Z2 axis travel: 220/770 mm / Rapid traverse in Z: 36 m/min - Y1/Y2 axis travel: +/-40 mm / Rapid traverse in Y: 12 m/min Automation: - Axis strokes: X - 210 mm; Y - 680 mm; Z - Left 2080 mm / Right 3360 mm; α 270˚ - Maximum speeds (m/min): X - 35; Y - 120; Z - 160; α 270˚/1.5 sec - Load/unload gripper specifications (pneumatically powered): Outer diameter up to Ø170 mm; jaw stroke 30 mm; gripping force: external 128 kgf / internal 138 kgf Main Spindle: - Spindle nose: A8 - Maximum speed: Left 5000 rpm / Right 5000 rpm - Power at 100% duty cycle: Left - 15 kW / Right - 7.5 kW - Bar capacity: left spindle - 65 mm / right spindle - not available Tool Turret with Driven Tools: - Tool interface: BMT55 - Number of positions: 15 upper / 12 lower station turret, all driven positions - Maximum speed: 4500 rpm; Milling motor power: 4.5 kW Electrical Equipment: - Operating voltage: 200V, 3-phase, 151A fuse - Connected load: 55 kVA Dimensions: - Machine dimensions (L×W×H): 3200 × 2200 × 3500 mm - Weight: 10,500 kg Main Features and Capabilities: - Horizontal design: Optimal chip removal, gantry loading/unloading from conveyors - Automation includes: Gantry robot + 2 loading/unloading conveyors - CNC control: Fanuc FS31i Model A Series - Chip removal conveyor - Coolant filtration 40 bar max: Filber S.L. FTH5/10, 200 l/min - In-process control: Marposs T25 - Broken tool detection system: Peek tool menu Murata/Fanuc feature enabled Ndsdexwuhuspfx Af Sjf - Part detection through spindle: Low pressure compressed air sensors - Bar feeder interface max Ø65 mm - Documentation: Electronic and hard copy available Machine condition: OPERATIONAL

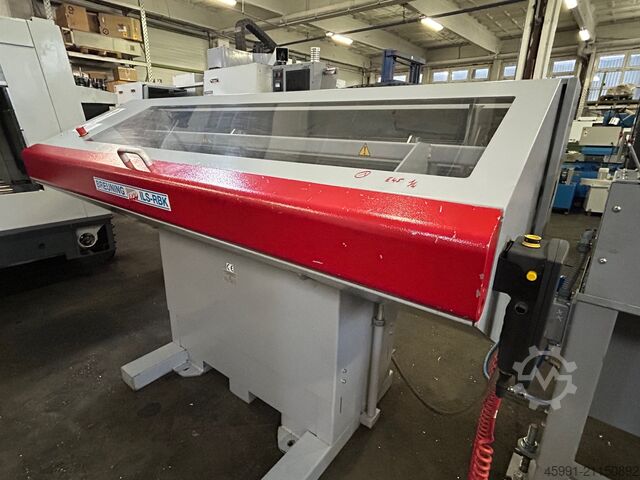

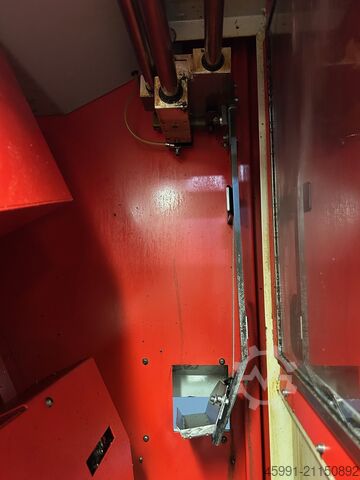

Condition: ready for operation (used), Year of construction: 2007, operating hours: 6,615 h, functionality: fully functional, machine/vehicle number: R2EV3403, turning length: 310 mm, turning diameter: 220 mm, spindle speed (max.): 6,300 rpm, turning diameter over bed slide: 430 mm, bar passage: 45 mm, TECHNICAL DETAILS Work Area Swing over bed: 430 mm Max. turning diameter: 220 mm Max. turning length: 310 mm Max. bar capacity: 45 mm Distance between centers: 687 mm Carriage Travel X-axis travel: 160 mm Z-axis travel: 310 mm Main Spindle Spindle nose to DIN: 55026 KK5 Front spindle bearing diameter: 80 mm Hollow clamping cylinder max. through bore: 45 mm Max. chuck size: 160 mm Speed range (infinitely variable): 0–6,300 rpm Max. torque: 78 Nm C Axis (Rotary Axis) Resolution: 0.001° Spindle indexing (disc brake, for driven tools): 0.01° Feed Drives Feed force X: 4 N Feed force Z: 6 N Rapid traverse speed X: 20 m/min Rapid traverse speed Z: 24 m/min Acceleration time from 0 to rapid traverse X/Z: 0.2 s Positioning spread P₉ as per VDI 3441 in X/Z: 3 / 3 µm Tool System Tool holders to DIN: 69880 VDI30 Tool cross section for square shank tools: 20 x 20 mm Shank diameter for boring bars: Ø32 mm Number of tool stations / powered (option): 12 / 6 Turret indexing time: 0.14 s MACHINE DETAILS Total power requirement: 17 kW Dimensions & Weight Footprint: 2.25 x 1.63 x 1.94 m Machine weight: 3.3 t Operating hours: 6,615 h Ndedjxvrv Tepfx Af Ssf EQUIPMENT - Integrated holding brake for driven tools - Disc turret with direction logic - AC motors on X and Z axes

Condition: excellent (used), Year of construction: 2005, operating hours: 1,963 h, functionality: fully functional, machine/vehicle number: 69724, type of input current: three-phase, Please message us with any questions we are aware there is limited information provided. Nodpsxvp E Ejfx Af Sodf

Condition: excellent (used), Year of construction: 2011, EMCOturn E45 CNC lathe with C-axis Year: 2011 turning diameter 220 mm turning length 310 mm control Siemens 828D turning diameter over bed 430 mm spindle bore 45 mm spindle tunring speed 6.300 U/min x-travel 160 mm z-travel 310 mm number of tool places 12 Positions C-axis driven tools total power requirement 17 kW Transport dimensions ca. 3,3 x 1,5 x 1,95 m machine weight ab. ca. 3.300 kg Accessories/options: - C-axis and driven tools - driven tool holders axial and radial Njdpfjxvcrxox Af Sedf - static tool holders - documentations - backup - footpedal - tailstock - parts cather - 3-jaw hydraulic chuck - coolant tank Runned hours: 8173 Under power in our warehouse!

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 286964, travel distance X-axis: 200 mm, travel distance Z-axis: 300 mm, overall weight: 5,000 kg, controller model: MAZATROL SMOOTH C, Equipment: chip conveyor, The payment deadline for the machine is 04.12.2025! Placing a bid obligates the buyer to collect the machine within the specified timeframe between 10.12.2025 and 12.12.2025! The machine can be inspected on 25.11.2025! TECHNICAL DETAILS Travel Distance X-Axis: 200 mm Travel Distance Z-Axis: 300 mm Control System: MAZATROL SMOOTH C MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 4,000 x 2,500 x 2,000 mm Total Weight: 5,000 kg Electrical Data Operating Voltage: 400 V Frequency: 50-60 Hz Rated Current: 46 A Connection Load: 26.1 kVA EQUIPMENT 12-position tool turret Nedpexvbdgsfx Af Sedf Three-jaw chuck (diameter: 160 mm) Sorting unit with vibratory head from manufacturer GRIMM Chip conveyor Cooling system

Condition: used, Year of construction: 2011, turning diameter 200 mm control DMG Ndsdoxuv Scopfx Af Sef weight of the machine ca. 5200 kg

Condition: used, Year of construction: 2007, turning diameter 246 mm turning length 445 mm Ndodpfxexuv R Se Af Sjf control Fanuc 32 weight of the machine ca. 4250 kg
