Condition: ready for operation (used), Year of construction: 2006, spindle speed (max.): 6,300 rpm, number of axes: 12, This 12s Index MS32C multi-spindle turning machine was manufactured in 2006. It features a maximum bar diameter of 32 mm and a maximum spindle speed of 6,300 rpm. The machine is equipped with a Siemens 840D CNC control and includes a bar loader, coolant tank, and chip conveyor. If you are looking to get high-quality turning capabilities, consider the Index MS32C machine we have for sale. Contact us for further details. • Number of spindles: 6 • Max. bar diameter: 32 mm • Slide units 1.1–6.2: CNC-controlled X and Z axes • Synchronous unit at spindle position 6.1 • Counter spindle • CNC control: Siemens 840D with control panel and 2× NCU Ijdpfxeylk R Aj Ahwetc Additional equipment • Bar loader: IEMCA SIR MS32 F • Coolant tank: KNOLL, with high-pressure pump • Chip conveyor: KNOLL • Cooling unit (chiller): Riedel WTS 030.02-NE • Unloading system with 2 CNC axes • Fire extinguishing system: KRAFT UND BAUER

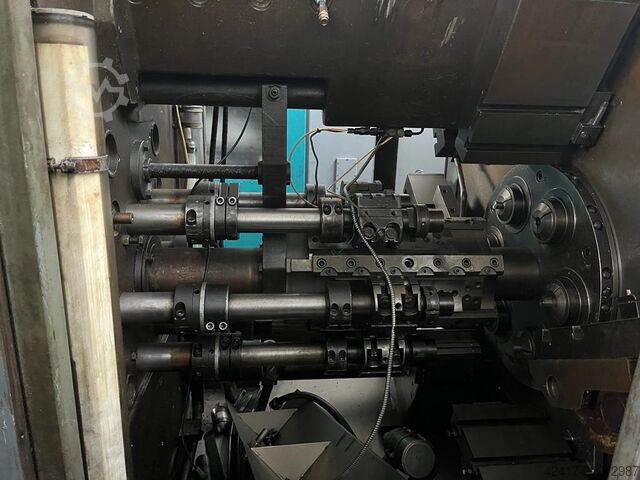

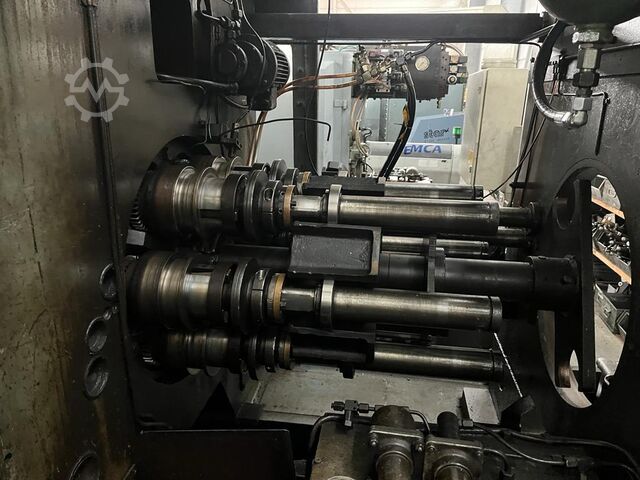

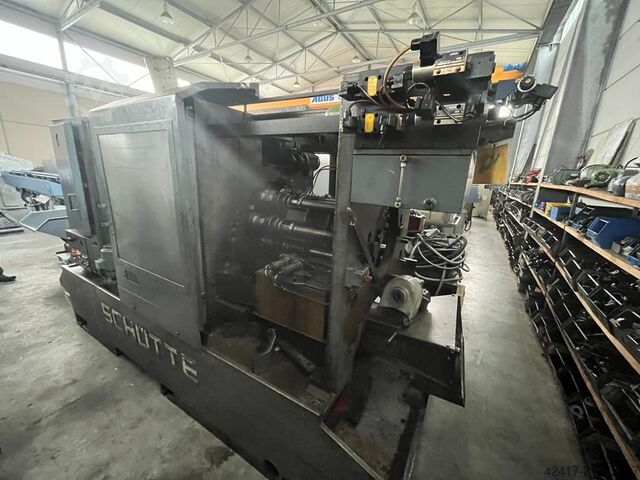

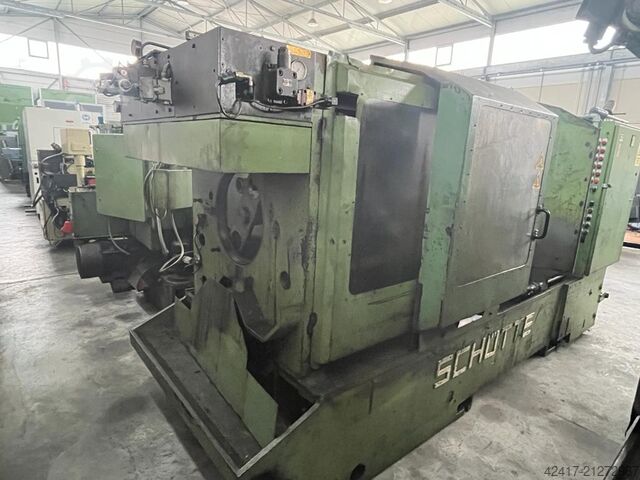

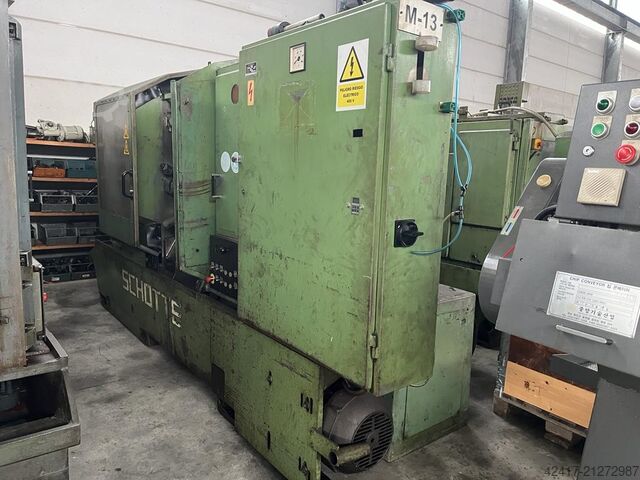

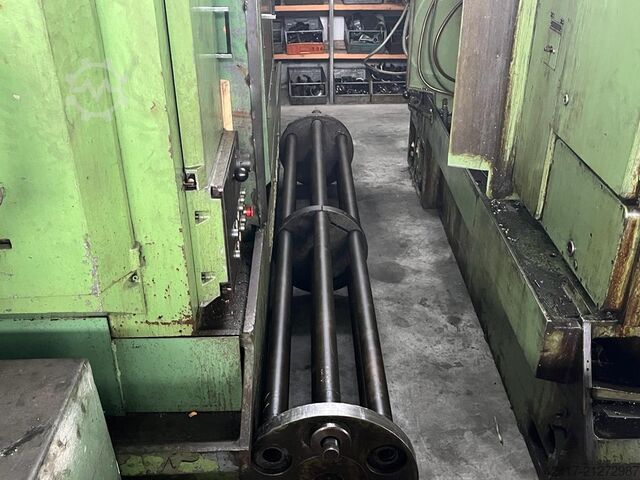

Condition: repair required (used), 3x SCHÜTTE SF40 offered as a package at a low price – machines require overhaul Itsdpeylhp Nsfx Ahwoc

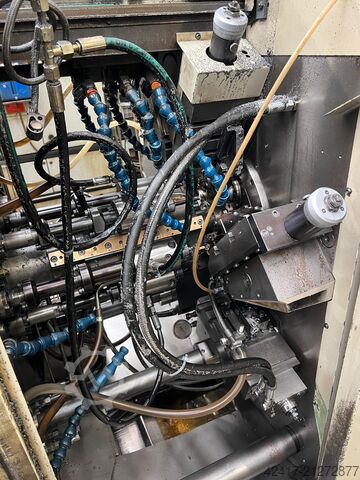

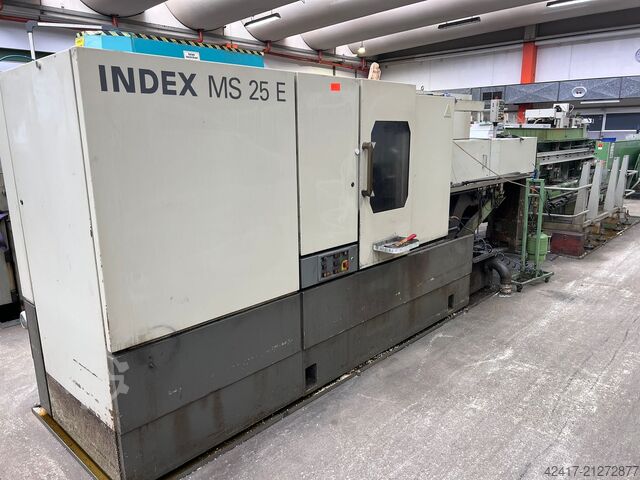

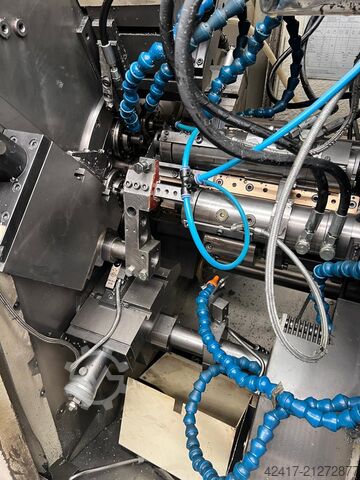

Condition: used, 2x 6-spindle bar automatics as a package Make: INDEX Model: MS25E (1 machine defective, used as a parts donor) Itsdpeylhlqjfx Ahwoc

Condition: ready for operation (used), Year of construction: 1967, functionality: fully functional, machine/vehicle number: 68-3-2329, spindle speed (max.): 855 rpm, spindle speed (min.): 137 rpm, turning length: 225 mm, disc diameter: 317 mm, No reserve price – guaranteed sale to the highest bidder! Bidding obliges the buyer to collect within the timeframe 08.04.26 to 16.04.26. TECHNICAL DETAILS Itedpsyk A Htofx Ahwsc Spindle speed range: 137 – 855 rpm Maximum material feed: 260 mm Maximum turning length: 155/225 mm Drive pulley diameter: 317 mm Drive pulley width: 170 mm MACHINE DETAILS Dimensions & weight Dimensions (L x W x H): 7000 x 2000 x 2500 mm Machine weight: 18 t Operating voltage: 380V Frequency: 50 Hz Rated current: 120 A EQUIPMENT Configured for 6 spindles

Condition: ready for operation (used), Year of construction: 1967, functionality: fully functional, machine/vehicle number: 67-3-2142, spindle speed (max.): 855 rpm, spindle speed (min.): 137 rpm, turning length: 225 mm, overall weight: 18,000 kg, disc diameter: 317 mm, No minimum price – sale guaranteed to the highest bidder! Itsdpfoyk Alpsx Ahwec Placing a bid commits you to collect within the period from 08.04.26 to 16.04.26. TECHNICAL DETAILS Spindle speed range: 137 - 855 rpm Maximum material feed: 260 mm Maximum turning length: 155/225 mm Drive pulley diameter: 317 mm Drive pulley width: 170 mm MACHINE DETAILS Operating voltage: 380V Frequency: 50 Hz Rated current: 120 A Dimensions & Weight Dimensions (L x W x H): 7000 x 2000 x 2500 mm Machine weight: 18 t EQUIPMENT Set up for 6 spindles

Condition: used, TECHNICAL DETAILS - Number of spindles : 8 - Number of counter-spindles : 1 Itjdpfxjyh Rnqe Ahwec - Max. bar feed : 178 [mm] - Number of cross slides : 8 SPINDLES - Max. bar diameter : 32 [mm] - Spindle speeds : 199-2737 [rpm] - Electromagnetic clutch COUNTER-SPINDLE - Counter-spindle position : 7 POWER SUPPLY - Supply voltage : 380 [V] WEIGHT & DIMENSIONS - Machine floor space : 6632 X 1357 [mm] - Machine weight : 7950 [kg] EQUIPMENT - CNC : Fanuc Series 0i-TD - Parts catcher - Coolant tank - Bar loader : IEMCA PRA 40/42F - Bar holder and stand

Condition: used, TECHNICAL DETAILS - maxi bar diameter : 32 [mm] - maxi feed length : 178 [mm] - maxi turning length : 63.5 [mm] - number of spindles : 8 - number of cross slides : 8 - electromagnetic clutch - number of spindle speeds : 26 - spindle speed : 199-2737 [rpm] - independent feeds normal strokes : 73 [mm] - dimensions : 6632 x 1357 [mm] - weight : 7950 [kg] Iedpfx Ahjyh Rm Hjwotc EQUIPMENT - Saco hydraulic pick up station 7 - Stock reel and stand - Magnetic swarf conveyor - Fume extractor - Part catcher - End of bar catcher - Part conveyor belt - High pressure pump - Part off toolholder station 7 - Drill holder station 8 - Bracket toolholder for center bloc station 1 - Bracket toilholder and drill holder station 1 - CNC cross slide RTECH position 5 : 2 axis with CNC FANUC Oi-TD command - Barloader IEMCA PRA40/42F

Condition: good (used), Year of construction: 2004, Schütte SF51 6-Spindle Automatic Turning Machine Suitable for complex turning operations in metalworking The Schütte SF 51 is a proven, cam-controlled 6-spindle automatic turning machine with a 51 mm spindle bore, ideal for the efficient series production of turned parts. These robust machines feature an electronic cam switch that offers high process stability and flexibility in turning, drilling, and tapping. The machine is valued for its stability and flexibility in the production of demanding workpieces. Manufacturer: Schütte Type: SF 51 Crank-controlled multi-spindle automatic lathe Number of spindles: 6 main spindles Control: Conventional Spindle bore: 51 mm Maximum feed rate: 125 mm Maximum turning length: 102 mm Maximum drilling depth: 102 mm Tapping unit Chip conveyor 6-station bar feeder Voltage: 400 V Year of manufacture: 2004 Iedpfxoyhpy Us Ahwetc Dismantling and removal by buyer Dismantling by our assembly team is also possible (from €5,000 net) Location: 21079 Hamburg Financing through our bank is also possible. komplett-konzept.leasingo.de Further items – new and used – can be found in our shop! International shipping costs on request!

Condition: good (used), Year of construction: 1979, Schütte SF51 6-Spindle Automatic Turning Machine Suitable for complex turning operations in metalworking The Schütte SF 51 is a proven, cam-controlled 6-spindle automatic turning machine with a 51 mm spindle bore, ideal for the efficient series production of turned parts. These robust machines feature an electronic cam switch that offers high process stability and flexibility in turning, drilling, and tapping. The machine is valued for its stability and flexibility in the production of demanding workpieces. Manufacturer: Schütte Type: SF 51 Crank-operated multi-spindle automatic lathe Number of spindles: 6 main spindles Control: Conventional Spindle bore: 51 mm Maximum feed rate: 125 mm Maximum turning length: 102 mm Maximum drilling depth: 102 mm Tapping unit Chip conveyor 6-station bar feeder Voltage: 400 V Year of manufacture: 1979 Dismantling and removal by buyer Dismantling also possible by our assembly team (from €5,000 net) Location: 21079 Hamburg Iedpfxsyhpvpe Ahwetc Financing through our bank is also possible. komplett-konzept.leasingo.de Further items - new and used - can be found in our shop! International shipping costs on request!

Condition: good (used), Year of construction: 2000, Schütte SF51 S DNT 6-Spindle Automatic Turning Machine Suitable for high-speed machining, including drilling, milling, and tapping The Schütte SF 51 S DNT is a proven, cam-controlled, 6-spindle automatic turning machine with a 51 mm spindle bore, ideal for the efficient series production of turned parts. These robust machines feature an electronic cam switch, which offers high process stability and flexibility in turning, drilling, and tapping. The SF 51 S DNT is characterized by its robust construction and reliability in industrial applications. Manufacturer: Schütte Type: SF 51 S DNT Series: 67-05 Crank-operated multi-spindle automatic bar feeder Number of spindles: 6 main spindles Control: Conventional / electronic cam switch (DNT) Number of spindles: 6 main spindles Spindle bore: 51 mm Itsdpfx Aheyhpq Howoc Gripper for back-loading, sorting chute Independent longitudinal feed, position 5 Thread cutting couplings 1 CNC cross slide Coolant high-pressure pump Coolant system Screw chip conveyor Voltage: 400 V Year of manufacture: 2000 Dismantling and removal by buyer Dismantling also possible by our assembly team (from €5,000 net) Location: Hamburg Financing through our bank is also possible. komplett-konzept.leasingo.de More items - new and Used items - find them in our shop! International shipping costs on request!

Condition: ready for operation (used), Year of construction: 2002, spindle speed (max.): 6,000 rpm, controller manufacturer: SIEMENS, controller model: SINUMERIK 840C, number of axes: 12, This 12s Index MS42C multi-spindle turning machine was manufactured in 2002. It features a maximum bar diameter of 42 mm and a spindle speed of approximately 5,000 rpm, making it suitable for high-quality turning capabilities. Consider the opportunity to buy this Index MS42C multi-spindle turning machine. Contact us for further details. • Maximum bar diameter: 42 mm • Number of spindles: 6 • Spindle pitch circle diameter: approx. 320 mm • Number of CNC axes: 12 linear axes (6 × X, 6 × Z) • Axis configuration: X/Z per spindle station Iodpfjyhpguex Ahwotc • Control system: Siemens SINUMERIK 840C (INDEX OEM) • Drive system: AC servo drives with SERCOS interface • Automation level: Fully automatic • Cooling system: Central coolant system • Lubrication system: Central automatic lubrication • Installed power: approx. 70–75 kW • Typical materials: Steel, stainless steel, aluminum, brass

Condition: ready for operation (used), Year of construction: 1998, controller manufacturer: SIEMENS, controller model: SINUMERIK 840C, number of axes: 12, This 12s Index MS42C was manufactured in 1998. It features a maximum bar diameter of 42 mm and operates with a fully automatic system, making it suitable for high-volume precision turned parts. The machine is equipped with a Siemens SINUMERIK 840C control system and AC servo drives, ensuring efficient performance. Consider the opportunity to buy this Index MS42C automation equipment. Contact us for further details. • Maximum bar diameter: 42 mm • Number of spindles: 6 • Spindle pitch circle diameter: approx. 320 mm • Maximum spindle speed: approx. 5,000 rpm • Number of CNC axes: 12 linear axes (6 × X, 6 × Z) Itjdpfx Aheyhf N Ejwjc • Axis configuration: X/Z per spindle station • Control: Siemens SINUMERIK 840C (INDEX OEM integration) • Drive system: AC servo drives with SERCOS interface • Automation level: Fully automatic • Operating mode: Continuous production (24/7 capable) • Cooling: Central coolant system • Lubrication: Central automatic lubrication • Electrical supply: 3-phase industrial power • Installed power: approx. 70–75 kW (configuration dependent) • Machine construction: Rigid cast iron base • Typical materials: Steel, stainless steel, aluminum, brass • Typical applications: High-volume precision turned parts

Condition: used, Year of construction: 1996, Technical details: number of spindles: 8 spindle passage: 32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 S Dnt Yob: 1996 Eight-spindle automatic lathe with 8 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling configurable as 2x4 spindles, pick up preparing in positions 4 and 8 Thread cutting couplings Electronic cross slide adjustment in positions 1, 2, 5, 6; 2 independent feeds Ijdpfx Ahoydnglswstc Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA40/42/P) Coolant tank with hinged chip conveyor Control: Siemens S7-300 PLC Display device: Siemens Simatic HMI Delivery without BDE Tooling included in the scope of delivery may differ from the images Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, total width: 45,000 mm, total length: 19,900 mm, total height: 23,000 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, bar length: 600 mm, CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Spindle bore diameter 65 mm Spindle speed 5.000 R/min Spindle motor 25/20 kW Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Z-axis movement 220 / 150 / 650 mm W-axis movement (subspindle to mainspindle) 690 mm C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Itjdpfx Ajyddv Ashwoc Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, total width: 45,000 mm, total length: 19,900 mm, total height: 23,000 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, bar length: 600 mm, CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Spindle bore diameter 65 mm Spindle speed 5.000 R/min Spindle motor 25/20 kW Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Z-axis movement 220 / 150 / 650 mm W-axis movement (subspindle to mainspindle) 690 mm C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Isdoyddvvopfx Ahwetc Feel free to view our other advertisements for a complete overview of our stock.

Condition: good (used), Year of construction: 2015, Ref. -No.: 10421 Manufacturer: SCHüTTE Itodpfx Ahoycpwpewjc Type: SF 26 Year of construction: 2015 Storage location: Halberstadt Country of origin: Germany Serial no.: 3 Power consumption: 35 kW Weight Of The Machine Ca.: 6,6 t

Condition: like new (used), Year of construction: 2015, Pick-up Itsdpfx Asyck Rdohwoc Threading device No. 04 turning slides Integrated loader Cucchi BLT model MULTI-6, year 2016

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, Conveyor; Pick-up; Threading device; Combing device; 4 cross slides positions 1, 2, 4, 5; Integral loader Cucchi BLT compact version model MULTI L-6 year 2019 (diameter 38 mm); Tool holder, cams Itodpfjya Aq Djx Ahwsc

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, number of spindles: 2, spindle speed (max.): 6,500 rpm, travel distance X-axis: 840 mm, travel distance Z-axis: 425 mm, Auction of a production line with robot and two workpiece palletizers! TECHNICAL DETAILS X-axis travel: max. 840 mm Z-axis travel: max. 425 mm Itsdpfx Ahjyap Naswec Feed diameter: max. 200 mm Spindle speed: 6,500 rpm Workpiece palletizer capacity: 24 workpiece carriers Number of main spindles: 2 Number of tool turrets: 2 Number of tools per turret: 12 MACHINE DETAILS High-pressure pump: up to 120 bar per line Machine weight: 8,000 kg Cooling: spindle and machine bed cooling EQUIPMENT Robot M6iB Workpiece shuttle system by Heilig Automation with 2 pick-up stations High-pressure pump up to 120 bar per line Chip crusher Workpiece palletizer with a capacity for 24 workpiece carriers

Condition: good (used), Year of construction: 1998, 4196 GM 25: Itsdpex S E Svefx Ahwoc Bar feeder year 2001 / GM 25 year 1991 3330 AS 25: Bar feeder year 2001 / GM 25 year 1969, completely overhauled in 1992 4423 GM 26: Bar feeder year 1998 / GM 26 year 1998 4283 GM 26: Bar feeder year 2000 / GM 26 year 1995

Condition: used, Year of construction: 1999, Technical details: number of spindles: 6 spindle passage: 20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF20 S Dnt Yob: 1999 Six-spindle automatic lathe with 6 main spindles max. nominal diameter: D=20mm Spindle drum hirth coupled, CNC cross slide in positions 4, CNC cross slide in positions 5, pick up in position 6, sorting chute, 1x independent feed, thread cutting couplings, Iodpfx Ajx Sx Nhehwjtc workpiece belt, Coolant tank with hinged belt chip conveyor Ruez, Oil/steel operation, PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611, The scope of delivery regarding the tooling equipment could be different like pictures. Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader) *

Condition: good (used), Year of construction: 1993, functionality: fully functional, Single-spindle lathe TORNOS SAS16-DC, used, in good condition Ijdpox Svnuofx Ahwetc Equipment: - counter-spindle with brake - oscillating stop with counter-operation - thread cutting device - 3 independent feed systems - support and reel - bar feeder IEMCA PRA 40/33P

Condition: ready for operation (used), Year of construction: 2006, Control Unit Brand FANUC Main Drive Number of axis 6 Spindle Speed 3600 RPM Spindle motor power 22 kW Itjdpfx Ahjx Rd Hvewsc Movement X-Axis Movement 250 mm Y-Axis Movement 50 mm This 6-axis DOOSAN Puma TT 2500 SY was manufactured in 2006. It is a multi-spindle turning machine featuring twin spindles and twin turrets, equipped with a Fanuc 18i-TB control. Key specifications include a maximum turning diameter of 330 mm, turning length up to 500 mm, and bar capacity of 76 mm. Main spindle speed reaches 3500 RPM, while the sub-spindle can go up to 6000 RPM. If you are looking to get high quality turning capabilities consider the DOOSAN Puma TT 2500 SY machine we have for sale. Contact us for more information. Application Types Turning

Condition: used, Year of construction: 1989, Technical details: Itodpjx Hgkcefx Ahwoc number of spindles: 6 spindle passage: 20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) All longitudinal units are equipped, either fixed or rotating (without collets) A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, Year of construction: 1989, Technical details: number of spindles: 6 spindle passage: 20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) Itjdpfsx Hggwjx Ahwec All longitudinal units are equipped, either fixed or rotating (without collets) An independent feed is installed at position 1 A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at) or *
