Gematec GmbH

Condition: used, Year of construction: 2001, Technical details: turning diameter: 500 mm turning length: 1000 mm control: Siemens 840 D spindle: 42 / 28 kW spindle turning speed - stepless: 31 - 4000 1/min max. torque on the spindle: 345 Nm c-axis: 360000 x 0,001° feeds -stepless-: mm/min rapid traverse: mm/min turret stations / rotary tool stations: 12/12 VDI 40 RPM of rotary tools: 2000 1/min diameter of quill: 90 mm quill stroke: 80 mm tailstock quill taper ISO: SK 30 Tailstock Travel: 600 mm Kdsdoyv Ha Aspfx Abnsi Power rotary tools: 3,5 kW : 22,5 Nm Rotary tool holders: 4 ax./ 4 rad. spindle passage: 66 mm total power requirement: 30 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: 8x 3 x 4 m Accerories Power Chuck Programmable Tailstock Chip conveyor

Condition: used, Year of construction: 2020, Technical details: turning diameter: 670 mm turning length: 1540 mm control: F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover: 700 mm Travel turret No.1 (milling spindle) x/y/z: 495 / ± 150 / 1562(+164) mm Rotation B-axis: -30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z: 40/40/40 m/min RPM milling spindle: 12000 1/min power capacity - milling spindle: 20,2/18,8 kW Torque of milling spindle: 120 / 44 Nm tool taper milling spindle: Coromant Capto C6 Tool magazine for milling spindle (turret 1): 76 Tool change time tool/tool, milling spindle: 1,25 s Spindle 1 RPM: 3000 1/min Spindle 1 Power: 36 / 30 / 25 kW C-axis spindle 1: 0,001 ° Bar capacity spindle 1: 102 mm Spindle 2 RPM: 4000 1/min Spindle 2 power: 26 / 22 / 15 kW C-axis spindle 2: 0,001 ° Bar capacity spindle 2: 80 mm dimensions of the machine ca.: 7,8 x 3,6 x 2,9 m Linear scales on axis: X, Y programmable steady: KLU-A530 & SLU-X3.2 Accerories Chip conveyor Kdsdoyv E T Uspfx Abnji tool setting spindle load monitor Airblow system Airblow system internal to cutting tool Spindle 1 Chuck Kitagawa 250 (B 210) mm Spindle 2 Chuck Kitagawa 250 (B 210) mm Interface for coolant through the spindle 70 bar Tailstock specification for spindle 2 Measuring probe for work piece Renishaw OMP60 pendant hand wheel Parts and total counter Signal lamp 3 colors Robot interface Matris Robot System R-2000iC/165F Automatic door Rotoclear window Quick fixed cycles Program restart Signal lamp 4 colours Ethernet I/P Interface manual tool eye Automatic door Air Filter Oil skimmer Tactile sensor for workpiece measuring Airblow system external Subspindel Spindle 1 coolant jet Spindle 2 coolant jet Coolant Gun Coolant through spindle 70 bar with filter Knoll High performance turning and milling center with multi axis milling head, 76 tool magazine Capto C6, main- and sub spindle, which can act as tailstock. It has automatic door and Matris robot R-2000iC/165F. *

Condition: good (used), Year of construction: 2022, functionality: fully functional, Fanuc control, Kedpfeyv Ezfsx Abnodi 65 mm spindle bore, two turrets, upper turret with Y-axis, sub-spindle, parts catcher, tool measuring arm, chip conveyor, short bar loader, Hainbuch chuck on both spindles, one three-jaw chuck, various tool holders, including driven types. Available immediately.

Condition: used, Year of construction: 2008, functionality: fully functional, Turning / milling center with counter spindle with 10 CNC axes (X1, X2, Z1, Z2, Y1, Y2, B1, B2, C1, C2) Control: FANUC 31:iA Main Spindle Power: 15/11 kW bar material dia.: 51 mm Kdjdpfxoyv Ewgo Abnoi spindle revolution: 5.000 min-1 Counter Spindle Power: 11/7,5 kW bar material dia.: 51 mm spindle revolution: 5.000 min-1 Turning and milling spindle Power: 7,5/3,7 kW Turning and milling spindle speed: 12.000 min-1 max. rotation length turret bottom: 1.005 mm Slide cross X1 / X2 / Z1 / Z2 / B2: 455 / 222,5 /1.090 / 1.005 / 1.008 mm Slide cross Y1 / Y2: +/- 70 / +20, -50 mm Swivel range B1 axis: +/- 95 ° Linear rack magazine incl. support robot CNC support steady rest Coolant cyclone filter system incl. 2 pcs. coolant pumping spindle oil cooler

Condition: used, Year of construction: 2014, Technical details: max. turning diameter: 350 mm turning length: 540 mm control: 0i-TD swing dia.: 510 mm bar material dia.: 66 mm spindle bore diameter: 76 mm travel -x axis: 200 mm travel -z axis: 560 mm Kdedpfx Absyv Erdenoi Spindle 1 RPM: 4000 1/min Spindle 1 Power: 18,5 kW turret stations / rotary tool stations: 12/0 BMT 55 Rapid traverse feeds x/z: 24/ 24 m/min tailstock quill taper MT: MK4 (Live) Tailstock Travel: 490 mm tailstock quill stroke: 80 mm tailstock quill diameter: 75 mm dimensions of the machine ca.: 3500 x 1400 x 1850 mm total power requirement: 32 kW weight of the machine ca.: 4 t Accerories Chip conveyor Parts catcher Spindle 1 Chuck 200 mm manual tool eye Samsung turning center in excellent condition with rotary tools, y-axis and subspindle for complete manufacturing of components. *

Condition: used, Year of construction: 2015, Technical details: max. turning diameter: 350 mm turning length: 540 mm control: 0i-TD swing dia.: 510 mm bar material dia.: 52 (66) mm spindle bore diameter: 61 (76) mm travel -x axis: 200 mm travel -z axis: 560 mm Spindle 1 RPM: 4000 1/min Spindle 1 Power: 18,5 kW turret stations / rotary tool stations: 12/12 BMT 55 Power rotary tools: 3,7 /2,2 kW RPM of rotary tools: 6000 1/min torque rotary tools: 26,2 Rapid traverse feeds x/z: 24/ 24 m/min tailstock quill taper MT: MK4 (Live) Tailstock Travel: 400 mm tailstock quill stroke: 80 mm tailstock quill diameter: 75 mm dimensions of the machine ca.: 3500 x 1400 x 1850 mm total power requirement: 32 kW weight of the machine ca.: 4 t Accerories Chip conveyor Parts catcher Spindle 1 Chuck 200 mm manual tool eye Samsung turning center in excellent condition with rotary tools, y-axis and subspindle for complete manufacturing of components. Kdodeyv En Sepfx Abnei *

Condition: used, Year of construction: 2003, Technical details: turning diameter: 640 / 400 mm turning length: 1500 mm control: Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z: 550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis): ±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z: 40/24/60 m/min RPM milling spindle: 12000 1/min power capacity - milling spindle: 12 / 23 kW Torque of milling spindle: 100 Nm Tool magazine for milling spindle (turret 1): 120 HSK-A 63 Tool change time tool/tool, milling spindle: 1,6 s Spindle 1 RPM: 4000 1/min Spindle 1 power: 36/ 45 kW Spindle 1 Torque: 730 Nm Spindle 1 max. bar diameter: 90 Kodpsyv Dnkjfx Abnodi Spindle 2 RPM: 4000 1/min Spindle 2 power: 36 / 45 kW Spindle 2 torque: 730 Nm Spindle 2 max. bar diameter: 90 c-axis: 0,001 ° Travel turret 2 x: 225 mm Travel Turret 2 z: 1595 mm RPM of rotary tools turret 2: 4000 1/min no. of tools in turret 2: 12 VDI 40 high-pressure pump: 20 bar total power requirement: 110 kVA weight of the machine ca.: 24 t dimensions of the machine ca.: 9,3 x 4,6 x 3,1 m Accerories Chip conveyor Automatic door High performance turning and milling center with milling head (X, Y, Z, B-Axis), tool magazine with 120 pos. HSK-A 63. Excellent for manufacturing excentric parts. Coolant system with 1000 l tank and coolant system 4 kW. Both spindles have differencial pressure clamping system Steayrest for lower turret dia 8-101 mm. Parts gripper for turret No. 2 with 3-jaw chuck for parts with max. dia. 140 mm. Conveyor belt for finished parts. Preparation for 3D-probe Toolmonitor Artis Machine can be shown under power. *

Condition: new, Year of construction: 2026, Z-Mat TBX63S ZMATROL 15", 5-axis simultaneous (Siemens/Fanuc optional) Turning/milling center with B-axis ±120°, 12,000 rpm 6" sub-spindle, Y-axis travel 150 mm Max. swing diameter: 450 mm Max. turning diameter: 250 mm Max. turning length: 750 mm Linear roller guideways on all axes Main spindle Chuck diameter: 203 mm Spindle nose: A2-6 Max. bar diameter: 52 mm Spindle bore diameter: 66 mm Drive power, DDS: 18.5 kW Max. speed: 4,000 rpm Sub-spindle Chuck diameter: 152 mm Spindle nose: A2-5 Max. bar diameter: 46 mm Spindle bore diameter: 56 mm Drive power, DDS: 11 kW Max. speed: 5,000 rpm Milling spindle Spindle interface: HSK-T63 Max. speed: 12,000 rpm Drive power: 30 kW Max. torque: 95 Nm Ksdpfxeyv A Nao Abnodi Axis travels X-axis travel, with Heidenhain glass scale: 790 mm Y-axis travel: -75 mm Z-axis travel: 750 mm W-axis travel: 1,000 mm B-axis swivel range: ±120° Rapid traverse X, Y, Z, W-axis: 24 m/min Tool magazine Double arm: 30 tools Max. diameter / length / weight: 78 mm / 250 mm / 8 kg Dimensions (W x D x H): 4.45 x 2.76 x 2.85 m Weight: 9.8 t Standard equipment 30 bar through-spindle coolant Ergonomic control panel with handwheel USB port, Ethernet, memory card Full enclosure Safety interlock door switch Coolant system Control cabinet air conditioning 3-color warning light Work area lighting Centralized lubrication Tools and toolbox CE conformity Operating manual A wide range of automation systems, such as bar feeders and loading robots, are available.

Condition: like new (used), Year of construction: 2008, operating hours: 1,800 h, functionality: fully functional, * Mori Seiki NL 2500 SY. * Included equipment value: 20,000 - 25,000 euros. * Year: 2008. * Only 1,800 cutting hours. * 5-axis machine. * Subspindle. * 12-station turret, all positions driven. * Y-axis travel: ±60 mm. * C-axis on both spindles. * Main spindle integrated motor: 18 kW. * Subspindle integrated motor: 15 kW. * Direct drive motor for driven tools: 5.5 kW. * Motor starting torque: 640 Nm. * Beltless and gearless motors. * Main spindle nose size: A2-8. Kdodpfx Aoyvz R Njbnei * Subspindle nose size: A2-6. * Bar capacity: 80 mm. * Main spindle chuck: Kitagawa B-210, 250 mm, metric system. * Subspindle chuck: Kitagawa B-208, 210 mm, metric system. * Box guideways on all axes. * Main spindle speed: 4,000 rpm. * Driven tool speed: 6,000 rpm. * Oil cooler for both spindles: Daikin. * Conversational automatic programming system: Mapps 4. * Automatic load control and tool consumption monitor. * Rapid traverse speed: 30 m/min on X and Z axes. * Turret index change time: 0.2 seconds. * Two Renishaw arms for automatic tool measurement. * Communication ports: USB, PCMCIA card, and RS-232. * Bar feeder installation interface. * Automatic parts catcher. * Dual foot pedal for independent opening/closing of main and subspindle chucks. * Side-mounted hinge-type chip conveyor. * Extensive set of static and driven tool holders. * Electrical transformer. * Documentation included: parts list, electrical schematics, programming and operation manuals. * Weight: 5,800 kg. * Machine currently in operation. * Precision videos must be checked. * Only used for prototyping AOG aeronautical components in aluminum. * Immediate delivery unless sold prior.

Condition: excellent (used), Travels: Kodjyvy Utjpfx Abnjdi X-axis: 155 mm Z-axis: 320 mm Swing diameter over bed: 450 mm Swing diameter over carriage (slide): 350 mm Maximum turning diameter: 270 mm Maximum turning length: 500 mm Spindle speed, infinitely variable: 75 – 3500 rpm Spindle motor: 7.5 kW Tool turret: 12 stations Dimensions (L x H x W): 2200 x 1635 x 1670 mm Weight: 3800 kg

Condition: like new (used), Year of construction: 2022, operating hours: 1,564 h, functionality: fully functional, turning length: 515 mm, turning diameter: 190 mm, spindle motor power: 15 W, spindle speed (max.): 4,500 rpm, spindle bore: 65 mm, travel distance X-axis: 152 mm, travel distance Y-axis: 70 mm, travel distance Z-axis: 515 mm, CN FANUC Series i Bar feeder interface Bar feeder LNS QUICK LOAD SERVO 80 High-pressure unit 15 bar Set of driven and static tool holders HAINBUCH collet chucks Chip conveyor Kdsdpfx Asyvvbvobnsi

Condition: used, Year of construction: 1998, LATHE SAMSUNG PL 25 SELF-CENTERING CHUCK DIAMETER: 250 mm BAR CAPACITY: 75 mm COMPLETE WITH ALL DOCUMENTATION Ksdpfx Absyvtx Senjdi

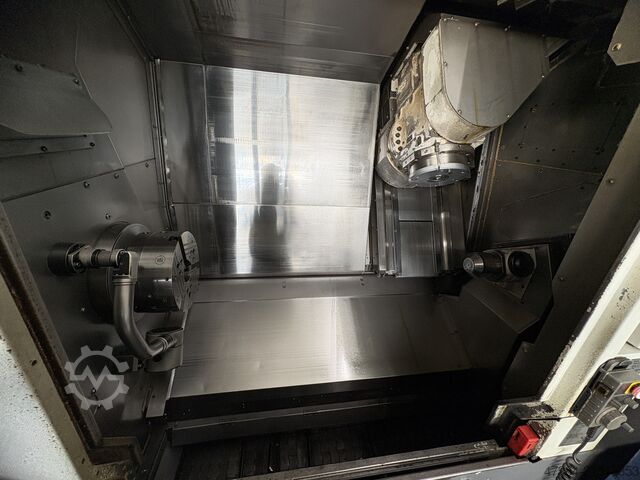

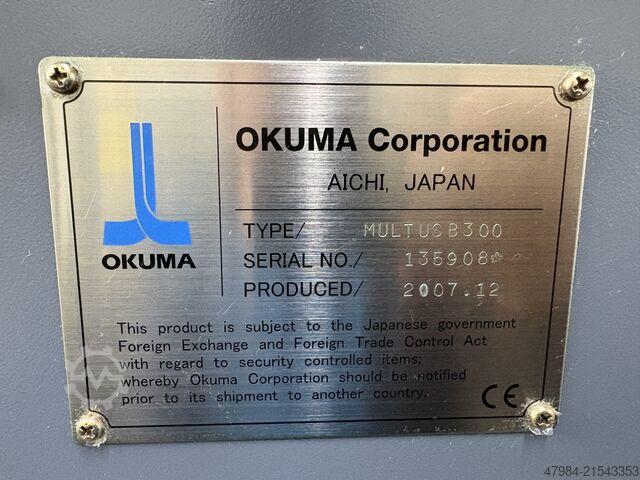

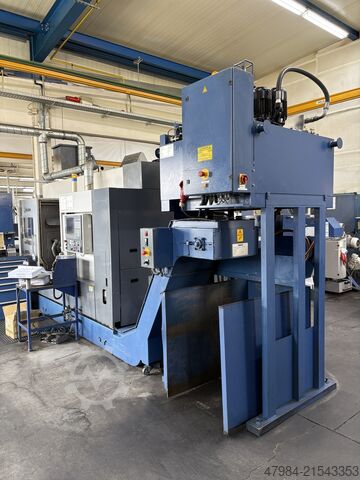

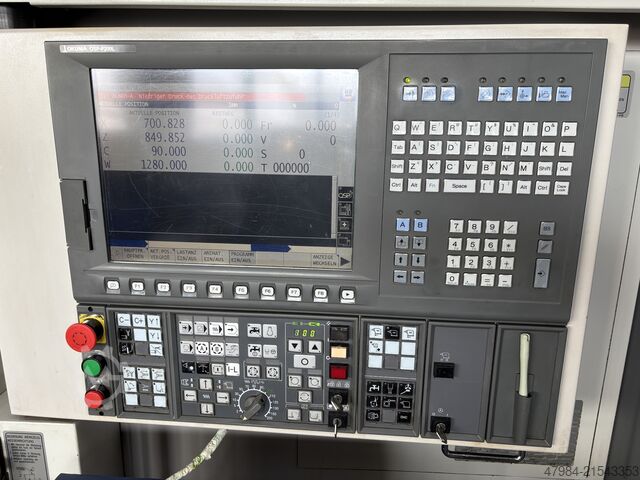

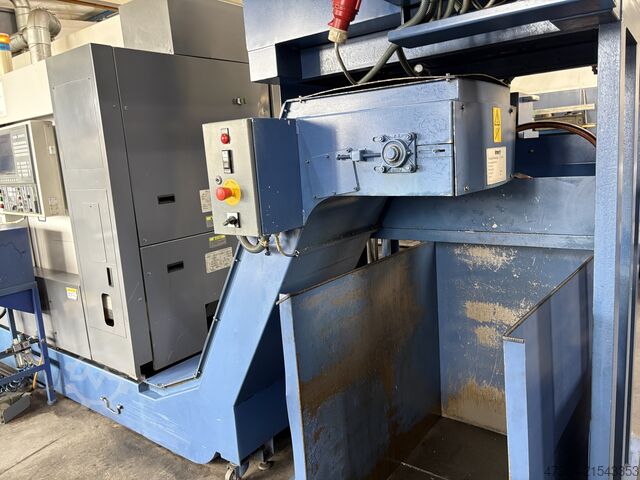

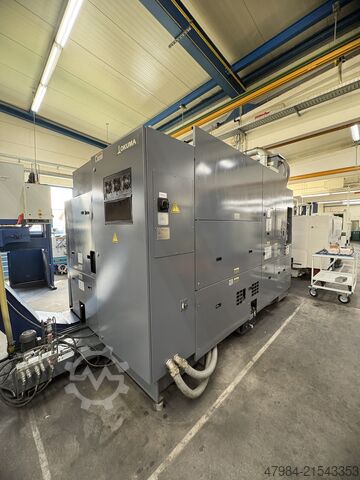

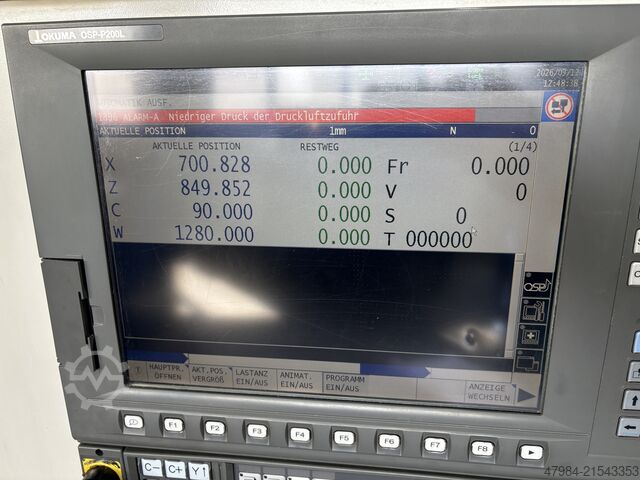

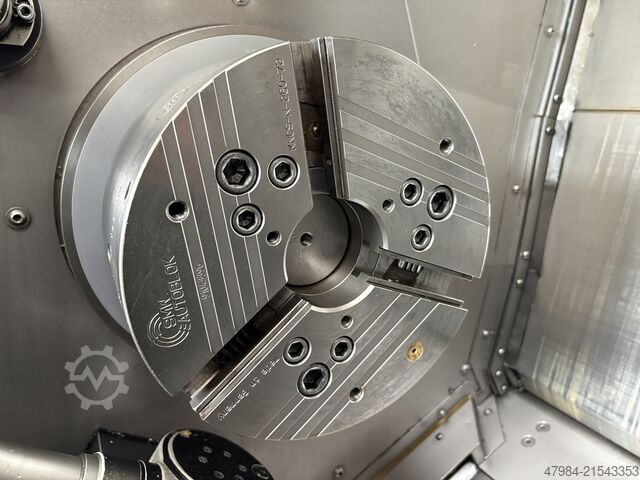

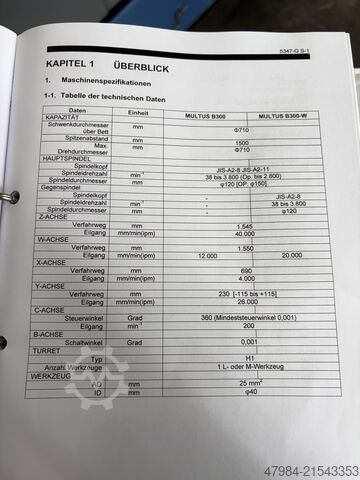

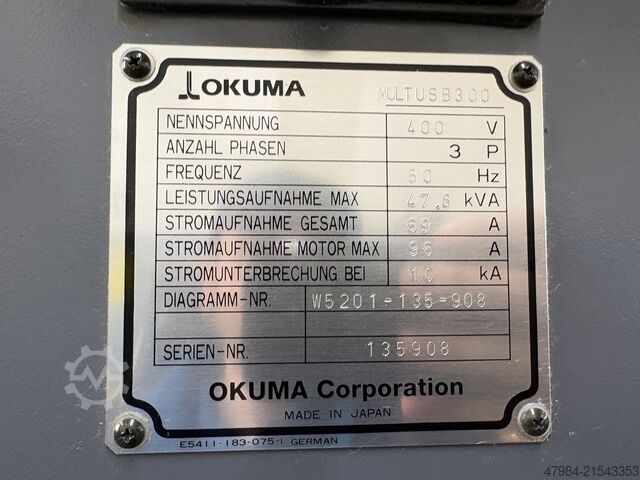

Condition: good (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 135908, turning diameter: 710 mm, spindle speed (min.): 38 rpm, spindle speed (max.): 3,800 rpm, travel distance X-axis: 690 mm, travel distance Y-axis: 230 mm, travel distance Z-axis: 1,545 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 26 m/min, rapid traverse Z-axis: 40 m/min, total height: 3,200 mm, total length: 6,000 mm, total width: 2,500 mm, overall weight: 14,000 kg, spindle diameter: 120 mm, tool length: 400 mm, controller manufacturer: OKUMA, controller model: OPS-P 200 L, tool weight: 1,000 g, number of slots in tool magazine: 20, Equipment: chip conveyor, OKUMA MULTUS B 300 CNC Turning and Milling Center - Operating voltage: 400 V - Frequency: 50 Hz - Rated current: 96 A - Connection load: 47.8 kVA Kedoyvrq Hjpfx Abnedi - Swing diameter over bed: 710 mm - Distance between centers: 1500 mm - B-axis travel: 1550 mm, rapid traverse: 12 m/min - C-axis travel, control angle: 360°, rapid traverse: 200° - B-axis indexing angle: 0.001° - Number of tools: 1 L or M tool 25 mm, diameter: 40 mm - Rotational speed of live tools: 6000 rpm - Tool holder: HSK 63 - Including chip conveyor, coolant system, as well as tool holders as equipped on the tool changer Note: The item must be collected between 12.05. and 22.05.2026 on a binding, mutually agreed date. FCA D-74821 Mosbach – loaded onto truck

Condition: good (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 151576, travel distance X-axis: 690 mm, travel distance Z-axis: 1,545 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 26 m/min, rapid traverse Z-axis: 40 m/min, total height: 3,500 mm, total length: 9,500 mm, total width: 2,500 mm, overall weight: 14,500 kg, tool length: 400 mm, controller manufacturer: OKUMA, controller model: OSP-P 200 L, tool diameter: 90 mm, tool weight: 1,000 g, number of slots in tool magazine: 40, OKUMA MULTUS B 400 CNC Turning and Milling Center - Operating voltage: 400 V Ksdpfx Aoyvrn Esbnedi - Frequency: 50 Hz - Rated current: 190 A - Connection load: 58.9 kVA - Turning diameter: up to max. 710 mm - Swing diameter over cross slide/bed: 710 mm - Y-axis travel: +115 / -115 mm - C-axis travel: 360° - B-axis travel: 225° - Main spindle chuck diameter: 340 mm - Spindle nose diameter (front bearing): 150 mm - Spindle bearing diameter: 101.6 mm - Feed rate in X/Y/Z: 0 - 1000 mm/rev - Rapid traverse X/Y/Z/W: 40/26/40/20 m/min - Rapid traverse C-axis: 200 rpm, B-axis: 30 rpm - NC tailstock (W-axis) - Taper: MK 4 - Tool holder: HSK 63 - Including chip conveyor and coolant system Note: The HSK tool holders in the tool magazine are included in the scope of delivery! Note: In 2023, the machine underwent several overhauls with a total value of EUR 34,000. Documentation available; detailed breakdown upon request! Note: Item must be picked up bindingly between 12.05. and 22.05.2026 on a date yet to be agreed. FCA D-74821 Mosbach – loaded onto truck

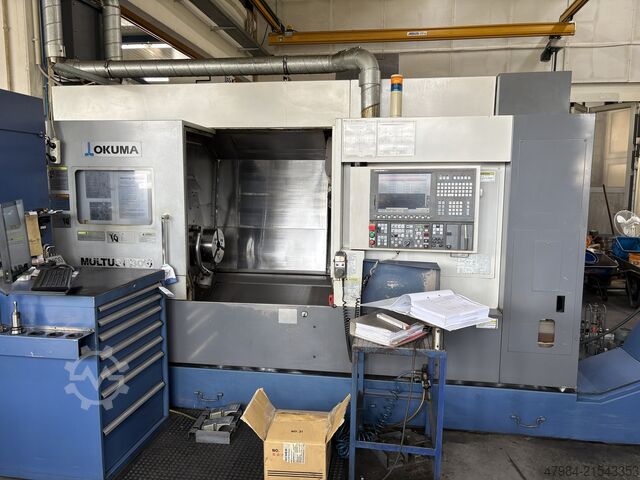

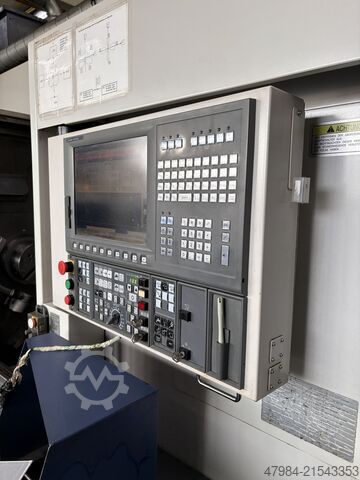

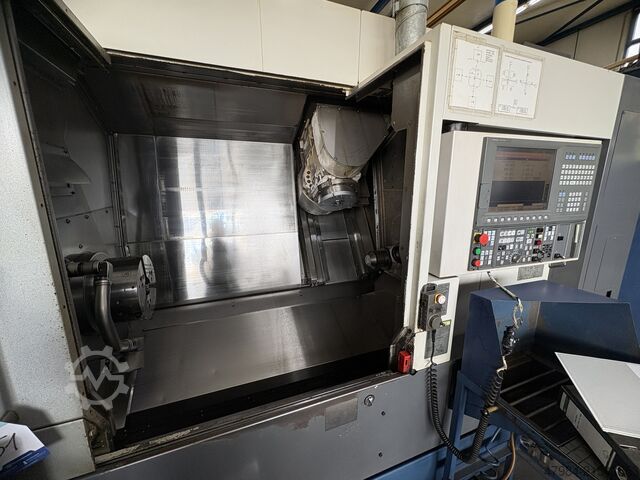

Condition: excellent (used), functionality: fully functional, Commissioning: as Okuma stock machine 09.2017 Control OSP P300S Machine Equipment ▪ Enlarged main spindle KK size 11 Front bearing Ø 160 mm Speed range 3,000 rpm Bore Ø 112 mm Motor with 32 kW output Torque 955 Nm ▪ Hollow clamping cylinder Ø 127 mm SMW VNK 320-127 with bore Ø 127 mm ▪ Pressure reducing valve Adjustable range 8-70 bar ▪ Tailstock ▪ Turning length approx. 1500 mm ▪ H1 turret (1 station) ▪ Y-axis ▪ B-axis 0.001° ▪ 40-station tool magazine ▪ Additionally: lower turret with 12 stations ▪ Tool spindle 12,000 rpm ▪ Hinged belt chip conveyor: high-performance chip conveyor with low-maintenance self-cleaning function ▪ Drum sump filter TMF300 with clean tank 980 l ▪ Supply pump TC160/740, 8 bar ▪ Supply pump RSP 20/32-070-1-1-0, 70 bar ▪ Self-centering steady rest on the lower turret (not possible in combination with driven tools for the lower turret) ▪ Automatic door ▪ Robot interface type E for connecting other loading and unloading systems to single-spindle machines ▪ 3D machine model for simulation in a CAM system Kodpfx Asyviigjbnsdi Technical Details ▪ Main drive (Okuma motor spindle): 22 kW / 700 Nm / 50–4,200 rpm Spindle nose KK size 8 Front spindle bearing Ø 140 mm Spindle bore Ø 91 mm Speed range: 2-stage Range switching at full speed ▪ Lower turret: 12 stations In ZB-axis with cylindrical roller guide In XB-axis with slide guide ▪ Real-time collision avoidance system CAS ▪ 19" color LCD TFT (1280x1024) with 3D color graphics as touchscreen/panel with vertical display and tiltable keyboard (adjustable angle) ▪ Second operating system Windows 7 for operation and data communication, open and freely usable for Windows 7 compatible applications ▪ Programmable tailstock on W-axis with hydraulic quill ▪ Tool magazine 40 stations ▪ C-axis 360° Positioning in 0.001° steps ▪ Y-axis with travel +150/-150 = 300 mm ▪ B-axis 240° Positioning in 0.001° steps ▪ Tool spindle (Okuma motor spindle): 22 kW / 120 Nm / 12,000 rpm ▪ Internal coolant supply for rotating tools, pump with max. pressure 20 bar Including bag filter, external cooling tool spindle, pump with max. pressure 3 bar ▪ Tool system HSK-A63 ▪ Tool monitoring system for tool life and breakage ▪ Tool measurement system (with standard chuck) for safe setup ▪ Machine management MacMan with integrated BDE (operating data acquisition) ▪ Parts program memory 2 GB ▪ Max. length individual part program 2 MB ▪ 2 USB 2.0 ports ▪ Ethernet interface with browser and DNC-T1 for program transfer ▪ Harmonic speed oscillation via periodic speed change ▪ Tool height correction in Y-axis for turning tools ▪ Circular thread milling X/Z/Y/B (helical interpolation) Including eccentric milling X/Y/C ▪ Hi-Cut Pro high-speed control for rotating tools ▪ 10 workpiece zero points (coordinate system selection) ▪ Coordinate conversion (shift, rotate) ▪ Electronic spindle orientation + / - 0.1°

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, Traub CNC Lathe TNC65DGY, TX8H, 2001 Kedpjyvfwfsfx Abnsdi • 2x 10-station turrets with VDI30 rotating tool drive • C-axis on main/counter spindle • Y-axis on turret 1 • Hainbuch BZI65 on main/counter spindle Hollow clamping cylinder • Chip conveyor, coolant tank • Spare parts list, circuit diagram, ATC optics Very good condition. Can be viewed under power. The machine's geometry has been checked and corrected/adjusted.

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, turning length: 380 mm, turning diameter: 165 mm, spindle speed (max.): 5,000 rpm, bar passage: 51 mm, controller model: Mitsubishi MELDAS, Machine in very good condition, fully functional both electrically and mechanically! TECHNICAL DETAILS Maximum bar capacity: 51 mm Kdsdpfxoyvfvbj Abnji Maximum turning diameter: 165 mm Maximum turning length: 380 mm Maximum main spindle speed: 5,000 rpm Maximum sub spindle speed: 5,000 rpm Tool turret Number of tool turrets: 2 Positions per turret: 12 Driven tools possible MACHINE DETAILS Control: Mitsubishi MELDAS Machine weight: 8,000 kg EQUIPMENT Y-axis Simultaneous machining possible High rigidity and process reliability Complete technical documentation available

Condition: excellent (used), Year of construction: 2006, operating hours: 8,513 h, functionality: fully functional, machine/vehicle number: 8042942323C, We are offering this refurbished Gildemeister CTX 310 V4 CNC SIEMENS 840 D SHOPTURN CNC turning and milling center, year of manufacture 2006. Serviced and prepared for transport Extensive tool accessories included, such as tool cabinets and measuring devices Kdedpfx Ajyvfq Sjbnoi Year of manufacture: 2006 Weight: 3950 kg Maximum spindle speed: 6000 rpm Connected load: 26 kVA Max. connection current: 35 A Current: 38 A Mains voltage: 400 V Frequency: 50/60 Hz Control voltage: 230 V Control power consumption: 150 W Internal voltage: 24 V If you have any questions or need more information, please feel free to send us a message or call us.

Condition: ready for operation (used), Year of construction: 2001, operating hours: 27,752 h, functionality: unexamined, Equipment: documentation/manual, We are offering this ready-to-use GILDEMEISTER CTX 200 series 2 CNC turning and milling center, year of manufacture 2001. Manufacturer: GILDEMEISTER Type/Model: CTX 200 series 2 Kdodpfx Absyu Uytenji Contrary to the photo, the machine is sold with a three-jaw chuck and not a collet chuck; various VDI20 toolholders are included as well. The short bar feeder has not been in operation for a long time, so its condition is unknown. If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: good (used), Year of construction: 2005, EMCOTURN 345/II TCM "BAR": 2-axis CNC lathe, 13 kW drive power, 60-6300 rpm at the main spindle, linear guideway system, digital drive system, includes: * 12-position VDI 30 axial turret with directional logic, for up to 6 driven tools, torque 16 Nm, speed range 0-5000 rpm * C-axis * Mechanical spindle brake * TRANSMIT software for easy C-axis programming * Tailstock with quill: - Quill diameter: 60 mm - Quill stroke: 120 mm - Morse taper MK4 - Max. quill force: 5000N * Headstock size 45 with spindle nose KK5 (DIN 55026) * Hollow clamping cylinder including draw tube * EMCO standard bar feeder interface * Coolant pump 3 bar * Fanuc 21i * Machine light for work area * Hydraulic unit Kdedsyu Un Ropfx Abnji * Interface for foot switch and chip conveyor * Swivel-mounted measuring equipment tray * Integrated step-down transformer for 3x230, 3x400, or 3x480 Volt - 50/60 Hz * Documentation Year of manufacture: 2005 Machine No.: R2AT3551

Condition: excellent (used), Year of construction: 1996, functionality: fully functional, Mori Seiki SL-25 CNC Lathe with Samsys Bar Feeder We are offering a highly reliable and robust Mori Seiki SL-25 (1995) CNC lathe. This machine is well known for its exceptional stability and precision in serial production and is sold complete with a Samsys automatic bar feeder (2003) for maximum efficiency. Machine Specifications Model: Mori Seiki SL-25 Control: Mori Seiki 516 (Fanuc CNC control and drives) Swing over bed: approx. 520 mm Max turning diameter: approx. 260 mm Max turning length: approx. 530–550 mm Spindle bore: 68 mm Spindle speed: up to 3,500 rpm Turret: 10 stations Tool setter and parts catcher included Equipment: Hydraulic tailstock, chip conveyor, and coolant system Documentation: User manuals included Kdsdpfxjyu R Rze Abnji Productivity: The combination of Mori Seiki’s rigid construction and Samsys automation makes this an ideal solution for small to medium batch production. Samsys Bar Feeder (MUS 2000) The machine is equipped with an integrated Samsys MUS 2000 bar feeder, enabling long periods of unattended production. Includes multiple spindle liners in various dimensions High precision: Servo-controlled bar feed for accurate positioning Quick changeover: User-friendly design allowing fast change of bar diameters

Condition: ready for operation (used), Year of construction: 2023, spindle motor power: 7,500 W, spindle speed (max.): 4,000 rpm, travel distance X-axis: 175 mm, travel distance Z-axis: 330 mm, total height: 1,635 mm, total width: 1,690 mm, overall weight: 2,600 kg, controller manufacturer: FANUC, product length (max.): 1,850 mm, number of axes: 3, This 3-axis DN SOLUTIONS Leo 1600 turn-mill centre was manufactured in 2023. It features a maximum turning diameter of 320 mm and a turning length of 303 mm. The machine is equipped with a 6-inch main spindle chuck and offers a rapid traverse speed of 30 m/min in both X and Z axes. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS Leo 1600 machine we have for sale. Contact us for further details. • Main spindle chuck size: 6 inch (153 mm) • Bar capacity: 45 mm • Rapid traverse X: 30 m/min • Rapid traverse Z: 30 m/min • Main spindle torque: 72 Nm • Max turning diameter: 320 mm • Max turning length: 303 mm • Number of tool stations: 12 • Guideway type: Linear guideways • Monitor size: 10.4 inch • Electrical connection: 380 V • Electrical supply: 3 phase • Frequency: 50 / 60 Hz • Rated power: 14.97 kVA • Full load current: 22.74 A • Short circuit capacity: 10 kA • Interrupting capacity: 5 kA Technical Specification Kedjyu R Nwopfx Abnodi Counter Spindle No Driven Tools Yes

Condition: ready for operation (used), Year of construction: 2023, spindle motor power: 22,000 W, spindle speed (max.): 3,000 rpm, travel distance X-axis: 293 mm, travel distance Y-axis: 130 mm, travel distance Z-axis: 1,350 mm, total height: 2,315 mm, total width: 2,067 mm, overall weight: 8,000 kg, controller manufacturer: FANUC, controller model: 0i-F, product length (max.): 4,530 mm, number of axes: 4, This 4-axis DN SOLUTIONS 3100 LY turn-mill centre was manufactured in 2023. It features a maximum turning diameter of 420 mm and a turning length of 1285 mm. The machine is equipped with a 12-inch main spindle chuck and a rapid traverse speed of 30 m/min in both X and Y axes. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS 3100 LY machine we have for sale. Contact us for further details. • Main spindle chuck size: 12 in (306 mm) • Bar capacity: 102 mm • Rapid traverse: X 30 m/min; Y 30 m/min; Z 10 m/min • Max turning diameter: 420 mm • Max turning length: 1285 mm Kdsdpfx Ajyu Rn Tebnji • Driven tool speed: 5000 rpm • Tooling: 12 stations, BMT65 • Guideway type: Box guideways • Axes/features: C-axis, Y-axis • Electrical: 380 V, 3-phase, 50/60 Hz • Electrical ratings: 55.02 kVA; Full load current 83.60 A; Short circuit capacity 10 kA; Interrupting capacity 5 kA Additional equipment • Chip conveyor (included) Technical Specification Counter Spindle No Driven Tools Yes

Condition: excellent (used), Year of construction: 2008, operating hours: 3,858 h, CNC controller: MSX-850III X-axis travel mm: 260 Z-axis travel mm: 795 Kdsdpfx Aeyuy H Ssbnoi Turning length mm: 705 Max. turning diameter mm: ø 275 Upper turret Number of tool slots St .: 12 Main spindle Speed ​​spindle rpm: 4000

Condition: good (used), Year of construction: 2022, operating hours: 1,759 h, turning length: 530 mm, turning diameter: 320 mm, spindle speed (max.): 5,000 rpm, bar diameter (max.): 65 mm, overall weight: 5,000 kg, Technical Data Total operating hours: 1759 h Spindle hours: 1130 h Control system: DMG MORI SLIMline® multi-touch control (19" / Operate SIEMENS) Max. turning diameter: 320 mm Max. turning length: 530 mm Max. bar capacity: 65 mm Travel X-axis: 242 mm Travel Y-axis: 80 mm Travel Z-axis: 540 mm Max. spindle speed: 5000 rpm Spindle drive: 16.5 kW Machine weight: approx. 5 t Footprint: m Standard Equipment Kdodpsyuy Enefx Abnoi Ergonomic control panel DMG MORI SLIMline® Main spindle: A2-6 with AC motor Drive power: 11 / 16.5 kW (100/40% duty cycle), 5000 rpm 12-station servo turret: VDI 30 mounting, with 12 driven tool stations and precise Trifix® interfaces (DIN5480 coupling) Direct measuring system: X-, Y-axis Chip pan Hollow clamping device: max. bar capacity D65 mm Sub spindle A2-5, executed as ISM 63 motor spindle with hydraulic clamping device, Drive power: 12.6 / 16.2 kW (100/40% duty cycle), 5000 rpm External electronic handwheel Y-axis: +/- 40 mm DMG MORI loTconnector Special Equipment - Bar package & interface includes: - Workpiece removal device for parts up to D65 x 200 mm length, max. workpiece weight 3 kg, parts tray in front of the machine (outside work area). - Interface for bar feeder or bar loading device (MG MORI standard interface) - Chip conveyor, right-side discharge in place of chip tray - 4-color signal lamp - Hydraulic 3-jaw chuck, SMW KNCS-N 225-66 with quick-change system - Collet chuck HAINBUCH SPANNTOP size 65 - Differential pressure clamping for sub spindle - External chuck rinsing for sub spindle - Automatic workpiece ejector for sub spindle with internal coolant supply for clamping device rinsing - Hydraulic 3-jaw chuck SMWBD-175 for sub spindle - Coolant system 5-20 bar Option includes: - High-pressure pump, 5-20 bar (adjustable) - Dual cartridge filter for coolant - Coolant spray gun 5 bar - Pre-installation for oil mist extractor Option only includes mechanical and electrical pre-installation for AFS 60, diameter: 200 mm - Manual tool measurement device in working area, make: MARPOSS - Automatic loading magazine for short bars IEMCA KID80/16, bar capacity D65 Material pusher D=12 mm, D=15 mm, D=21 mm, D=26 mm Interface: DMG MORI standard Guide rails for movement along spindle axis Color: DMG MORI standard Available functions for bar feeder: - Bar feed M69 - Bar change M65 - Handshake M66 - Parts conveyor Parts conveyor in front of the machine with left-side discharge instead of parts tray. Conveyor located outside the working area All information without guarantee.
