K. Huber AG

Condition: used, Year of construction: 1988, saw blade diameter 0400 mm cutting diameter 140 mm cutting length 140 mm mitre joint cuts -/+ degrees +/-45° cutting capacity - square 130 x 130 mm cutting speed 5 - 30 m/min type of control konvent. voltage 380 V connected load 6 kW weight of the machine ca. 1,5 t dimensions of the machine ca. 1,5 x 1,5 x 1,5 m Machine has angle cutting arrangement +/- 45°, is semi automatic without material infeed. Crodpoxu Nriefx Ac Hji

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, For sale is a Kaltenbach cold circular saw. The gearbox is backlash-free! Model: KKS 450 E Saw blade diameter: 450 mm Motor power: 1.8/2.7 kW Cutting speed: 10/20, 13/26, 15/30 m/min Feed rate: 0 - 1,000 mm/min Rapid forward/reverse: 1,550 mm/min Max. working range: 150 mm Working range, square material: 140 mm Working range, flat material: 305 x 20 mm Working range, round material: 130 mm Min. working range: 10 x 10 mm Cjdpfoxt Uk Ujx Ac Hsri Miter range: 0° - 90° - 0° Dimensions (LxWxH): 1,080 x 900 x 1,760 mm Weight: 1,200 kg Inspection/collection in 89558 Böhmenkirch Shipping available on request Forklift for loading available.

Condition: good (used), Year of construction: 1993, machine/vehicle number: 116400, Offer 25358 Technical Specifications: - Saw blade diameter up to 400 mm - Cutting capacity at 90° up to: round 130 mm square 120 mm flat 305 x 40 mm or 240 x 85 mm - Mitre adjustment left & right 0 – 90° at 45°: round 130 mm flat 245 x 30 mm or 180 x 70 mm - Infinitely variable saw blade feed rate: 0 – 10 m/min - Saw blade cutting speed: 13 / 26 m/min - Saw drive: 400 V / 1.7 / 2.6 kW - Hydraulic drive: 400 V / 0.75 kW - Hydraulic workpiece vice with infinitely adjustable clamping pressure - 2 pcs. horizontal hydraulic material clamps - Handwheel for fine adjustment - Adjustable backstop - Coolant system Crodpfx Acsxtnrfo Hji - Discharge roller conveyor with length stop: 3,000 mm - Feed roller conveyor: 3,000 mm - Required space approx. W 800 x H 1770 x D 1020 mm - Weight approx. 950 kg

Condition: refurbished (used), Year of construction: 1991, For sale is a Kaltenbach cold circular saw. The machine has been completely disassembled and rebuilt. As part of the overhaul, the gearbox, motor, and hydraulics were reconditioned. The table has been planed and fitted with new bearings. Gearbox backlash-free! Type: KKS 400 E Year: 1991 Saw blade diameter: 400 mm Motor power: 1.8/2.7 kW Cutting speed: 10/20, 13/26, 15/30 m/min Feed rate: 0 – 1,000 mm/min Rapid advance/return: 1,550 mm/min Max. working area: 130 mm Working area for square material: 120 mm Csdpfxsxq S Ilo Ac Hsri Working area for flat material: 305 x 20 mm Working area for round material: 130 mm Min. working area: 10 x 10 mm Mitre range: 0° – 90° – 0° Dimensions LxWxH: 1,080 x 900 x 1,760 mm Weight: 900 kg Inspection / collection in 89558 Böhmenkirch Shipping available on request Forklift available for loading.

Condition: good (used), Used circular saw machine by Kaltenbach Type: KKS 400 H Crjdpfxjxqn Tde Ac Hei Saw blade ø 400mm Includes infeed and outfeed roller conveyor with manual measuring system

Condition: good (used), MITRE COLD CIRCULAR SAW MACHINE Type: KKS 400 H Year of manufacture: 1982 Csdoxnmn Uspfx Ac Hjri Equipment: - Infeed roller conveyor 1000 mm, left - Outfeed roller conveyor with length stop, 2000 mm, right - Saw blade diameter: 370 mm - Hydraulic clamping cylinder with 8 mm stroke, handwheel for pre-setting - Documentation Condition: good, workshop inspected

Condition: good (used), Year of construction: 1997, functionality: fully functional, For sale is a Kaltenbach cold circular saw. Gearbox is free of play! Type: KKS 450 E Year of manufacture: 1997 The saw is equipped with a coolant pump and a minimum quantity lubrication system, both of which can be switched on as needed. Saw blade Ø: 450 mm Motor power: 1.8/2.7 kW Cutting speed: 10/20, 13/26, 15/30 m/min Feed rate: 0 – 1,000 mm/min Rapid forward/reverse: 1,550 mm/min Crjdpsxmtivefx Ac Hsi Max. working area: 150 mm Working area for square material: 140 mm Working area for flat material: 330 x 40 mm Working area for round material: 140 mm Min. working area: 10 x 10 mm Mitre range: 0° – 90° – 0° Dimensions (LxWxH): 1,080 x 900 x 1,760 mm Weight: 1,000 kg Inspection / collection in 89558 Böhmenkirch Shipping available upon request Forklift available for loading.

Condition: not inspected (used), Year of construction: 1991, functionality: unexamined, saw blade diameter: 400 mm, cutting height (max.): 120 mm, Automatic circular saw for aluminium. Mitre device and chip conveyor. Cutting range round approx. 120 mm. The machine comes from a trade-in, untested. According to our customer, it worked until the end. Since we have not carried out a functional test, the sale is made excluding any warranty, and returns are not possible. Credpjxlcd Hefx Ac Hei

Condition: used, Kaltenbach KKS 400 Crsdexhdvvepfx Ac Hei Technical Specifications Saw blade diameter: 370 mm Cutting diameter: 115 mm Stroke: - mm Cutting area at 90 degrees, flat: 300 x 35 mm Cutting speed: 11 / 15 / 22 m/min Total power requirement: 1.4 kW Machine weight approx.: 850 kg Space requirement approx.: 1100 x 1100 x 1600 mm

Condition: refurbished (used), Year of construction: 1980, For sale: Kaltenbach cold circular saw – Various versions and models in stock. The machine has been extensively overhauled both technically and visually. Gearbox, of course, backlash-free! Type: KKS 400 H Saw blade diameter: 400 mm Motor power: 1.8/2.7 kW Cutting speed: 10/20, 13/26, 15/30 m/min Feed rate: 0 - 1,000 mm/min Rapid approach/return: 1,550 mm/min Maximum working range: 130 mm Square material working range: 120 mm Flat material working range: 305 x 20 mm Round material working range: 130 mm Minimum working range: 10 x 10 mm Miter range: 0° - 90° - 0° Dimensions (LxWxH): 1,080 x 900 x 1,760 mm Weight: 850 kg Inspection/collection in 89558 Böhmenkirch. Credpfx Acjxcf T Ee Hji Shipping available on request. Forklift available for loading.

Condition: refurbished (used), Year of construction: 1988, For sale is a Kaltenbach cold circular saw. The machine has been completely dismantled and rebuilt. In the course of the overhaul, the gearbox, motor and hydraulics were overhauled. The table has been turned flat and re-stored. Gearbox free of play! Type: KKS 400 E Saw blade Ø: 400 mm Motor power: 1.8/2.7 kW Cutting speed: 10/20 13/26 15/30 m/min Feed rate: 0 - 1,000 mm/min Fast forward/reverse: 1,550 mm/min Codpexb Aqxofx Ac Hori Max. working range: 130 mm Working range square material: 120 mm Working range flat material: 305 x 20 mm Working range round material: 130 mm Working range min.: 10 x 10 mm Mitre range: 0° - 90° - 0° Dimensions LxWxH: 1,080 x 900 x 1,760 mm Weight: 900 kg Inspection / collection in 89558 Boehmenkirch Shipping possible on request Forklift available for loading.

Condition: refurbished (used), Year of construction: 1980, For sale is a Kaltenbach cold circular saw The machine has been technically and optically refurbished Cjdpfoxb Aqfsx Ac Hori Gearbox naturally free of play! Type: KKS 400 H Saw blade Ø: 400 mm Motor power: 1.8/2.7 kW Cutting speed: 10/20 13/26 15/30 m/min Feed rate: 0 - 1,000 mm/min Fast forward/reverse: 1,550 mm/min Max. working range: 130 mm Working range square material: 120 mm Working range flat material: 305 x 20 mm Working range round material: 130 mm Working range min.: 10 x 10 mm Mitre range: 0° - 90° - 0° Dimensions LxWxH: 1,080 x 900 x 1,760 mm Weight: 850 kg Inspection / collection in 89558 Boehmenkirch Shipping possible on request Forklift available for loading.

Condition: used, Year of construction: 2004, cutting diameter 120 mm saw blade diameter 370 mm vice 190 mm capacity 90 degrees: flat 180 x 95 mm capacity 45 degrees: round 110 mm capacity 45 degrees: flat 125 x 95 mm capacity 60 degrees: round 90.0 mm capacity 60 degrees: flat 90 x 95 mm dimensions of saw-blade 370 x 32 x 2,5 mm cutting speed 15 - 150 m/min engine output 3.0 kW weight 640 kg range L-W-H 900 x 1500 x 1910 mm New price ~ 16.000 euros - in checked condition - machine video - ?v=gxj5GWtTcDE Furnishing : - semi-automatic vertical metal circular saw - with miter adjustment 60 ° left / 45 ° right - swiveling control panel, front left - The saw head slides on linear double guides - pneumatic vice clamping - pneumatic saw blade feed, stepless - Infinitely variable speed adjustment from the saw blade - 2x replacement saw blade - Machine frame with coolant device Csdpjxabrxsfx Ac Hori - Operation manual

Condition: good (used), Year of construction: 1991, functionality: fully functional, Semi-automatic cold circular saw Make: Kaltenbach Model: KKS 400 E Year: 1991 Technical data: Manufacturer: Kaltenbach Model: KKS 400 E Year of manufacture: 1991 Saw blade diameter: 400 mm Gearbox with speeds: 14/28 m/min -Cutting range at 90° flat: 120×120 mm -Cutting range at 45° flat: 305×40 mm -Cutting range, round material: 130 mm -Cutting speed: 14/28 m/min Total power requirement: 3.5 kW Crjdpfx Acsw U Dbgj Hei Machine dimensions: L 1.0 x W 1.0 x H 1.90 m (plus roller conveyors) Weight: 1,250 kg + roller conveyors Equipment: - 3 m right-hand stop with roller conveyor - Left-hand roller conveyor, L = 1.5 m All information is provided without guarantee. A demonstration is possible at any time in our showroom.

Condition: good (used), Year of construction: 1997, Offer 25285 Technical Data: - Metal circular saw with hydropneumatic feed - MPS control system with programmable work cycles - Workpiece clamping in pneumatic machine vice - Saw blade diameter up to 370 mm - Cutting speeds: 15 and 30 rpm - Mitre adjustable to the right up to 45°, to the left up to 45° – 60° Crsdpfxow Imd Rj Ac Hsi - Cutting range at 90°: round 120 mm; rectangular 180 x 100 mm; square 120 x 110 mm - Mitre cut at 45°: round 120 mm; rectangular 130 x 100 mm - Maximum opening width of pneumatic machine vice: 160 mm - Drive: 400 V / 1.5 / 3 kW - Pneumatic connection: 6 – 8 bar - Micro-spray coolant system - Infeed roller conveyor: 2000 mm - Outfeed roller conveyor with length stop: 4000 mm - Space requirement: approx. W 800 x H 2050 x D 1100 mm - Machine weight: approx. 450 kg

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 304289, saw blade diameter: 450 mm, cutting speed: 1,000 mm/min, cutting width (max.): 5 mm, opening stroke: 160 mm, TECHNICAL DETAILS Saw Blade Saw blade diameter standard: 450 mm Saw blade diameter min.: 370 mm Cutting width: max. 5 mm Saw blade mounting – Bore: 50 mm Saw blade mounting – Number of driving pins: 4 pcs Saw blade mounting – PCD of driving pins: 80 mm Saw blade mounting – Diameter of driving pins: 13 mm Crsdpfx Aew H Ivaec Hji Saw blade feed speed: 0–1,000 mm/min Vertical Clamping Unit Opening stroke with aluminum pressure pad (mitre cuts): max. 160 mm Opening stroke with steel pressure pad (straight cuts): max. 160 mm Rotary Table Rotary table adjustment: stepless ±60° Cutting Speed with 450 mm Blade Diameter Two-stage with chain: 11/22 m/min, 13/26 m/min, 15/30 m/min Two-stage with toothed belt: 35/70 m/min Frequency-controlled with toothed belt: stepless from 7 to 43 m/min, stepless from 15 to 75 m/min Automatic Feed Unit Programmable length: max. 9,999 mm Material width: max. 240 mm Remnant length with single-sided swiveling blade (0/60 degrees): min. 78 mm Remnant length with clamping gripper: min. 98 mm Remnant length with double-sided swiveling blade (-60/+60 degrees): min. 265 mm Remnant length with double-sided swiveling blade and clamping gripper: min. 285 mm Clamping force max.: 3,900 N Clamping force min.: 800 N Traverse speed: max. 30 m/min MACHINE DETAILS Electrical Connection Operating voltage: 400 V, 50 Hz (3-phase) Control voltage DC: 24 V Solenoid voltage DC: 24 V Two-stage with chain: 1.8/2.7 kW Two-stage with toothed belt: 3.7/4.7 kW Frequency-controlled with toothed belt: 4.0 kW, 5.5 kW EQUIPMENT HSS solid steel blade HSS segmental saw blade Automatic feed unit

Condition: refurbished (used), Year of construction: 1988, For sale is a Kaltenbach cold circular saw. The machine has been completely dismantled and rebuilt. In the course of the overhaul, the gearbox, motor and hydraulics were overhauled. The table has been turned flat and re-stored. Gearbox free of play! Type: KKS 400 E Saw blade Ø: 400 mm Motor power: 1.8/2.7 kW Cutting speed: 10/20 13/26 15/30 m/min Feed rate: 0 - 1,000 mm/min Fast forward/reverse: 1,550 mm/min Max. working range: 130 mm Working range square material: 120 mm Crsdow Ebquspfx Ac Hsi Working range flat material: 305 x 20 mm Working range round material: 130 mm Working range min.: 10 x 10 mm Mitre range: 0° - 90° - 0° Dimensions LxWxH: 1,080 x 900 x 1,760 mm Weight: 900 kg Inspection / collection in 89558 Boehmenkirch Shipping possible on request Forklift available for loading.

Condition: used, Year of construction: 1989, saw blade diameter 320 mm Cedpfxew Dvivo Ac Hori cutting diameter 140 mm total power requirement 3 kW weight of the machine ca. 0,5 t

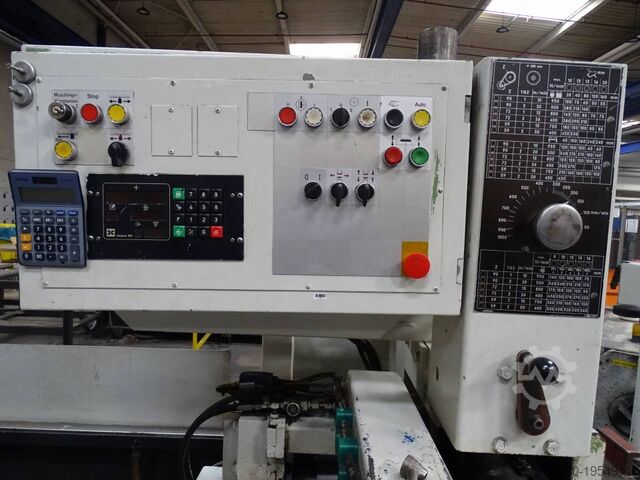

Condition: good (used), Year of construction: 1989, KALTENBACH KSS 400, year of manufacture 1989, serial number 111155 Crodpjwyw S Rjfx Ac Hei

Condition: used, Year of construction: 1980, functionality: fully functional, machine/vehicle number: 1500 01025, saw blade diameter: 400 mm, total height: 1,700 mm, total width: 1,100 mm, overall weight: 700 kg, type of input current: three-phase, cutting diameter: 130 mm, space requirement height: 2,000 mm, space requirement length: 900 mm, space requirement width: 1,200 mm, length stop: 6,000 mm, Kaltenbach KKS400E cold circular saw, year of manufacture approx. 1980–1982, fully functional, can be inspected under power. Incl. outfeed roller conveyor with 6000 mm length measuring device. Cutting range at 90°: D130 or 120x120 mm, flat material 315x40 mm. Crodjwx Nn Iopfx Ac Hei

Condition: good (used), Year of construction: 1991, functionality: fully functional, saw blade diameter: 400 mm, cutting range round steel at 90°: 145 mm, total length: 850 mm, total height: 1,800 mm, total width: 1,100 mm, overall weight: 700 kg, Semi automatic circular saw, blade Ø 400 mm new, capacity Ø ca. 145 mm, motor 3,0 / 4,0 kw 2-speed 1420/2880 rpm, vertical clamp, horizontal clamp, stops 30°, 45°, 60° 90° double side, coolant device; dimension 85x110x180 cm, weight ca. 700 kgs Crjdpewp Ipxjfx Ac Hji

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Behringer Eisele VMS 370 PV Metal Circular Saw Crodpfx Aowp Dz Rjc Hsi Manufacturer: Behringer Eisele Type: VMS 370 PV Year of manufacture: 2008 Condition: used, very good Machining cross section max. round at 90° 130 mm rectangular at 90° 200 x 100 mm round at 45° 130 mm rectangle at 45° 140 x 100 mm Saw blade diameter 370 mm Saw blade width 3 mm Bore diameter 40 mm Adjustable saw blade speed 34 / 68 rpm Machine head swivels 45-90-45-30° Total motor power 2.0/2.6 kW Width 900 mm Length x width x height 1050 x 900 x 1900 mm Minimum quantity lubrication Scope of delivery: - 1x saw blade - Instruction manual

Condition: used, Manufacturer: Kaltenbach Type: KKS Saw blade diameter 370 mm Cutting capacity 45° - 90° round 115 mm flat approx. 215 x 20 mm rectangular approx. 95 x 105 mm U-profile approx. 160 x 55 mm Speed: 14, 19, and 28 rpm Dimensions: 1100 x 1050 x 1600 mm (LxWxH) Weight: approx. 850 kg Equipment: • Semi-automatic operation • Hydro-pneumatic stepless saw blade feed Csdpfx Ajwpb E Hoc Hori • Mitre cuts on both sides R - L • 0° longitudinal cut possible • Coolant system • 1 saw blade The machine can gladly be demonstrated under power on site. All information without guarantee. Errors and interim sale excepted.

Condition: excellent (used), Year of construction: 2010, operating hours: 3,112 h, functionality: fully functional, machine/vehicle number: 305973, saw blade diameter: 400 mm, feed length Y-axis: 1,000 mm, feed length Z-axis: 400 mm, feed rate X-axis: 1,000 m/min, feed rate Y-axis: 1,200 m/min, total length: 2,340 mm, total width: 1,300 mm, rotational speed (max.): 3,200 rpm, cutting length (max.): 9,999 mm, saw drive: 4,000 W, Equipment: rotational speed infinitely variable, Kaltenbach KKS 400 NA – Automatic circular saw for precise metalworking (built in 2010) For sale is a Kaltenbach KKS 400 NA, a fully automatic circular saw for steel, stainless steel, and non-ferrous metals. The machine is in very good condition and has been used only rarely since its purchase. ✅ Condition & History: -Technically and visually in very good condition -Service receipts for the last maintenance are available -Hardly any operating hours since the last service -Ready for immediate use 🔧 Technical Highlights: -Saw blade diameter: 400 mm -Cutting range at 90° (round): up to Ø 130 mm -Miter cuts: automatic from 0° to 180° -Feed: NC-controlled feed gripper, max. cutting length 9,999 mm -Speed: up to 3,200 rpm -Feed speed (Z): up to 1,000 mm/min (rapid traverse up to 3,300 mm/min) -External dimensions: approx. 2,340 × 1,300 × 1,805 mm -Weight: approx. 1,700 kg NC control With remote diagnostics function Crsdpfowhwd Aex Ac Hsi → For easy programming, higher repeatability, and reduced setup times. Automatic material feed (1,000 mm stroke, max. 9,999 mm cutting length) → Ideal for serial cutting and long workpieces, significantly more efficient than manual feeds. Motorized miter adjustment (0°–180°) → Fast, precise bevel cuts without manual adjustment – tiltable to both sides. Continuously adjustable cutting speed (up to 43 m/min) → Optimal adaptation to the material and workpiece – better than the fixed speeds of older machines. Powerful 4.0 kW motor → Higher cutting performance even with thick-walled materials. Hydraulic clamping technology & economical lubrication → For clean cuts, less rework, and long tool life.

Condition: refurbished (used), Year of construction: 1998, A Kaltenbach cold circular saw is for sale. The machine has been completely disassembled and rebuilt. During the overhaul, the gearbox, motor, and hydraulics were overhauled. The table was refaced and re-bearings were installed. Gearbox is backlash-free! Type: KKS 400 E Year of manufacture: 1998 Crjdewcgdhjpfx Ac Hoi Saw blade diameter: 400 mm Motor power: 1.8/2.7 kW Cutting speed: 10/20 13/26 15/30 m/min Feed rate: 0 - 1,000 mm/min Rapid forward/reverse speed: 1,550 mm/min Maximum working area: 130 mm Working area for square material: 120 mm Working area for flat material: 305 x 20 mm Working area for round material: 130 mm Minimum working area: 10 x 10 mm Miter range: 0° - 90° - 0° Dimensions (L x W x H): 1,080 x 900 x 1,760 mm Weight: 900 kg Inspection / Pick-up in 89558 Boehmenkirch Shipping available upon request Forklift available for loading.
