MachTechnica Ltd.

Condition: used, spindle diameter 90 mm x-travel 700 mm y-travel 500 mm Control Heidenhain bore capacity in steel 40 mm spindle taper MK 4 bore spindle stroke 170 mm spindle turning speed - stepless 10-2.000 U/min ll diameter 230 mm table dimensions 900 x 770 mm vertical travel of crossrail-slide 630 mm boring spindle 6 Stück/ 0.02-0.20 U/min distance between columns 900 mm Passage between spindle and table 815 mm spindle drive 4 PS total power requirement 380 V weight of the machine ca. 3,9 t In our assessment, the machine is in good used condition and can be inspected under power by appointment. Hjdpfx Ahexwzg Ro Ujfp Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Technical data and specifications are subject to change without notice and errors. Prior sale is reserved.

Condition: used, Jig Boring Machine WMW BKoE 450 x 800 Travel X: 560 mm Travel Y: 400 mm Travel Z: 470 mm Spindle: Ø 90 mm Cone: CM4 Spindle exit: 150 mm Spindle speed: from 50 to 1600 RPM Table size: 450 x 800 mm Maxi loading capacity on table: 400 kg Scale3 axes HEIDENHAIN Hfodpfx Asxuf Utoh Usp Automatic descent Voltage: 380 V Width with ends table: 2900 mm / without ends table: 1500 mm Depth: 2500 mm Total height: 2600 mm Weight: 4,5 T

Condition: used, Drilling / Jig Boring Machine CONSTANT SUPEMEC type P65 Travel X: 500 mm Travel Y: 300 mm Travel Z: 550 mm Cone: SA40 Spindle speed: from 77 to 1520 RPM Table size: Length 1200 mm x Width 420 mm Maxi distance spindle nose/table: 670 mm Mini distance spindle nose/table: 120 mm Throat depth: 300 mm Variable speed drive for X - Y Hfedpfxexuf Uas Ah Uep Voltage: 380 V Width: 1600 mm Depth: 1800 mm Height: 2400 mm Total width with control panel: 2700 mm Weight: 3 T

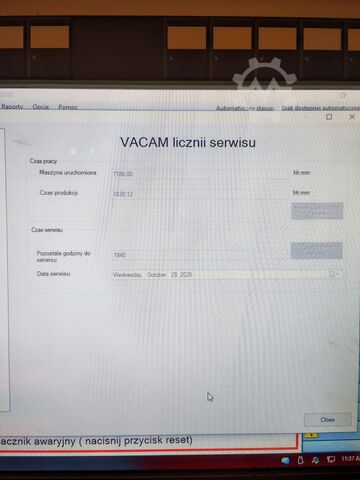

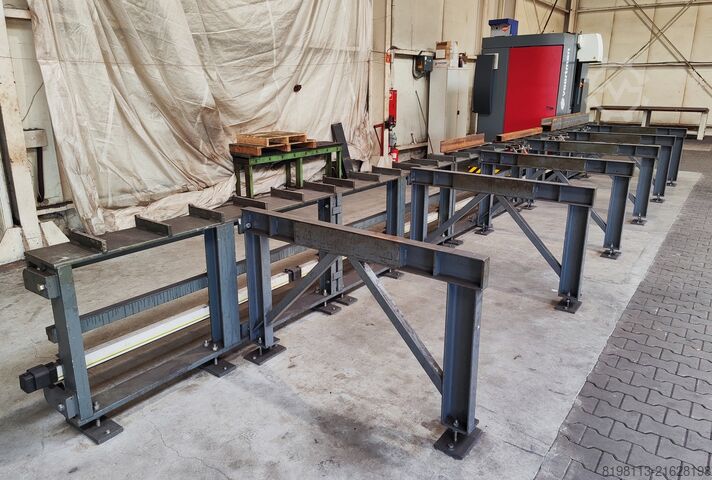

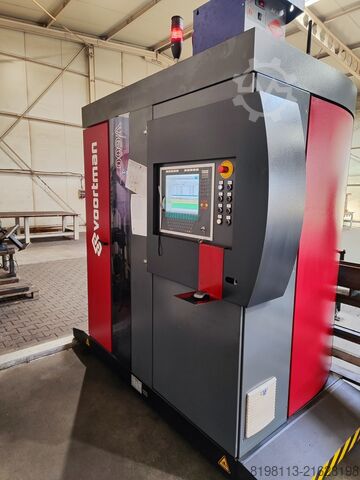

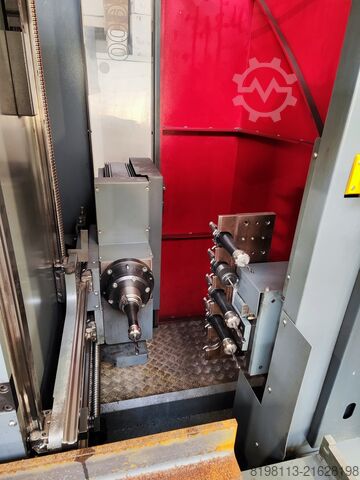

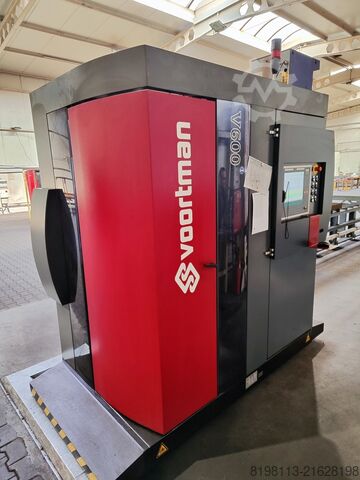

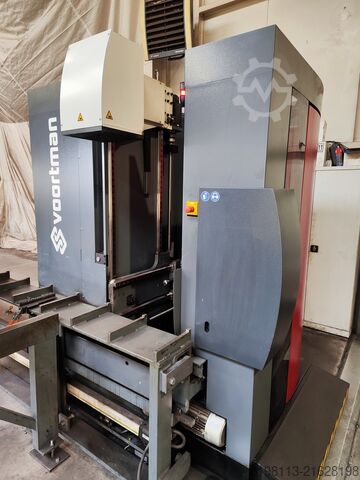

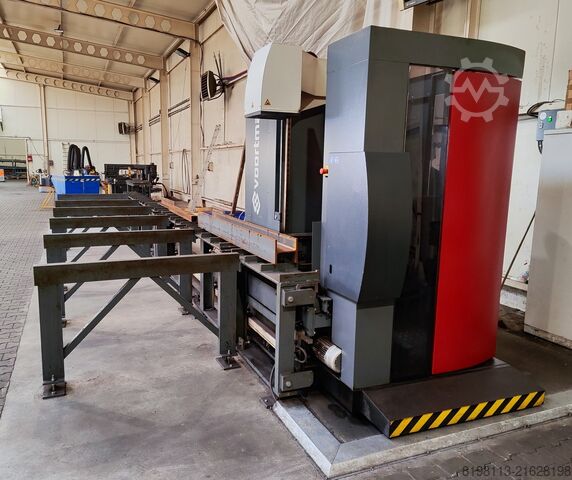

Condition: excellent (used), Year of construction: 2009, Year 2009 Hsdjw D Uqfepfx Ah Uefp VOORTMAN V600 CNC SINGLE SPINDLE DRILLING MACHINE with 5 station automatic tool changer. 18 metres length, drilling capability 16.3 metres. Profile Capacity 35mm -1050mm. Drill capacity 8mm-40mm.

Condition: excellent (used), Year of construction: 2012, · V200 Plate drilling machine (executed with a VD40 drilling unit and an X-Y coordinate table). Hfjdpfx Ahjwphgdo Ujp · VTC 8/40 tool changer (8 places). · Hydraulic numbering unit VN 1/16 · Deburring unit VDB 2 (each hole is automatically deburred). Max. length 1.400 mm* Max. width : 1.000 mm Min/max. thickness : 3 - 60 mm Capacity : : 600 kg * Longer lengths (max. 2 400mm) possible by automatic repositioning.

Condition: used, Price: On request - Documentation available: No - Control: Conventional - Drilling depth: 150mm - Model: ördinatenboor - Digital readout: Yes - Table width: 1500mm - Table length: 2200mm - Travel X: 2500mm Hodpfewfpbbox Ah Ujfp - Travel Y: 1400mm - Spindle diameter: 100mm - Travel Z: 1000mm - Number of axes: 3 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Technical details: z-travel: 400 mm range of revolution per miute: max. 3.000 / steples U/min feed continuous: keine Angaben quill stroke vertical: 100 mm spindle taper: MK2 table surface area: 445 x 315 mm distance table - lower edge spindle: max. 520 mm table travel: längs: 250 mm table travel: quer: 330 mm table height over floor: 920 mm total power requirement: 1,6 kW weight of the machine ca.: 1500 kg machine dimensions LxWxH: 1,3 x 1,1 x 2,0 m Application: Milling and drilling slotted holes There is a precision dial gauge for depth display on the drill spindle head. 5x T-slots to DIN 650: a=10; h=18; b=18; c=8mm Features: Two-way digital ACU-RIDE display Hodev A S Efjpfx Ah Ujfp *

Condition: used, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 120 rpm, table length: 550 mm, table width: 320 mm, spindle mount: MK 2, total height: 1,500 mm, total length: 1,400 mm, total width: 2,100 mm, rotational speed (min.): 120 rpm, rotational speed (max.): 3,000 rpm, drilling capacity: 75 mm, distance between stands: 600 mm, spindle motor power: 551 W, For sale is a Hauser brand coordinate drilling machine of type OP3 The machine is ready for use and fully functional Technical data: HAUSER OP3 coordinate drilling machine Table: 550 x 320 mm Longitudinal travel: X-axis 400 mm Cross travel: Y-axis 250 mm Vertical travel: Z-axis 400 mm Cone in the spindle: MK 2 Drilling capacity in steel: 20 mm Stroke of the drilling spindle Z-axis: 130 mm Bore diameter: max. 75 mm Distance from table to spindle: 600 mm Spindle speeds: infinitely variable: 120- 3000 rpm Feed rates: Drill spindle slide: Number (steps) 2, 0.03 mm/rev 0.06 mm/rev Spindle motor: 0.75 HP Machine weight: approx. 1500 kg Dimensions: 1400x1500x2100 Transport and loading can be organized throughout Europe on request for an additional charge. Prices plus VAT Hjdpfjvzrx Nex Ah Usfp Viewings possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machine purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit us on our website

Condition: used, workpiece weight (max.): 5,000 kg, Two-column coordinate boring machine CNC Manufacturer: Mikromat WMW Type: CBKoZ 1400x2240/2 Control: Siemens 840D (installed approx. 1997) Space required: 7000 x 6500 x 5300 mm (LxWxH) Weight: 22,500 kg incl. - tool holders shown - extensive documentation. Hsdpfx Ahevuhu To Uefp For further information, see attachments. The machine can be tested/demonstrated on site under power. Freight basis: From location, without dismantling The buyer must dismantle and load the machine himself. A 10-ton bridge crane is available for this purpose, which was also used to assemble the machine at the time. Further assistance and the use of a forklift truck may be possible by arrangement. All information without guarantee. Subject to prior sale. The object of purchase is sold without any warranty. The exclusion does not apply to claims for damages arising from grossly negligent or intentional breach of duties by the seller or for any injury to life, body or health.

Condition: excellent (used), Year of construction: 1995, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 780 mm, 1 used, very well-maintained high-precision CNC jig boring machine SIP MP 600 Machine built 1995 - 2007, converted to HEIDENHAIN iTNC 530 and completely overhauled. Table 1100 x 700 - free passage between the columns 750 mm Spindle diameter of the hydrostatic spindle 130 mm - 1 micron concentricity! Conversion to HEIDENHAIN CNC 3-axis interpolation. Reading accuracy of the boring spindle less than 1 micron - hydraulic weight and load compensation in the crossbeam. This machine is in fantastic condition - we would be happy to demonstrate it to you in our warehouse under power. Price (domestic plus 19% VAT) ex warehouse Delivery time: immediately - subject to prior sale and errors. Payment: As usual, net before collection. Hfsdpfx Aou Titzsh Ujp Technical data is non-binding - errors excepted.

Condition: good (used), Year of construction: 2006, machine/vehicle number: 860027, Offer 24331 Technical data: - Table surface 1700 x 550 mm Hedpou Aqz Aefx Ah Ujfp - manual travel X / Y 1300 x 500 mm - MAXION drilling machine, type: BT 18 STP - Drilling capacity up to 18 mm - Tapping device up to M 16 - Drill spindle holder MK 2 - Drill spindle stroke with fine drilling depth adjustment 76 mm - Pneumatic feed unit PV 12 - throat depth 670 mm - Spindle speeds 100 - 1800 rpm - 200 - 3600 rpm - mot. Stroke of the drilling unit - mot. Table clamping x + y - Minimum quantities Lubrication - Pneumatic connection 6 bar - Connection 400 V - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg

Condition: ready for operation (used), Year of construction: 1984, SIP producer Model HYDROPTIC 6A Year of production 1984 The size of the work table is 1100 x 842 mm Max. item weight on a 1000 kg table Number, width and distance of T-slots table 8, 16, 105 mm Cross-travel of the table (X) 1000 mm Longitudinal table travel (Y) 795 mm Vertical table travel (Z) 800 mm Max. spindle distance to the table 1020 mm Clearance between 1100 mm columns Spindle motor power 6 kW 400 V powered Weight 11300 kg Hodpfxeuxmlvj Ah Ujfp

Condition: good (used), Year of construction: 2006, machine/vehicle number: 185078, Offer 24435 Technical data: - Table surface 1700 x 550 mm - manual travel X / Y 1300 x 500 mm Hodeur H Ehepfx Ah Uefp - MAXION drilling machine, type: BT 15 GL - Drilling capacity up to 18 mm - Tapping device up to M 10 - Drill spindle holder MK 2 - Drill spindle stroke with drilling depth fine adjustment 90 mm - Pneumatic feed unit PV 12 - throat depth 670 mm - 4 spindle speeds 320 + 560 + 1000 + 1600 rpm - mot. Stroke of the drilling unit - Table clamping x + y - Minimum quantities Lubrication - Pneumatic connection 6 bar - 400 V connection - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg - various guide cartridges

Condition: used, Year of construction: 1987, functionality: unexamined, machine/vehicle number: F310Y, total height: 3,210 mm, total length: 4,640 mm, total width: 3,340 mm, Technical details: - Spindle diameter (axially fixed): 120mm - Variable spindle speeds: Range 1 - 10 to 465 RPM, Range 2 - 45 to 2150 RPM - Nominal power at the spindle: 8kW (temporary overload permissible up to 11kW) - Nominal torque at the spindle: 98 kpm (temporary overload permissible up to 134kmp) - Max absorbed power: 25kW - Dimensions of the standard tableL 840 x 1000mm - Max recommended load: 1200kg - Table rotation in both directions: continious through 360 degrees Hfedpfsun Siwox Ah Uep - Transverse stroke of the table (X axis): 900 (+20) mm - Longitudinal stroke of the table (Z axis): standard Z - 760 (+20)mm, increased Z - 975mm (+20 outside the graduation) - Min.and max. distance spindle flange/table centre (without spindle adaptor): standard Z - 430/1190 (+20)mm, increased Z - 455/1430 mm (+20 outside the graduation) - Vertical stroke of the headstock (Y axis), min. and max. height of the spindle axis above the table: standard Y - 50-710 (+20)mm, increased Y - 50-960 (+20)mm - Hydraulic infinitely variable working feeds in manual mode - 6 to 630mm/min - Rapid traverse - 6m/min - Precision of optical reading: linear axes - 0,001mm, manual rotary axis - 1 sec.arc - Positioning accuracy refered to built-in master scales +/- 0.0015mm; +/- 2 sec.arc - Weight of the machine: 12 t Extras: Includes various tool holders, rotating table, user manuals

Condition: used, Year of construction: 1981, functionality: unexamined, machine/vehicle number: 2172, travel distance X-axis: 1,000 mm, travel distance Y-axis: 630 mm, feed rate X-axis: 400 m/min, feed rate Y-axis: 400 m/min, feed rate Z-axis: 300 m/min, table length: 1,120 mm, table width: 630 mm, total length: 2,760 mm, table height: 2,800 mm, total width: 3,306 mm, rapid traverse X-axis: 1 m/min, rapid traverse Y-axis: 1 m/min, rapid traverse Z-axis: 1 m/min, drilling capacity: 30 mm, Dimensions of the working surfaces: Hedpfx Ahjunrhao Uefp - Maximum stroke of spindle - min.270mm - Spindle extension - 710mm - Distance from spindle end to working table - least 200mm greatest 750mm - Internal spindle cone acc.to GOST 15945-70 - metric 45 - Machine weight (without electrical equipment and accerssories) - 6890kg Table and skids: - Nr.of table slots - 7 - Securing the table and sleds - mechanical - Screen counting method - optic - Screen resolution value- 0,001mm Spindle: - Boring capacity: 250mm - The accuracy of processing a given size at a feed rate no more than 150mm/min - 0,2mm - Force allowed by the feed mechanism - 600kgs - Spindle RPM limits (within two gears): 1st gear- 32-400 RPM, 2nd gear - 160-2000 RPM - Maximum vertical mechanical displacement - 330mm Extras: coilets, tool holders, other additional equipment, documentation for machine

Condition: used, Year of construction: 1968, functionality: unexamined, travel distance Z-axis: 950 mm, spindle speed (max.): 1,900 rpm, spindle speed (min.): 38 rpm, feed rate X-axis: 400 m/min, feed rate Y-axis: 400 m/min, feed rate Z-axis: 400 m/min, table length: 1,000 mm, table width: 1,000 mm, table load: 2,000 kg, spindle mount: MK 5, total height: 3,500 mm, total length: 2,750 mm, table height: 850 mm, total width: 2,280 mm, rapid traverse X-axis: 1 m/min, rapid traverse Y-axis: 1 m/min, distance between stands: 1,575 mm, spindle diameter: 120 mm, spindle motor power: 11,000 W, spindle stroke: 300 mm, Additional techical specs: Hodpfx Ahjunhd Re Uefp - Distance between pilars - 1575mm - Spindle speed: Nr.of gears: 18, Range 1:50: 18 to 1900 RPM, Stepup: 1,26 - Spindle feed: Drilling feed, nr. of gears: 15. Range: 0,03 to 0,8 mm/rev. Frictional feeds, nr.of gears: 3. Range: 2, 3 to 4 mm/rev. - Performance: Largest drilling diameter into solid material: 55mm for cast iron with feed: 0,6mm/rev. Largest drilling diameter approx.: 300mm Largest facing diameter: 620mm Largest cutting diameter (for steel,cast iron) approx.:120mm Largest milling-cross section (with table feed): 150mm2 at a milling feed of: for cast iron- 400mm/min, for steel: 200mm/min Power of drilling motor: 6 HP Power of lifting motor: 5 HP Connected load of the machine: 11kW Extras: coilets, tool holders, other additional equipment, documentation for machine

Condition: used, Year of construction: 1984, functionality: unexamined, machine/vehicle number: B30157, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 450 mm, table length: 600 mm, table width: 380 mm, table load: 300 kg, spindle mount: MK 3, total height: 2,545 mm, total length: 1,700 mm, table height: 965 mm, total width: 1,330 mm, rapid traverse X-axis: 1 m/min, rapid traverse Y-axis: 1 m/min, rapid traverse Z-axis: 900 m/min, rotational speed (min.): 30 rpm, rotational speed (max.): 2,500 rpm, drilling capacity: 30 mm, type of input current: three-phase, quill stroke: 140 mm, quill diameter: 85 mm, spindle diameter: 100 mm, spindle motor power: 8,200 W, workpiece weight (max.): 300 kg, rotary table diameter: 200 mm, Additional specs: Resolution: 0,001mm Max. capacity of boring: 220mm Machine weight: 2500kg Additional equipment: Hsdpfx Aheungrgj Uofp - One rotating table with two rotating axis. - Collets, clamping elements miscellaneous, tool holders. - Documentation for machine

Condition: good (used), spindle diameter 105 mm x 600 mm-TRAVEL y-travel 400 mm spindle throat 475 mm Spindle speed - infinitely variable 70-2000 U / min table surface 800 x 400 mm Automatic spindle movement Hfsdpfx Ahsuldt Ns Uop weight of the machine approximately 2.5 t

Year of construction: 2018, condition: excellent (used), Drilling machine with coordinate deduction system, little use, fully programmable. Specification: Model: APOLLO TRAP + SPEEDY Serial no: T6104130618 Year: 2018 Hfjdpfxspcgybe Ah Usp Force: 3.4 KN Weight: 620 kg Made in: Italy If you have more questions, we will be happy to answer them.

Condition: used, machine/vehicle number: 52 / 519, spindle diameter:90 mm x-travel:700 mm distance between columns:900 mm size of table:770 x 900 mm x-Travel:700 mm y-travel:500 mm z-travel:1100 mm feed range - table:15 - 280 mm/min rapid traverse Z-axis:530 m/min spindle bore diameter / taper:MT4 (Morse) mm spindle bore diameter:max. 230 mm Hsdpfx Ahsh Ra Sto Uofp spindle stroke - max.:170 mm spindle speeds low range:10 U/min spindle speed high range:2000 U/min vertical feeds of spindle head::0.02 - 0,2 mm/r feed steps:6 Main spindle capacity:3 kW total power requirement:4,2 kW weight of the machine ca.:4 t dimensions of the machine ca.:1,9 x 2,2 x 2,4 m Hauser (SIP) High Precision Co-ordinated Jig Boring Machine, Model - M5 Douple Column Design Boring machine Large table (900 x 770 mm) for bulky Objects. All Axis are equipped with Fine Dial for High Presion Boring. A Complete Accesseries and tools are Avilable with the machine ( Drill Bits, Drill Chucks, Multiple Boring heads, Boring Inserts and Bits, Small and large rotary index table for small and big loads).

Condition: excellent (used), Henri Hauser M5 DR jig boring machine spindle diameter 90 mm x-travel 700 mm y-travel 500 mm Drilling capacity in steel 40 mm spindle mounting MK 4 drilling spindle stroke 170 mm number of spindle revolutions 2 infinitely variable 10-2000 rpm Boring diameter max. 230 mm Table dimension - longitudinal 900 mm Table dimension - crosswise 770 mm Vertical travel of cross beam 630 mm Drilling spindle 6 pieces from/to 0.02-0..20 rpm Clearance between uprights 900 mm Passage between spindle and table 815 Hfsdpfsg Ibuxjx Ah Uop Spindle motor 4.0 HP Total power requirement 380 V Machine weight approx. 3.9 t Complete factory closure, large selection of storage platforms, pallet racks, shelf racks, paternosters. High-quality industrial machines, lathes, grinding machines, hand machines Further articles - new and used - you will find in our shop! International shipping costs on request!

Condition: like new (used), CNC vertical jig boring machine WMW MIKROMAT Travel X: 1120 mm Travel Y: 710 mm Spindle travel Z: 315 mm Travel W: 630 mm Hfjdpfxjgy E Dpj Ah Usp Numerical Command: CNC NUM 1060 Spindle: Ø 125 mm Cone: SA40 Rotation: from 36 to 2240 RPM Table size: 1400 x 900 mm Distance between colums: 1080 mm Maxi distance spindle nose/table: from 0 to 900 mm max Maxi eligible load on table: 1000 kg max Separate electrical panel Machine renewed in 2000 with CN NUM1060 Voltage: 380 V Dimensions (L x W x H): 4000 x 2460 x 3030 mm Weight: approx. 9 T

Condition: used, Year of construction: 1996, spindle diameter 60 mm Hfjdpfxogvkkzo Ah Uop x-travel max. 1000 - min. 100 mm y-travel max. 1000 - min. 100 mm bore capacity in steel max. 40 mm thread capacity max. M24 Thickness max. 60 - min. 5 mm spindle turning speed - stepless einstellbar 1 - 1.000 U/min feed stepless einstellbar, Eilgang 1 - mm/min feed stepless einstellbar, Arbeitsgang mm/min feed power 16 KN tool taper SK 40 spindle stroke 600 mm positioning speed in allen Achsen 1 - 10.00 mm/min positioning accuracy auf 300 mm = +/- 0,01 mm table load max. 500 kg work height max. 1000 mm weight of the machine ca. 4,8 t dimensions of the machine ca. 3,5 x 3,3 x 3,1 m Control Bosch CNC plate drilling system HMB PBM1000/60 - W12 for drilling head plates and Base plates in steel construction with tool changer (12x) Number of drilling spindles: 1 pc. Operating Voltage: 220/380V Frequency: 50 Hz Total connection value: 22 kVA

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 7/61, Manufacturing origin Swiss Voltage 380/50/3 Netweight abt. 760 kg Dimensions abt. 1250x1000x1700 mm TECHNICAL DATA WORK CAPACITY Travel X and Y 200x200 mm Vertical slide travel 250 mm Travel of drilling spindle 70 mm Max free passage between table and spindle nose 330 mm Free passage between column and centre of spindle 260 mm Max drilling capacity (steel) 10 mm Max reaming capacity 50 mm TABLE Usable surface 400x300 mm Admitted load 100 kg Travels X and Y through motors Number of T-slots 6 (longitudinal) Hfjdpfx Ahod Amgks Ujp DRILLING HEAD Spindel morse taper 0 Speed of spindle 150-3000 rpm Feed of drilling spindle 0,015 mm/t PRECISION Direct reading on divided drums 0,01 mm Direct reading on verniers 0,001 mm Guaranteed precision on displacement of slide-way 0,002 mm MEASURE Measuring system direct, optical Elements of measure graduated rule, div.1mm Read-out projection screens Shifting of zero-point yes Direct read-out 0,001 mm Guaranteed positioning precision 0,002 mm Installed power 1,2 kW errors and omissions excepted data given without obligation Inventory Nr.2160006, machine equipped with : 1 turning table Ø 220 with optical measure 1 centering microscope with 3-points suspension, zoom 40x, lightening 1 centering device with dial comparator cap. 3 mm. MT0 1 centering point MT0 1 tracing tool with spring-mounted point MT0 1 center punch MT0 1 chuck for centering drills MT0 1 self clamping drill-chuck 0-5 mm., MT0 1 boring head type 0, cap. 0.5-30 mm., MT0 1 levelling foot with 2 round levelling supports

Condition: used, >> Condition very good! >> Speed: 45 - 4000 rpm. Hfedpfx Ahjb Ecm To Uep >> Fehlmann cross table: 380 x 750 mm >> XYZ: 420/300/500 mm >> Motorized height adjustment of the drilling head
