Condition: ready for operation (used), Year of construction: 2004, travel distance X-axis: 3,800 mm, travel distance Y-axis: 2,800 mm, travel distance Z-axis: 1,200 mm, spindle speed (max.): 8,000 rpm, spindle motor power: 25,000 W, number of axes: 5, This 5-axis OMAG Blade G gantry milling machine was manufactured in 2004. It features a substantial X-axis travel of 3,800 mm, Y-axis travel of 2,800 mm, and Z-axis travel of 1,200 mm. The machine is equipped with a powerful 25 kW spindle motor and a maximum saw blade diameter of 1,000 mm. If you are looking to get high-quality milling capabilities, consider the OMAG Blade G machine we have for sale. Contact us for further details. • Spindle motor: Omag 50 • C-axis: ±200° • B-axis: ±120° • Max saw blade diameter: 1,000 mm Additional equipment Dksdoyzzlwspfx Adwok • CAD/CAM: DDX Technical Specification Taper Size ISO 40

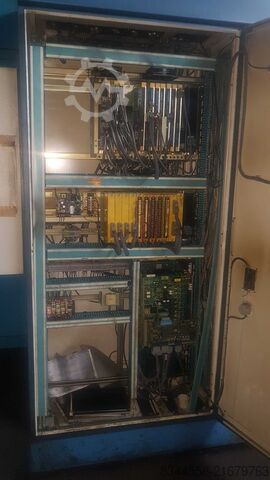

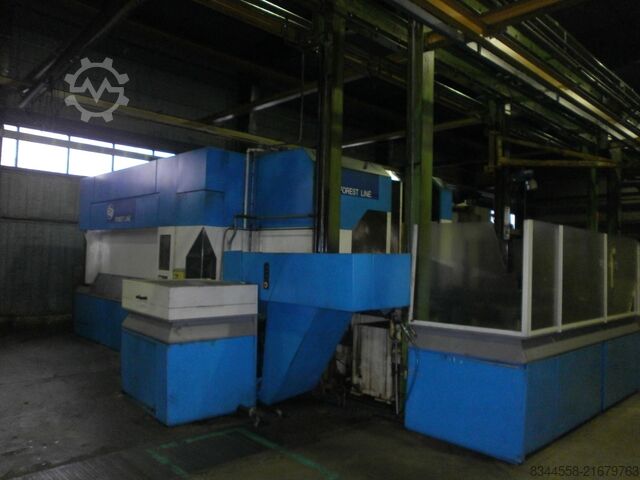

Condition: used, Year of construction: 1990, functionality: fully functional, machine/vehicle number: 2124, travel distance X-axis: 1,200 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,375 mm, feed rate X-axis: 20 m/min, feed rate Y-axis: 20 m/min, feed rate Z-axis: 20 m/min, spindle speed (max.): 4,000 rpm, 5-axis machine Pallet size: 800 × 800 mm Dkjdpfx Aeyzxyxjdwok Automatic workpiece change: 5 pallets CNC control: FANUC 15M Spindle: 22 kW – 4000 rpm, FANUC Axis motor (20 m/min) + drive: FANUC Tool magazine: 118 tools, type 50, DIN 69871

Condition: ready for operation (used), Year of construction: 2021, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 760 mm, total width: 4,660 mm, spindle speed (max.): 8,000 rpm, total height: 4,100 mm, overall weight: 29,000 kg, tool weight: 20,000 g, spindle motor power: 26,000 W, controller manufacturer: FANUC, controller model: 31iM-F CNC with 10.4" LCD, product length (max.): 8,700 mm, number of axes: 4, This 4-axis AWEA LP3016YF gantry milling machine was manufactured in 2021. It features a substantial working area of 3216 x 1500 mm and a maximum workpiece weight of 10,000 kg. The machine is equipped with a FANUC 31iM-F CNC control and includes a 32-position tool changer. If you are looking to get high-quality milling capabilities, consider the AWEA LP3016YF machine we have for sale. Contact us for further details. • Worktable: 3216 x 1,500 mm • Max. workpiece weight: 10,000 kg • Distance plane to spindle nose: 200–960 mm • Distance between columns: 2,300 mm • Spindle taper: MAS BBT50 • Rapid traverse (X/Y/Z): 20 m/min (15 m/min) • Feed (X/Y/Z): 1–10,000 mm/min • Tool changer: Arm type, 32 positions • Max. tool diameter: Ø127 mm • Max. tool diameter with free adjacent pockets: Ø215 mm • Max. tool length: 400 mm Dksdpjyzr Sbefx Adwsk Additional equipment • Full machine encapsulation with roof (CE compliant) • Cooling and thermal management: • 20 bar high-pressure coolant system with filters • Low-pressure pumps (Grundfos/Walrus) • Spindle oil cooling system / oil cooler • Cooling system, spindle exhaust, heat exchanger in electrical cabinet • Chip handling: • Double screw-type chip conveyor along the table • Chain-type chip conveyor in Y-direction, located at one end • Probing: • Renishaw 3D workpiece probe system • Renishaw TS 27R tool-setting probe • Lighting: Double LED machine lighting plus LED spot • Tooling package: 20 pcs BBT50 tool holders incl. 32 pcs tightening bolts (through-coolant) • Power: 3x400V 50Hz CE transformer • Base/accessories: Steel machine shoe • F option (angle head and automation): • 90° angle head with automatic 5° indexed C-axis • Automatic change of vertical head; head stored in a box at the machine portal • Swing-away angle head storage • ATC change in both horizontal and vertical positions • Max. angle head rpm: 3,000 rpm • Transverse travel upgrade: Y = 1,900 mm (with F option)

Condition: good (used), Year of construction: 2018, Ref. -No.: 10643 Manufacturer: FERMAT Type: Gantry Year of construction: 2018 Type of control: CNC Control: Siemens Sinumeric Storage location: Halberstadt Country of origin: Czech Republic X-Travel: 20000 mm Y-Travel: 7800 mm Z-Travel: 2000 mm W-Travel: 1000 mm Turning Speeds: 20000 RPM Speed work spindle: 0 - RPM Max. Torque: 3294 Nm Dkodpsyzpxfsfx Adwjk Rapid Traverse X/Y/Z: 40000 m / min Table-Size (Lxw): 20000 x 5000 x 300 mm Power Capacity: 74 kW Headstock - (spindle diameter): 160 mm Further information: - Tool cooling - Low pressure - Tool cooling - High pressure 50 bar (6,000 liters) - Tool cooling - Oil separator - Sludge pump - Machine enclosure (CE) - Electrical - Linear measurement - Electrical - Remote diagnostics - ATC/Robot Robot 140 - Chip conveyor 2 - Operator cabin / protective screen - Electrical - HH iTNC 640 control system - Electrical - Handwheel - Electrical - Air conditioning for the distributor - Head - Type 2x UHA 0.001 The machine can be viewed while powered on by prior arrangement.

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, Datron M8 Datron V9 Control Year of manufacture: 08 / 2013 Spindle operating time: approx. 1947 hours 3KW high-frequency spindle with HSK25 tool holder, 1000 rpm to 40000 rpm HIB HF spindle cooling unit 2 x 5-position tool changers Renishaw 3D probe Tool length measuring probe Microjet minimum quantity lubrication system Vacuum table measuring 1000mm x 700mm 2-way vacuum distributor Dedsyzbmhspfx Adwjkk Software: V9 • Protected zones • Tool monitoring by path and time • Smoothing • G-code input filter The machine is in very good condition.

Condition: good (used), Year of construction: 1999, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 1,150 mm, Control: Siemens 840 D Powerline Tool holder: HSK-A63 Max. rpm: 16,000 Dodpfxsyx Txqo Adwekk X-travel: 3,000 mm Y-travel: 2,500 mm Z-travel: 1,150 mm A-axis: +/- 100 mm C-axis: +/- 181.5 mm Table size: 3,000 mm x 2,500 mm Option: External blowing air Kinematics: Fork head

Condition: ready for operation (used), Year of construction: 2001, Technical Features of this Bridge Type Milling Machine Manufacturer ZAYER Model KPU-5000 AR Year 11/2001 CNC HEIDENHAIN TNC-430 Table surface 6.500 x 1.800 mm Longitudinal travel (X Axis) 6.500 mm Cross travel (Y Axis) 3.050+873 mm Vertical travel (Z Axis) 1.250 mm Distance between columns 2.450 mm Maximum height between spindle nose and table with spherical head 1.565 mm. Maximum height between spindle nose and table with 45º head in vertical position 1.574 mm. Rapid feed (X, Y, Z) 25.000 mm/min Max. working feed 15.000 mm/min Heads 45º Automatic head INCLUDED 45º Head (A Axis / B Axis) 360.000 posiciones Automatic Head 45º Taper ISO-50 – DIN 69871 Automatic Head 45º Speed 6.000 r.p.m. Spherical Rotation Head INCLUDED Direct Output Head Taper ISO-50 Main Motor Power 37 kW. Speed Ranges 2 Manual Head Change INCLUDED Retractable Automatic Support in the Right Side For 45º Head INCLUDED Retractable Automatic Support in the Right Side For Direct Output Head INCLUDED Ethernet Connection INCLUDED Double Chip Conveyor One at each side of the machine INCLUDED 1000 l Oil Tank with Filter Paper + Magnetic Separator INCLUDED Internal coolant 20 Bar INCLUDED External coolant10 bar INCLUDED Automatic tool changer INCLUDED ATC positions 60 CNC 3D ROT Function INCLUDED Others Positioning Accuracy 0.010 mm. Repetitive Accuracy 0.005 mm. Handwheel HEIDENHAIN HR-410 Dksdpfxoyxv Une Adwok Carrying Load Table 20.000 Kg. Machine Weight 52.000 Kg.

Condition: used, Year of construction: 2008, functionality: fully functional, travel distance X-axis: 3,150 mm, travel distance Y-axis: 1,850 mm, travel distance Z-axis: 1,000 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 24 m/min, spindle speed (max.): 24,000 rpm, torque: 87 Nm, Fidia C20 CNC WORKING AREA X-axis longitudinal travel: mm 3,150 Y-axis transverse travel: mm 1,850 Z-axis vertical travel: mm 1,000 MAX AXIS SPEEDS X, Y axis feed rate: m/min 30 Z axis feed rate: m/min 24 WORK TABLE Clamping surface: mm 3,000 x 1,600 Maximum permissible load: kg/m² 5,000 T-slots: • Longitudinal 8 H12 + 1 H8 • Width mm 22 Dedpsyw Tddjfx Adwskk • Pitch mm 160 ELECTROSPINDLE Maximum power (S6 60%): kW 55 Spindle speed range: rpm 240 ÷ 24,000 Constant power range: rpm 6,000 ÷ 24,000 Maximum torque: Nm 87.5 Tool holder: HSK-A63 C-axis travel: ± 200° C-axis speed: °/min 2,000 C-axis offset from spindle axis: mm 75 A-axis travel: +95° / -110° A-axis speed: °/min 2,000 Max distance spindle nose – table surface: mm 1,175 Machine equipped with: • 24-position tool magazine • Remote electronic handwheel • HMS system for head calibration • Various equipment included with the machine • User and maintenance manual and CE declaration of conformity

Condition: ready for operation (used), Year of construction: 2003, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 760 mm, spindle speed (max.): 10,000 rpm, overall weight: 26,000 kg, tool weight: 15,000 g, spindle motor power: 30,000 W, controller manufacturer: FANUC, controller model: Series 18i-MB, number of axes: 4, This 4-axis EDEL Koordimatic XL 4020 gantry milling machine was manufactured in 2003. It features a substantial working area of 4000 x 2000 mm and a maximum spindle speed of 10,000 rpm. The machine is equipped with a powerful 30 kW electrospindle and has a travel distance of 760 mm in the Z-axis. If you are looking to get high-quality milling capabilities, consider the EDEL Koordimatic XL 4020 machine we have for sale. Contact us for further details. Dkjdpeyw Nppefx Adwek • Condition: Refurbished (used) • Functionality: Limited functionality • Power: 30 kW (40.79 HP); electrospindle after full regeneration (new bearings and clamping system) • Working area: 4000 x 2000 mm • Rapid traverse X/Y/Z: 20 / 20 / 15 m/min • Rotational speed (max): 300 rpm • Tool magazine: 36 positions (damaged – no changer arm) • Distance table to spindle center: 150 mm • Mount diameter: 50 mm Technical Specification Taper Size SK 50

Condition: ready for operation (used), Year of construction: 2000, travel distance X-axis: 7,230 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 850 mm, spindle speed (max.): 18,000 rpm, number of axes: 5, This 5-axis Handtmann PBZ NT 600 AS gantry milling machine was manufactured in 2000. It features a maximum profile length of 6500 mm and impressive X-axis travel of approximately 7230 mm. The machine is capable of working with steel and aluminium, offering advanced programming aids for milling and drilling cycles. If you are looking to get high-quality milling capabilities, consider the Handtmann PBZ NT 600 AS machine we have for sale. Contact us for further details. • Control: BWO CNC 900 multi-axis CNC • Control features: tool radius compensation in 3 axes; RAM for programs/parameters; programming aids for milling/drilling cycles; contour (short) programming; NC program I/O interface; interface for portable control panel (teach panel); control panel with swivel console; color TFT display; 3.5" floppy drive; CD-ROM drive Dedpfxsyw Ipuj Adwskk • Material capability: steel and aluminium • Rotary axes: C ≈ ±200°; A ≈ ±120° • Positioning accuracy (linear axes): ±0.05 mm/m • Speeds: Y working/rapid max 45 m/min; Z working/rapid max 45 m/min; X rapid max 90 m/min • Maximum profile length: 6500 mm

Condition: good (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 4480, total length: 14,500 mm, total width: 7,800 mm, total height: 3,500 mm, overall weight: 20,000 kg, Reichenbacher Machining Center VISION III-TT-L – 5-Axis, 3-Axis, MBG8, 5x SNA Equipment: 5-Axis Unit with Cardanically Mounted Spindle: Max. speed: 24,000 rpm Nominal speed: 10,000 rpm Power in S1*: 15 kW Max. power in S6: 20 kW Torque in S1*: 14.5 Nm Torque in S6: 19 Nm Nominal voltage: 380 V Nominal current: 37 A Nominal frequency: 380 Hz Speed freely programmable from 0 – 24,000 rpm, in 1 rpm increments Clockwise/counterclockwise rotation selectable via program Driven by frequency inverter Maintenance-free Water-cooled Hybrid bearings Automatic spindle stop in case of emergency stop Orientated stop for thread cutting Tool holder: HSK-F63 hollow shaft taper according to DIN 69893-6 Max. tool length usable from spindle nose: 240 mm Max. tool weight: 6 kg 3-Axis Unit with Vertically Mounted Spindle: Max. speed: 24,000 rpm Nominal speed: 10,000 rpm Power in S1*: 15 kW Max. power in S6: 20 kW Torque in S1*: 14.5 Nm Torque in S6: 19 Nm Nominal voltage: 380 V Nominal current: 37 A Nominal frequency: 380 Hz Speed freely programmable from 0 – 24,000 rpm, in 1 rpm increments Clockwise/counterclockwise rotation selectable via program Driven by frequency inverter Maintenance-free Water-cooled Hybrid bearings Automatic spindle stop in case of emergency stop Orientated stop for thread cutting Tool holder: HSK-F63 hollow shaft taper according to DIN 69893-6 Max. tool length usable from spindle nose: 240 mm Max. tool weight: 6 kg 8-Spindle Drilling Unit (1 unit): L-Shape, Grotefeld Drill spindles: individually selectable Rotation direction: clockwise/counterclockwise Pitch: 32 mm Power: 2.5 kW Speed: 5,000 rpm fixed Z-axis stroke: +75 mm Holder: D = 10 mm H7 Plunge stroke: 80 mm Grooving Unit (5 units): GROTEFELD Angle Saw Unit F100-S The working/milling stroke is pneumatic. Drive: three-phase motor with multi-ribbed belt LEFT version Drive rotation direction: clockwise/counterclockwise Speed reduction: 1:2.86 – belt drive Power: 2.20 kW – 220-240/380-415 V – 50 Hz Speed: n1 = 2,800 rpm, n2 = 8,011 rpm at 50 Hz Spindle power: 2.2 kW Feed: 150 mm Tool holder: Ø30 x 1.5 mm – 5.0 mm Tool holder rotation: opposite to drive rotation direction Feed force: 2565 N Underfloor Drilling Unit in Machine Bed (1 unit): GROTEFELD Angle Milling Head G06-1.1-P The working/drilling stroke is pneumatic. Drive motor: 1.1 kW 220-240/380-415 V 50-100 Hz Dsdpfx Adjywzq Sswekk Drive rotation direction: clockwise Speed reduction: 1:1.55 gear drive Drive speed: 2,800 – 5,600 rpm Tool spindle speed: 4,340 – 8,680 rpm Tool holder: 1x HI-Q/ERM25 DIN6499-C (8°) For ER25 collet DIN 6499-B Ø0.5–16 mm max. Tool holder rotation direction: clockwise Flange clamping piece: FK45 Feed slide: with pneumatic cylinder and double steel guideways Feed: 80 mm

Condition: ready for operation (used), Year of construction: 2010, operating hours: 68,648 h, travel distance X-axis: 2,300 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 1,000 mm, table length: 1,800 mm, table width: 1,800 mm, spindle speed (max.): 10,000 rpm, overall weight: 36,000 kg, tool weight: 12,000 g, controller manufacturer: HEIDENHAIN, controller model: iTNC530, number of slots in tool magazine: 10, number of axes: 5, This Trimill VU 2313 Vertical Machining center was manufactured in the year 2010 in the Czech Republic and has 68648 hours, of which 40637 are spindle hours. It is equipped with a Heidenhain iTNC530 control unit and has 5 axis. The machine has a spindle speed of 10000 rpm, is in good condition, and is well maintained. Machine Benefits Qualitative Machine Benefits • Good condition! Technical Machine Benefits Dkjdpfxjywlv Ej Adwek • Spindle motor power/torque 25 kw / 195 nm • B-axis (head) -2°/+92° • C-axis table n x 360° • Working feedrates x, y, z 30. 000 mm/min • Rapid feedrates x, y, z 3 m/sec² • Through spindle coolantMachine options: Connection station for high-frequency finishing spindle IMT ● HEIDENHAIN probe for workpiece positioning and measurement, infrared transmission ● BLUM probe - for tool measurement, laser - non-contact ● Tool cooling with liquid through the center of the spindle + external nozzles ● Lift Off - prevents the Z axis from sinking and damage to the part in the event of a power failure Technical Specification Taper Size HSK 100

Condition: ready for operation (used), Year of construction: 2002, operating hours: 4,486 h, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,360 mm, travel distance Z-axis: 1,500 mm, rotational speed (max.): 18,000 rpm, controller model: Fidia C20 mit Bedienteil HPX, The machine is in fully operational, very good condition. It has been dismantled, is in storage, and available immediately! TECHNICAL DETAILS Travel range X-axis: 3,000 mm Travel range Y-axis: 2,360 mm Travel range Z-axis: 1,500 mm Rotary axis A: 105° Rotary axis C: 300° Dkedpfx Adeywgyrjwek Clamping area: 5,000 mm x 2,000 mm Table load: 15,000 kg/m² T-slot spacing: 18H12 / 250 mm Feed rate X, Y, Z axes: 20 m/min Axis acceleration X, Y, Z axes: 1.5 m/s² Max. spindle speed: 18,000 rpm Torque: 90 Nm Tool holder: HSK 63A MACHINE DETAILS Spindle power: 28 kW Connected load: 40 kW Main fuse: 80 A Spindle hours: 4,486 h Machine hours: 146,161 h Dimensions & Weight Space required for machine with peripherals (L x W x H): 7,300 x 5,600 x 5,600 mm Machine weight: 16,500 kg EQUIPMENT 3-sided enclosure, without extraction ducts

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,200 mm, travel distance Z-axis: 1,100 mm, table length: 4,500 mm, table width: 2,500 mm, spindle speed (max.): 22,000 rpm, CNC Heidenhain iTNC 640 WORKING AREA: Longitudinal X-axis travel: mm 4.000 Transversal Y-axis travel: mm 2.200 Vertical Z-axis travel: mm 1.100 Maximum speed with interpolating axes: m/min 50 WORKTABLE: Dimensions: mm 4.500 x 2.500 Height: mm 300 Load capacity: T/m² 15 T-slots for workpiece clamping mm 28 DIN 650 (H12), complete with leveling elements. T-slot direction parallel to Y-axis movement. CONTINUOUS POSITIONING UNIVERSAL HEAD WITH ELECTROSPINDLE: Automatic universal head indexed to 360,000 positions (every 0.001°). Rotation is driven by direct drive motors and controlled by the CNC as a positioning axis. Automatic tool clamping. Allows 10° undercut machining. Internal cooling system for bearings and axis motors. C-axis rotation range: ± 270° A-axis rotation range: ± 185° Maximum axis rotation speed: rpm 30 Maximum torque available on A/C axes: Nm 450 Axis clamping torque: Nm 1.400 Spindle power (S1/S6): kW 22/33 Spindle torque (S1/S6): Nm 84/128 Maximum spindle speed: rpm 22.000 Constant power range: rpm 3.000 to 18.000 Constant torque range: rpm 10 to 3.000 Tool interface: HSK-A63 DIN 69893 ELECTROSPINDLE HSK-A100 WITH SEMI-AUTOMATIC CHANGE SYSTEM Spindle power (S1/S6): kW 37/43 Spindle torque (S1/S6): Nm 140/165 Maximum spindle speed: rpm 15.000 Constant power range: rpm 2.500 to 12.000 Constant torque range: rpm 10 to 2.500 Tool interface: HSK-A100 DIN 69893 CHAIN TOOL MAGAZINE – 55 POSITIONS, HSK-A100 / HSK-A63 Floor-mounted fixed chain magazine located at the rear of the machine, fully enclosed for operator protection, equipped with a vertical tool change arm and automatic tool pre-selection. Fixed-pocket management system. Hydraulic axis locking Total tools: No. 55 HSK-A63 tools (DIN 69893): Number of tools: No. 30 Max tool diameter: mm 90 Max tool diameter (with adjacent pockets free): mm 160 Max tool length: mm 300 Max tool weight: kg 10 HSK-A100 tools (DIN 69893): Number of tools: No. 25 Max tool diameter: mm 100 Max tool diameter (with adjacent pockets free): mm 160 Max tool length: mm 450 Max tool weight: kg 20 REQUIRED CONNECTIONS Maximum installed power: kVA 177 Maximum current required: A 235 MACHINE EQUIPPED WITH: • Heidenhain HR550 remote electronic handwheel • High-pressure water and air through the spindle • Semi-automatic electrospindle change system with HSK-A63 and HSK-A100 interfaces • Various tooling included with the machine • Renishaw probe • BLUM laser presetting system • AUTOCAL automatic head calibration system Dksdpfxsyv In Ij Adwok • Visormax subscription for remote monitoring • Electrical cabinet air conditioning unit • Cooling system for all axes and the electrospindle • User and maintenance manual and CE declaration of conformity

Condition: not inspected (used), Year of construction: 2000, functionality: unexamined, machine/vehicle number: 2259, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,900 mm, rotational speed (max.): 24,000 rpm, controller model: Siemens 840D, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel X-axis: 6,000 mm Travel Y-axis: 3,500 mm Travel Z-axis: 1,900 mm B-axis: +/- 110° C-axis: 360° Dkjdpfjyv A Dkex Adwek Spindle speed: 24,000 rpm Spindle taper: HSK 63 Spindle motor: 25 kW Table size: 6,000 mm x 2,500 mm (hole pattern 22H7 / M16) Feedrate X + Y: 30,000 mm/min Feedrate Z: 28,000 mm/min Rapid traverse: 30,000 mm/min MACHINE DETAILS Control: Siemens 840D Tool changer: 40 tools EQUIPMENT Spindle: Fischer (type MFWS 1709/30, 2 units) Milling head: Forest Line (type: fork head, B-axis swivels +/- 110°, C-axis rotates 360°) Richter chip conveyor (scraper conveyor) Blum tool measurement Parking station for milling head (2 units)

Condition: ready for operation (used), Year of construction: 2004, operating hours: 23,291 h, functionality: fully functional, travel distance X-axis: 3,200 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 750 mm, table length: 3,200 mm, table width: 1,400 mm, TECHNICAL DETAILS Dodpfxjyvub Ue Adwokk X-axis travel: 3,200 mm Y-axis travel: 1,400 mm Z-axis travel: 750 mm Table size: 3,200 x 1,400 mm MACHINE DETAILS Control type: CNC Control system: Heidenhain Operating hours Spindle run time: 23,291 h Program run time: 27,807 h Control on time: 83,301 h Machine on time: 73,907 h

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 2,700 mm, travel distance Z-axis: 1,500 mm, feed rate Y-axis: 50 m/min, table length: 6,000 mm, total width: 3,000 mm, spindle speed (max.): 22,000 rpm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, spindle nose: hsk 100, CNC Heidenhain iTNC 640 WORKING AREA X-axis longitudinal travel: mm 6.000 Y-axis transversal travel: mm 2.700 Z-axis vertical travel: mm 1.500 Maximum feed rate with interpolated axes: m/min 50 WORK TABLE Dimensions: mm 6.000 x 3.000 Height: mm 300 Load capacity: t/m² 15 T-slots for workpiece clamping: mm 28 DIN 650 (H12), complete with leveling elements. T-slot direction parallel to Y-axis movement. CONTINUOUS POSITIONING UNIVERSAL HEAD WITH MOTOR SPINDLE Automatic universal indexed head with 360,000 positions (every 0.001°). Rotation is driven by direct drive motors and controlled by the CNC as a positioning axis. Automatic tool clamping. Allows 10° undercutting. Internal cooling system for bearings and axis motors. C-axis rotation range: +/- 270° A-axis rotation range: +/- 185° Maximum axis rotation speed: rpm 30 Maximum torque on A/C axes during operation: Nm 450 Axis clamping torque: Nm 1.400 Spindle power (S1/S6): kW 22/33 Spindle torque (S1/S6): Nm 84/128 Maximum spindle speed: rpm 22.000 Constant power speed range: rpm from 3.000 to 18.000 Constant torque speed range: rpm from 10 to 3.000 Dedpfx Aeyvtt Nodwjkk Tool interface: HSK – A63 DIN 69893 HSK – A100 MOTOR SPINDLE WITH SEMI-AUTOMATIC CHANGE SYSTEM Spindle power (S1/S6): kW 37/43 Spindle torque (S1/S6): Nm 140/165 Maximum spindle speed: rpm 12.000 Constant power speed range: rpm from 2.500 to 12.000 Constant torque speed range: rpm from 10 to 2.500 Tool interface: HSK – A100 DIN 69893 CHAIN TOOL MAGAZINE – 55 POSITIONS, HSK-A100 / HSK-A63 Floor-mounted chain magazine located at the rear of the machine, enclosed for operator protection, with vertical tool change arm and automatic tool preselection. Fixed-position management. Hydraulic axis clamping Total tools: No. 55 HSK-A63 tools (DIN 69893): Number of tools: No. 30 Max tool diameter: mm 90 Max tool diameter with adjacent free positions: mm 160 Max tool length: mm 300 Max tool weight: kg 10 HSK-A100 tools (DIN 69893): Number of tools: No. 25 Max tool diameter: mm 100 Max tool diameter with adjacent free positions: mm 160 Max tool length: mm 450 Max tool weight: kg 20 REQUIRED CONNECTIONS Maximum installed power: kVA 177 Maximum current required: A 235 MACHINE EQUIPPED WITH: • Heidenhain HR550 remote electronic handwheel • High-pressure coolant (water and air) through the spindle • Semi-automatic spindle change system with HSK-A63 and HSK-A100 interfaces • Various tooling included with the machine • Renishaw probe • BLUM laser tool presetting system • AUTOCAL automatic head calibration system • Visormax subscription for remote monitoring • Electrical cabinet air conditioning unit • Cooling system for all axes and motor spindle • User and maintenance manual and CE declaration of conformity

Condition: used, Year of construction: 1996, functionality: limited functionality, CNC-Planer-Type Milling M/C - Double Column (Milling and Turning Center) | Brand: DÖRRIES SCHARMANN | Type: 4FZT | Year of construction: 1996 A high-performance gantry milling machine designed for machining large workpieces. Its primary applications include the milling and turning of large, complex workpieces. The machine can be inspected under power by appointment. Condition: Consistent with the year of manufacture; some parts require refurbishment. - A high-quality machine, and therefore well worth modernization / a complete overhaul / highly recommended. TECHNICAL SPECIFICATIONS: Main Dimensions: - Machine width: 13.230 mm - Machine height over the floor: 8.450 mm - Machine length: 31.100 mm - Working length: 11.000 mm - Clearance width: 4.400 mm - Clearance height from the table surface to the spindle nose of the standard milling head: 3.000 mm Table: - Table width: 3.450 mm - Total table length: 13.400 mm - Length of individual table: 6.200 mm - Total clamping area: 3.450 x 11.000 mm - Clamping area of single table: 3.450 x 5.000 mm - Maximum total workpiece weight: 112 tons - Maximum workpiece weight per table: 80 tons Crossbeam: - Travel: 2.000 mm Milling and boring support: - Drive power for milling and boring (spindle): 80 kW - Max. speed of the drive shaft (spindle): 2.500 rpm Dkjdpjyuptzjfx Adwok EQUIPMENT / ACCESSORIES: - 2 tables - 8 machining heads - Control: SINUMERIK 880 - 2 x chip conveyors - Documentation - CE marking No guarantee for completeness and accuracy of technical data and equipment. - Subject to prior sale - Detailed technical data sheet and information on equipment available on request.

Condition: good (used), travel distance X-axis: 12,000 mm, travel distance Y-axis: 7,300 mm, travel distance Z-axis: 3,000 mm, total length: 30,000 mm, table length: 12,000 mm, table width: 4,730 mm, total width: 12,000 mm, total height: 10,475 mm, table load: 250,000 kg, overall weight: 400,000 kg, Make : Waldrich - Siegen - Typ : PF-F-150(1)-530/400 - No. : 11.093/0 - Age : Overhault 2004 ( Euro 2.2 Mil) X Travel : 12.000 - Y Travel : 7.300 - Z Travel : 3.000 - W Travel : 4.000 - Between column : 5.000 - Table width : 4.730 - Table length : 12.000 - Table load : 19 t / mtr. Ca. 250 ton - Table feed : 10.000 mm/min. - W axis : 3.000 mm/min. - T axis : 6.000 mm/min. - Cross adj. milling head : Dksdpfx Aoytrxkodwsk - Vert. adj. cross rail : - Horizontal hydrostatic spindle ram - Milling spindle Ø : 560 - Milling tool taper : iso 60 - C axis feed : 5.000 mm/min. - Milling motor : 90 kW - Spindle speed : 2.500 R/pm - Z axis stroke : 3.000 - Z axis feed : 2.000 mm/min. - Milling Küma Angle head WF2 90 kw- 450 - Milling Küma Uni. UB1D 60 kw - 2400 - Milling Küma Fixed GB1D 90 kw- 2400 - Milling Küma Angle head WF1? - Electric requirement : 3 x 400 V / 50 Hz - Power requirement : 600 kVA / 630 Amp - Capacity 4.000 L coolant true spindle 20/40 Bar Machine is rebuild in 2004 by Schiess Bed – Table assembly group: * Renewal of sliding lining * Grinding of guideway * Renewal of table drive * Direct linear measuring syst. * Hydrostatic Portal and cross rail: * Modification of adjusting spindle trape Zoidal spindle was recplaced with ball screw * Direct linear measuring syst. * New drive motors for relization of higer speed on feed axes of milling support. * New milling support with hydrostatic guideways Electric system: * Complet elctric cabinet switchgear * Complet new wire * Siemens Sinumrik 840 D in 6 axis !! Equipment / parts : * Complet new raumag janich covers * Complet new double chip conveyor * Complet with big tooling packet * Complet with big mounting equipment - Under power in Europe - Free directly - Controlled axis X / Y / Z / W / C / B axis - Over all height : 10.475 mm - Over all width : 11.934 mm - Over all length : 30.000 mm - Total weight : ca. 400.000 Kg Rebuild in 2004 for EUR 2.200.000 !This CNC Waldrich Portal milling machines was used in the Energie Field for steam turbien case machining. Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: new, Year of construction: 2023, functionality: fully functional, FPT INDUSTRIE GANTRY-TYPE MILLING MACHINE TECHNICAL SPECIFICATIONS Djdpfx Ajytpfnodwekk Brand: Fpt Industrie Model: Dinox 350 (IAT) Year: 2023 2-position PickUp Automatic thousandth head (2 bodies) Tool changer CNC: Heidenhain PRICE AND FURTHER INFORMATION UPON REQUEST (CNC, SIEMENS, HASS, LAGUN, FAGOR, CINCINNATI, HEIDENHAIN, MACHINING, PINACHO, MORISEIKI, MILLING MACHINE, LATHE, GRINDER, BORING MACHINE, PRESS, LASER, SHEAR, PRESS BRAKE)

Condition: good (used), Year of construction: 2011, functionality: fully functional, We are selling our Datron M8, year 2011. The machine is powered and ready for immediate use! Includes tools, vacuum clamping plate, pneumatic clamps, and programming software! 10-position tool magazine (incl. various tools and holders) HSK25 milling spindle, 50,000 rpm Includes Primcam programming software Dkedoyti I Aepfx Adwek 2x pneumatic clamps Vacuum plate including vacuum pump Horizontal clamping device Cooling with alcohol or air

Condition: good (used), Year of construction: 2021, functionality: fully functional, MillStep CNC Router PA8070V3, Year 2021, as well as PAX8050V2 – Year 2015 – 6 units in total available CNC Gantry Milling Machine MillStep PA8070V3 – fully equipped For sale are three CNC gantry milling machines MillStep PA8070V3 (custom size) in excellent condition. This machine is ideally suited for precise machining of aluminium, plastics, wood, and non-ferrous metals, as well as for prototyping and small batch production. Technical Details: • Travel range: X 800 mm / Y 680 mm / Z approx. 200–240 mm • Work area: 800 × 625 mm • Repeatability: ±0.01 mm • Feed rate: up to 9 m/min • Linear guides: HIWIN profile rails • Ball screws on all axes Equipment: Dksdpjyrx Shjfx Adwsk • HF spindle 2.2 kW (up to 24,000 rpm) with ER25 collets • Hitachi frequency converter WJ200 • 3-axis control with cncGRAF Pro • Vacuum tables 800 × 500 mm and 600 × 500 mm • Vacuum pump 1.5 kW • Minimum quantity lubrication (MQL) • Tool length sensor • Robust steel base frame with chip drawers • Safety enclosure with protective doors The machines are fully functional, well maintained, and can be inspected and tested by appointment. Location: 09474 Crottendorf Price: €5,900 net per unit (PA8070V3, year 2021) and €3,900 net per unit (PAX8050V2, year 2015) – 3 units of each model available – Inspections on site possible (machines are still in operation). Shipping: possible by arrangement

Condition: excellent (used), Year of construction: 2019, operating hours: 29,081 h, functionality: fully functional, FPT Industrie S.p.A. – Travelling Column / Gantry Milling Machine Model: DINOSPIN Year of manufacture: 2019 Serial number: DP0419015 Origin: Italy (FPT Industrie S.p.A., Made in Italy) Machine weight: 44,280 kg Control: Heidenhain TNC640 (15") RAM: 4 GB Hard drive: 32 GB (min. 21 GB program storage) Resolution: Linear axes up to 0.1 µm / Rotary axes up to 0.0001° Interfaces: 2x Ethernet 1000BaseT, 1x USB 2.0 (front), 4x USB 3.0 (rear) Block processing time: 0.5 ms Handwheel: Heidenhain HR510 (remote handwheel) Universal milling head (5-axis machining, continuous movement on 2 axes) Max. spindle speed: 18,000 rpm Swivel range C: ±270° Swivel range A: ±185° Max. rotation speed A/C: 30 rpm Working torque A/C: 450 Nm Clamping torque axes: 1,400 Nm Positioning uncertainty: 8 arcsec / scatter: 4 arcsec (VDI/DGQ 3441) Spindle power (S1/S6): 22/33 kW Spindle torque (S1/S6): 84/128 Nm Continuous operation, constant power: 2,500–18,000 rpm Continuous operation, constant torque: 10–2,500 rpm Tool holder: HSK-A63 DIN 69893 Rigid tapping: yes Dynamic RTCP: yes AUTOCAL (automatic calibration): yes Tool changer (overlapped-wheel system with tool-change arm) Magazine capacity: 80 tools Max. tool diameter: 75 mm Max. tool diameter with adjacent pocket free: 125 mm Max. tool weight: 10 kg Max. tool length: 600 mm (for 40 tools) Max. tool length: 250 mm (for 40 tools) Dodpfx Asyrndmodwjkk Tool type: HSK-A63 DIN 69893 Measuring systems Laser tool setter: tool length/radius + tool breakage control (software included) Probe for workpiece measurement/alignment: wireless transmission, probing cycles included in CNC Monitoring Sensor for vibration/collision detection: response time approx. 1 ms Coolant system external/internal (LEU/LEIUHP) Tank capacity: 3,500 l Filtration: Filter A 60 µm / Filter B 40 µm External cooling: max. 30 l/min, max. 10 bar Through-spindle coolant (IKZ): max. 30 l/min, max. 70 bar Additional options/functions External tool spray mist Compressed air through spindle (high speed) up to 24,000 rpm

Condition: refurbished (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 7,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 2,000 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 18,000 rpm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 30 m/min, torque: 38 Nm, overall weight: 65,000 kg, Initial commissioning: 2012 Control system: Heidenhain iTNC 530 X-axis: approx. 7,000 mm Y-axis: approx. 3,500 mm Z-axis: approx. 2,000 mm A-axis: ± 100° C-axis: ± 360° Clamping table: 6,000 x 3,000 x 160 mm (sunken) with 18H12 T-slots / 250 mm spacing 2-axis milling head VH 12 Spindle power: 24 kW Spindle speed: max. 18,000 rpm Torque: max. 38 Nm Dedpfeyrdc Esx Adwskk Tool holder: HSK 63A Linear axis drives Feed rate X, Y, Z axes: up to 50 m/min / 30 m/min Axis acceleration X, Y, Z axes: up to 2.5 m/s² Connection data Voltage: 400 V Frequency: 50 Hz Main fuse: 200 A Power consumption: 85 kVA Dimensions, weights Machine footprint without peripherals: approx. 10,000 x 6,650 x 5,900 mm Total weight: approx. 65,000 kg Additional equipment - Double-sided access doors - 10-position tool changer Optional at extra cost: - Wireless probe - Heidenhain remote diagnostics Machine condition Fully functional, very good condition. Can be inspected under power. !!! The machine was completely mechanically overhauled in 2022 !!!

Condition: excellent (used), Year of construction: 2014, operating hours: 68,000 h, functionality: fully functional, travel distance X-axis: 2,200 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,200 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 15,000 rpm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 30 m/min, torque: 167 Nm, overall weight: 35,000 kg, Initial commissioning: December 2014 Control system: Fidia X-axis: approx. 2,200 mm Y-axis: approx. 3,500 mm Z-axis: approx. 1,200 mm A-axis: ± 100° C-axis: ± 275° Machine operating hours: approx. 68,000 h Total spindle hours: approx. 26,500 h Clamping table: 2,000 x 3,500 mm with T-slots Dksdpfoyrc Akjx Adwsk 2-axis fork milling head Spindle power: 70 kW Spindle speed: max. 15,000 rpm Torque: max. 167 Nm Tool holder: HSK 100A Tool clamping: hydraulic Linear axis drives Feed rate X, Y, and Z axes: up to 50 m/min / 30 m/min Connection data Voltage: 400 V Frequency: 50 Hz Dimensions, weights Required space for machine without peripherals: approx. 8,000 x 6,000 x 5,000 mm Total weight: approx. 35,000 kg Additional equipment - Coolant system - 26-place tool changer - Work area enclosure - Chip conveyor Available at extra charge: - Wireless touch probe - BLUM laser Condition of the machine Fully operational, very good condition. Can be inspected under power.
