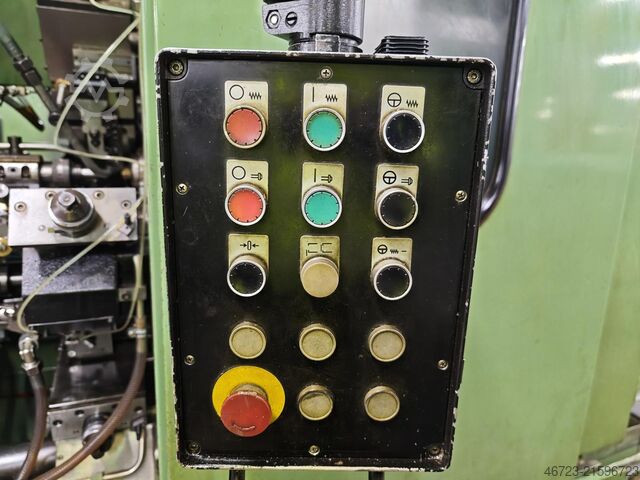

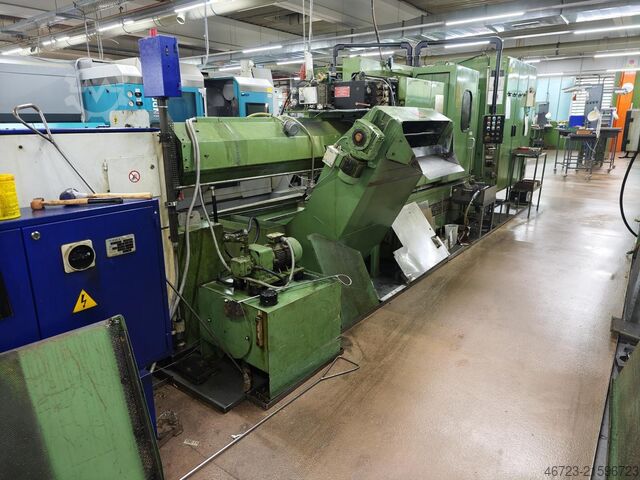

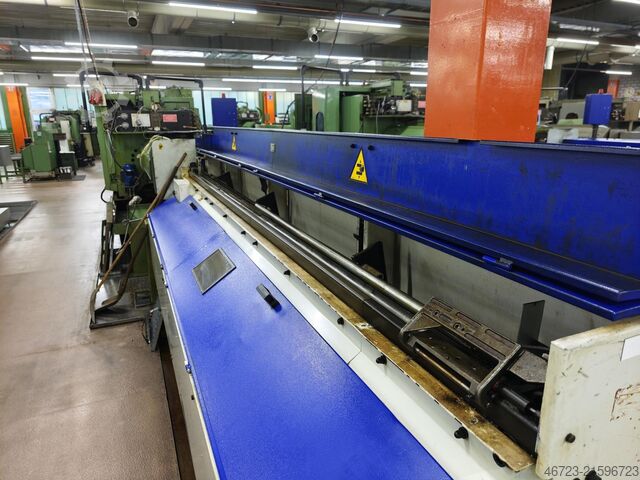

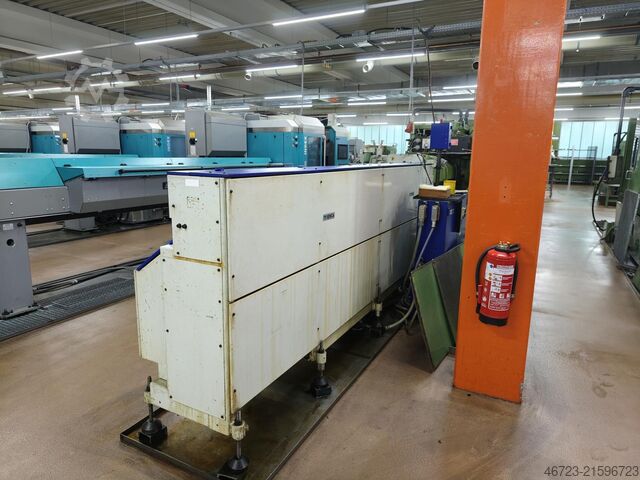

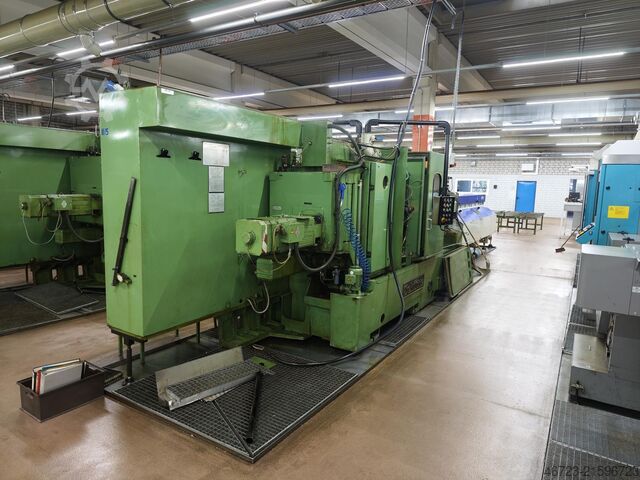

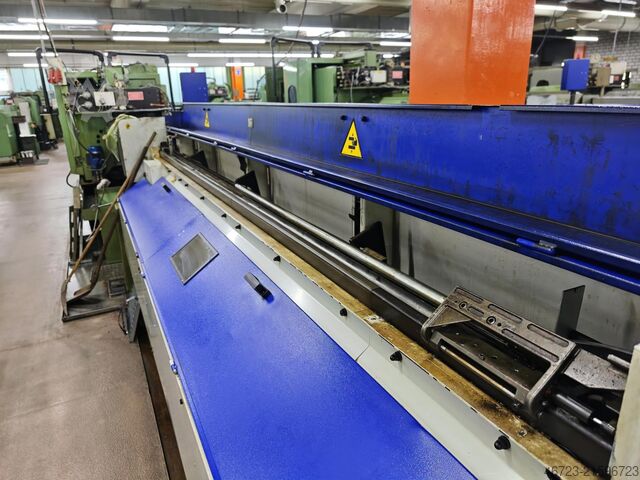

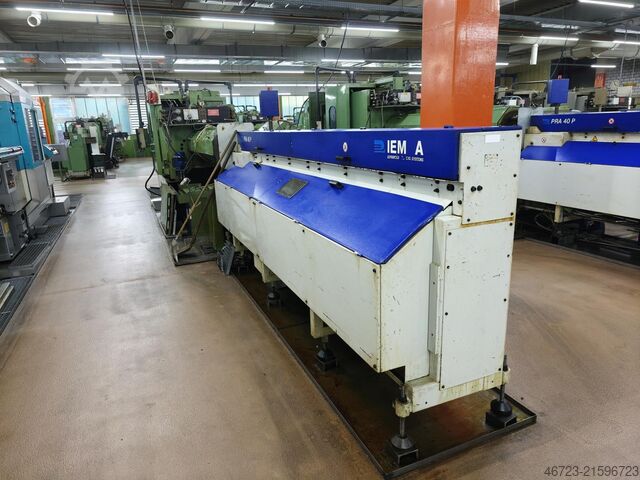

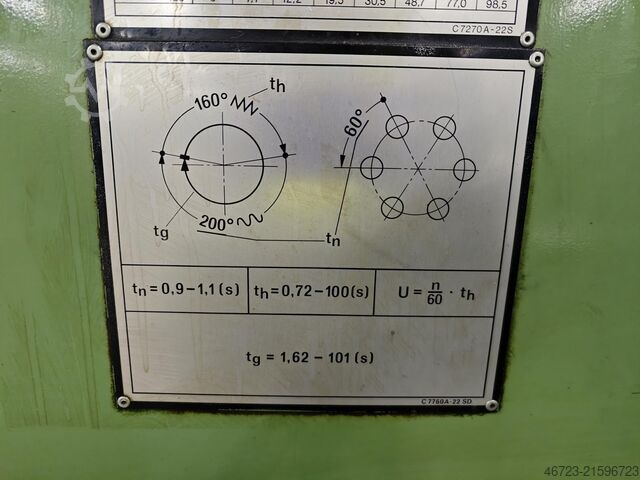

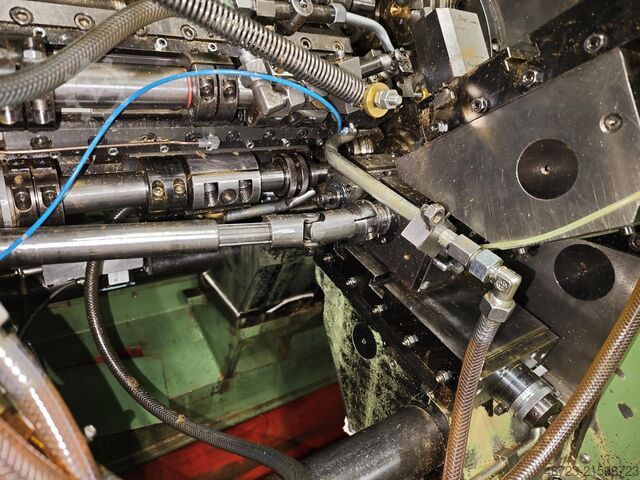

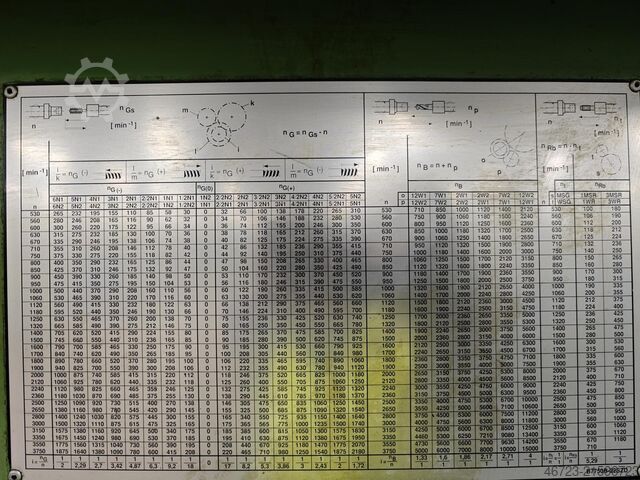

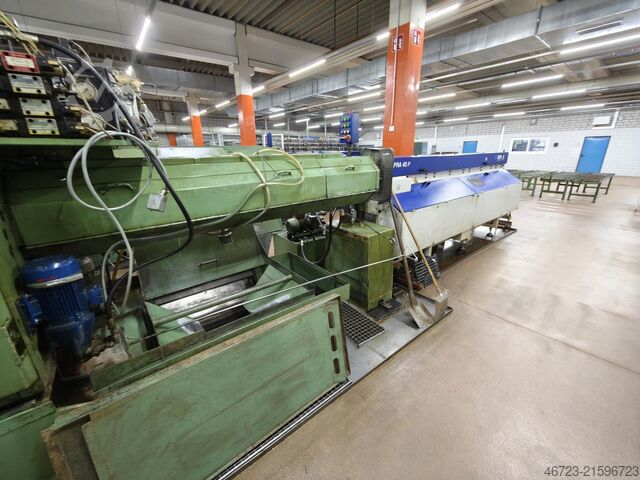

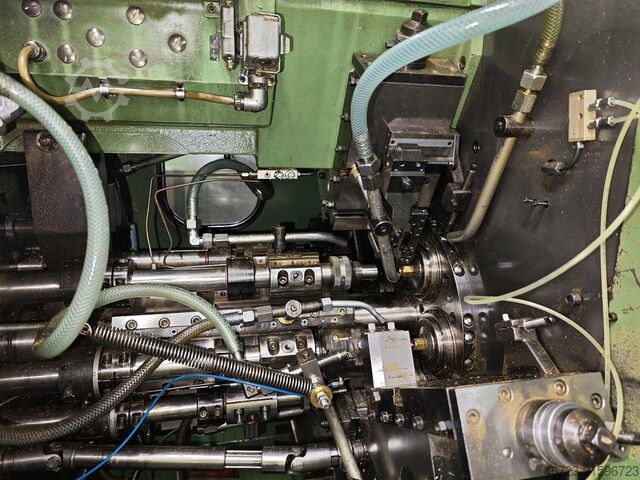

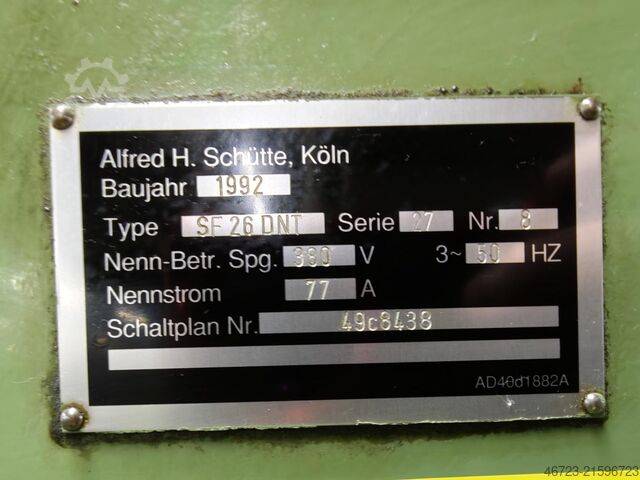

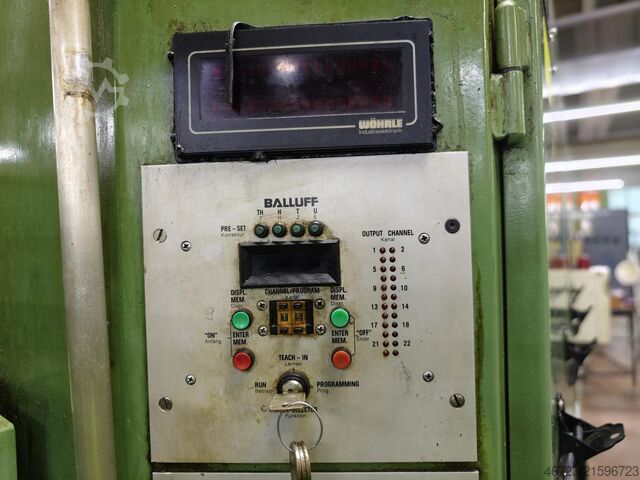

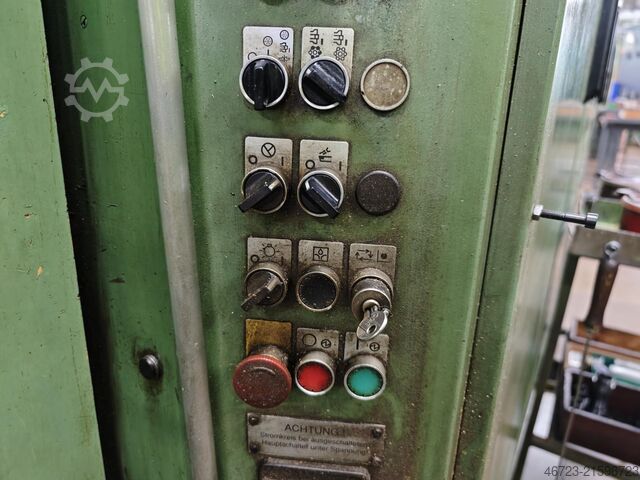

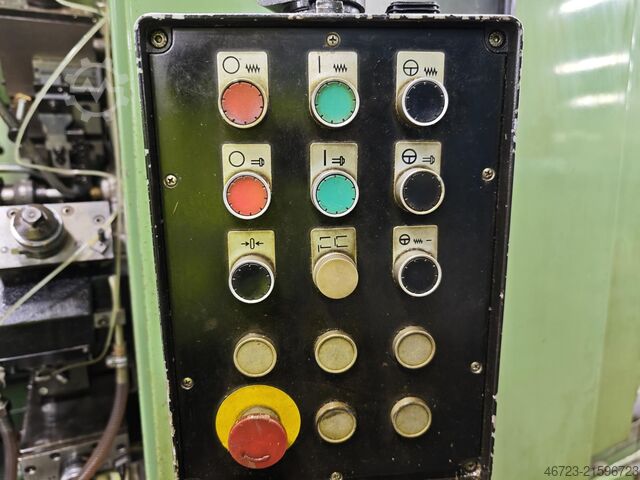

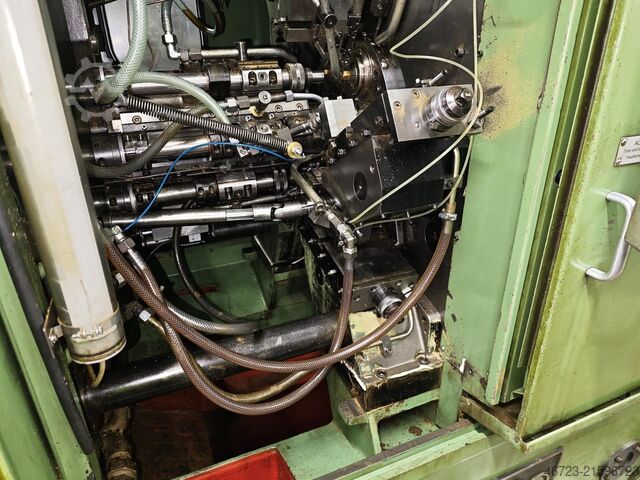

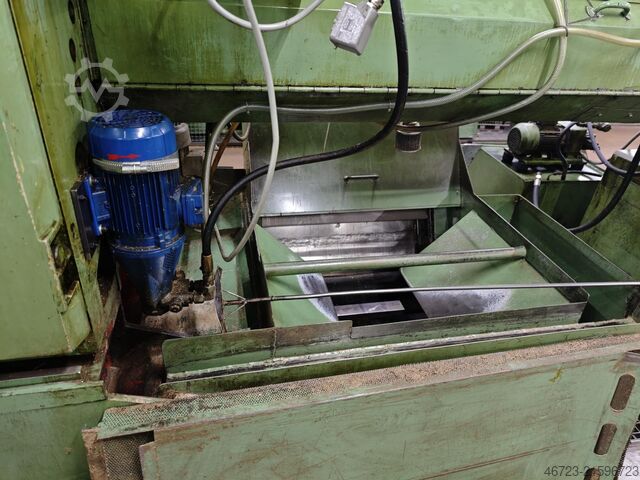

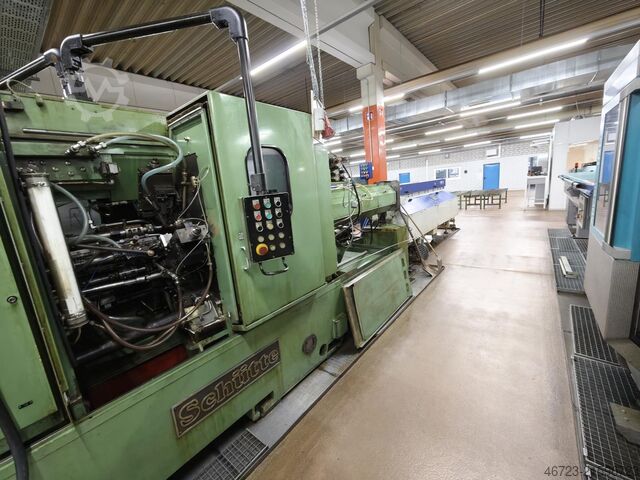

Condition: used, Year of construction: 1992, SCHÜTTE SF 26 DNT Max. bar diameter round / square: 26 / 19 mm Spindle pitch circle diameter: 270 mm Bar feed: 125 mm Longitudinal slide travel (total / work): 80 / 63 mm Cross slide travel (total / work): Upper: 40 / 25 mm Middle: 40 / 25 mm Lower: 50 / 31 mm Spindle speeds (stepless): 530 – 3,750 rpm Nsdpfx Asyxcvxob Escp Main times (stepless): min. / max. 0.72 – 100 s Secondary times: 0.90 – 1.1 s Creep speed: 3 rpm Main drive: 22 kW Dimensions (incl. bar guidance): approx. L x W approx. 7.2 x 1.6 m Weight: approx. 6.8 t Voltage: 400 V / 50 Hz Scope of delivery: Machine SCHÜTTE SF 26 DNT bar feeder

Condition: used, Year of construction: 1988, SCHÜTTE SF 32 Maximum bar diameter round / square: 32 / 22 mm Spindle circle diameter: 300 mm Bar feed: 125 mm Longitudinal travel (total / working): 100 / 80 mm Cross slide travel (total / working): Top: 50 / 33 mm Njdoyxcuujpfx Ab Escp Middle: 50 / 30 mm Bottom: 60 / 37.5 mm Spindle speeds (49 steps): Range I: 450 – 3,150 rpm Range II: 200 – 1,400 rpm Workpiece feed per cycle: Normal: 60 – 425 Short: 33.5 – 236 Long: 95 – 670 Main times (35) per spindle revolution: Min. / Max.: 0.63 – 200 s Normal: 1.12 – 125 s Short: 0.63 – 71 s Long: 1.8 – 200 s Secondary times: 0.7 – 1.25 s Main drive: 18.5 kW Dimensions (incl. bar guide): approx. L x W 6.5 x 1.5 m Weight: approx. 8.3 t Voltage: 400 V / 50 Hz

Condition: used, Year of construction: 1988, SCHÜTTE SF 32 Maximum bar diameter round / square: 32 / 22 mm Spindle pitch circle diameter: 300 mm Bar feed: 125 mm Longitudinal travel (total / working): 100 / 80 mm Cross-slide travel (total / working): Upper: 50 / 33 mm Center: 50 / 30 mm Lower: 60 / 37.5 mm Spindle speeds (49 steps): Range I: 450 – 3,150 rpm Range II: 200 – 1,400 rpm Workpiece speeds per cycle: Normal: 60 – 425 Short: 33.5 – 236 Ncodpoyxcr Hsfx Ab Eep Long: 95 – 670 Main times (35) per spindle revolution: Min. / Max.: 0.63 – 200 s Normal: 1.12 – 125 s Short: 0.63 – 71 seconds Long: 1.8 – 200 seconds Secondary times: 0.7 – 1.25 seconds Main drive: 18.5 kW Dimensions (incl. bar feeder): approx. L x W 6.5 x 1.5 m Weight: approx. 8.3 t Voltage: 400 V / 50 Hz Scope of supply: SCHÜTTE SF 32 machine Bar loader

Condition: used, Year of construction: 1986, SCHÜTTE SF 32 DNT Ncjdpfx Abjyxcplo Eop Maximum bar diameter, round / square: 32 / 22 mm Spindle pitch diameter: 300 mm Bar feed: 125 mm Longitudinal travel (total / working): 100 / 80 mm Cross slide travel (total / working): Upper: 50 / 33 mm Middle: 50 / 30 mm Lower: 60 / 37.5 mm Spindle speeds (stepless): 450 – 3,150 rpm Main times (stepless): min. / max. 0.8 – 100 s Secondary times: 1 – 1.25 seconds Creep speed: 3 rpm Main drive: 22 kW Dimensions (incl. bar loader): approx. L x W: 7.3 x 1.6 m Weight: approx. 8.3 t Voltage: 400 V / 50 Hz Scope of supply: SCHÜTTE SF 32 DNT machine Bar loader

Condition: used, Year of construction: 1989, SCHÜTTE SF 32 DNT Max. bar diameter round/square: 32 / 22 mm Spindle circle diameter: 300 mm Bar feed: 125 mm Longitudinal slide travel (total/operational): 100 / 80 mm Cross slide travel (total/operational): - Lateral: 50 / 33 mm - Center: 50 / 30 mm - Lower: 60 / 37.5 mm Spindle speeds (stepless): 450 – 3,150 rpm Main times (stepless): min. / max. 0.8 – 100 s Secondary times: 1 – 1.25 s Creep feed: 3 rpm Main drive: 22 kW Dimensions (incl. bar feeder): approx. L x W 7.3 x 1.6 m Weight: approx. 8.3 t Voltage: 400 V / 50 Hz Contents consist of: SCHÜTTE SF 32 DNT machine Bar loader Nedpjyxckcsfx Ab Escp

Condition: used, Year of construction: 1991, SCHÜTTE SF 42 DNT Maximum bar diameter round / square: 42 / 36 mm Spindle pitch circle diameter: 340 mm Bar feed: 125 mm Longitudinal slide travel (total / working): 125 / 100 mm Cross slide travel (total / working): Top: 60 / 36 mm Middle: 60 / 36 mm Ncedpfoyxb Umox Ab Esp Lower: 70 / 44 mm Spindle speeds (stepless): 315 – 2,240 rpm Main times (stepless): min. / max. 0.88 – 125 sec Secondary times: 1.1 – 1.4 seconds Creep speed: 3 rpm Main drive: 22 kW Dimensions (including bar guide): approx. L x W approx. 7.3 x 1.7 m Weight: approx. 10 t Voltage: 400 V / 50 Hz Scope of delivery: SCHÜTTE SF 42 DNT machine Bar loader

Condition: used, Year of construction: 1995, SCHÜTTE SF 26S DNT Maximum bar diameter, round / square: 26 / 19 mm Spindle pitch circle diameter: 270 mm Bar feed: 125 – 290 mm Longitudinal travel of slides (total / working): 125 / 98 mm Cross slide travel (total / working): Top: 40 / 25 mm Middle: 40 / 25 mm Bottom: 50 / 31 mm Njdpfx Absyxb Ndj Ejcp Spindle speeds (stepless): 530 – 3,750 rpm Main times (stepless): min. / max. 0.72 – 100 s Secondary times: 0.90 – 1.1 seconds Creeping speed: 3 rpm Main drive: 22 kW Dimensions (including bar guide): approx. L x W, approx. 7.2 x 1.6 m Weight: approx. 6.8 t Voltage: 400 V / 50 Hz Scope of delivery: SCHÜTTE SF 26S DNT machine Bar feeder

Condition: ready for operation (used), Year of construction: 2019, spindle speed (max.): 4,000 rpm, bar diameter (max.): 65 mm, number of axes: 9, This 9-axis Muratec MT200 multi-spindle turning machine was manufactured in 2019. It features a maximum bar capacity of 65 mm and a chuck size of 210 mm. The machine includes an impressive maximum feed speed of 24 m/min on the X-axis and 36 m/min on the Z-axis. If you are looking to get high-quality turning capabilities, consider the Muratec MT200 machine we have for sale. Contact us for further details. Ncsdpeyvuxyjfx Ab Eop • Chuck size: 210 mm (8 inch) • Maximum swing: 205 mm (15 stations) / 228 mm (12 stations) • Maximum bar capacity: 65 mm (standard) / 80 mm (option) • Turret stations: 15 (upper and right) / 12 (lower) • Bar diameter: 65 mm (Standard) / 80 mm (Option) • Axis stroke (2-turret): • Upper turret: X 220 mm, Z 770 mm, Y +/- 40 mm • Lower turret: X 200 mm, Z 770 mm, Y +/- 40 mm • Right spindle (Zs): 880 mm • Maximum feed speed: • X axis: 24 m/min • Z axis: 36 m/min • Y axis: 12 m/min • Live tooling motor: 14.0 kW max (4.8 kW continuous) • Live tooling max speed: 4500 rpm • Spindle positioning: C axis control (+/- 0.015 degrees) Additional equipment • Gantry loader capacity: 140 mm x 105 mm (3 jaw), up to 8.0 kg x 2 (option) • Parts catcher capacity: 65 mm x 160 mm, 2.5 kg Technical Specification Counter Spindle Yes

Condition: excellent (used), Year of construction: 2011, The grinding machine is in very good condition and fully operational. Njdjyuyucopfx Ab Eecp

Condition: used, TECHNICAL DETAILS - Number of axes : 23 - Max. bar diameter : 20 [mm] - Spindle speeds : 3500 [rpm] - Spindle power : 15 / 18.5 [kW] COUNTER-SPINDLE - Counter-spindle position : 8 - Max. bar diameter : 20 [mm] - Travel : 160 [mm] - Max. part length : 75 [mm] - SLIDES - Number of transversal slides : 3 * Position : 1 / 8 / 9 * Stroke x, position 1 : 50 [mm] * Stroke X, position 8/9 : 65 [mm] - Number of crossed slides : 6 * Position : 2 / 3 / 4 / 5 / 6 / 7 Ncedoyt Sl Repfx Ab Eop * Stroke X x Z1 : 50 x 80 [mm] - Number of longitudinal slides : 1 * Position : 8 * Stroke Z2 : 160 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 80 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 9600 x 2500 [mm] - Machine height : 2200 [mm] EQUIPMENT - CNC : FANUC PNC DECO - Chips conveyor - Coolant tank - Bar loader : Tornos

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, turning length: 63 mm, rotational speed (max.): 3,750 rpm, overall weight: 6,800 kg, drilling depth: 63 mm, The machine comes complete with collets, holders, and other accessories! Nodpfx Ajytf Ekjb Eecp TECHNICAL DETAILS Max. turning length: 63 mm Max. drilling depth: 63 mm Max. workpiece passage: 26 mm Max. workpiece feed: 125 mm Spindle speed range turning: 236 - 3,750 rpm Spindle speed range thread cutting: 13 - 1,875 rpm MACHINE DETAILS Required floor space: 7.16 x 2.3 m Height: 2 m Weight: 6,800 kg EQUIPMENT 6 cross slides 6 longitudinal slides 6 cams for cross slides 6 cams for longitudinal slides 4 change gears for main and feed drive Service tools

Condition: used, Year of construction: 2009, 2009 MURATA MURATEC MD 120 CNC 2-Spindle 2 Turret Precision Lathe with Fanuc FS31i Model A, Distance between Spindles 340mm, Max Turning Diameter Ø120mm, Max Turning Length 75mm, X Axis Travel 130mm, Z Axis Travel 145mm, Rapid Feed X-Z 24m/min, Spindle Speed 45 - 4500rpm, Spindle Power 11kw, Tools Turret N. 2 x 10 Driven Positions, Loading Stations N. of 2, Loader X Axis Left 200mm - Right 1600mm, Loader Y Axis 550mm, Loader Z Axis 155mm, Weight 4500kg, Chip Conveyor. S/No. 00184 (2009) Nodpjyrdv Eefx Ab Eecp Loading is free of charge to a suitable vehicle. Location: These lots are located in Brescia, Italy.

Condition: used, Year of construction: 2000, Technical details: number of spindles: 6 spindle passage: 32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2000 Nsdpfx Abjyqwvie Escp Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm pick-up unit, Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. Nedpfeyqv N Ijx Ab Eecp We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2001, Technical details: number of spindles: 6 spindle passage: 32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles Njdpeyqvlvsfx Ab Eecp max. nominal diameter: D=32mm Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, Year of construction: 2003, Technical details: number of spindles: 6 spindle passage: 36 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=36mm!!! Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images; various collets are included in delivery up to D36mm Please, contact us for getting more information and pictures on mail(at) or Nsdpfx Abjyqpqxo Eocp *

Condition: good (used), Year of construction: 2006, Year of manufacture: 1998 to 2006 Nedpjypltgefx Ab Eocp Available from current location

Condition: good (used), Year of construction: 1992, At site. Year of manufacture: 1982 to 1992. TYPES: SF 32 DNT, AF 32, AF 26, AF 26 DNT, AF 32, SF 32, SF 51. Ncodpfx Aeyplpnjb Eop

Condition: used, Year of construction: 2002, Technical Details: SCHÜTTE SG 18 Max. bar diameter round / square: 18 / 13 mm Spindle pitch circle diameter: 180 mm Bar feed: 80 mm Longitudinal slide travel (total / working): 63 / 50 mm Cross slide travel (total / working): 32 / 20 mm Spindle speeds (infinitely variable): 800 – 10,000 rpm Main cycle times (infinitely variable): min./max. 0.24 – 45 s Secondary times: 0.30 s Main drive: 11 kW Feed motor torque: 18 Nm Dimensions (including bar guide): approx. L x W approx. 5.5 x 1.3 m Weight: approx. 5 t Voltage: 400 V / 50 Hz Operating hours: 14,304 h Scope of delivery: - Bar feeder Pra 52 P IEMCA Njdpfjymdd Ssx Ab Ejcp - RUEZ KF0WW2/312 DAS, year 2002

Condition: used, Year of construction: 1994, operating hours: 62,283 h, bar diameter (max.): 26 mm, spindle bore: 230 mm, total width: 1,500 mm, total length: 7,000 mm, total height: 2,000 mm, INDEX MS 25E Maximum bar diameter round / square: 26 / 18 mm Spindle circle diameter: 230 mm Max. bar length: 100 mm Longitudinal slide travel (total / working / adjustment): 85 / 50 / 330 mm Cross slide travel (total / working / adjustment): 36 / 16 / 20 mm Spindle speeds (12 / 24 steps with 1.25 / 1.12): 366 – 5,020 rpm Main drive: 15 kW / 1,450 rpm Voltage: 400 V / 50 Hz Ncedpfeymdchjx Ab Esp Operating hours: 62,283 h Working hours: 4,916 h Dimensions (incl. bar guide): approx. L x W x H 7 x 1.5 x 2 m Weight: approx. 6 t Scope of delivery: INDEX MS 25E machine

Condition: used, Year of construction: 2000, INDEX MS42C Maximum bar diameter: 42 mm Spindle pitch circle diameter: 320 mm Main spindle: Power clamping with INDEX spring-loaded hollow clamping cylinder and collet Maximum clamping stroke: 4 mm Clamping force: 26 kN Main spindle drive: Rated power: 5 kW Rated speed: 1,500 rpm Ncjdpeymc S Uefx Ab Eop Rated torque: 32 Nm Maximum speed: 5,000 rpm Synchronous spindle and rotary tool holder: Rated power: 5.3 kW Rated speed: 1,500 rpm Rated torque: 34 Nm Maximum speed: 5,000 rpm Cross slides: Max. number: 10 Travel (X): 70 mm Travel (Z): 140 mm Max. feed force +X: 11.4 kN Max. feed force −X: 7.9 kN Max. feed force +Z: 11.4 kN Max. feed force −Z: 7.9 kN Rapid traverse: 15 m/min Longitudinal spindles: Quantity: 6 Stroke (Z): 240 mm Max. feed force +Z: 15.1 kN Max. feed force −Z: 11.6 kN Rapid traverse: 15 m/min Longitudinal slide units: Max. number: 6 Travel (X): 70 mm Max. feed force +X: 11.4 kN Max. feed force −X: 7.9 kN Rapid traverse: 15 m/min Synchronous spindle: Chuck system: spring-loaded clamping cylinder Maximum clamping diameter: 42 mm Chuck outside diameter: 112 mm Jaw stroke: 1 mm Max. total clamping force: 13 kN Weight: approx. 11,000 kg Scope of delivery: KNOLL KTS 32-48-T hydraulic unit CUCCHI PLURIMANDRINO bar feeder, year 2000 Workshop cabinet with machine accessories KNOLL VRF 500 KNOLL 400 S-1/250 chip conveyor

Condition: used, Year of construction: 2007, operating hours: 26,721 h, number of spindles: 6, spindle speed (max.): 10,000 rpm, bar diameter (max.): 22 mm, total width: 1,800 mm, total length: 3,200 mm, total height: 2,850 mm, travel distance X-axis: 62 mm, travel distance Y-axis: 12 mm, travel distance Z-axis: 85 mm, rotational speed (min.): 10,000 rpm, overall weight: 6,500 kg, INDEX MS 22C Work Spindles: Quantity: 6 Maximum bar diameter: 22 mm Spindle pitch circle diameter: 230 mm X / Z travel: 62 / 85 mm Rapid traverse: 15 m/min Synchronous hollow spindle drives: Quantity: 6 Maximum speed: 10,000 rpm Nominal speed: 8,300 rpm Power: 15 kW at 18 Nm Chuck diameter: 110 mm Rotating synchronous spindles: Quantity: 2 Z stroke: 120 mm Feed force: 2.5 kN Rapid traverse: 15 m/min Rotational angle: 132° Counter spindle: Maximum speed: 10,000 rpm Nsdpeymaw Iefx Ab Escp Nominal speed: 8,000 rpm Power: 9.2 / 12 / 14 kW at 11 Nm Tool carriers: Maximum quantity: 11 X / Y / Z travel: 62 / ±12 / 85 mm CNC control: C 200-4D (Siemens Sinumerik 840D) Dimensions (approx. L x W x H): 3.2 x 1.8 x 2.85 m Weight: approx. 6.5 t Operating hours: 61,997 h Machining hours: 42,235 h Scope of supply: INDEX bar feeder Bar feeder IEMCA SIR MS22 P, year 2008 Coolant unit with belt filter Chip conveyor KNOLL 400 S-1/290 Coolant filtration unit KNOLL FKA/1780 RSF 100 Workshop cabinet with machine accessories

Condition: repair required (used), 3x SCHÜTTE SF40 offered as a package at a low price – machines require overhaul Nsdpoylhp Nofx Ab Eocp

Condition: used, 2x 6-spindle bar automatics as a package Njdpfsylhlqex Ab Ejcp Make: INDEX Model: MS25E (1 machine defective, used as a parts donor)

Condition: ready for operation (used), Year of construction: 1967, functionality: fully functional, machine/vehicle number: 68-3-2329, spindle speed (max.): 855 rpm, spindle speed (min.): 137 rpm, turning length: 225 mm, disc diameter: 317 mm, No minimum price – guaranteed sale to the highest bidder! Submitting a bid obligates timely collection between 08.04.26 and 16.04.26. Ncsdpfx Aoyk A Htsb Esp TECHNICAL DETAILS Spindle speed range: 137 - 855 rpm Maximum workpiece feed: 260 mm Maximum turning length: 155/225 mm Drive pulley diameter: 317 mm Drive pulley width: 170 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 7000 x 2000 x 2500 mm Machine weight: 18 t Operating voltage: 380V Frequency: 50 Hz Rated current: 120 A EQUIPMENT Configured for 6 spindles External reference: 2
