Coordinate measuring machine

Zeiss Eclipse 700 - 7.7.6

Year of construction: 1998, condition: excellent (used), Coordinate measuring machine ETALON Derby 454 Measuring range 457x508x406 mm Dimensions LxWxH 895x885x1575 mm Fpodskvm Txepfx Ac Hep weight approx 220 kg Renishaw TP8 measuring head last calibration 2020

Condition: excellent (used), Here we offer a Weiss climate test chamber. Fpedpfom Tvzcex Ac Hjp Designation: SB2/500/80 water cooled Cold-heat operation: -75°C ...+180°C Climatic operation: +10...+95°C Humidity range: 10...98 % r. h. Temperature constancy, temporally ± 0.2K Humidity constancy: ±1 r.F. Temperature rate of change: Cooling: approx. 1.4 K/min Heating up: approx. 2.5 K/min External dimensions: Height 1980 mm, width 1265 mm, depth 1365 mm Feedthroughs: left side: ∅ 100 mm right side: ∅ 50 mm The connection voltage is: 400V/3Ph+N+PE/ 50 Hz Power: 10,4 kVA Weight: approx. 720 kg Refrigerant R404a / R 23 For you as a buyer for safety the following information! The following points are carried out on our offered chambers in advance: 1. functional check and replacement of necessary components 2. new filling with legally compliant refrigerant 3. leak test with certificate 4. after successful inspection, the chambers are subjected to a test run, which is monitored with calibrated equipment. Type: SB2/500/80 Condition: used / used Scope of delivery: (See picture) (Changes and errors in the technical data, specifications are reserved!) Further questions we can answer on the phone for you.

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, measuring range X-axis: 900 mm, measuring range Y-axis: 1,200 mm, measuring range Z-axis: 700 mm, Zeiss Prismo VAST XT Year of manufacture: 2003 Retrofit Measuring range: X=900 mm, Y=1200 mm, Z=700 mm C99 control unit with operator panel VAST XT probe head 13-position probe changer magazine Probe change tray Probe accessories Calibration sphere Technical documentation Additional accessories HP workstation with monitor Fpjdpfx Aowyukdsc Hsp Calypso Basic software, latest version Further options available upon request Available at short notice Delivery without the automatic feed system shown

Condition: used, Technical details: x-axis: 120 mm z-axis: 610 mm diameter: - mm measuring range Y-axis: Höhe: 0 - 610 mm weight: 19 kg interface: 2xRS-232C, 2xUSB-A/B total height: 950 mm measuring system resolution capability: 0,0001 mm power consumption: 43 Watt Floor Space WxD: 320 x 330 x H: 950 mm High-precision height measuring Fodpfx Acswa A Hmo Hepp *

Condition: like new (used), Year of construction: 2019, operating hours: 50 h, functionality: fully functional, measuring range X-axis: 1,000 mm, measuring range Y-axis: 1,200 mm, measuring range Z-axis: 600 mm, Machine description: ZEISS CNC coordinate measuring machine (CMM) in portal design - Measuring volume X = 1000 mm, Y = 1200 mm, Z = 600 mm - Table height TH = 850 mm (standard) - Prepared for tactile active sensors - VAST navigator measuring technology (tactile active scanning) ONLY 50 OPERATING HOURS – THEREFORE AS NEW EQUIPMENT ACCORDING TO ORDER CONFIRMATION – SEE ATTACHED PDF FILE Fpedpfxsw H Rfds Ac Hjp

Condition: used, Year of construction: 1998, functionality: fully functional, measuring range X-axis: 900 mm, measuring range Y-axis: 1,500 mm, measuring range Z-axis: 700 mm, For sale Prismo 7 Vast - controller Zeiss C98 Fjdpfx Acsw Rm E Hj Hopp - software Zeiss Calypso ver 5.4 (Basic + IGES import option) - probe changer - reference sphere Possible extras : installation with maintenance and acceptance tests, Calypos training

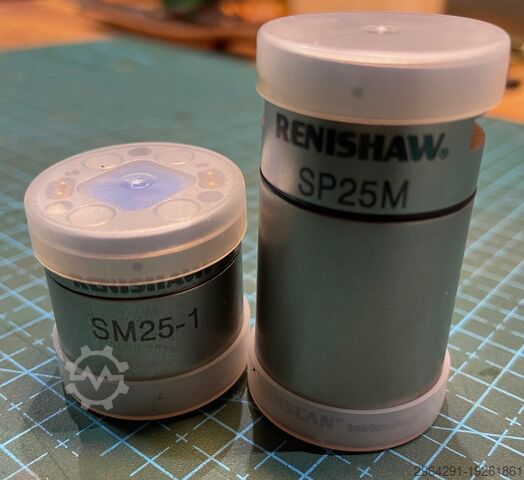

Condition: used, operating hours: 20 h, functionality: fully functional, SP25M and its associated module SP25-1, were used as a rarely used backup Fsdpown Iqgofx Ac Hopp

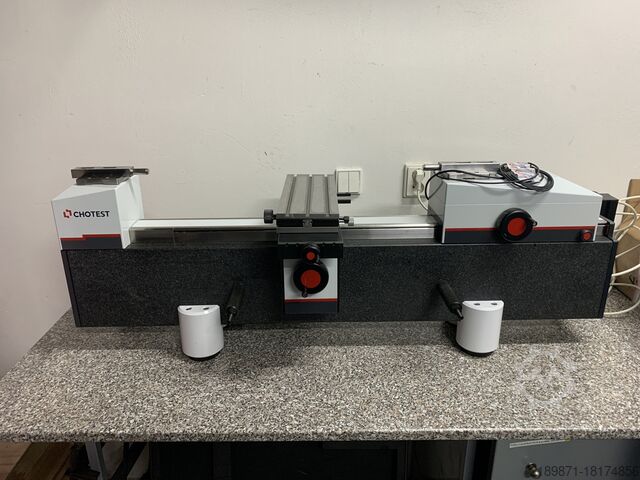

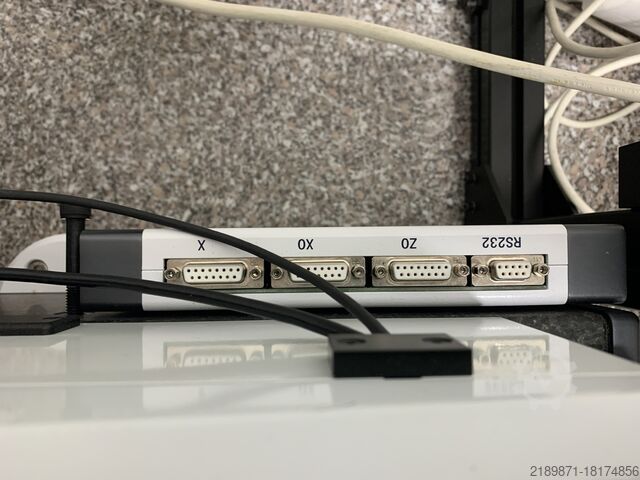

Condition: like new (used), Year of construction: 2018, functionality: fully functional, measuring range X-axis: 640 mm, total width: 450 mm, total length: 1,400 mm, total height: 400 mm, overall weight: 150 kg, length gauge precise unit, precise guide rails temperature compensation repeatability 0.08 μm resolution 0.01μm Fsdpfovmy Rkex Ac Hopp indicating error ±(0.12+L/1000)μm includes additional accessories

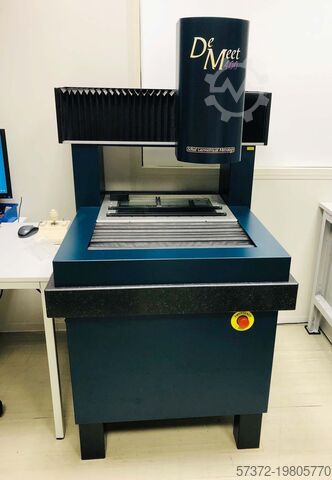

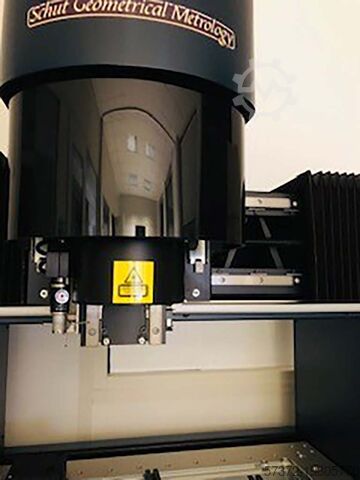

Condition: ready for operation (used), X-axis: 400mm, Y-axis: 250mm, Z-axis: 200mm, table dimensions: 560x426mm, acceleration: 500mm/s², resolution: 0.1μm, measuring temperature: 20 ±0.5°C, max. workpiece weight: 50kg. Length: 930mm, width: 870mm, height: 1570mm, weight: 530kg. On-site inspection is possible. Fsdpfx Asw Rqwmec Hspp
