Laxmi Metal & Machines - Italy & India

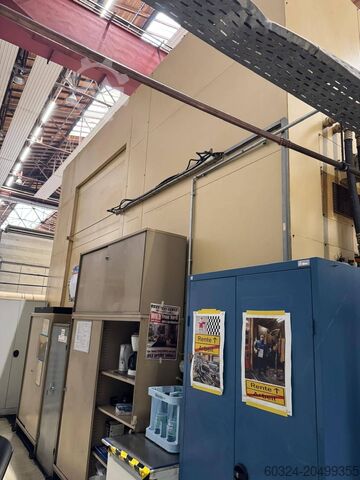

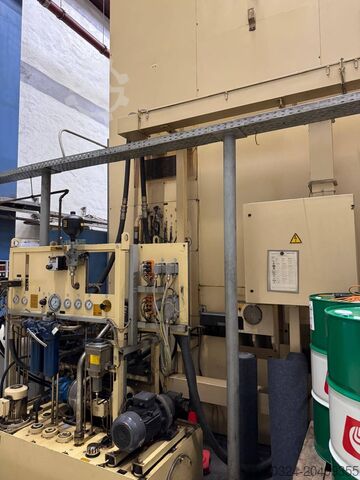

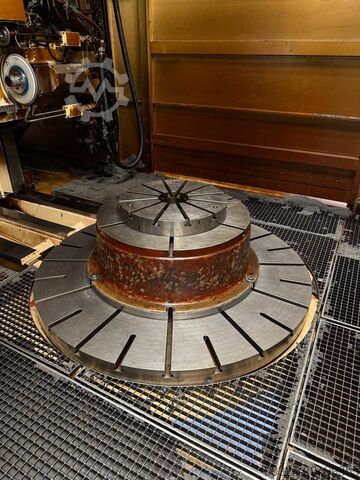

Condition: good (used), Year of construction: 2000, Ref. -No.: 10609 Manufacturer: GLEASON - PFAUTER Type: P 2400 G Year of construction: 2000 Type of control: CNC Control: Siemens 840 D Gkedjxvw R Nepfx Ah Sjd Storage location: Halberstadt Country of origin: Germany Machine length: 1100 mm Machine width: 6585 mm Machine Height: 5200 mm Max. Workpiece Diameter: 2640 mm Weight Of The Machine Ca.: 23 t Grinding Wheel Diameter: 400 mm Spindle Speeds (Infinitely Variable): 600 bis 6000 mm Grinding Wheel Width: 80 mm X-Axis: 1200 mm Y-Axis: 300 mm Z-Axis: 1000 mm Z2 - axis: 150 mm Sandable profile depth: 80 mm Workpiece table: 0 bis 5 1 / min Feed rate X-axis: 3000 mm Feed rate Y-axis: 5000 mm Z-axis feed rate: 6000 mm Further information: - Fully automatic centering device - Oil mist separation - Gear tooth measurement - “Profile grinding” software package - Error diagnosis - IFK2 internal milling head - Milling mandrel with spacer discs - Chip conveyor - Oil mist extraction - Technical documentation

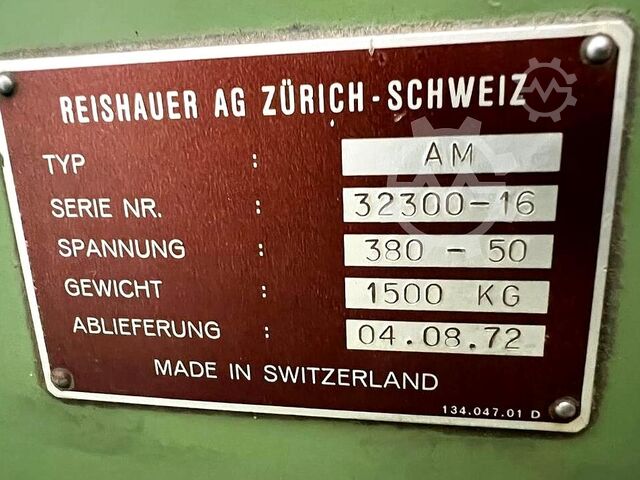

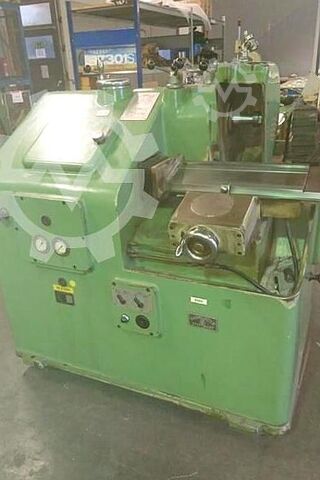

Condition: ready for operation (used), Year of construction: 1972, functionality: fully functional, machine/vehicle number: 32300-16, grinding wheel diameter: 400 mm, grinding wheel width: 104 mm, overall weight: 1,500 kg, TECHNICAL DETAILS Grinding wheel diameter: 400 mm Max. grinding wheel width: 104 mm Gkjdpsxvr A Tofx Ah Sjd Grinding worm diameter: 270 - 400 mm Max. grinding worm width: 62/84/104 mm Grinding worm speeds during profiling: 18/35/70 rpm Max. module: 7 Min. module: 0.5 Pressure angle: 10 - 30 degrees Longitudinal travel of dressing unit: 156 mm MACHINE DETAILS Electrical data Total connected load: 3 kW Electrical specification - voltage/frequency: 380 V / 50 Hz Dimensions & Weight Space requirement approx.: 1.5 x 1.4 x 1.3 m Machine weight approx.: 1,500 kg

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 73866, workpiece weight (max.): 60 kg, rotational speed (max.): 2,300 rpm, overall weight: 5,000 kg, TECHNICAL DETAILS Module, max.: 7 Grinding worm diameter: 280–350 mm Grinding worm width: 84–104 mm Grinding worm speed (grinding): 1,100–2,300 rpm Grinding worm speed (profiling): 50–95 rpm Gksdpfjxvrziox Ah Sed Number of teeth, min.: 6 Number of teeth, max.: 600 Maximum permissible outside diameter: 360 mm Maximum workpiece weight: 60 kg Maximum grinding stroke: 175 mm Workpiece speed (grinding): max. 250 rpm MACHINE DETAILS Machine weight approx.: 5 t Electrical Data Mains connection: 3 × 400 V 50 Hz Machine voltage: 3 × 400 V 50 Hz Control voltage: 1 × 230 V 50 Hz / 1 × 24 V DC Contactor voltage: 1 × 24 V DC Solenoid valve voltage: 1 × 24 V DC

Condition: excellent (used), Year of construction: 2006, operating hours: 30,000 h, functionality: fully functional, Reishauer RZ 400 Gear Grinding Machine Gksdpfx Ahsxupfce Sod 1-2 shift operation; excellent condition; fully equipped all-inclusive machine Machine under power for inspection during ongoing production Year of manufacture: 2006 Control: Siemens 840 D Machine dimensions: approx. 3.3 m (L) x 2.7 m (W) x 2.5 m (H) Machine weight: approx. 16,000 kg Condition per documentation: very good condition, complete with tailstock, oil mist extraction, filter and cooling system (Hoffmann HSF), no defects reported, sale due to low utilization Workpiece Data Workpiece diameter: 10 to 400 mm Number of teeth: 5 to 999 Face width: 0 to 300 mm Centres distance: approx. 60 to 700 mm Module: 0.5 to 8 Pressure angle: 14° to 30° Helix angle: ±45° Max. workpiece weight: 300 kg Axis Data B-axis grinding spindle: power 10 kW Speed: 4010 rpm Peripheral speed: 63/72 m/s dynamic balancing included C-axis workpiece spindle: torque 180 Nm, max speed 480 rpm Z-axis travel: 300 mm, feed rate 0 to 5.0 mm/rev X-axis travel: 490 mm, rapid traverse 15 m/min Y-axis shifting travel: 220 mm P-axis grinding oil nozzle travel: 80 mm W-axis tailstock travel: 640 mm, speed 12 m/min W1-axis indexing sensor travel: 250 mm, speed 45 m/min A-axis grinding head swivel range: ±48°, swivel speed 28°/s Equipment Tailstock CNC dressing unit type RP2-SW, semi-automatic Oil mist extraction Filter and cooling unit: HOFFMANN Filter type HSF 100 One flange with used grinding wheel Two measuring probes / meshing sensors Software: MMINC Version 07.02, PLC Version V3.075A

Condition: used, Year of construction: 2003, Control BWO tip circle diameter max. 700 mm root circle diameter min. 50 mm height of profile max. 35 mm number of spindle speeds 0 - 5400 min-1 table load capacity max. 500 kg Equipment: BWO control system All axes CNC controlled Oil mist extraction Coolant cleaning system with cooling unit Dittel balancing unit Godpfx Ahsxt Ur Se Sekd Accessories: Grinding wheels Ø400mm incl. Grinding wheel flanges 1 diamond dressing roller, manufacturer Dr. Kaiser, Ø160mm Counterholder tip

Condition: excellent (used), Year of construction: 1969, Max wheel Ø 300 mm Module + 5 Module - 0.5 Max. gear width 170 mm Max. spindle speed 1900 rpm Max. workpiece weight 40 kg Engine Power 9 kW Gksdpfxexrvb Ej Ah Sjd Weight 4600 kg

Condition: good (used), Year of construction: 1990, operating hours: 90,000 h, functionality: fully functional, Reishauer RZ 801 Maximum module: 8 mm Gkedpfx Aoxq R Ecsh Sed Minimum module: 0.5 mm Maximum gear diameter: 820 mm Maximum table load: 400 kg Maximum gear width for spur gears: 250 mm Minimum number of teeth: 10 Maximum number of teeth: 600 Maximum grinding angle: 30 degrees Total power requirement: 22 kW Machine length: 2,980 mm Machine width: 1,910 mm Machine weight: 7.6 t Dressing device: Reishauer AM 10 included A few years ago, the machine was fitted with a compact, relatively new Reishauer AF filter filtration system (separator), and it also features a high-performance hydraulic system that is just a few years old. This is clearly visible in the photos. The machine operates flawlessly in two-shift operation and is only being replaced due to its age by a new machine. Measuring protocols dated October 5th are included as evidence. Video recordings of the grinding operation on the workpiece can be provided upon request via WhatsApp B2B. Flanges and grinding wheels may be included on a goodwill basis, but must generally be purchased separately.

Condition: ready for operation (used), Well mainteined grinding machine Gjdexpyhqjpfx Ah Sjkd

Condition: used, Year of construction: 1982, 3 REISHAUER MACHINES!! 1 unit Gear Grinding Machine Manufacturer: REISHAUER Model: AZO Year of manufacture: 1982 Includes 1 set of change gears and 1 mesh box with grinding wheel flanges and grinding wheels (see photos!) Max. gear diameter: 330 mm Max. gear width: 180 mm Module: 0.5 – 6 Gjdpfx Ahexg Hw Hs Sskd Number of teeth: 12 – 260 Between centers: 145 – 420 mm Workpiece weight: 60 kg Swivel angle: +/- 45° Speed: 90 – 1900 rpm Dimensions (LxWxH): 4000 x 2500 x 2100 mm Weight approx.: 5 t 1 unit Gear Grinding Machine (for spare parts) Manufacturer: REISHAUER Model: AZO Year of manufacture: 1979 1 unit Used Profile Grinding Machine Manufacturer: REISHAUER Model: AM 10 Year of manufacture: 1995 Package price for all 3 machines: EUR 39,000 + VAT

Condition: excellent (used), Year of construction: 2009, Base of a Höfler 900 Rapid gear grinding machine with dimensions: L425 x W230 x H79.5 cm Weight: 20 t Gkodpfxsxcwa Rs Ah Sod

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Reishauer RZ 362A with approx. 74 sets of diamond discs Grinding worm dimensions: Min./Max. external diameter: 280/350 mm Width: 84/104 mm Max. module with limitations: MOD 8.0 (DP 3.2) Number of starts: with limitations up to 3 Max. usable width (shift travel): 90 mm For detailed technical information, please refer to the attached PDF file. Accessories: Dressing device Gksdpoxb Ufuefx Ah Ssd Approx. 74 sets of diamond discs Grinding stones Turbo separator

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, A used, overhauled Niles ZSTZ 630 C3P. Max. gear diameter: 630 mm Gkjdpexaptksfx Ah Sod Gear width: 215 mm Max. module: 12 Min. module: 1 Stroke length: 225 mm Table diameter: 500 mm

Condition: used, Year of construction: 2012, max. wheel diameter 600 mm gear width 600 mm profile depth 35 mm pivoting angle +/- 45 Grad grinding wheel speeds 600-6000 U/min dimensions of the machine ca. 5,1 x 6,5 x 3,7 m weight 17 t feeds X-axis 10000 mm/min feeds Y-axis 5000 mm/min feeds Z-axis 10000 mm/min table turning speeds 0 - 14 U/min control FANUC Series 30i-MODEL A CNC: Fanuc 30i Model A Maximum gear outer diameter: 600 mm Maximum module: 15 Maximum gear width (face width): 110 mm Number of teeth: 1 to 300 Wheel diameter: 20" (inches) Factory spindle: 630 rpm Tool holder: No. 60 Gjdpjw Tm Tpsfx Ah Sekd Grinding spindle: 3000 rpm Automatic door lock Smoke and mist separator MPG: Handwheel (MPG = Manual Pulse Generator) Dressing tools for finishing, diameter 2.82" Without coolant device

Condition: used, Year of construction: 2007, max. workpiece diameter 800 mm profile depth 100 mm Gksdpfx Aow Rrckjh Sjd control Siemens Sinumerik 840 D x-travel 650 mm y-travel 300 mm z-travel 1300 mm spindle turning speed - stepless 400 - 4000 U/min table turning speeds 0 - 10 U/min total power requirement 110 kVa dimensions of the machine ca. 9,48 x 6,13 x 5,00 m weight of the machine ca. 24,5 t Tool: - Largest grinding wheel diameter 450 mm - Largest grinding wheel width 160 mm Feed rates: - X-axis 1 to 3000 mm/min - Y-axis 1 to 5000 mm/min - Z-axis 1 to 6000 mm/min Equipment/accessories: - Counterholder - Grinding oil treatment system - Oil mist extraction - Measuring probe - Dresser - Technical documentation

Condition: used, Year of construction: 2008, tip circle diameter 650/800 mm workpiece length - max. 1100 mm max. module 20 (25) mm min. module 0,5 mm Gjdpfxew Rrbyj Ah Sskd control Siemens Sinumerik 840 D total connected load 62 kVA helical angle -45 / + 120 ° weight of the machine ca. 10 t

Condition: good (used), Year of construction: 1972, max. wheel diameter 80 mm gear width 60 mm Gkedpfxew N S D Sj Ah Sed max. module 3 min. module 0,1 total power requirement 0,4 kW weight of the machine ca. 120 kg dimensions of the machine ca. 0,6x0,6x0,75 m

Condition: excellent (used), Year of construction: 1991, max. wheel diameter 10 - 330 mm gear width 180 mm max. module 7 min. module 0,5 clamping length 420 mm number of teeth 10 - 600 ical angle +/- 45 ° turning speeds 1100 - 1900 U/min grinding wheel diameter 280 - 350 mm grinding wheel width 84 - 104 weight of the machine ca. 5,1 t Gksdsw I Hq Dspfx Ah Sjd dimensions of the machine ca. 4,5 x 6,0 x 2,3 m

Condition: used, Year of construction: 2007, control Siemens Sinumerik 840 D weight 57.000 kg voltage 400 V Gleason PFAUTER CNC gear hobbing machine P 2400/2800 for gear cutting of cylindrical and worm gears as well as all other regularly occurring rollable profiles and shapes on the cylindrical workpiece circumference. Large gear hobbing machines from Gleason offer maximum productivity for roughing and finishing cylindrical gears for many industries: wind turbines, industrial gearboxes, mining and shipbuilding, gear machining and many more. The power range of the drive takes future tool developments into account. Of course, the gear hobbing head drive is also backlash-free. These machines are particularly well suited for use with state-of-the-art, cutting materials, regardless of whether dry or wet machining is preferred. The machine can be used for dry or wet machining and is also equipped with the appropriate chip conveyor for both machining methods. The machine is equipped with an internal profile milling head as a motorised milling head. --> Working range and technical data Nominal workpiece diameter: 2.400 mm --> Largest millable diameter approx.: 2.800 mm --> Smallest/largest distance between cutter and workpiece axis: 100/1.200 mm --> Largest axial slide travel (special design): 1.300 mm --> Largest clampable cutter (internal milling head): --> Diameter max: 440 mm --> Max. cutter width: 90 mm --> Swivel range of the internal profile milling head/vertical axis: +/- 15° --> Milling mandrel taper: HSK-B160 --> Maximum milling cutter travel: 300 mm --> Table diameter: 2.500 mm --> Part wheel diameter: 2.200 mm --> Table bore --> Diameter: 800 mm --> Depth: 875 mm --> Maximum table load approx.: 40.000 kg --> Max. feed and rapid traverse speeds: --> axial (Z-axis): 4.000 mm/min --> radial (X-axis): 3.000 mm/min --> tangential (Y-axis): 3.000 mm/min --> Milling cutter cooling lubrication device/electric centrifugal pump: approx. 150 l/min --> Increased drop height of magnetic chip conveyor: 1,600 mm --> Increased main stand: 1,300 mm axial slide travel --> Internal profile milling head as motor milling head instead of standard motor milling head --> Max. millable profile depth in steel with approx. 600 N/mm² strength: approx. 65 mm --> Infinitely variable milling speed: 50 - 150 min?¹ --> Max. milling cutter diameter: 440 mm --> Min. milling cutter base circle diameter: 310 mm --> Max. milling cutter width: 90 mm --> Min. internal diameter at 0° bevel angle: 800 mm+) Godpfx Aowzyp Ijh Sokd --> Max. workpiece height at 0° bevel angle: 600 mm --> Max. workpiece ring thickness (including clamping device): 500 mm

Condition: used, Year of construction: 2007, control Siemens 840D Gjdswzypuepfx Ah Sekd

Condition: used, Year of construction: 2008, control Siemens 840D Gsdpfjwzypnsx Ah Sjkd

Condition: excellent (used), Year of construction: 1997, max. wheel diameter 820 mm gear width 300 mm max. module 8 min. module 0,5 clamping length 865 mm number of teeth 10 - 600 ical angle +/- 30 ° turning speeds 1100 - 2150 U/min grinding wheel diameter 280 - 400 mm grinding wheel width 84 /104 workpiece weight max. 300 kg weight of the machine ca. 11,5 t dimensions of the machine ca. 6,0 x 4,8 x 2,9 m Gsdpfx Aswy H Iheh Sokd including Reishauer AF Filter, flanges, wheels,...

Condition: used, Year of construction: 2001, tip circle diameter 1000 mm root circle diameter 50 mm Gjdpswp S Thsfx Ah Sokd max. module 18 mm min. module 1 mm max. wheel diameter 1000 mm gear width 630 mm Profile height max. 41 mm helical angle (left/right) max. 45 ° table diameter 720 mm max. table load 1500 kg grinding wheel diam. min/max. 180 / 400 mm grinding wheel width 60 (45/30) mm grinding spindle speed 0 - 3100 U/min total connected load 30 kVa

Condition: used, functionality: fully functional, machine/vehicle number: 40/35-22, Price on request Used Gear Grinding Machine Godpfx Ahswl Aunj Sjkd Brand: NILES Type: ZSTZ 630 C3 Max. gear diameter = 630 mm Tooth width = 215 mm Module = 1 – 12 Number of teeth = 5 – 140 Table diameter = 500 mm Stroke = 500 mm Grinding wheel diameter = 270 – 350 mm Swivel range = 45° Strokes = 75 – 315 per minute Weight approx. = 6.3 t

Condition: ready for operation (used), Specifications Manufacturer NILES Model ZSTZ 08 CNC Gjdpfewgnmfox Ah Sekd Condition Used Stock Number in fabbrica Max diameter 800 mm Max module 14 Min-max number of teeth 5-315 Machine weight 14500 kg Machine dimensions 6000x3500x2800 mm min-max grinding wheel revolution 100-1250 rpm Description Equipped with New electrical system

Condition: used, Year of construction: 2003, grinding wheel diameter: 400 mm, helix angle: 45 °, wheel diameter: 1,500 mm, Used Höfler Rapid 1500, built in 2003 Mahr measuring system Interlit oil preparation system Gkjdpsv U D Tfefx Ah Ssd Location: Australia
