Eccentric Press - Single Column

WMW ERFURT PEE 160-III

Condition: new, Year of construction: 2025, cutting diameter 335 mm saw band length 4400 x 34 x 1,1 mm table height 750 mm feed 5 - 2300 mm pro Hub capacity 90 degrees: flat 500 x 335 mm capacity 45 degrees: round 330 mm capacity 45 degrees: flat 320 x 335 mm capacity 45 degrees: round links 305 mm capacity 45 degrees: flat links 305 x 335 mm capacity 30 degrees: round 180 capacity 30 degrees: flat 170 x 335 15 - 150 m/min workpiece weight max. 250 kg/m kg 3,0 kW 2550 kg 4350 x 2300 x 1900 mm - The ergonomic panel control can be networked and offers various option packs * Teleservice for remote maintenance * Setting of sawing programs in the AV * Import of saw programs from CAD with DSTV interface and data export - Automatic material feed: - In a compact design for shorter sections or with flexible insertion tongs available in almost all lengths - Exact positioning of the material using servo positioning technology - Forward-looking electric saw feed with ball screw: highest Cutting performance and quality, while being gentle on the saw blade - Consistent use of the most modern recirculating ball guides: smooth-running, highly resilient, low-maintenance and backlash-free - Unique and patented double miter system: material is always stretched at right angles - Insertion tongs can be extended as required in 1000 mm increments Fsdpoulnb Dsfx Ac Hepp Furnishing: - Automatic cutting pressure and feed monitoring - Frequency-controlled AC drive 15-150 m/min, 3 kW - Hydraulic material full stroke clamping - Automatic movement of the vice - Automatic saw frame height adjustment - Minimum speed and saw band monitoring - Electric miter swiveling via servo motor - Visualized program input with CNC control - Integrated MEBA tong insertion system from 5-2300 mm per stroke with integrated roller conveyor *Optional equipment: - Laser light for cutting line indication/scribing saws - Driven chip brush - Micro dosing system - Job menu - MEBA NC Server comfort package - Scraper belt conveyor for optimal chip disposal, 2000 mm length - Installation elements (4 pieces) - Adjustable deflector plate 335 DGA

Condition: used, Year of construction: 2016, Technical details: turning diameter over bed: 402 mm turning dia. over face-slide: 245 mm turning length: 1000 mm Fpedpfjvav Sdox Ac Hjp centre distance: 1000 mm centre height: 200 mm swing diameter: in Kröpfung: 560 mm throat: Breite: 120 mm revolution per minute: 40 - 345 / 345 - 1015 / 1015 - 2800 U/min feed: längs: 0,05 - 0,752 + quer: 0,025 - 0,376 mm/U spindle diameter: Ø 42 mm tailstock taper ISO: MK4 tailstock quill stroke: 180 mm total power requirement: 4,1 kW Weight approx.: 1,2 t dimension machine xH: 2,4 x 1,0 x 1,7 m Die Drehmaschine verfügt über keinen Eilgang. Positionierung über 2-Achsen Anzeige über Pinacho Lathe Controller Multifix-Stahlhalter mit Drehmeißel Kühlmittelanlage Fußtaster Gewindeschneiden möglich (metrisch, Whitworth, Modul, Pitch) *

Condition: ready for operation (used), Number of tool slots: 25, max. rotational speed: 6300/min, tool cone: SK40 with DIN 7388 tightening pin, connected load: 35kVA, controls: Deckel Maho MillPlus, operational/ spindle hours: 56,344/ 14,965h, with chip conveyor and 600l coolant tank, without tools and clamping devices. Fpedpfxelbmtnj Ac Hjp

Year of construction: 2010, condition: ready for operation (used), Electrode force: 100daN, welding capacity: 255kVA, nominal input: 80kVA, with Cooling System DALEX DRF 5.2. Fpedpfx Acjiknv Ee Hsp

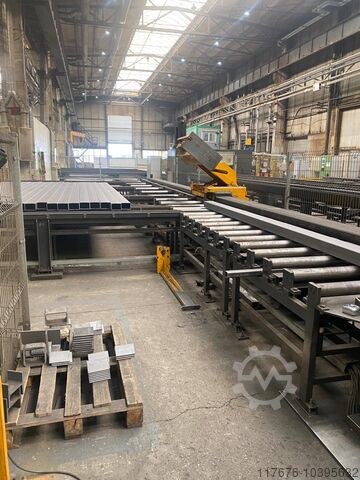

Year of construction: 2007, condition: excellent (used), 603 LBH Technical Description Main Technical Specifications • Minimum sawing capacity at 90° min.mm 60 x 10 max.mm 610 x 310 • Sawing capacity at 45° mm 400 x 310 • Sawing capacity at 60° (available on two flanges only with relevant option) mm 250 x 250 • Mitering angles +45° / -60° • Toothed band size mm 34 x 1.1 • Toothed band speed m/min. 78 • Band motor power kW 4 Fpodpfx Acsl Si Uue Hjp • Working level height mm 850

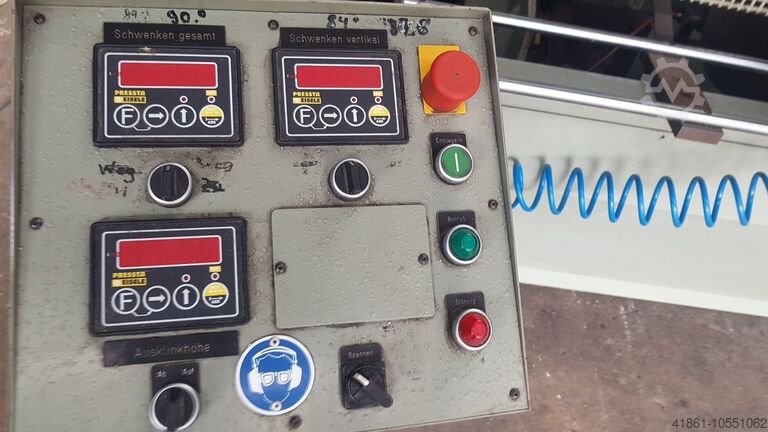

Year of construction: 1996, condition: good (used), machine/vehicle number: 9182, Offer 23168 Technical data: - Notching possibilities + miters in 3 planes - right-angled, one-sided + two-sided + three-sided oblique . - Can be used as a shift cut crosscut saw - Pneumatic profile clamping Machining with semi-automatic sawing units - Saw blade dimensions - vertical 500 x 3,5 x 40 mm positive - horizontal 500 x 3,5 x 40 mm negative - notching width / notching height at 90° 300 / 285 mm - vertical saw blade 60° - 90° - 25° mot. positioning with digital display - Swiveling range saw blade horiz. with vert. saw blade Saw blade - 45° - 90° - 45° mot. positioning with digital displays - Notching height adjustment with digital displays - profile stop shoulder manually tiltable 30° - 90° - 45° - pneumatic coolant check device - air connection 6 bar Fpedpsmb U E Asfx Ac Hsp - drive 400 V / 2 x 3 kW - space requirement approx. W 2400 x H 2000 / D 1400 mm - weight approx. 1200 kg

Condition: excellent (used), Year of construction: 2018, Traverses X Y Z: 1016 x 406 x 406mm, Table 1467 x 267mm, Spindle speed 0 - 6000rpm, Spindle taper BT40, Spindle Motor 5.6kW, HAAS Control Fsdsu Hyvdepfx Ac Hopp 10 Station ATC, USB port, coolant

Condition: good (used), Machine is in good working condition. Fsdpsqzypmsfx Ac Hepp

Condition: excellent (used), MERLI CLOVIS 28 lathe with axis reading rulers Fsdpfxewf I Ito Ac Hopp Turning length 4000mm Turning over support 680mm Turning over bed 840mm Turning in bridge 1000mm 4-jaw chuck 800mm Spindle passage 105mm Very good condition

Condition: used, Technical details: pressure: 160 t throat: 760 mm slide stroke: 32...140 mm distance between table / ram: 400 mm ram adjustment: 100 mm no. of strokes: 50 Hub/min table:: 760x1000x95 passage opening in table: 400x350 mm Fsdpeu Nfhqsfx Ac Hepp clamping surface ram: 630x850 mm clamping plate: 760x1010x92 mm total power requirement: 15 kW weight of the machine ca.: 6,2 t dimension machine xH: 2,9x1,2x3,4 m dimensions electric cabinet LxWxH: 0,8x0,45x2,1 m - via two hand control - copy of documents digital available Machine can be demonstrated under power. *
