Panel beam saw 3300x3200mm

SCM Sigma Prima 67

Condition: excellent (used), Year of construction: 2010, I sell the fully equipped edge banding machine BRANDT Ambition KDF 650 C, year 2010: Configuration: Entry fence manual adjustable Premilling manual adjustable Edge banding EVA Material pressure zone manual adjustable End cutting saws pneumatic adjustable Tilting radius milling top + bottom servomotorical adjustable Corner rounding 2-motor manual adjustable Radius R2 scrapers pneumatic adjustable Glue scrapers manual adjustable Polishing brushes Control panel Power Control PC20 Working thickness adjustment servomotorical Material height 8 - 60mm Edge thickness 0,4 - 12,0 mm Feeding speed 11/14 m/min. Fpedpeu E E D Djfx Ac Hjp Total length including feeding plate 5860mm Total weight 2600 kg 2nd additional glue tank included. With full Documentation and CE. Very good condition, fully working!

Year of construction: 1998, condition: excellent (used), functionality: fully functional, machine/vehicle number: 389101016885, Bulgarian forklift from Balkancar .Capacity 3.5 tons disel drive ..Year of production 1989 ..Unladen weight 4800 kg. Lifting height 3300 mm... Torque 79/27,5 kN. Serviced .Very good condition .Trolley operational ready to use .Net price vat invoice. Cart with access to spare parts . Fpjdpfxstz Td Ae Ac Hsp

Condition: excellent (used), Swing over bed 320 mm Distance between centers 800 mm Fsdpfx Asi Ezhqec Hspp Spindle speeds -4000 rpm Control: HEIDENHAIN Manual Plus M Misc. accessories MARCELS MASCHINEN CH

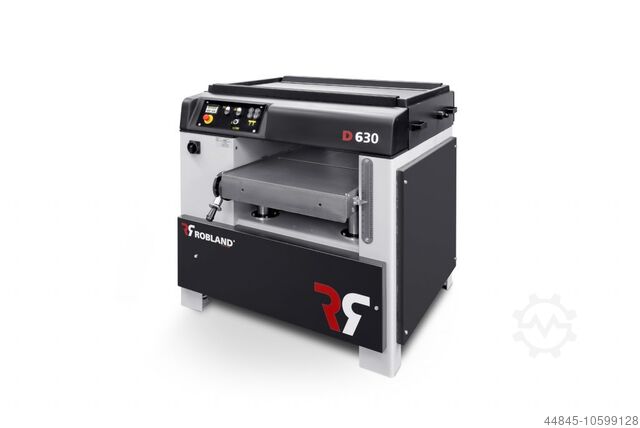

Condition: new, Year of construction: 2023, Weight 950 kg Power voltage 3 x 400 V Motor power (S6) 9,2 kW / 12 PS Dust extraction connection 160 mm diameter knife block 120 mm Number of knives 4 Dimensions knives 630 x 30 x 3 mm Max. Cutting depth 8 mm Width 630 mm Height capacity thickness planer 3 - 300 mm Dimensions thickness planer table 1160 x 630 mm Variable feed speed 5 - 22 m/min. Fpodjmdr A Espfx Ac Hep Diameter feed rollers 70 mm incl. TERSA.cutterblock Picture contains special accessories

Condition: reconditioned (used), Heavy-duty surface planer Solid German engineering Finely planed machine tables, total table length 3000 mm Table adjustment with ball bearings Chip removal system with micrometer gauge Adjustment for hollow and pointed edges with scale display Dressing fence in heavy cast iron design - 45 degree swivel and height adjustable Machine completely rewired Automatic star-delta start Motor protection switch Motor brake Emergency stop switch CE Blade shaft with 4 strip blades Fpodpfx Acovi H Nfe Hop Cutter head diameter 120 mm Planing width: 410 mm, Working table length: 3,000 mm, Cutterblock speed: 5,000 rpm, Motor 400 V, 4.0 kW, 50 Hz Weight approx. : 1050 kg Note used machines: - Subject to errors in technical specifications and prior sale. - Prices quoted are ex location - free loading! - The machines have been cleaned and functionally tested. - All machines are purchased as seen without any warranty. The buyer is free to inspect the machines on site. - Special agreements are only possible in written form. (Inquiries will only be answered with your address and telephone number).

Condition: as good as new (ex-display), Year of construction: 2024, Carriage length: 3200 mm Cutting width at the width stop: 1350 mm Cutting width at the cross-cut fence: 3200 mm Cutting depth: 170 mm Scorer: yes Saw blade height adjustment: electric Swivel adjustment saw blade: electric Width stop adjustment: manual Saw blade angle display: Scala Cutting height display: - Fpjdpstnggysfx Ac Hep Width stop display: Scala Cutting ruler display: Scale Saw blade diameter: 500mm Speeds: 3000 / 4000 / 5000 rpm Motor power: 7 kW Motor brake: yes / automatic Suction connection: 80mm and 120mm Machine length: 3400mm Machine width: 2000mm weight: 900kg

Condition: new, Year of construction: 2022, Working width: 630 mm Fpjdpol D Rxfjfx Ac Hep Planing height: 300 mm Planing shaft: Tersa Number of knives: 4 Height adjustment: electric display planing thickness: digital display Feed speed: infinitely variable 5 - 22 m/min Feed roller: steel pressure beam: jointed Extraction roller: Rubber 2 x table rollers: no engine power: 9,2 kW suction connection: 160mm Machine length: 1200mm Machine width: 1200mm Weight: 1000kg

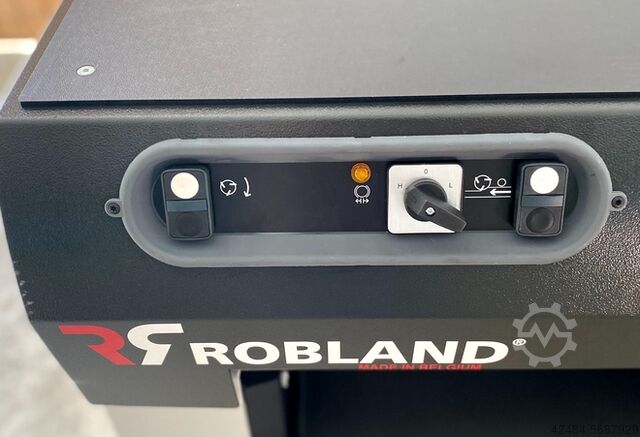

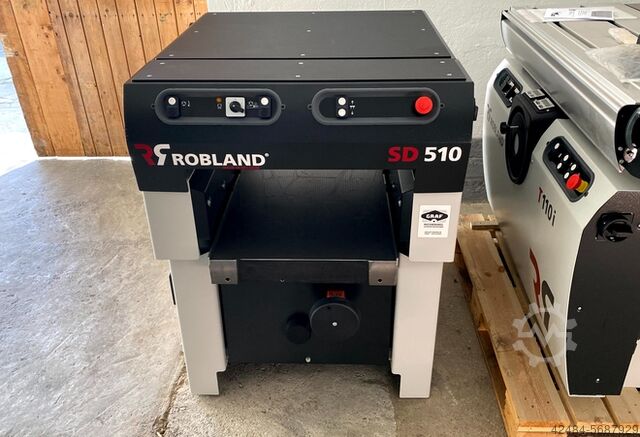

Condition: new, Year of construction: 2025, Working width: 510 mm Planing height: 250 mm Planing shaft: Tersa Number of knives: 4 Height adjustment: electric Display planing thickness: digital display Feed speed: 8 / 16 Feed roller: steel Pressure bar: jointed Fpedpfogqwx Hex Ac Hop Extraction roller: steel table rollers: no Engine power: 7 kW Suction connection: 120mm Machine length: 800mm Machine width: 900 mm Weight: 650kg

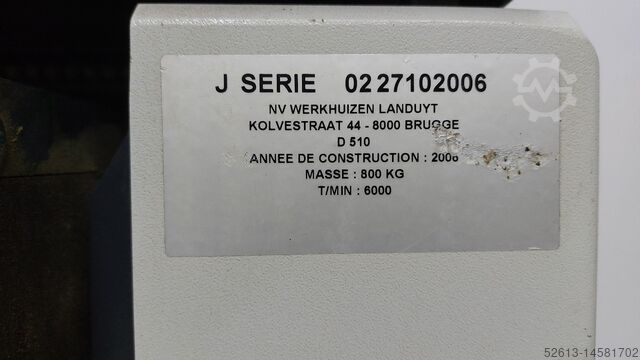

Condition: used, Thicknesser D 510 -max. planing width 51cm - max. planing height 25 cm - 4-knife shaft, Terssa knife - 2 rollers in the table top - 4 feed speeds on the switch - electric brake - weight 800 kg, year of construction 2006 - Cutter shaft revolutions 6000/min Fpedpfxsq R U Tho Ac Hep - electric table lift - Electronic display of the height of the machined measuring scale

Condition: used, Year of construction: 2007, HOLZ-HER – 6310 CUT 110 580 Computer-controlled Panel Saw Watch the video of the machine: Year of manufacture: 2007 Machine number: 136 The machine has been overhauled in all essential mechanical components. New PC, new label printer, etc. in 2023 Technical Specifications and Description: Base machine: Pressure beam saw Version: Fence on the right Saw cycle: away from the fence Cutting length: 5,850 mm Cutting width: 5,850 mm Saw Blades: Main saw blade Ø 400 x 4.4 x 30 mm, Z72, FZ/TZ (not included!) Tungsten carbide pre-scoring blade Ø 180 x 4.4/5.4 x 30 mm, conical (not included!) Cutting Height Cutting height: 110 mm Saw blade projection: 120 mm Pressure beam: pneumatic, pressure adjustable Extraction: Central moving dust channel on the unit Extraction port base machine: 1x Ø 160 mm, positioned on the right side Dust channel in pressure beam: 2x Ø 120 mm – 1x top left, 1x top right with cutting length 5,850 mm: 3x Ø 120 mm – 1x top left, 1x top center, 1x top right Extraction air velocity: 30 m/s Air volume: 4,000 m³/h at 30 m/s Compressed Air Air consumption approx. 32 l/min at 6 bar per cutting cycle Switchable collet chuck pressure Switchable from the control panel For sensitive panel materials Automatic cutting length limitation The saw unit detects the workpiece end using a non-contact sensor and optimizes the cutting cycle Offcut device For cutting without leftover piece Clamps retract into recessed pressure beam Width Stop Precision-guided, freely programmable width stop with clamps Rack-and-pinion drive for precise positioning With surface-hardened linear guides Return speed of panel pusher: 80 m/min Forward speed of panel pusher: 80 m/min (EU – max. permissible forward speed 25 m/min) Max. opening for clamps: 120 mm for longitudinal and cross cuts Clamps, floating design Compensate for internal stress in panel packs upwards – 6 pcs for 3,250 mm cutting length – 7 pcs for 4,250 mm cutting length – 8 pcs for 5,850 mm cutting length Control CUTCONTROL 2 with 15" TFT display Operating system Windows 2000 RJ45 network connection 10/100 Base-T Fast Ethernet Intel Celeron processor Midi tower US keyboard Fsdpjw I Uxpjfx Ac Hjpp Optical mouse CD ROM drive Control panel located on fence side Clearly arranged graphic-based operator interface for easy handling and order/material management on Windows basis Realtime display Large, clearly structured buttons All functions accessible from one level No limits in input fields and unlimited job inputs possible Control Functions Direct Cut: Cutting by direct entry of cutting dimensions. Processing of absolute, serial, or format cuts, with integrated grooving, notching, or positioning cuts. Unlimited jobs programmable. Job prioritization (prioritization possible at any time). Order programming parallel to cutting. NC Cut: Processing of optimized jobs. Graphical machine overview with machine process flow function ...
