Center Lathe

OPTIMUM OPTIturn TH 3309D

Condition: as good as new (ex-display), operating hours: 40 h, functionality: fully functional, total length: 1,685 mm, total width: 745 mm, total height: 1,590 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 70 rpm, overall weight: 512 kg, OPTIturn TH 3309D Art. 3402040 TH 3309D with digital position display DPA 21 used for demonstration purposes. Fpjdpfx Asxivf Ejc Hjp -Hardened and grinded z-axis guideway -Spindle collet Camlock DIN ISO 702-2 no. 4 -Guaranteed concentricity of spindle nose better than 0.015 mm -Motor circuit breaker (TH 3309 / TH 3309D) -DC 24-Volt electric system with two-channel safety circuit as per EN 23125 -Lockable main switch -Right-handed/left-handed rotation switchable on bed slide -Leading spindle cover -Universal machine substructure and tool compartment on right-hand side -Safety hand wheels with release function in the X and Z axis -Emergency stop device with foot pedal

Condition: new, turning diameter 420 mm turning length 1500 mm swing diameter over bed slide 250 mm Swingdiameter in the bed bridge 590 mm centre height 210 mm Turning length in the bed bridge 260 mm reus 16 (45-1800) U/min tail stock MK 4 quill stroke 120 mm diameter of quill 50 mm spindle taper DIN ISO 702-2 Nr. 6 spindle bore 52 mm spindle cone MK 6 feed längs 17 / 0,05 - 1,7 m/min feed plan 17 / 0,025 - 0,85 m/min total power requirement 4,6 kW weight of the machine ca. 1340 kg dimensions of the machine ca. 2440 x 915 x 1375 mm Fully equipped master and feed spindle lathes. TH 4215 with digital position indicator DPA 21 / 3462070 - Hardened and ground Z-axis guideway - Spindle mount Camlock DIN ISO 702-2 No. 6 - Precisely crafted slide - Hand wheels with adjustable fine scaling 0.04 / 0.02 mm - Quadruple steel holder - All guides can be adjusted using V-ledges - Adjustment range top slide ± 90° - Guaranteed concentricity of the spindle nose better than 0.015 mm - Main spindle running in oil bath - Smooth-running gear wheels, hardened and ground with 2 adjustable Precision tapered roller bearings - Hand wheels decoupled and tested according to EN 23125 - Two-channel right-left switch tested according to EN 23125 - Switch with life cycle calculation, tested according to EN ISO 13849 - All metric pitches in the range 0.2 to 14mm/rev and all Inch threads in the range of 72 - 2 threads per inch without changing the Change gears adjustable by shift lever in the control panel - Clockwise/counterclockwise rotation can be switched on the bed slide via the switching spindle - Central lubrication in bed slide - Meehanite cast base and machine bed in one piece - Lead screw cover - Emergency stop device with foot control - Safety handwheels with snap-out function in the X and Z axes - Tailstock for taper turning adjustable ± 10 mm - Tailstock quill and hand wheel with adjustable fine scaling 0.025 mm - Quick, easy and tool-free adjustment using a clamping lever - Heavily ribbed prism bed, induction hardened and precision ground cast iron - Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning according to DIN - LED machine lamp in the chip guard Models TH 4210D and TH 4215D with digital readout DPA21 - User-friendly membrane keyboard, splash-proof, closed andglare-free - Glass scales scope of delivery - Fixed bezel passage Ø 15 - 145 mm - Revolving bezel passage Ø 10 - 75 mm - LED machine light - Reducing sleeve MT 6 / MT 4 - Fixed center MK 4 - Change gear set - Position stop with fine adjustment - Initial filling of the machine with quality oil - Operating tool Incl. special accessory OPTIMUM three-jaw lathe chuck centrically clamping Ø Fpsdpfxsk Egrps Ac Hop 250 mm Quick change holder SWH5-B set

Condition: new, Year of construction: 2025, For delivery times and current prices, please contact us directly. Condition: New machine Center height: 200 mm Center width: 1,000 mm Spindle speed: 70 - 2,000 rpm (8 steps) Equipped as standard with - 3-axis digital readout DPA 21 - Machine base - 200 mm three-jaw chuck - LED machine light - Reducing sleeve MK 4/MK 6 - Fixed center point MK 4 - Steady rest, fixed - Steady rest, moving - Quick-change steel holder Basic body E Fpodpfxeq Ui Tde Ac Hep - Torsion steel holder ED - Chuck protection cover, electrically fused - Oil filling - Operating tool - Operating instructions

Condition: new, Year of construction: 2025, For current prices and delivery times, please contact us. Dimensions and weights: Length (product): approx.3265mm Width/depth (product): approx.1065mm Height (product): approx.1550mm Weight (net): approx.1965kg Working ranges: Center height: 230mm Center width: 2060mm Circumferential diameter over machine bed: 460mm Circumferential diameter in the bed bridge: 690mm Swing diameter over cross slide: 270mm Turning length in the bed bridge: 240mm Bed width: 300mm Speed range: Number of speed ranges: 12 Speed range: 25 - 2000min¯¹ Electrical data: Power drive motor5.5kW Supply voltage400V Mains frequency50Hz Fedpfxjq Ukbpj Ac Hjpp Cooling lubricant system Cooling lubricant system Coolant pump output: 125W Spindle: Spindle holder: Camlock DIN ISO 702-2 No. 6 Spindle bore/bar passage diameter: 58mm Steel holder max. mounting height: 25mm Spindle cone: MK 6 Tailstock: Tailstock holder: MK 4 Tailstock quill stroke: 130mm Tailstock quill diameter: 60mm Pitch: Pitch metric:0.1 - 14mm/rev Number of leads metric: 41 Pitch inch: 112 - 2Gg/1" Number of pitches inch:41 Pitch Diametral Pitch: 4 - 112DPI Number of pitches Diametral Pitch: 50 Module thread pitch: 0.1 - 7mm/rev Number of module thread pitches:34 Travel distance: Top slide travel: 125mm Travel of face slide: 285mm Bed slide travel: 1805mm Feed rate: Feed range longitudinal: 0.031 - 1.7mm/rev Number of longitudinal feeds: 42 Feed range flat: 0.014 - 0.784mm/rev Number of feeds flat: 42 Electrical connection: Total connected load: 5.8kW

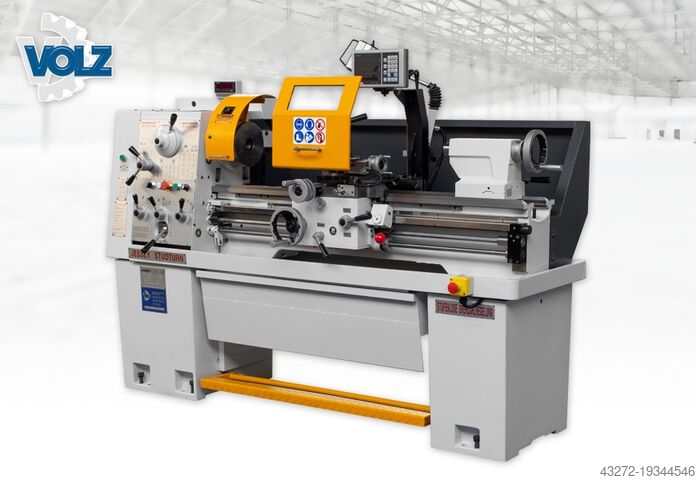

Condition: new, Year of construction: 2024, functionality: fully functional, spindle bore: 45 mm, turning diameter over bed slide: 360 mm, center height: 180 mm, center width: 1,000 mm, quill stroke: 120 mm, quill diameter: 50 mm, bed width: 250 mm, rotational speed (max.): 2,500 rpm, rotational speed (min.): 35 rpm, quill mount: MK 3, Equipment: rotational speed infinitely variable, - Demonstration machine - - Handwheel on the left of the support - with steplessly variable spindle speeds and 3-axis digital display FAGOR INNOVA30iT Fpjdpfx Aewrngcec Hsp (Art. No. 103878) * For more information on the exact standard equipment and available options, visit us online or call us directly *
