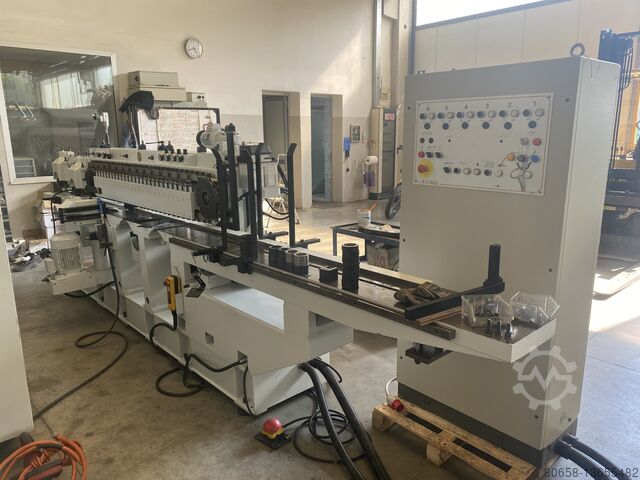

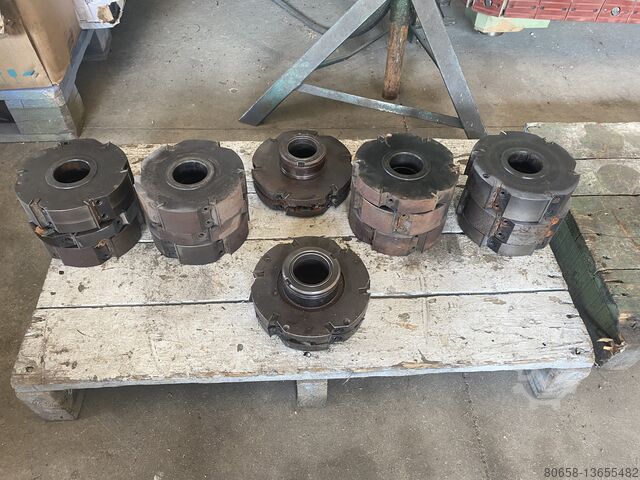

Parquet production line

A. Costa Mistral PA-6

Condition: excellent (used), Year of construction: 2023, Untha shredder Gbedpfowaac Ssx Ah Sow - 30kW - 2 rows of knives - feeder with magnetic separator

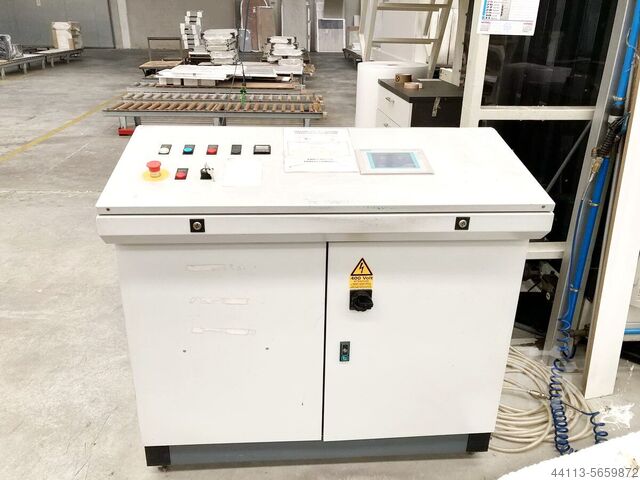

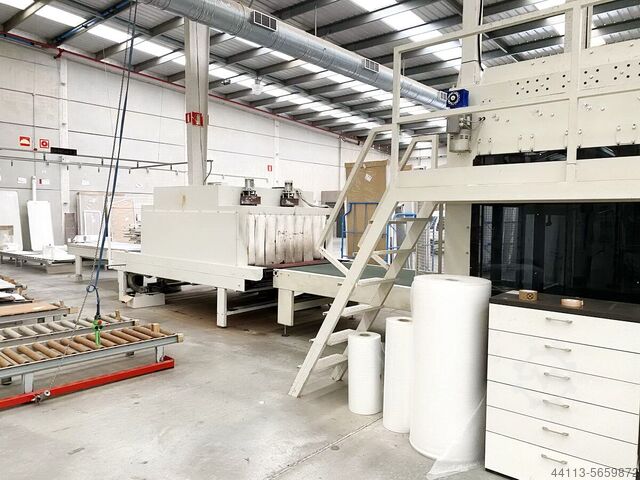

Condition: excellent (used), Coating and packaging line with thermo-shrinkable film, consisting of: a) Double conveyor belt (mm 3000 x mm 1100) for application of corner protections. - Adjustable feeding speed from 3 to 15 m/min. b) Stretch wrapping machine Mod. Compact 250/6R with motorized conveyor belt - Total length of the machine (with motorised belt) mm 7600 approx. - Reel holder (6 upper reels max width mm 2450 + 6 lower reels max width mm 1450) - Slitter and transversal welding machine (mm 2500) - Max useful height mm 700 - Installed power KW 12 - With automatic device to pack light pieces (from 1 to 5 Kg) by welding bar c) Shrinking tunnel total length about 4700 mm (of which about 3700 mm are of the tunnel) with hot air circulation (heating by electric resistances and fan), total installed power KW ? Gbsdpfx Asgp Diaoh Sow - conveyor with metal rods (width mm 1500 approx.) - Max useful height mm 700 - Adjustable feed speed from 4 to 20 m/min d) Outlet roller conveyor "ELME" (idle rollers) for cooling (mm 3000 x 1500 ca.)

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, warranty duration: 6 months, throat depth: 1,200 mm, working width: 1,200 mm, overall weight: 2,000 kg, table width: 1,200 mm, Veneer Splicing Machine Manufacturer: Fisher Rückle Model: Impetum 1200 Year of manufacture: 2017 Includes 6-month used machinery warranty For gluing and gap-free longitudinal splicing of parallel-cut veneer strips in a single operation with commercially available urea adhesives. Splicing performance: Feed speed is infinitely adjustable, with a practical value of approx. 20 - 30 m/min. Technical data: Veneer strip length (grain direction): 380 - 3800 mm Veneer strip width (across grain): 45 - 1200 mm Veneer strip thickness: 0.4 - 1.5 mm Feed speed: 5 - 40 m/min Stand throat depth: approx. 1,200 mm Touch panel with temperature, speed, and pressure displays. Data storage of machine settings for recurring jobs. Godpfxswlbuys Ah Sebw Robust and virtually wear-free stainless steel transport chains. 6 heating zones for different temperature settings. Integrated cooling unit for glue pot cooling. Optionally available: Conversion kit for 3 mm veneers (#8145)

Condition: ready for operation (used), Panel length: 3200mm, panel width: 1000mm, max. workpiece thickness: 38mm, min. infeed length: 500mm. Gedsm Habdepfx Ah Sebw

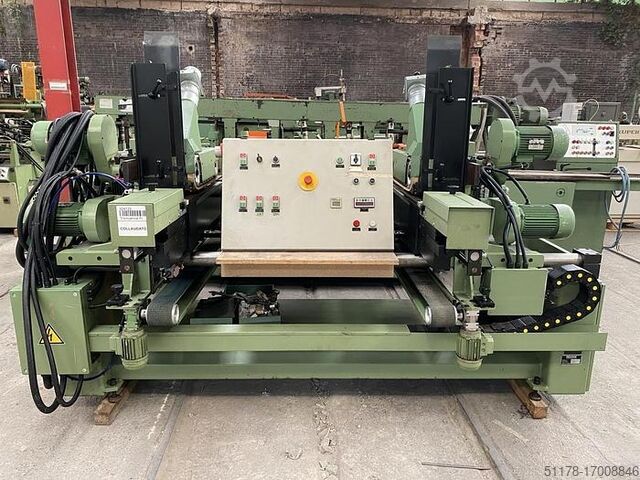

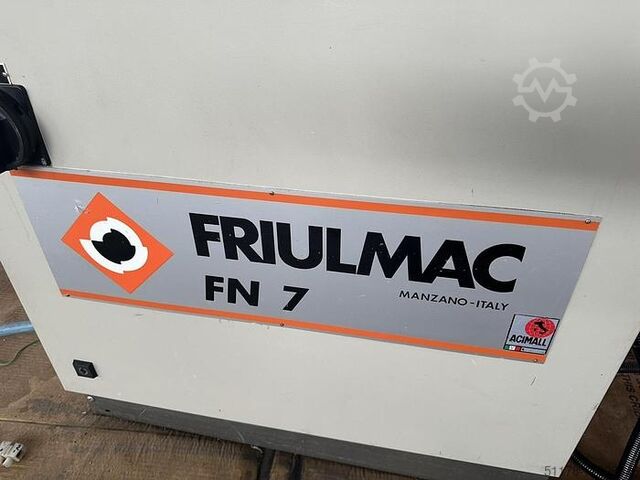

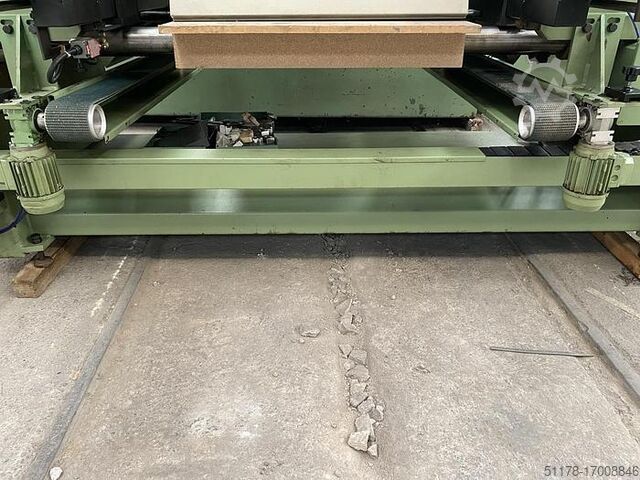

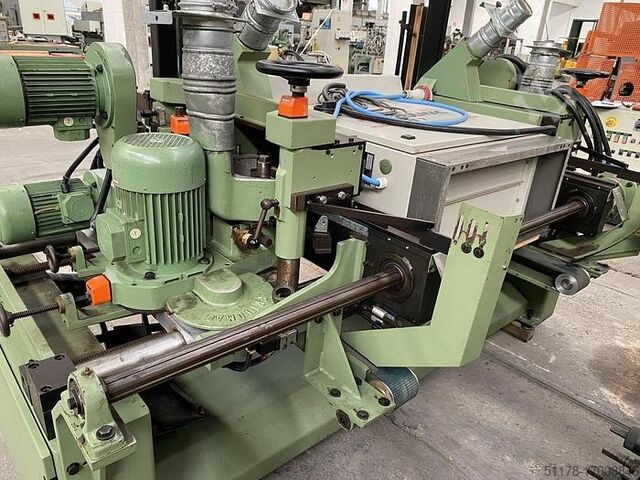

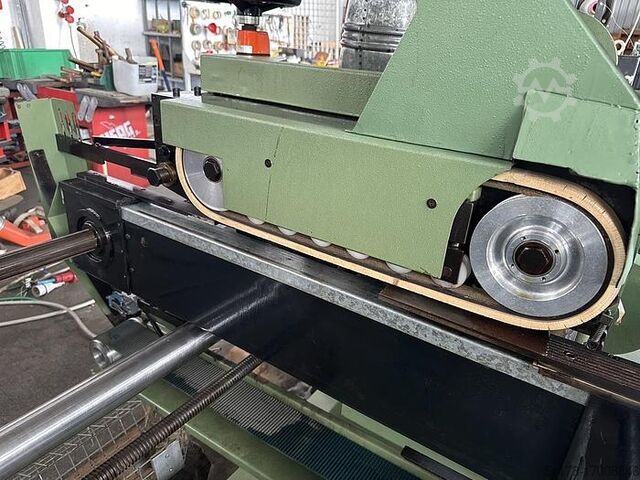

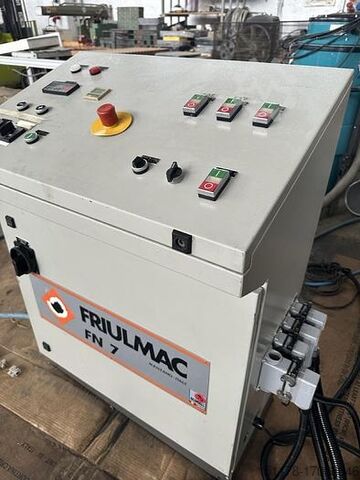

Condition: used, Year of construction: 1995, 1995 Friulmac FN7 1300 Cutting-off machine for Parquet heads or similar products. Maximum opening 1,400 mm Maximum step width 220 mm Gjdpfx Aouichroh Sjbw

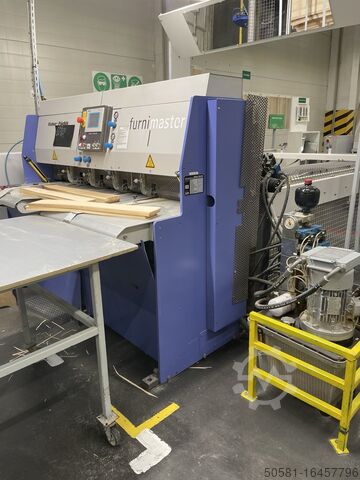

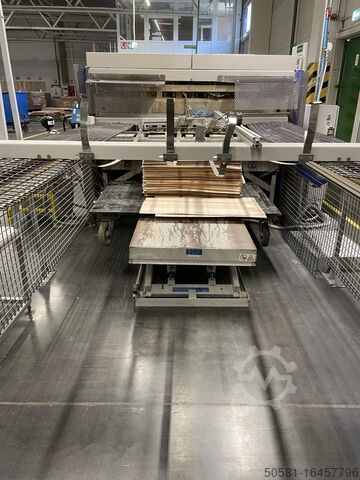

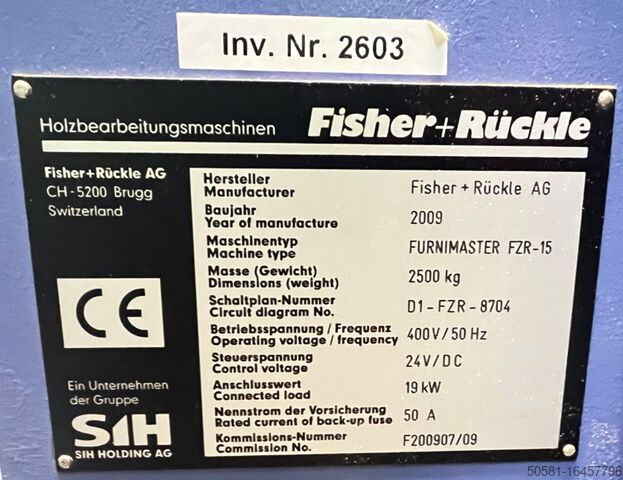

Condition: used, Year of construction: 2009, functionality: fully functional, Machines connected in one line (all three machines are only sold together). 1. Veneer crossfeed splicing machine Fisher+Rueckle FZR-15, year 2009 2. Direct Stacking Device Fisher+Rueckle DAR-22, year 2009 3. Scissor lifting table 1000 kg TECHNICAL DOCUMENTATION (full on request) Veneer Cross-feed Splicing Machine FURNIMASTER FZR-15 Veneer format length (longitudinal to the fibre) 350 - 1500 mm Veneer format width (transverse to the fibre) 50 - 500 mm Veneer strip thickness 0.3 - 1.5 mm Max machine output 30 cycles/min. (the output rates are related to an average veneer strip width of 100 mm transversely to the fibre) Connected load (basic machine): Power rate 13.5 kW Compressed air pressure 6 bar Power consumption: Electric power 6.2 kWh Compressed air supply 15 NL/min. Dimensions and weight (basic machine): 2940 mm L x 1000 mm W x 1530 mm H. 3200 kg Gjdpfxst Akcfs Ah Sebw Stacking device DA-2200 Veneer format length (longitudinal to the fibre) 600 * - 1500 mm Veneer format width (transverse to the fibre) 500 * - 2200 mm Maximum stacking width for output on the - right-hand side 2200 mm - left-hand side 2200 mm - back 1500 mm Stacking height max. 500 mm Power consumption from FZR-15 Weight 1200 kg Lifting table 2500 mm L x 1200 mm W. 1000 kg

Year of construction: 2019, condition: new, Machine is designed to produce two spacers in the same time, with double stroke (pitch) of 150 mm, with heights from 70 to 220 mm, diameter of line wires from 3.5 to 5 mm and diagonal wire diameter from 3.5 to 4 mm. The main parts of machine: 1. Pay-off 2. Straightening system 3. Line wire pooling unit with loop. 4. The system of diagonal wire bending 5. Welding unit 6. Output table with bending unit 7. Energy electrical cabinet Gbodpfx Ajd N Hv Ejh Sjw 8. Control cabinet

Condition: used, No. 3221 Vacuum dryer / drying chamber DWT / IWT MD 2600 x 13000 Used The machine is still connected to power and heating, but has not been used for 3 years Dryer diameter 2600 mm Dryer length 13000 mm Package length 13000 mm Package width 1200 mm Package height 2100 mm Gross capacity 33 m3 Net capacity 20 m3 sawn timber or 15 m3 logs Electrical connection 44 kW Electrical consumption 15 kW/h Water drain 50 mm Water connection 25 mm Gedswiw Evjpfx Ah Ssbw Heat connection 87 kW, 85 °C hot water at the dryer Heat consumption 500 kcal per liter of moisture or 0.6 kW per liter of moisture Including BUDERUS B305/160 boiler, heat output 141 - 160 kW The boiler is operated with natural gas The system is supplied as a fully assembled unit Boiler cylindrical on 3 supports Hydraulic, fully automatic boiler lock Boiler material solid stainless steel to DIN, x5 Cr Ni 189 150 mm insulation, clad with 1 mm galvanized sheet steel Rails in stainless steel, spacing 600 mm 1 rail bridge in front of the boiler 4 trolleys for loading and unloading, length 3200 mm each 12 fans with Siemens motors, 2 spare motors Heating coil as stainless steel finned tubes with aluminum fins, length 150 m, surface 250 m2, diameter 25 mm Flow and return pipe diameter 80 mm Heating medium 85 °C Hot water at the consumer Circulation pump capacity 75 m3/h Vacuum pump BUSCH LX 0260 B, year of construction 2013 Nominal suction capacity min. 200 m³/h / max. 455 m³/h / final pressure 33 hPa (mbar) 1 electric condenser for condensing the vapor 3 fans for cooling or condensing the vapors PLC control Tracks in front of the dryer 14000 x 600 mm The entire system stands on a concrete floor and can be lifted with a crane and loaded onto trucks Transport dimensions approx. 18000 mm long, 3050 mm high (without cooling system) Sale on behalf of the customer, ex location near 09131 Chemnitz, without dismantling, transport and assembly Dismantling, loading and transport by us optionally possible Subject to errors in the description and price To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical details, condition description, year of manufacture and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale No warranty is given for used machines, the following applies: “purchased as viewed” Images and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices excl. VAT, payment before collection or shipping Terms of delivery: ex location

Condition: used, 3 pcs , useful dimensions length 13,68 width 7,92 Gjdpfx Aotprb Hjh Ssbw height 4,62 useful volume 140 m3 each one

Year of construction: 2022, operating hours: 6 h, condition: like new (used), functionality: fully functional, 3 pieces of nearly new PROLAIN dryers, each approx. 170 m³. Further technical data available on request. Sale on behalf of customer. Gbedjxcifrspfx Ah Sow
